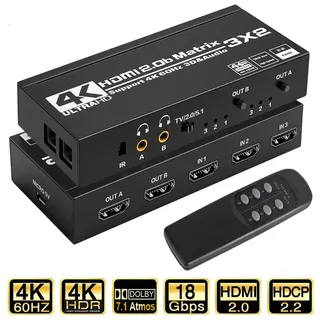

Black rectangular HDMI matrix switch with front ports and IR sensor

Jansicotek

Jansicotek OZJ5 3x2 HDMI Matrix Switch Audio

SKU CH-TA58-Q5H0Q

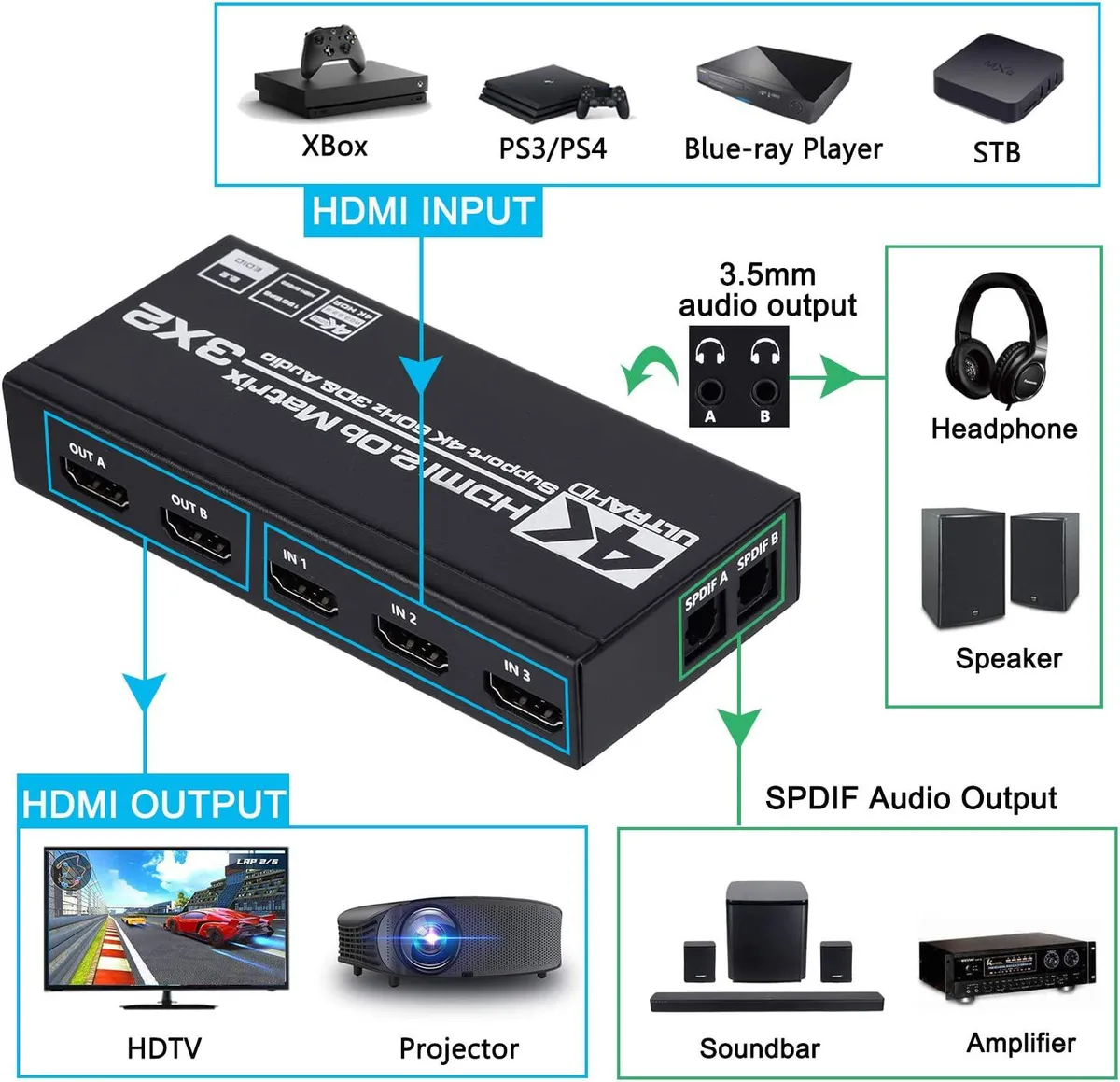

A 3×2 HDMI matrix routes three 4K 60 Hz sources to two displays with independent SPDIF and 3.5 mm audio extraction, controlled by IR remote

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port
  • MatrixYes
  • AudioYes
  • Route three 4K sources to two displays independently
  • Extract audio via SPDIF optical or 3.5 mm stereo
  • IR remote and front-panel button control
  • 5 Gbps bandwidth for 4K 60 Hz HDR
  • Compact 5.91 x 2.36 x .79 inch metal chassis

Three-by-two HDMI matrix for multi-source setups

This Jansicotek OZJ5 unit routes three HDMI sources to two displays while extracting audio through optical SPDIF and 3.5 mm stereo outputs. It handles 4K at 60 Hz with HDR and deep-colour support up to 48-bit. The matrix suits installers who need independent routing and audio breakout without a full AV receiver.

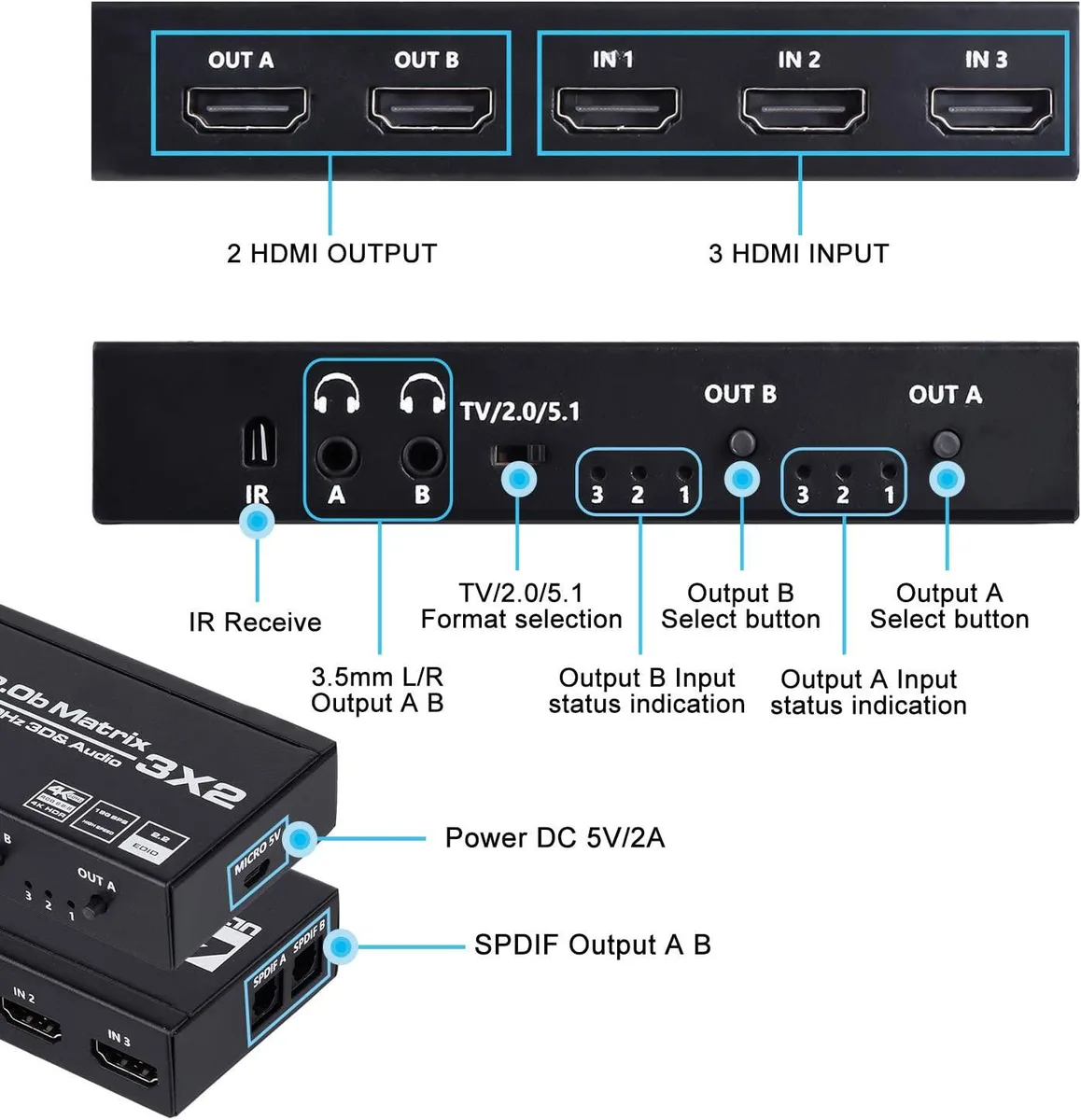

Desktop installation with IR and front-panel control

The switcher measures 5.91 by 2.36 by .79 inches and weighs 11.9 ounces, so it sits on a shelf or rack shelf without brackets. A DC 5 V supply drawing 600 mA is included. HDMI cables up to 10 metres AWG26 are supported. Users report occasional EDID handshake delays when sources change resolution rapidly.

Stable 18.5 Gbps throughput during extended sessions

Bandwidth holds at 18.5 Gbps with a TMDS clock up to 600 MHz across the operating range of minus 15 °C to plus 45 °C. The metal chassis dissipates heat passively, keeping signal integrity steady for long presentations or digital-signage loops. No active cooling means silent operation throughout the duty cycle.

Highlights

  • Route three 4K sources to two displays independently
  • Extract audio via SPDIF optical or 3.5 mm stereo
  • IR remote and front-panel button control
  • 5 Gbps bandwidth for 4K 60 Hz HDR
  • Compact 5.91 x 2.36 x .79 inch metal chassis

Specifications

BrandJansicotek
SeriesOZJ5
ModelOZJ5
Part NumberOZJ5
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port
MatrixYes
AudioYes
Specifications- Product Type:HDMI Matrix 3x2.
- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Input Connector3 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Support HDMI 2.0b HDCP 2.2
- Support 3D video format - Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 3 HDMI inputs switch and split to 2 HDMI displays
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

How do I confirm the OZJ5 is passing a 4K 60 Hz signal correctly after connecting my sources?

Check that both displays show 3840x2160 at 60 Hz in their on-screen menus and that the front-panel LEDs indicate active HDMI 2.0b links with HDCP 2.2 handshake.

What cables and accessories come with the OZJ5, and what must I provide?

The box includes the matrix unit, an IR remote, and a DC 5 V power supply; you supply three HDMI source cables and two HDMI display cables up to 10 m AWG26.

Which EDID setting should I choose on the OZJ5 for a 4K HDR source and a stereo-only soundbar?

Use the smart EDID management to copy the display’s 4K 60 Hz 4:4:4 capability while forcing LPCM 2.1 output so the soundbar receives a compatible stereo down-mix.
