Black rectangular HDMI matrix switch with front ports and buttons

Jansicotek

Jansicotek OZJ5 3x2 HDMI Matrix Switch 4K@60Hz

SKU CH-TQVR-8VEBT

Routes three 4K@60Hz sources to two displays with IR remote, optical and 3.5mm audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port
  • MatrixYes
  • AudioYes

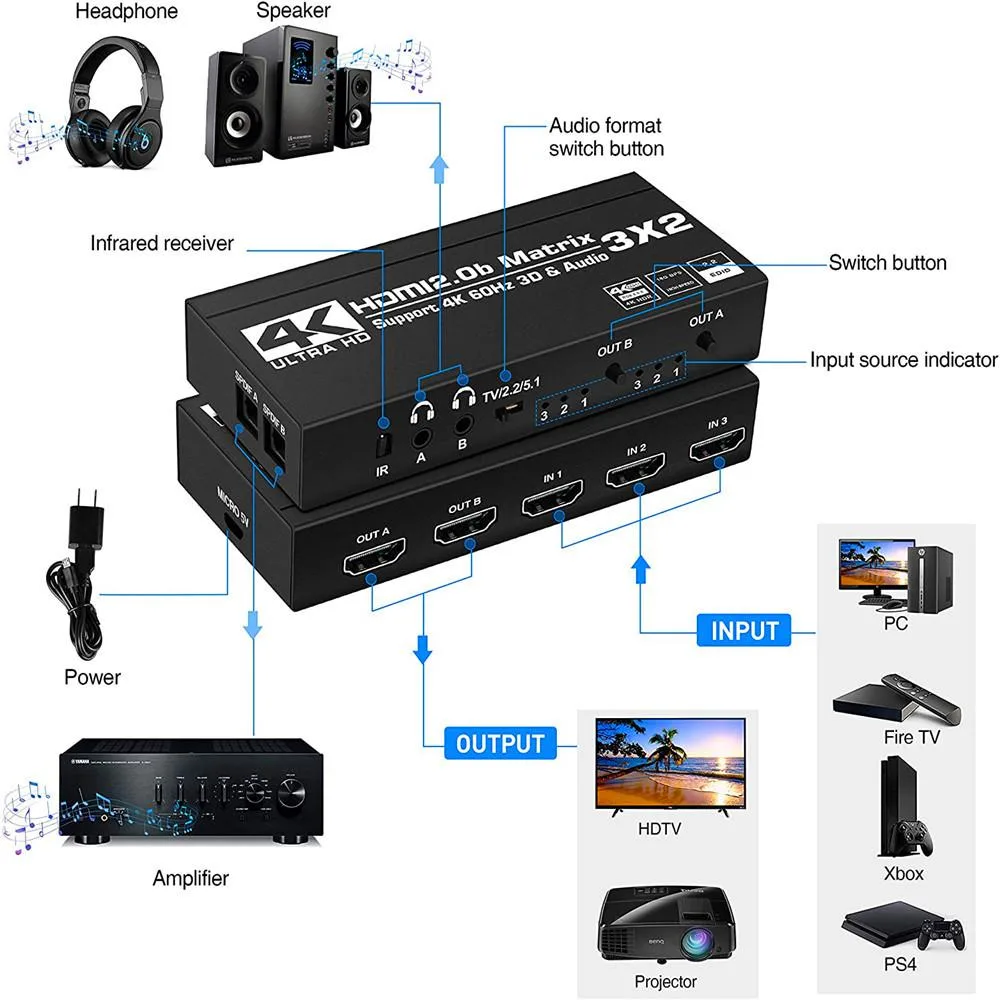

  • Connect three 4K sources to two displays via 3x2 matrix switching
  • Extract audio to SPDIF optical or 3.5mm stereo from any HDMI input
  • Control switching by IR remote or local front-panel button
  • Pass 4K@60Hz HDR with 18.5Gbps bandwidth and 600MHz TMDS clock
  • Supports deep colour up to 48-bit and LPCM 2.1 / Dolby / DTS 5.1

Three-input two-output HDMI matrix

The Jansicotek OZJ5 routes three 4K HDR sources to two independent displays. Each output can show a different source or mirror the same one. IR remote and front-panel buttons provide local switching. The unit operates from a DC 5 V supply drawing up to 600 mA.

Optical and analogue audio extraction per output

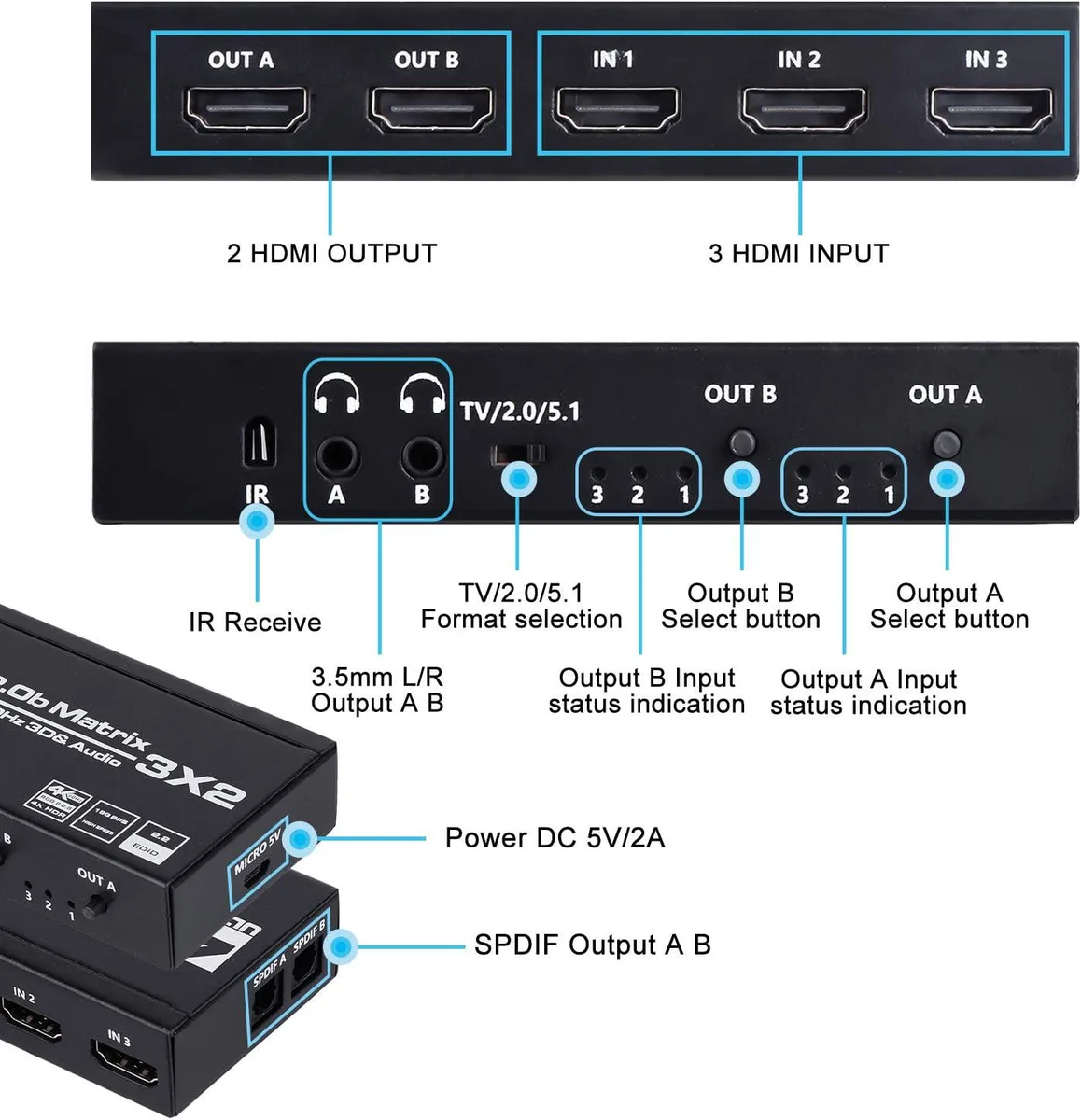

Every HDMI output carries a dedicated Toslink SPDIF port and a 3.5 mm stereo jack. The switch extracts LPCM 2.1, Dolby or DTS 5.1 channel audio from the active input. Smart EDID management keeps each source handshake stable when displays change.

Compact metal chassis with 10 m cable reach

The black enclosure measures 5.91 x 2.36 x 0.79 inches and weighs 11.9 ounces. HDMI 2.0b ports support 18.5 Gbps bandwidth and deep colour up to 48 bit. Certified cables up to 10 metres AWG26 maintain 4K@60Hz signal integrity across the operating range of -15 °C to 45 °C.

Highlights

  • Connect three 4K sources to two displays via 3x2 matrix switching
  • Extract audio to SPDIF optical or 3.5mm stereo from any HDMI input
  • Control switching by IR remote or local front-panel button
  • Pass 4K@60Hz HDR with 18.5Gbps bandwidth and 600MHz TMDS clock
  • Supports deep colour up to 48-bit and LPCM 2.1 / Dolby / DTS 5.1

Specifications

BrandJansicotek
SeriesOZJ5
ModelOZJ5
Part NumberOZJ5
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port
MatrixYes
AudioYes
Specifications- Product Type:HDMI Matrix 3x2.
- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Input Connector3 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Support HDMI 2.0b HDCP 2.2
- Support 3D video format - Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 3 HDMI inputs switch and split to 2 HDMI displays
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Will the DC 5V power adapter or the IR remote control battery need replacement over time?

The unit draws up to 600mA from its DC 5V supply, so the external adapter may need replacing if it degrades; the IR remote uses a standard button cell that will eventually run down.

What cable length limit appears first when running 4K@60Hz signals continuously?

The spec lists a maximum of 10m using AWG26 HDMI 2.0b cable; longer runs at 18.5Gbps bandwidth can cause signal drop-out before any thermal limit is reached.

How much heat does the switch produce when powered all day at full 18.5Gbps throughput?

With a 600mA draw at 5V the device dissipates roughly 3W, and its operating range of -15°C to +45°C means it stays cool enough for continuous use without a fan.
