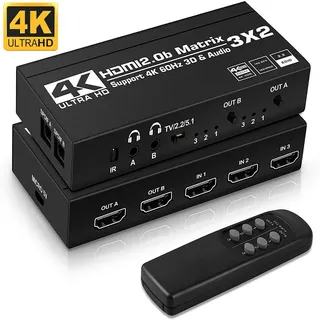

Black rectangular HDMI matrix switch with multiple ports and IR remote

Jansicotek

Jansicotek OZJ5 3×2 HDMI Matrix Switch 4K@60Hz

SKU CH-0BYH-8E0YK

A 3×2 HDMI matrix routes three 4K@60 Hz sources to two displays with SPDIF and 3.5 mm audio extraction, IR remote control and 18.5 Gbps bandwidth

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports3-Port
  • MatrixYes
  • AudioYes
  • Routes three 4K sources to two displays independently
  • Extracts audio via optical SPDIF or 3.5 mm stereo jack
  • Supports 4K at 60 Hz with HDR10 and 18.5 Gbps bandwidth
  • Includes IR remote and front-panel buttons for switching
  • Handles 3D, deep colour up to 48-bit and HDCP 2.2

Jansicotek OZJ5 3×2 HDMI Matrix

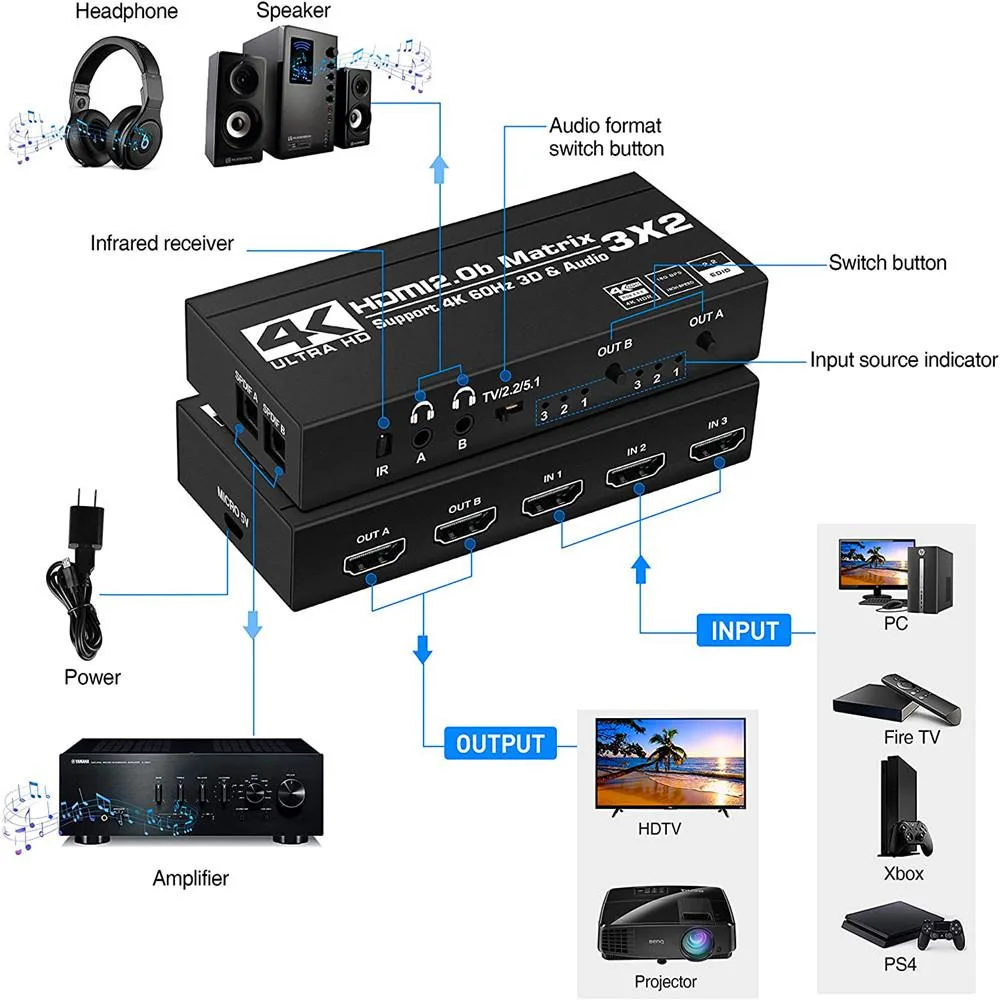

The Jansicotek OZJ5 is a 3×2 HDMI matrix switch that routes three 4K sources to two displays. It supports 4K@60Hz, HDR10, 3D and deep colour up to 48-bit. Audio can be extracted from any input through two SPDIF optical ports and two 3.5 mm stereo outputs. Control is provided by an IR remote and front-panel buttons.

Suited to multi-source AV setups

Installers who need independent audio zones for two displays will benefit from the dual SPDIF and analogue outputs. The matrix handles HDCP 2.2 and 18.5 Gbps bandwidth for protected 4K content. Users requiring more than three inputs or more than two outputs should consider a larger matrix.

Sustained 4K signal integrity

The unit operates from -15 °C to +45 °C with a maximum current draw of 600 mA at 5 V DC. It maintains the full 18.5 Gbps data rate and 600 MHz TMDS clock over cable runs up to 10 metres using AWG26 HDMI 2.0b cables. EDID management ensures stable handshakes during extended operation.

Highlights

  • Routes three 4K sources to two displays independently
  • Extracts audio via optical SPDIF or 3.5 mm stereo jack
  • Supports 4K at 60 Hz with HDR10 and 18.5 Gbps bandwidth
  • Includes IR remote and front-panel buttons for switching
  • Handles 3D, deep colour up to 48-bit and HDCP 2.2

Specifications

BrandJansicotek
SeriesOZJ5
ModelOZJ5
Part NumberOZJ5
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports3-Port
MatrixYes
AudioYes

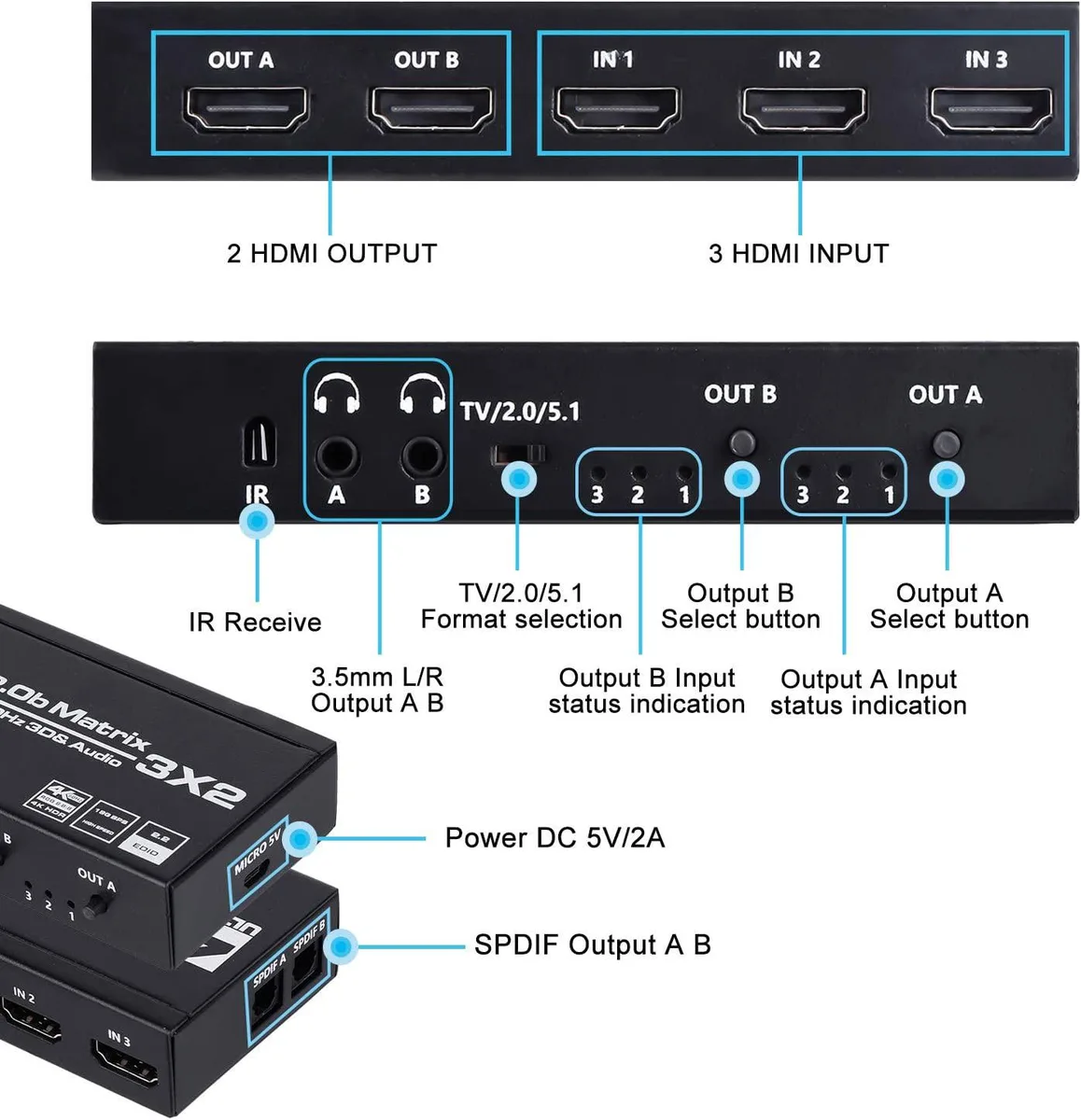

Specifications- Product Type:HDMI Matrix 3x2.
- Interface Type: 3 HDMI Input port, 2 HDMI Output Port
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 0.25kg
Input Connector3 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
Features- Support HDMI 2.0b HDCP 2.2
- Support 3D video format - Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit
- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
- 3 HDMI inputs switch and split to 2 HDMI displays
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 3x2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Which source devices do I need to connect to the three HDMI inputs?

Up to three HDMI 2.0b sources such as a media player, game console or PC that output up to 4K@60Hz with HDCP 2.2.

Will my 1080p display work on one output while the other runs 4K@60Hz?

Yes, each HDMI output operates independently so a 1080p monitor can stay connected alongside a 4K HDR screen.

How can I confirm the matrix is passing 4K@60Hz HDR to both displays?

Check that each display reports 3840×2160@60Hz with HDR enabled and that audio extracts correctly via the SPDIF or 3.5mm ports.
