Jansicotek

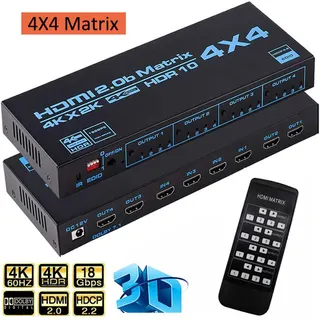

Jansicotek OZJ4 HDMI-compatible 18Gbps 4x4 matrix video switch
A 4x4 HDMI matrix switch routes four sources to four displays at 4K 60 Hz with 18 Gbps bandwidth, HDR, HDCP 2.2 and IR remote control
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports4x4 Matrix
- MatrixYes
- AudioYes
- Route any of four sources to four displays independently
- 5Gbps bandwidth carries 4K at 60Hz YUV 4:4:4
- HDCP 2.2 and HDMI 2.0b keep protected content flowing

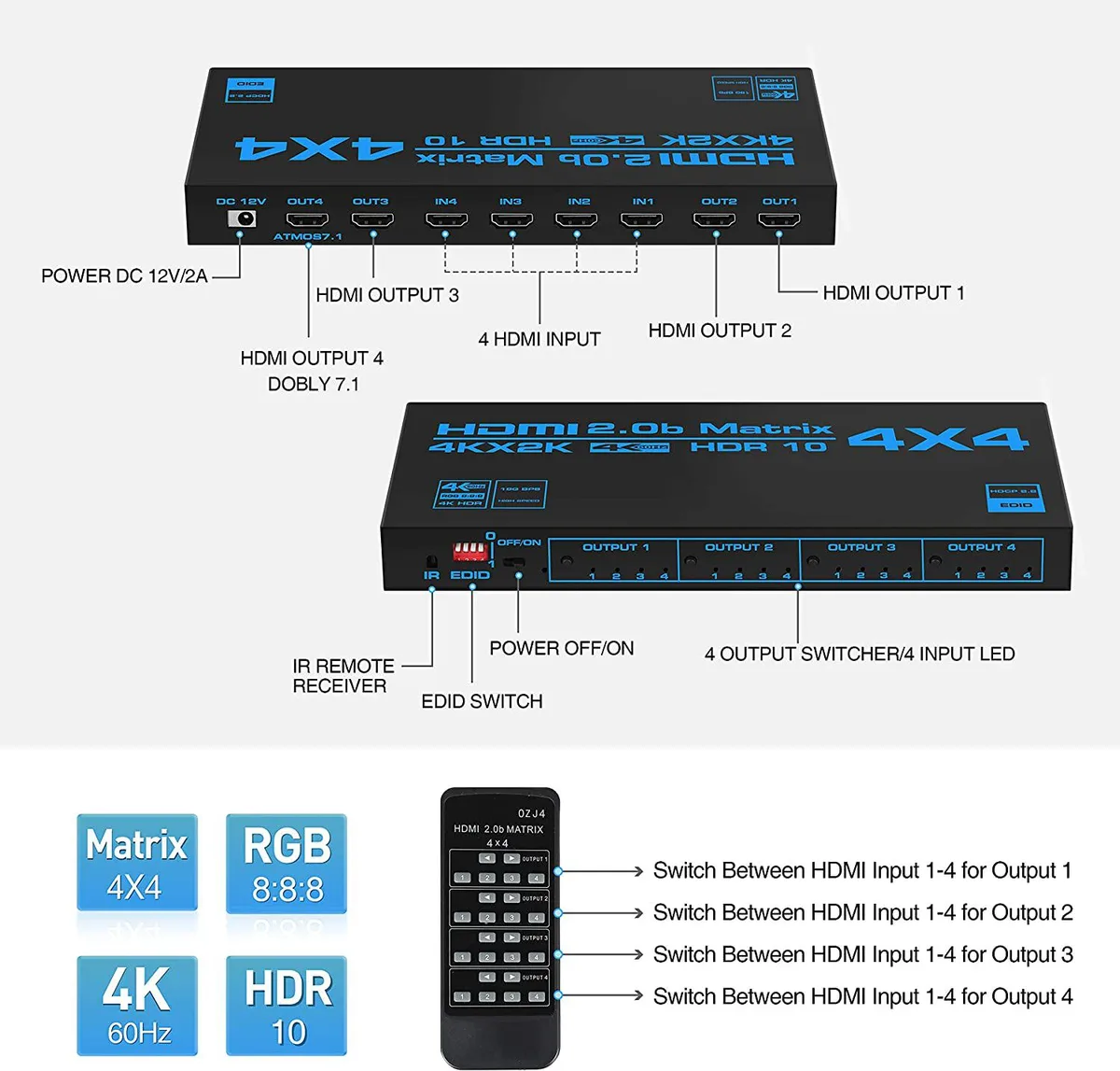

- IR remote plus EDID learning simplify multi‑screen setup
- Compact 230 x 90 x 25mm metal chassis fits tight racks
4x4 HDMI matrix for multi-source routing

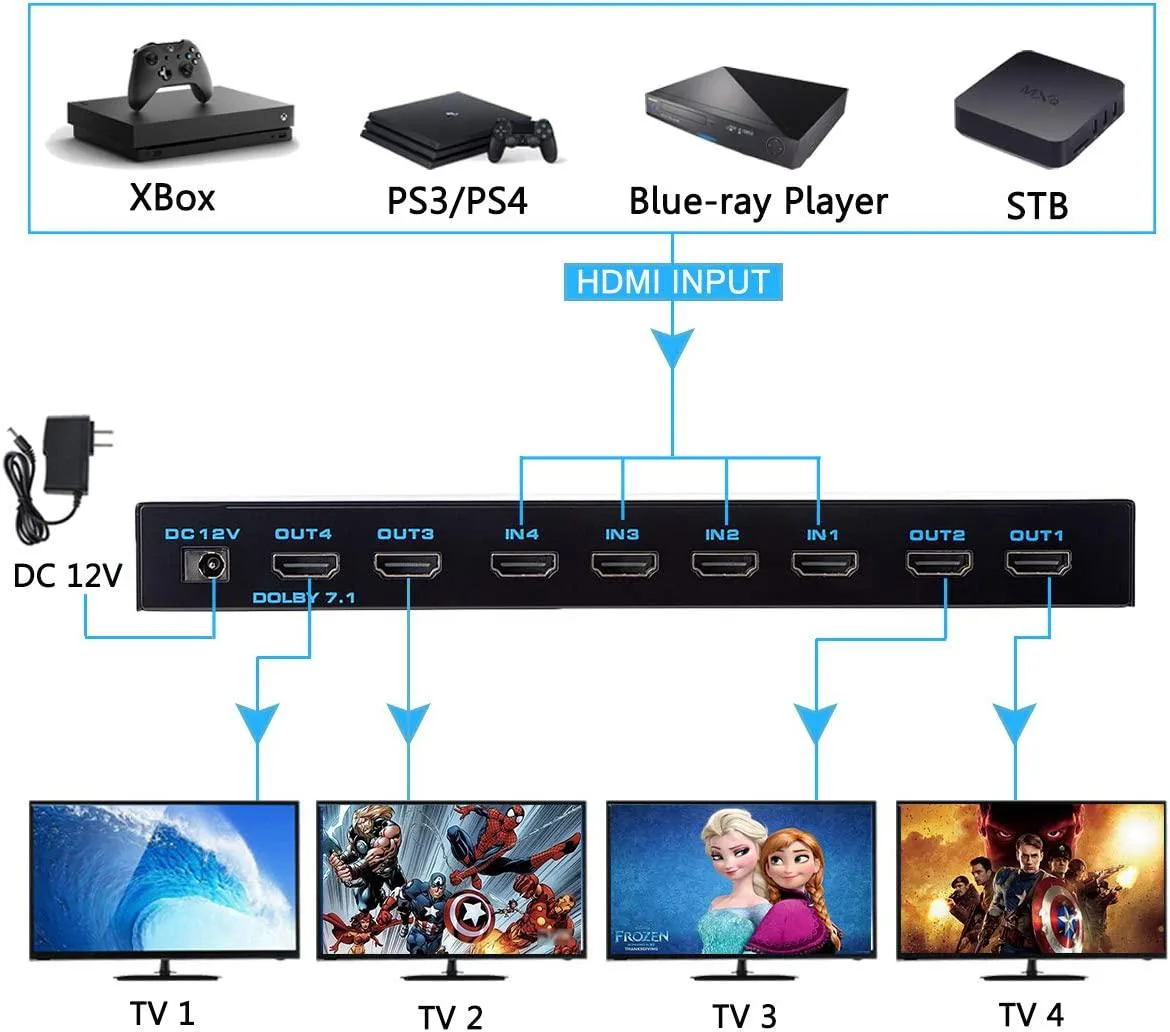

The Jansicotek OZJ4 is a 4x4 HDMI matrix switch that routes four HDMI sources to four independent displays. It handles 4K at 60 Hz with 18 Gbps bandwidth and HDCP 2.2 compliance. Installers and integrators use it when each screen needs a different source at the same time.
Replaces single-output splitters
A basic splitter duplicates one signal to every screen; this matrix lets each output pick any input without rewiring. The jump is worth it when a meeting room, classroom or showroom needs simultaneous, independent content on multiple projectors or TVs. EDID learning and preset tables keep sources outputting the correct resolution after every switch.
Sustained 18.5 Gbps throughput with passive cooling
The unit maintains the full 18.5 Gbps data rate and 600 MHz TMDS clock across all four paths during continuous operation. Metal enclosure and vented chassis dissipate heat without fans, so signal integrity holds over long sessions. Cable runs stay reliable up to 8 metres with AWG 26 HDMI 2.0b leads.
Highlights
- Route any of four sources to four displays independently
- 5Gbps bandwidth carries 4K at 60Hz YUV 4:4:4
- HDCP 2.2 and HDMI 2.0b keep protected content flowing
- IR remote plus EDID learning simplify multi‑screen setup
- Compact 230 x 90 x 25mm metal chassis fits tight racks
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZJ4 |
| Model | OZJ4 |
| Part Number | OZJ4 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 4x4 Matrix |
| Matrix | Yes |
| Audio | Yes |
| Specifications | HDMI-compatible Matrix Switch 4x4 Dimension (LxWxH): approx. 230*90*25mm Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz YUV4:4:4 Support 18Gbps data rate and tmds clock up to 600Mhz Support deep color 8/10/12/bit 4 HDMI input switch and split to 4 HDMI output Input cable distance: =8m AWG26HDMI-compatible2.0b standard cable Output cable distance: =8m AWG26HDMI-compatible2.0b standard cable |
| Input Connector | 4 x HDMI |
| Output Connector | 4 x HDMI |
| Maximum Cable Length | Less than 8m AWG26 HDMI2.0b standard cable |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz YUV4:4:4 Support 18Gbps data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24bit Input and output cable distance: <8m AWG26 HDMI2.0b standard cable |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 4X4 1x 12V power adapter 1x IR Remote Control 1x User Manual |
Questions about this item
What rack or shelf space does the 230 mm × 90 mm × 25 mm chassis require?
The unit measures 230 mm long, 90 mm wide and 25 mm high (5.91 × 2.36 × .79 in), so allow at least that footprint plus cable bend radius behind the four HDMI inputs and four HDMI outputs.
Which step do installers often miss when using the EDID extractor?
After selecting or learning an EDID setting you must power-cycle the matrix before the new EDID takes effect on all four outputs.
When should the AWG26 HDMI cables be replaced to keep 18 Gbps throughput?
Replace any cable run longer than 8 metres or showing sparkles and drop-outs, as the 18.5 Gbps bandwidth budget only guarantees 4K 60 Hz 4:4:4 with AWG26 cables under 8 metres.
