Black rectangular HDMI matrix switch box with four inputs and four outputs

Jansicotek

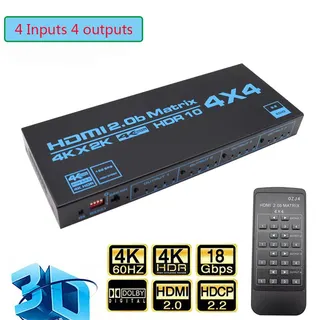

Jansicotek OZJ4 4x4 HDMI matrix video switch

SKU CH-5P44-B5SR3

A 4×4 HDMI matrix routes four sources to four displays at 4K 60 Hz with HDR, 18.5 Gbps bandwidth and IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4x4 Matrix
  • MatrixYes
  • AudioYes
  • Routes four sources to four displays independently
  • 4K 60 Hz HDR with 18.5 Gbps bandwidth
  • Deep-colour 8/10/12/24-bit and 3D support
  • IR remote plus EDID extractor for reliable handshake
  • Compact 230 × 90 × 25 mm black chassis

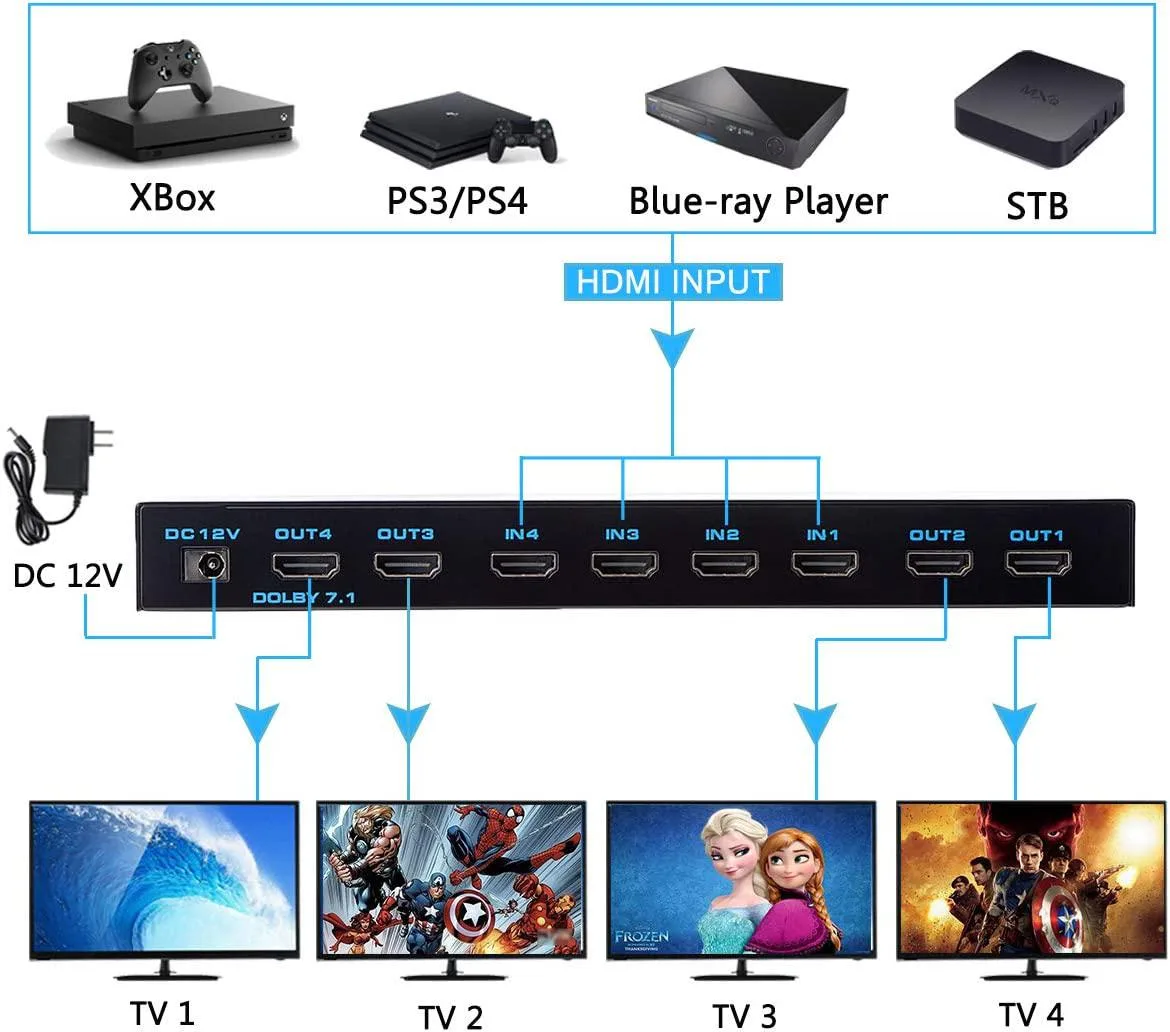

4x4 HDMI matrix switch for multi-source routing

This Jansicotek OZJ4 unit connects four HDMI sources to four displays in any combination. It handles 4K@60Hz signals with 18.5Gbps bandwidth and HDCP 2.2 compliance. Installers and AV integrators use it to route consoles, PCs or media players to multiple screens or projectors without re-cabling. It is not suited for setups needing more than four inputs or outputs.

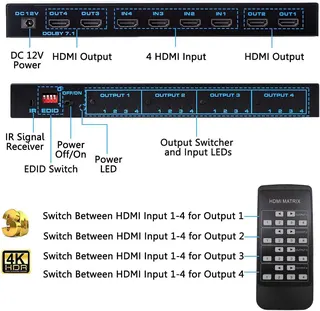

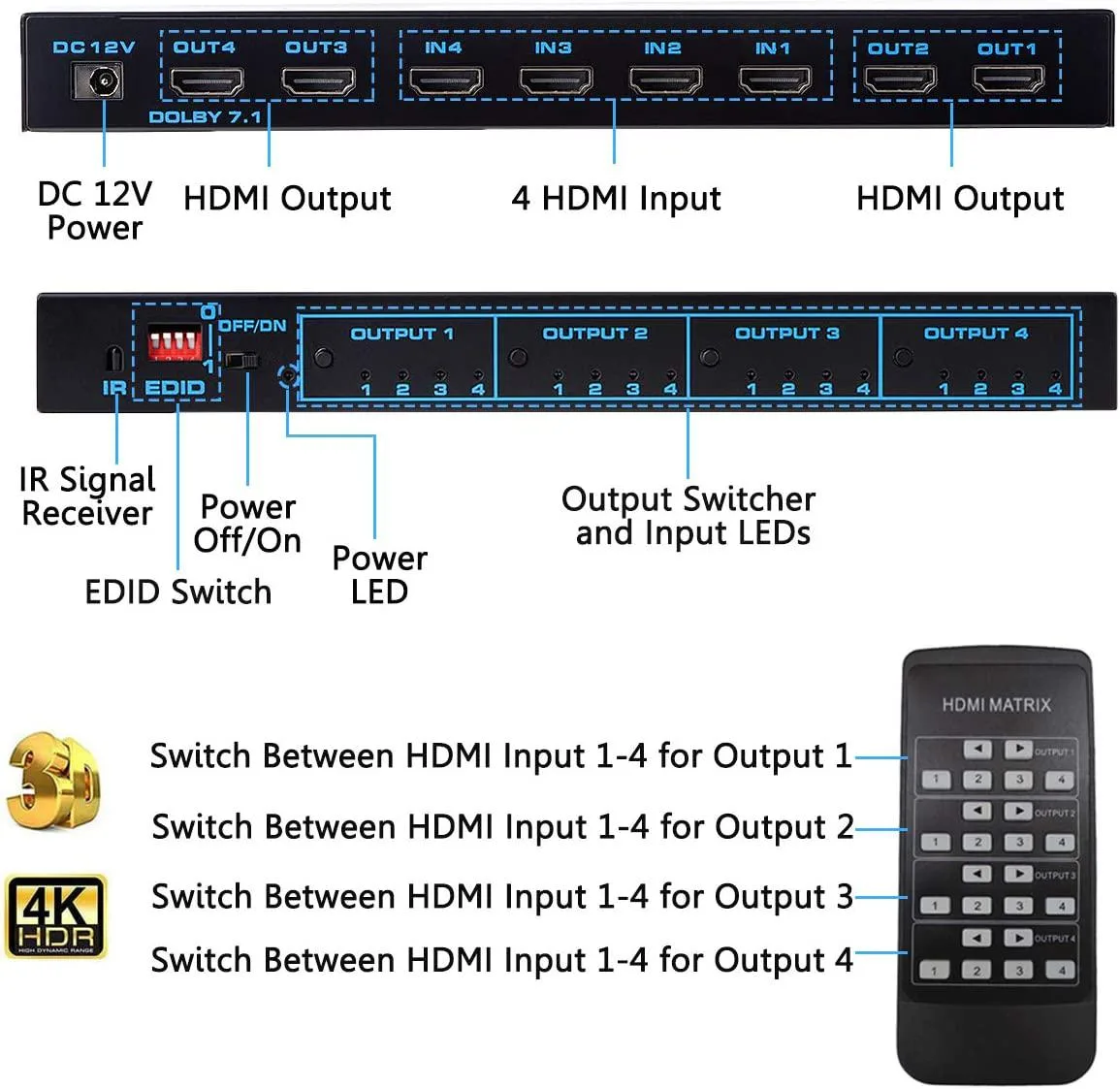

EDID extractor and IR remote change daily operation

The built-in EDID learning function reads connected displays or loads pre-programmed tables so sources output the correct resolution automatically. A supplied IR remote switches inputs per output from across the room, removing the need for front-panel buttons. After EDID changes a power-cycle of the matrix is required. No software utility or network control is included.

Compact metal chassis

The black enclosure measures 230*90*25mm and weighs 11.9 ounces, fitting on a shelf or in a shallow rack tray. All four inputs and four outputs sit on the same side, keeping cable runs tidy and visible. Maximum certified cable length is 8m with AWG26 HDMI 2.0b leads; longer runs may need active cables or fibre extenders not supplied.

Highlights

  • Routes four sources to four displays independently
  • 4K 60 Hz HDR with 18.5 Gbps bandwidth
  • Deep-colour 8/10/12/24-bit and 3D support
  • IR remote plus EDID extractor for reliable handshake
  • Compact 230 × 90 × 25 mm black chassis

Specifications

BrandJansicotek
SeriesOZJ4
ModelOZJ4
Part NumberOZJ4
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4x4 Matrix
MatrixYes
AudioYes
SpecificationsHDMI-compatible Matrix Switch 4x4
Dimension (LxWxH): approx. 230*90*25mm
Support HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz YUV4:4:4
Support 18Gbps data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/bit
4 HDMI input switch and split to 4 HDMI output
Input cable distance: =8m AWG26HDMI-compatible2.0b standard cable
Output cable distance: =8m AWG26HDMI-compatible2.0b standard cable
Input Connector4 x HDMI
Output Connector4 x HDMI
Maximum Cable LengthLess than 8m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz YUV4:4:4
Support 18Gbps data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24bit
Input and output cable distance: <8m AWG26 HDMI2.0b standard cable
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X4
1x 12V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Will the IR remote or EDID settings need reprogramming after a firmware update?

The unit stores EDID settings in non-volatile memory; the IR remote uses a fixed code set, so neither requires reprogramming unless you manually reset the matrix.

At 18.5 Gbps bandwidth, what limits 4K 60 Hz 4:4:4 runs over 8-metre cables?

The 8-metre AWG26 cable limit is set by HDMI 2.0b signal integrity; longer runs need active fibre or HDBaseT extenders to keep 18 Gbps error-free.

Does the 11.9-ounce chassis need active cooling when switching four 4K 60 Hz sources all day?

No fan is fitted; the aluminium enclosure dissipates the low switching load passively, so surface temperature stays warm but within spec during continuous operation.
