Refrigiwear
Refrigiwear 0379 Cold Protection Gloves Large Hi-Vis Lime
- Large
- Gloves
$27.99
0.00032804BTC
In stock
Jansicotek
Jansicotek OZJ3 2x2 HDMI Matrix Switch audio
Routes two HDMI sources to two displays at 4K 60 Hz with IR remote control
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2
- MatrixYes
- AudioYes
- Routes two sources to two displays independently
- Supports 4K at 60 Hz with 18.5 Gbps bandwidth
- Handles LPCM 7.1, Dolby and DTS audio formats
- Switches via front button or IR remote in seconds
- Operates from -15 °C to +45 °C on DC 5 V
What this matrix switch does

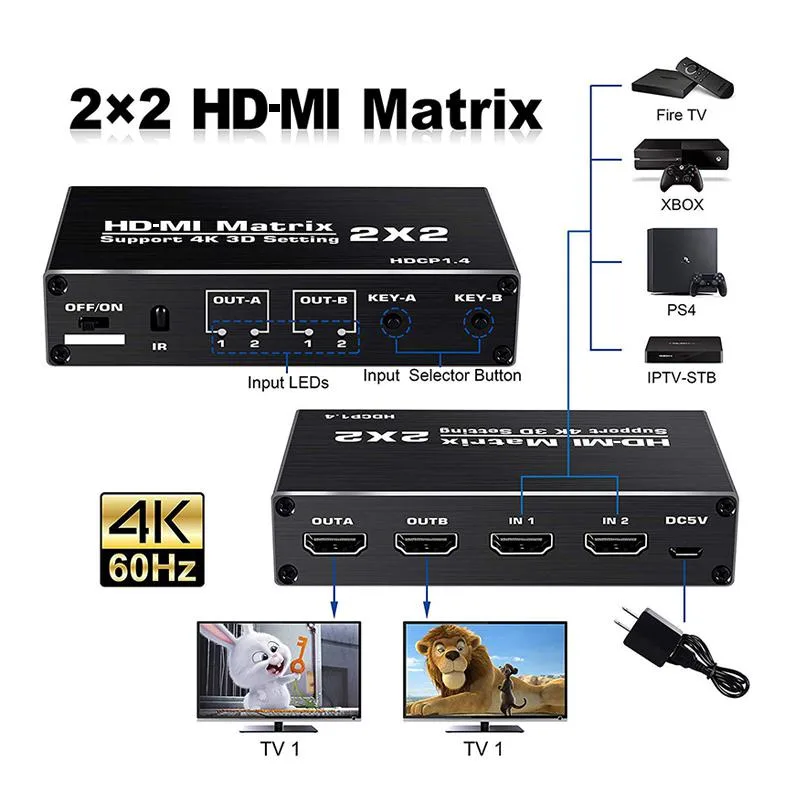

The Jansicotek OZJ3 routes two HDMI sources to two displays independently. Each output can show the same or a different source at the same time. It handles 4K at 60 Hz with 18.5 Gbps bandwidth and passes LPCM 7.1, Dolby and DTS audio formats.
Check your cables and sources first
Both inputs and outputs use standard HDMI connectors. The switch supports HDCP 1.4 but not HDCP 2.2, so protected 4K streams from newer services may not pass through. Maximum cable length is 10 m with AWG 26 HDMI 2.0b cable. Power comes from an included DC 5 V adapter drawing up to 600 mA.
Steady operation under load
The unit operates from -15 °C to +45 °C without active cooling. Signal switching completes within three seconds and the front LEDs confirm the active routing. Deep-colour support up to 48 bit and 3D formats are maintained continuously at the full 600 MHz TMDS clock rate.
Highlights
- Routes two sources to two displays independently
- Supports 4K at 60 Hz with 18.5 Gbps bandwidth
- Handles LPCM 7.1, Dolby and DTS audio formats

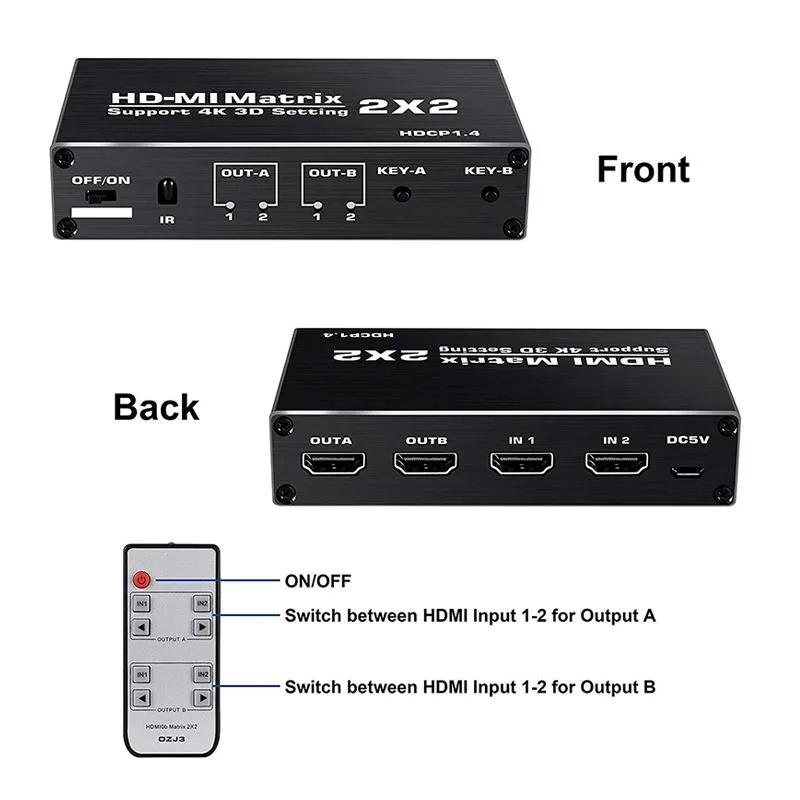

- Switches via front button or IR remote in seconds
- Operates from -15 °C to +45 °C on DC 5 V
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZJ3 |
| Model | OZJ3 |
| Part Number | OZJ3 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2 |
| Matrix | Yes |
| Audio | Yes |
| Specifications | Product Type:HDMI Matrix 2x2. Interface Type: 2 HDMI in, 2 HDMI out Color: Black Power Supply: DC 5V. Max working current: 600mA Operating Temperature range -15°C to+45°C |
| Input Connector | 2 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Cable Length | 10m AWG26 HDMI2.0b standard cable |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0, HDCP 1.4 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0 2 HDMI inputs switch and split to 2 HDMI displays Support LPCM/Dolby/DTS LPCM 7.1 audio format |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 2X2 1x 5V power adapter 1x IR Remote Control 1x User Manual |
Questions about this item
What comes in the box with the OZJ3 matrix switch and do I need to buy cables separately?
The package contains one OZJ3 2×2 HDMI matrix switch, an IR remote control and a DC 5 V power adapter. HDMI cables are not included; you must supply up to four cables yourself, each no longer than 10 metres using AWG26 HDMI 2.0b standard wire.
The specs list HDCP 1.4 but note no HDCP 2.2 — which version should I choose for my 4K sources?
Choose this OZJ3 model only if all your 4K sources and displays work with HDCP 1.4; it will not pass HDCP 2.2 protected content, so newer 4K streaming boxes or UHD Blu-ray players that require HDCP 2.2 will not display a picture.
What does the 18.5 Gbps bandwidth figure mean when the switch is connected to a real 4K 60 Hz display?
The 18.5 Gbps bandwidth supports full 4K 60 Hz 4:4:4 8-bit video, HDR for 2K, 3D formats and up to LPCM 7.1, Dolby TrueHD or DTS-HD Master Audio, but it cannot carry HDCP 2.2 streams or 48-bit deep-colour signals beyond the 18 Gbps HDMI 2.0 limit.
