Black rectangular HDMI matrix switch with two inputs and two outputs, front LED indicators, IR remote sensor, DC power port

Jansicotek

Jansicotek OZJ3 2x2 HDMI Matrix Switch 4K@60Hz Black

SKU CH-0NXA-TT7FS

A 2×2 HDMI matrix routes two sources to two displays at 4K 60 Hz with 18.5 Gbps bandwidth and 7.1-channel audio

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Connect two sources to two displays simultaneously with zero lag
  • Enjoy 4K at 60 Hz resolution with 18.5 Gbps bandwidth
  • Hear immersive 7.1-channel audio including Dolby True HD and DTS-HD

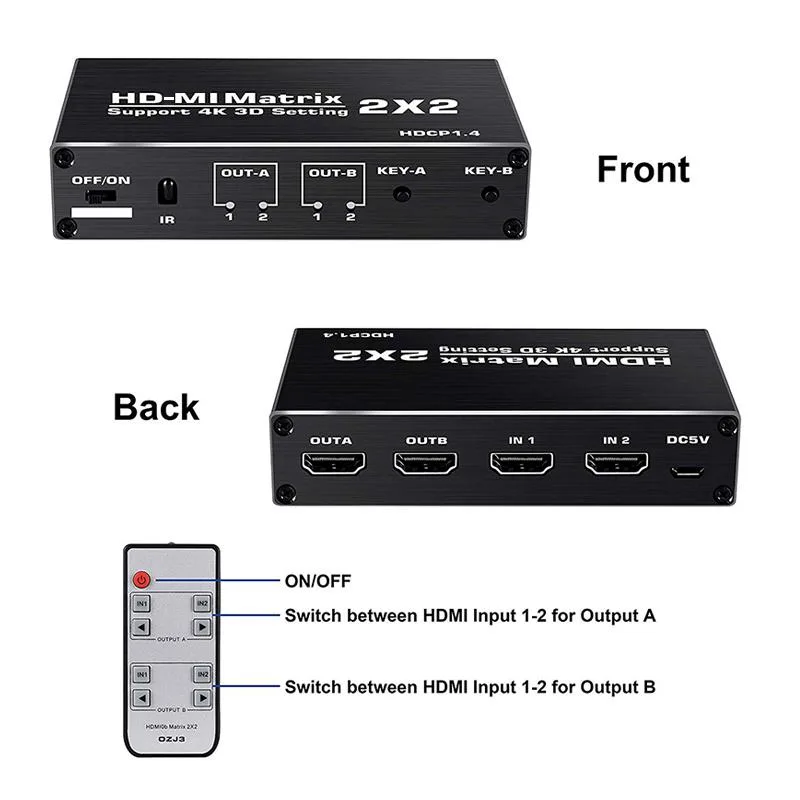

  • Switch inputs instantly via front button or IR remote in three seconds
  • Compact 5.91 x 2.36 x 0.79 inch design runs on DC 5 V power

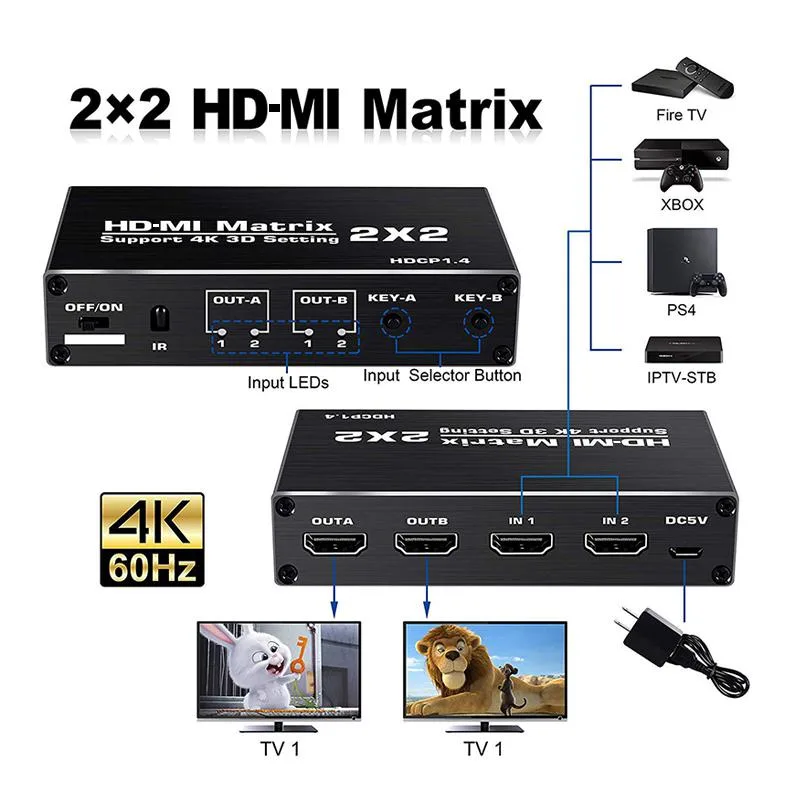

2×2 HDMI Matrix Switch

The Jansicotek OZJ3 routes two HDMI sources to two displays independently. It handles 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 1.4 compliance. The unit supports 1080p 3D, YUV 4:2:0 and deep colour up to 48-bit. An IR remote and front-panel buttons select the active input within three seconds.

Plug-and-play connectivity

Two HDMI inputs and two HDMI outputs connect directly to consoles, PCs, Blu-ray players or projectors. A 5 V DC supply drawing 600 mA powers the switch. Standard HDMI cables up to 10 metres AWG26 carry the signal without an extender. No drivers or software configuration are required for operation.

Sustained operation

The chassis operates from minus 15 °C to 45 °C and measures 5.91 by 2.36 by 0.79 inches. Passive cooling maintains stable 600 MHz TMDS clock rates during continuous use. Audio pass-through covers LPCM 7.1, Dolby Digital, DTS and Dolby TrueHD formats. HDCP 2.2 content is not supported.

Highlights

  • Connect two sources to two displays simultaneously with zero lag
  • Enjoy 4K at 60 Hz resolution with 18.5 Gbps bandwidth
  • Hear immersive 7.1-channel audio including Dolby True HD and DTS-HD
  • Switch inputs instantly via front button or IR remote in three seconds
  • Compact 5.91 x 2.36 x 0.79 inch design runs on DC 5 V power

Specifications

BrandJansicotek
SeriesOZJ3
ModelOZJ3
Part NumberOZJ3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Matrix 2x2.
Interface Type: 2 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0, HDCP 1.4
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0
2 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS LPCM 7.1 audio format
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2X2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Will the 18.5 Gbps bandwidth handle 4K@60Hz all day without signal drop?

Yes, the 18.5 Gbps bandwidth and 600 MHz TMDS clock support 4K@60Hz YUV 4:2:0 continuously within the stated specs.

Does the unit run hot or noisy when powered continuously at 600 mA?

It draws only 600 mA at 5 V, has no fan, and operates silently from -15 °C to +45 °C.

Which cables and power source do I need before it works?

Two HDMI 2.0b cables up to 10 m AWG26 and the included DC 5 V adapter.
