Black rectangular HDMI matrix switch with two input and two output ports

Jansicotek

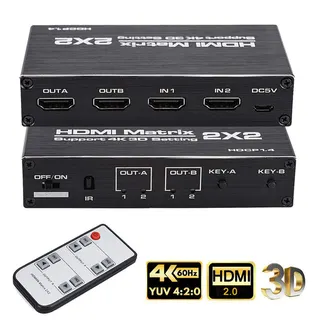

Jansicotek OZJ3 2x2 HDMI Matrix Switch 4K 60Hz

SKU CH-PVFQ-5PYW6

Routes two HDMI sources to two displays at 4K 60 Hz with 18.5 Gbps bandwidth and IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • Route two sources to two displays simultaneously without delay
  • Support 4K@60Hz, HDR, 3D and 18.5Gbps bandwidth via HDMI 2.0
  • HDCP 1.4 compliant but does not support HDCP 2.2
  • Works with PC, consoles, projectors and Blu-ray players with LPCM 7.1 and Dolby TrueHD audio

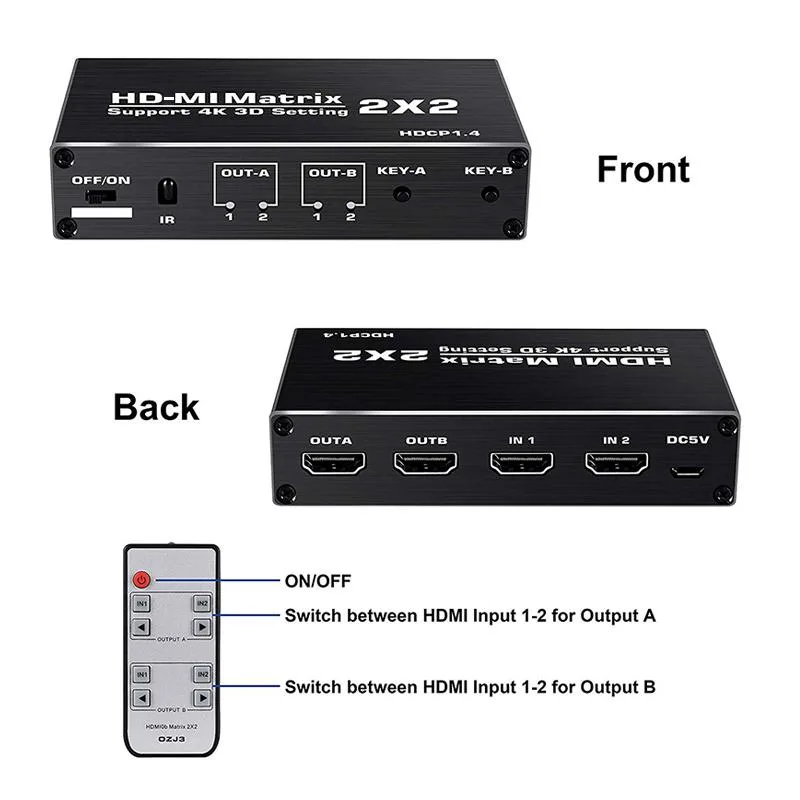

  • Switch inputs in seconds by button or IR remote with LED status indication

Two-by-Two HDMI Matrix

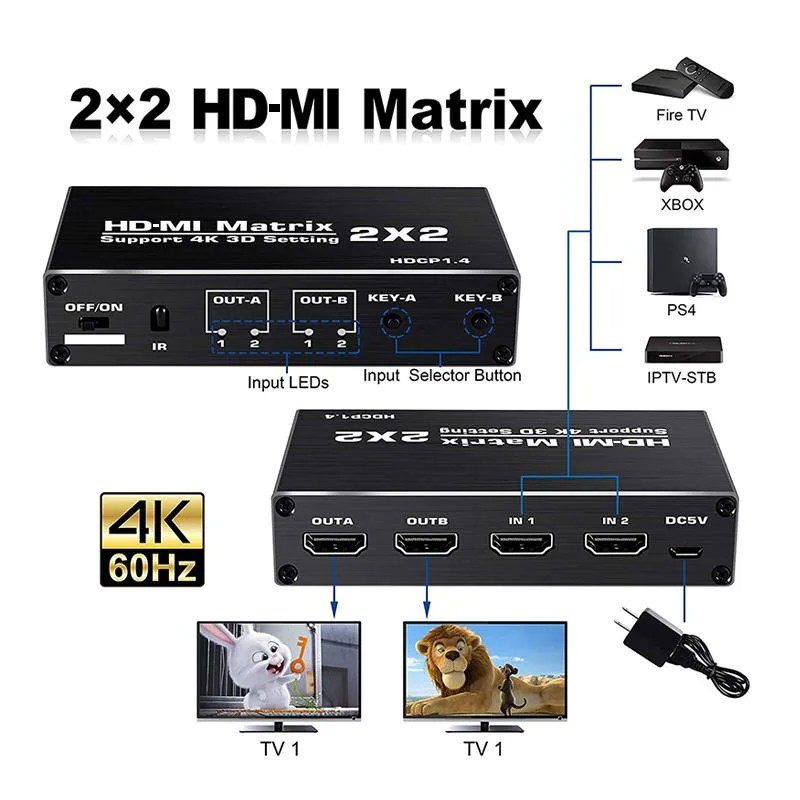

The Jansicotek OZJ3 is a 2×2 HDMI matrix switch that routes two source devices to two displays simultaneously. It suits installers and home-theatre owners who need independent output selection without unplugging cables.

HDCP 1.4 Limit

The unit complies with HDCP 1.4 but does not support HDCP 2.2. Any source or display that requires the newer protection standard will not pass protected 4K content through this matrix.

Continuous 18.5 Gbps Operation

Rated bandwidth of 18.5 Gbps and a TMDS clock up to 600 MHz are sustained across the operating range of –15 °C to +45 °C. The DC 5 V supply draws a maximum of 600 mA during prolonged switching sessions.

Highlights

  • Route two sources to two displays simultaneously without delay
  • Support 4K@60Hz, HDR, 3D and 18.5Gbps bandwidth via HDMI 2.0
  • HDCP 1.4 compliant but does not support HDCP 2.2
  • Works with PC, consoles, projectors and Blu-ray players with LPCM 7.1 and Dolby TrueHD audio
  • Switch inputs in seconds by button or IR remote with LED status indication

Specifications

BrandJansicotek
SeriesOZJ3
ModelOZJ3
Part NumberOZJ3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Matrix 2x2.
Interface Type: 2 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0, HDCP 1.4
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0
2 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS LPCM 7.1 audio format
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2X2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

What does 4K@60Hz mean when I connect two sources and two displays to this matrix?

You can route either of the two 4K sources to either or both of the two displays at 3840×2160 resolution and 60 frames per second without downscaling or frame drops.

How does the HDMI 2.0b and HDCP 1.4 combination limit what I can play?

The 18.5Gbps bandwidth handles 4K 60Hz 4:2:0 and HDR, but HDCP 1.4 blocks protected 4K streaming services that require HDCP 2.2, so those sources will fall back to 1080p or show no picture.

What space and power do I need to mount the OZJ3?

The unit measures 5.91×2.36×0.79 inches and weighs 11.9 ounces; it runs on a DC 5V supply drawing up to 600mA, so a nearby USB charger or the included adapter is sufficient.
