Black rectangular HDMI matrix switch with four HDMI ports

Jansicotek

Jansicotek OZJ3 2×2 HDMI Matrix Switch 4K@60Hz 18.5Gbps

SKU CH-EEGB-HA6C5

Routes two HDMI sources to two displays at 4K 60 Hz with 18.5 Gbps bandwidth and HDCP 1.4

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • MatrixYes
  • AudioYes
  • 2×2 matrix routes two sources to two displays independently
  • 5 Gbps bandwidth carries 4K@60Hz with HDR and 12-bit deep colour
  • HDCP 1.4 compliant for protected 4K content up to 3840×2160

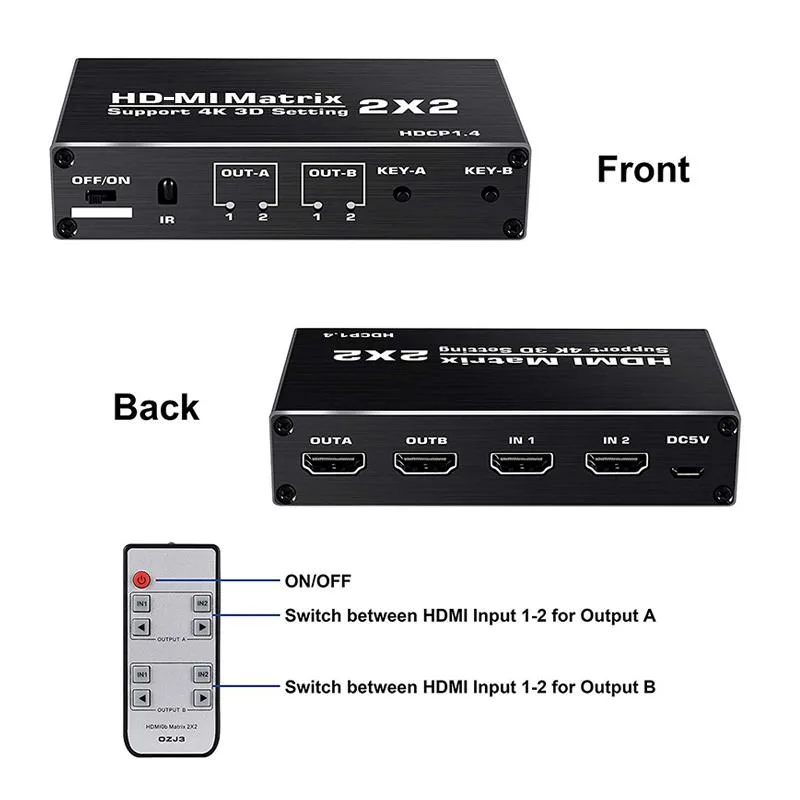

  • Remote and front-panel switching change active input in about 3 seconds
  • DC 5 V 600 mA power supply operates from −15 °C to +45 °C

Two-input two-output HDMI matrix

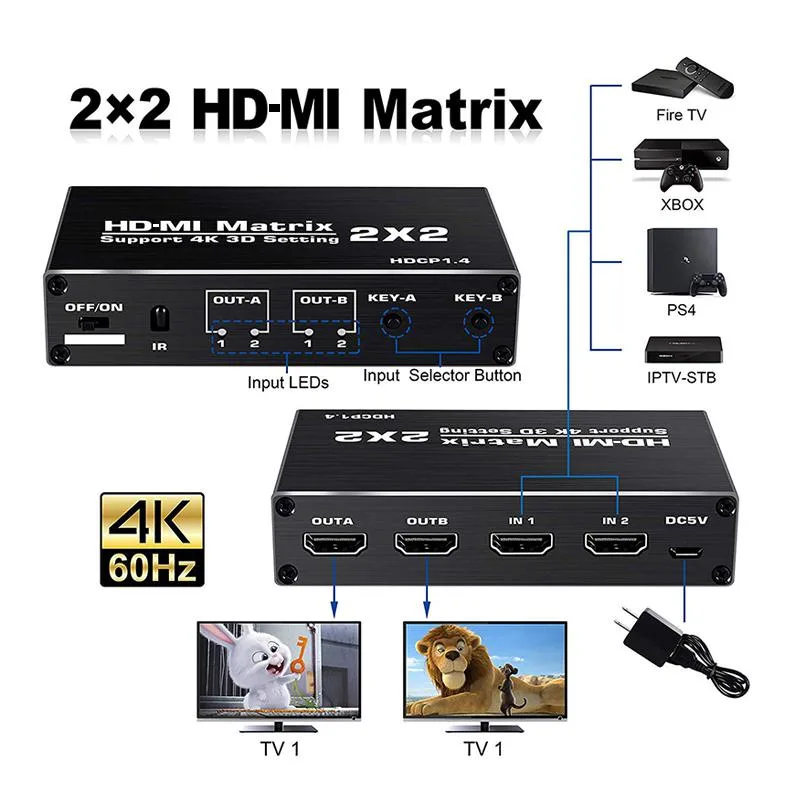

The Jansicotek OZJ3 routes two HDMI sources to two displays independently so each screen can show the same or a different signal. It accepts 4K at 60 Hz with 18.5 Gbps bandwidth and passes HDR, 3D and deep-colour formats up to 48-bit. Audio formats include LPCM 7.1, Dolby Digital, DTS and Dolby TrueHD. The unit ships with an IR remote for front-panel switching.

Check source and display capabilities

Verify that both sources and both displays operate with HDMI 2.0 and HDCP 1.4 because the switch does not support HDCP 2.2. Use cables no longer than 10 metres built to the AWG26 HDMI 2.0b standard to guarantee the rated bandwidth. The device requires a DC 5 V supply capable of delivering 600 mA, so confirm the included adapter matches your mains voltage before connecting.

Steady operation within thermal limits

The matrix is rated for continuous use between minus 15 °C and plus 45 °C and draws a maximum of 600 mA at 5 V. Switching between inputs typically completes within three seconds with no frame drops or flash once the link is trained. LED indicators show the active routing so operators can confirm the signal path during extended sessions without interrupting playback.

Highlights

  • 2×2 matrix routes two sources to two displays independently
  • 5 Gbps bandwidth carries 4K@60Hz with HDR and 12-bit deep colour
  • HDCP 1.4 compliant for protected 4K content up to 3840×2160
  • Remote and front-panel switching change active input in about 3 seconds
  • DC 5 V 600 mA power supply operates from −15 °C to +45 °C

Specifications

BrandJansicotek
SeriesOZJ3
ModelOZJ3
Part NumberOZJ3
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Matrix 2x2.
Interface Type: 2 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Input Connector2 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0, HDCP 1.4
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
HDMI resolution: up to 3840*2160/60 Hz, YUV 4:2:0
2 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS LPCM 7.1 audio format
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 2X2
1x 5V power adapter
1x IR Remote Control
1x User Manual

Questions about this item

Does the OZJ3 include the power adapter and HDMI cables, or must they be bought separately?

The package contains the matrix switch, a remote control and a DC 5V power supply; HDMI cables are not included and must be purchased separately.

Which version should I choose if my displays only support HDCP 1.4 and not HDCP 2.2?

The OZJ3 is HDCP 1.4 compliant and explicitly does not support HDCP 2.2, so it is the correct choice for displays limited to HDCP 1.4.

What does the 18.5 Gbps bandwidth mean for 4K@60Hz playback on my TV?

The 18.5 Gbps bandwidth carries 4K@60Hz at YUV 4:2:0 with HDR and deep colour up to 48-bit, but it cannot pass full 4:4:4 chroma at 60 Hz.
