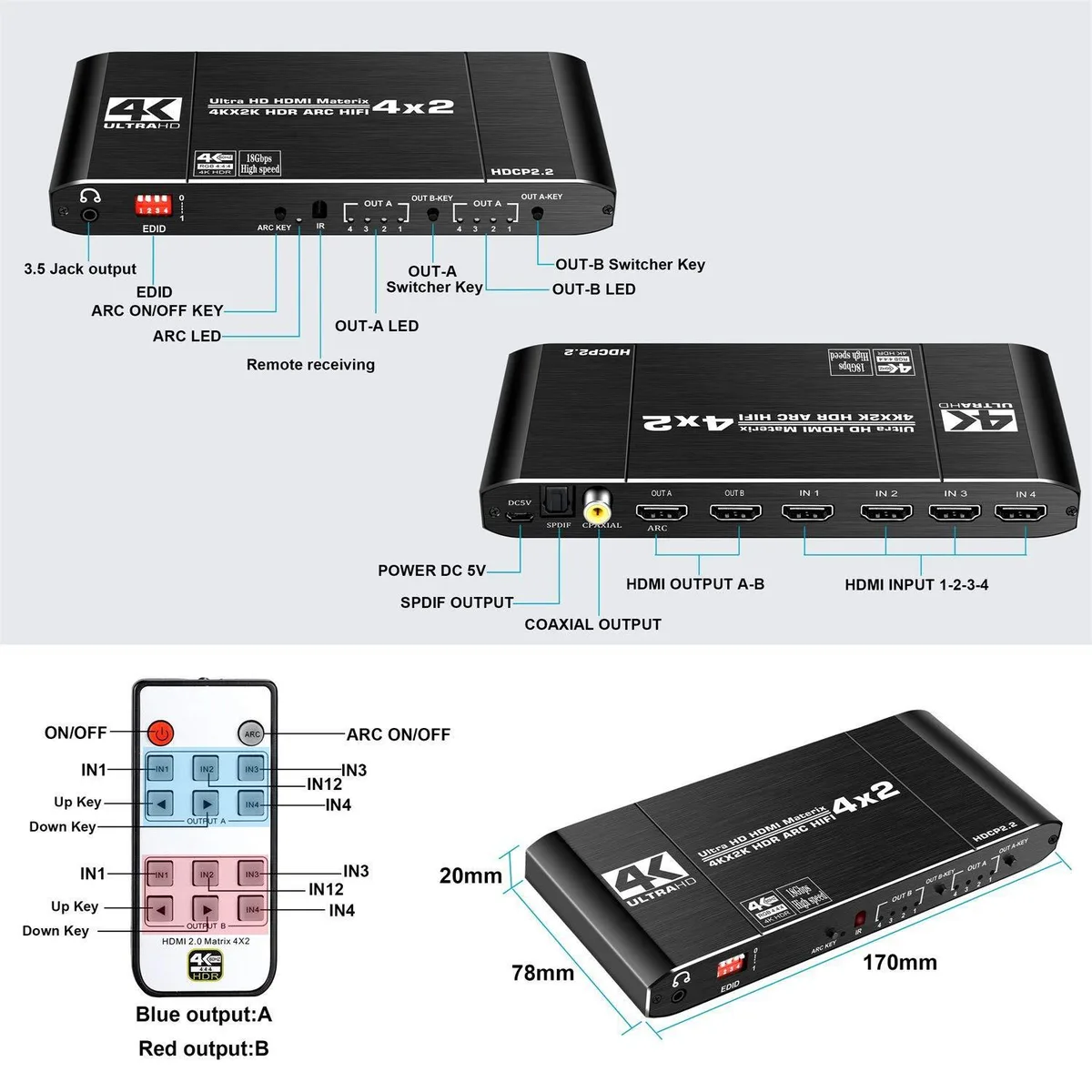

Black rectangular HDMI matrix switch with four inputs and two outputs, front LED indicators and side-mounted buttons

Jansicotek

Jansicotek OZJ2 HDMI Matrix Switch 4x2 4K@60Hz

SKU CH-SCFH-F0819

Routes four HDMI sources to two displays at 4K@60Hz with ARC audio extraction and IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Routes four sources to two displays simultaneously
  • 4K@60Hz resolution with 18.5Gbps bandwidth
  • HDMI 2.0b and HDCP 2.2 compliance
  • IR remote and front-panel button control
  • ARC audio return via optical and 3.5mm outputs

4×2 HDMI Matrix Switch

The Jansicotek OZJ2 routes four HDMI sources to two displays simultaneously. It combines splitter and switcher functions so each screen can show the same or a different source. The unit supports HDMI 2.0b and HDCP 2.2 for protected 4K content. It is suited for home theatre or presentation setups that need flexible source distribution.

Thermals noise and power draw

The switch draws a maximum working current of 600 mA from the supplied 5 V DC adapter. No fan is fitted, so operation is completely silent. The specified operating temperature range spans -15 °C to +45 °C. Power consumption remains low during typical switching and pass-through use.

Sustained load behaviour

Bandwidth of 18.5 Gbps and a TMDS clock up to 600 MHz maintain 4K@60 Hz 4:4:4 colour without compression over extended sessions. Deep-colour modes up to 48-bit and HDR pass-through remain stable during continuous operation. ARC is available on the OUT A port for return audio. EDID management across eight modes prevents handshake drops during long-running installations.

Highlights

  • Routes four sources to two displays simultaneously
  • 4K@60Hz resolution with 18.5Gbps bandwidth
  • HDMI 2.0b and HDCP 2.2 compliance
  • IR remote and front-panel button control
  • ARC audio return via optical and 3.5mm outputs

Specifications

BrandJansicotek
SeriesOZJ2
ModelOZJ2
Part NumberOZJ2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Splitter 4x2
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4

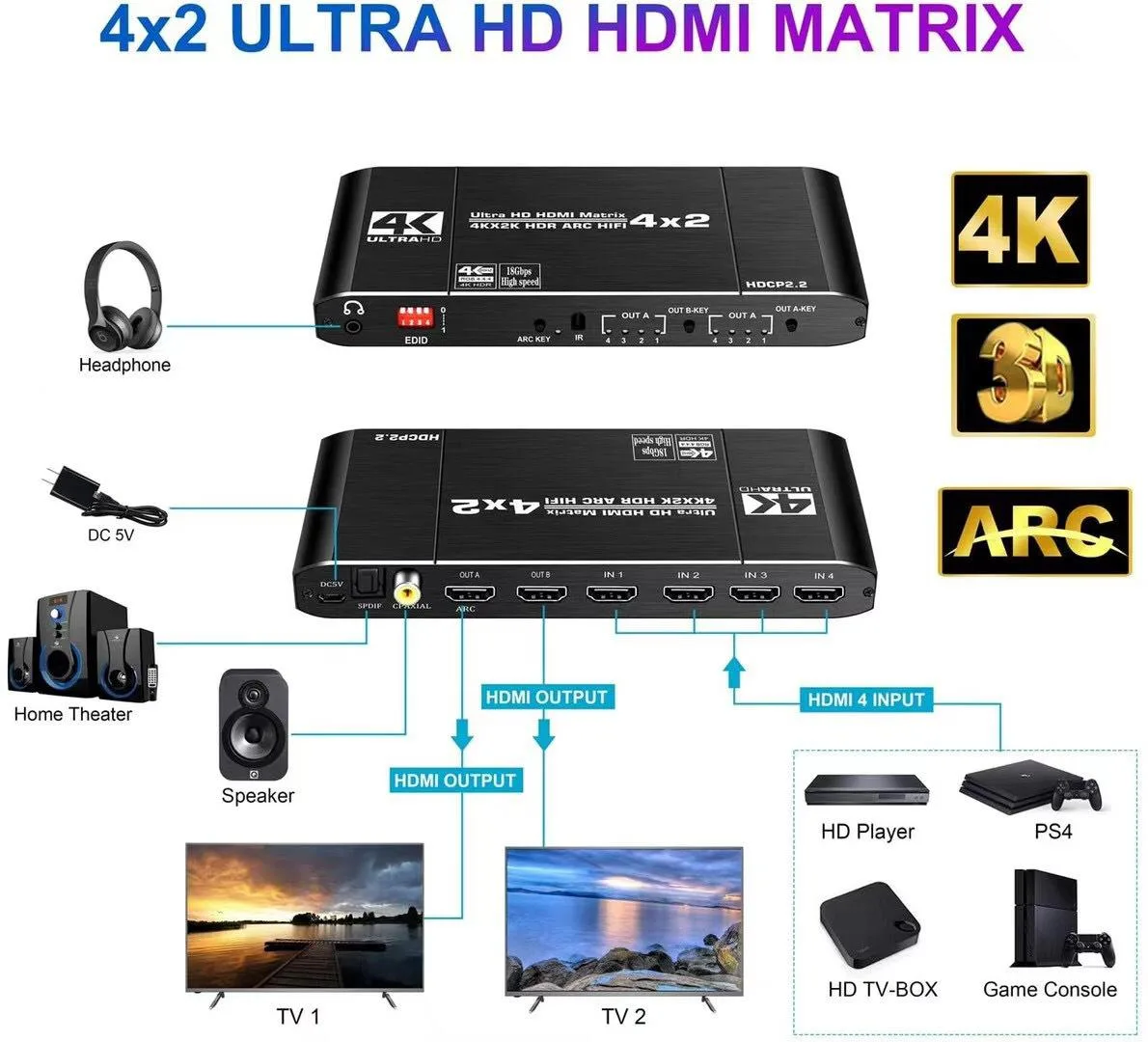

4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

How do I connect the four HDMI sources and two displays to the OZJ2 matrix switch?

Connect each source to one of the four HDMI inputs and each display to the two HDMI outputs, then plug in the supplied 5 V power adapter; the step often missed is setting the correct EDID mode for each output so both screens negotiate 4K@60Hz properly.

Which consumable item will need replacement first on the OZJ2?

The IR remote control uses a button-cell battery that is not included in the box, so that battery will be the first item you need to replace.

What is the first limitation reached when the OZJ2 runs continuously at 4K@60Hz?

The 18.5 Gbps bandwidth ceiling is reached first, limiting the combined video data rate to 4K@60Hz YCbCr 4:4:4 with deep-colour modes up to 48-bit.
