Black rectangular HDMI matrix switch with four inputs and two outputs

Jansicotek

Jansicotek OZJ2 4x2 HDMI Matrix Switch with ARC

SKU CH-V97A-8KJGG

Routes four HDMI sources to two displays at 4K@60Hz with ARC, optical, coaxial and 3.5 mm audio outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Routes four HDMI sources to two independent displays simultaneously
  • Delivers 4K@60Hz Ultra HD with HDR and 18.5Gbps bandwidth
  • Returns TV audio via ARC through optical and 3.5mm outputs
  • Switches inputs instantly with IR remote or front-panel buttons
  • Compact 170*56*24mm design fits any AV setup

4×2 HDMI matrix for multi-source setups

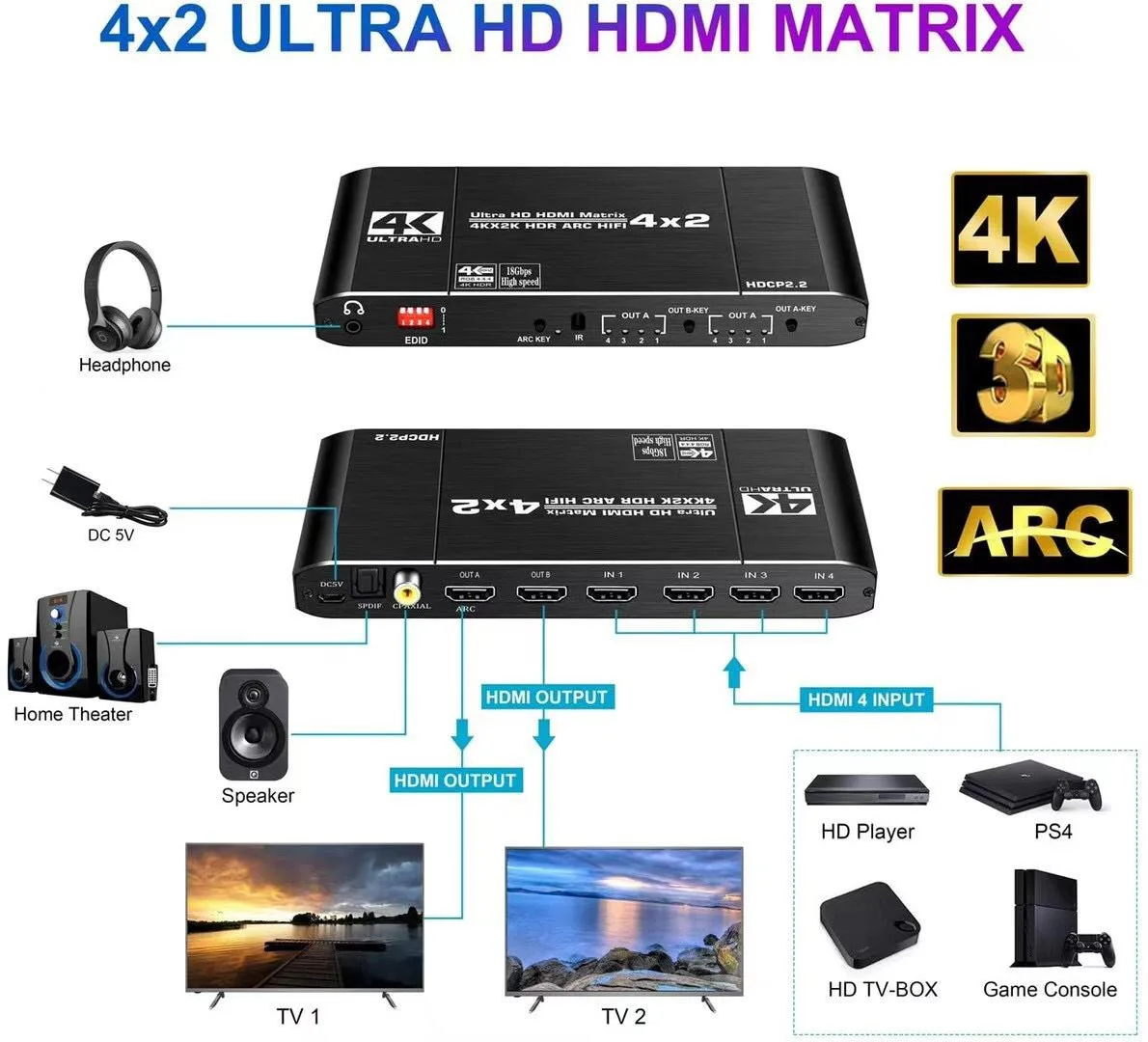

The Jansicotek OZJ2 routes four HDMI sources to two displays simultaneously, letting you show the same or different 4K content on each screen. It suits home-theatre owners, installers and small AV racks that need flexible source switching without a full control system.

Black metal chassis with front-panel buttons

The unit measures 170 by 56 by 24 millimetres and weighs 0.175 kilograms, drawing up to 600 milliamps from the included 5-volt supply. Four HDMI inputs and two HDMI outputs sit alongside a 3.5-millimetre jack, an optical port and a coaxial output, so audio can be de-embedded to a soundbar or amplifier while video continues to the displays. LED indicators confirm the active input for each output at a glance.

18.5-gigabit bandwidth caps 4K at 60 hertz 4:4:4

The HDMI 2.0b link tops out at 18.5 gigabits per second with a 600-megahertz TMDS clock, so 3840 by 2160 at 60 hertz with full chroma is the ceiling — higher refresh rates or 8K signals will not pass. Only output A supports ARC, so TV audio returns through the optical port on that zone alone. EDID management offers eight preset modes but no user-defined profiles, which can limit handshake flexibility with unusual sink devices.

Highlights

  • Routes four HDMI sources to two independent displays simultaneously
  • Delivers 4K@60Hz Ultra HD with HDR and 18.5Gbps bandwidth
  • Returns TV audio via ARC through optical and 3.5mm outputs
  • Switches inputs instantly with IR remote or front-panel buttons
  • Compact 170*56*24mm design fits any AV setup

Specifications

BrandJansicotek
SeriesOZJ2
ModelOZJ2
Part NumberOZJ2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsProduct Type:HDMI Splitter 4x2
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

What does the HDMI 2.0b interface with 18.5Gbps bandwidth cap in practice?

It caps at 4K@60Hz 4:4:4 HDR with HDCP 2.2 and deep colour up to 48-bit.

What physical space and power does the 170 x 56 x 24 mm unit need?

It needs a flat spot for the 5.91 x 2.36 x 0.79 in chassis and a DC 5V 600mA supply.

How is the matrix installed and which step do users often miss?

Connect four sources to the HDMI inputs, two displays to the outputs, plug the 5V adapter, then press the EDID button to match each display; skipping EDID causes no-signal or wrong-resolution issues.
