Jansicotek

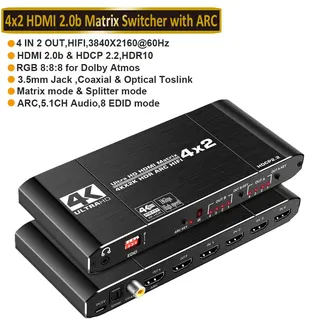

Jansicotek OZJ2 4x2 HDMI Matrix Switch 18.5 Gbps 4K@60Hz
A 4×2 HDMI matrix routes four sources to two displays at 4K 60 Hz with 18.5 Gbps bandwidth, HDCP 2.2 and ARC audio return
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports4
- MatrixYes
- AudioYes
- Routes four sources to two displays independently
- 4K@60Hz 18.5 Gbps bandwidth with HDCP 2.2
- ARC returns TV audio via optical and 3.5 mm jack
- IR remote and front buttons switch inputs instantly
- Compact 170 x 56 x 24 mm black chassis
Four-input two-output HDMI matrix

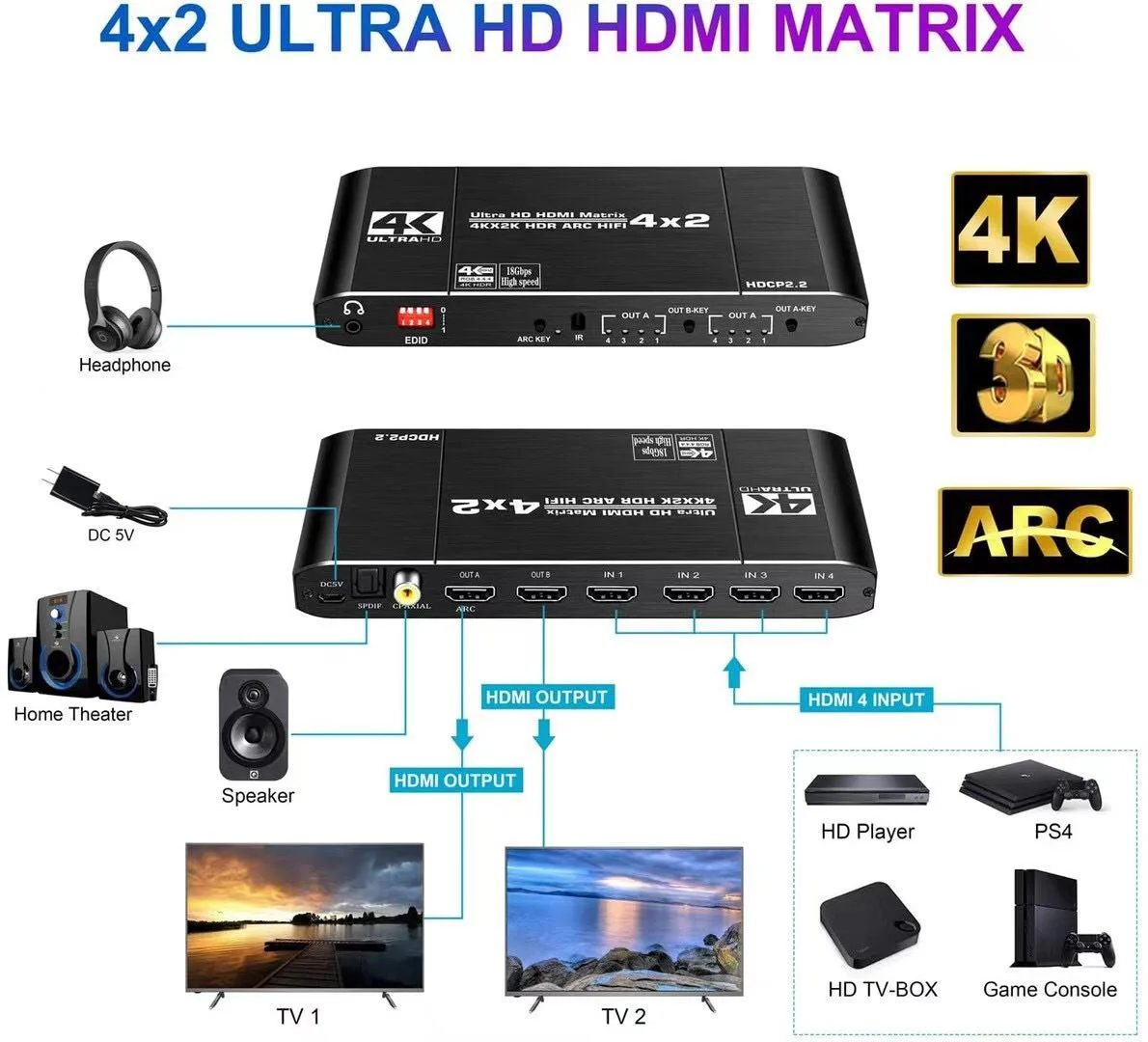

The Jansicotek OZJ2 is a 4x2 HDMI matrix switch that routes four source devices to two displays simultaneously. It supports HDMI 2.0b and HDCP 2.2 with a bandwidth of 18.5 Gbps and TMDS clock up to 600 MHz. The unit accepts DC 5 V power and includes an IR remote for input selection.
Installers needing independent dual-display routing
This matrix suits installers who need to show the same or different 4K 60 Hz content on two screens from a pool of four sources. It also provides ARC on output A plus SPDIF, 3.5 mm and coaxial audio breakout. Buyers who require more than two simultaneous outputs or HDMI 2.1 features such as 48 Gbps bandwidth should look elsewhere.
18.5 Gbps bandwidth ceiling
The 18.5 Gbps limit determines which resolutions and colour depths can pass through the matrix. It carries 4K 60 Hz 4:4:4 and deep colour up to 48-bit but cannot transport higher data-rate signals. Verify that every source and sink in your chain operates within this bandwidth before purchasing.
Highlights
- Routes four sources to two displays independently
- 4K@60Hz 18.5 Gbps bandwidth with HDCP 2.2
- ARC returns TV audio via optical and 3.5 mm jack
- IR remote and front buttons switch inputs instantly
- Compact 170 x 56 x 24 mm black chassis
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZJ2 |
| Model | OZJ2 |
| Part Number | OZJ2 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 4 |
| Matrix | Yes |
| Audio | Yes |

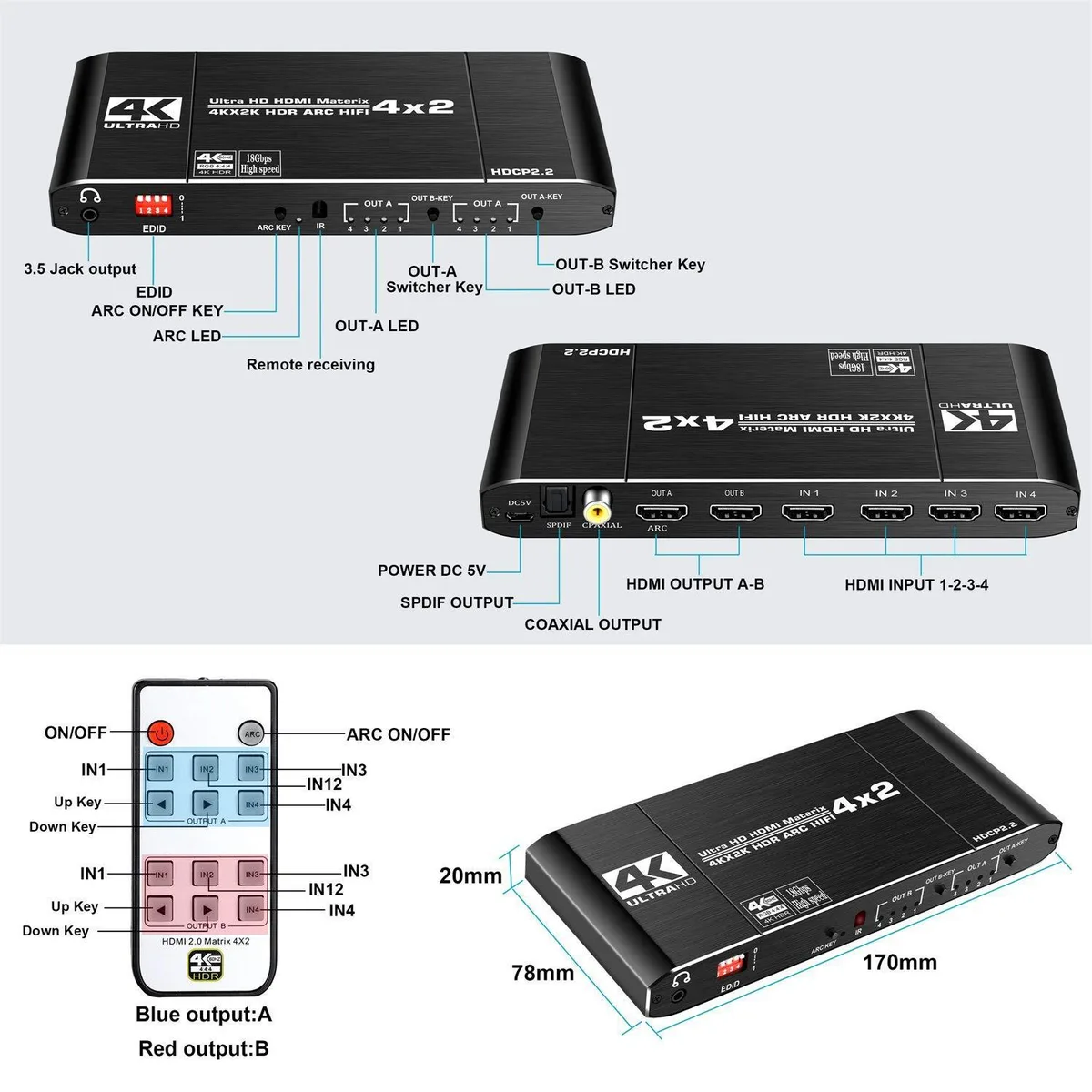

| Specifications | Product Type:HDMI Splitter 4x2 Interface Type: 4 HDMI in, 2 HDMI out Color: Black Power Supply: DC 5V. Max working current: 600mA Operating Temperature range -15°C to+45°C Dimension (LxWxH): 170*56*24mm Weight: 0.175kg |
| Input Connector | 4 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4 4 HDMI inputs switch and split to 2 HDMI displays Support LPCM/Dolby/DTS 5 1 audio |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 4X2 1x 5V power adapter 1x IR Remote Control(Battery is not included) 1x User Manual |
Questions about this item
Will this matrix pass 4K 60 Hz from a legacy Blu-ray player to my older 1080p projector on output B?
Yes — the switch is HDCP 2.2 compliant and backward compatible, so a 4K 60 Hz source will be accepted and the projector will receive a 1080p signal on either output.
How do I confirm the switch is routing the correct source to output A after I connect everything?
The front-panel LED indicators show the active input for each output in real time, and the IR remote lets you change the routing while watching the LEDs update.
Does the box include an HDMI cable for the ARC connection from my TV to output A?
No — the package contains the matrix, a 5 V power adapter, an IR remote (battery not included) and a user manual; all HDMI cables must be purchased separately.
