Black rectangular HDMI matrix switch with four inputs and two outputs, front panel buttons and remote sensor

Jansicotek

Jansicotek OZJ1 4x2 HDMI Matrix Switch 4K 60Hz audio

SKU CH-G8G3-H7WAZ

Routes four HDMI sources to two independent displays at 4K 60 Hz with simultaneous optical and analogue audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Connect four sources to two displays independently
  • 4K 60Hz video with HDR and deep colour support
  • 5 Gbps bandwidth for lossless 4K 60Hz signals
  • Simultaneous HDMI, optical and 3.5 mm audio extraction

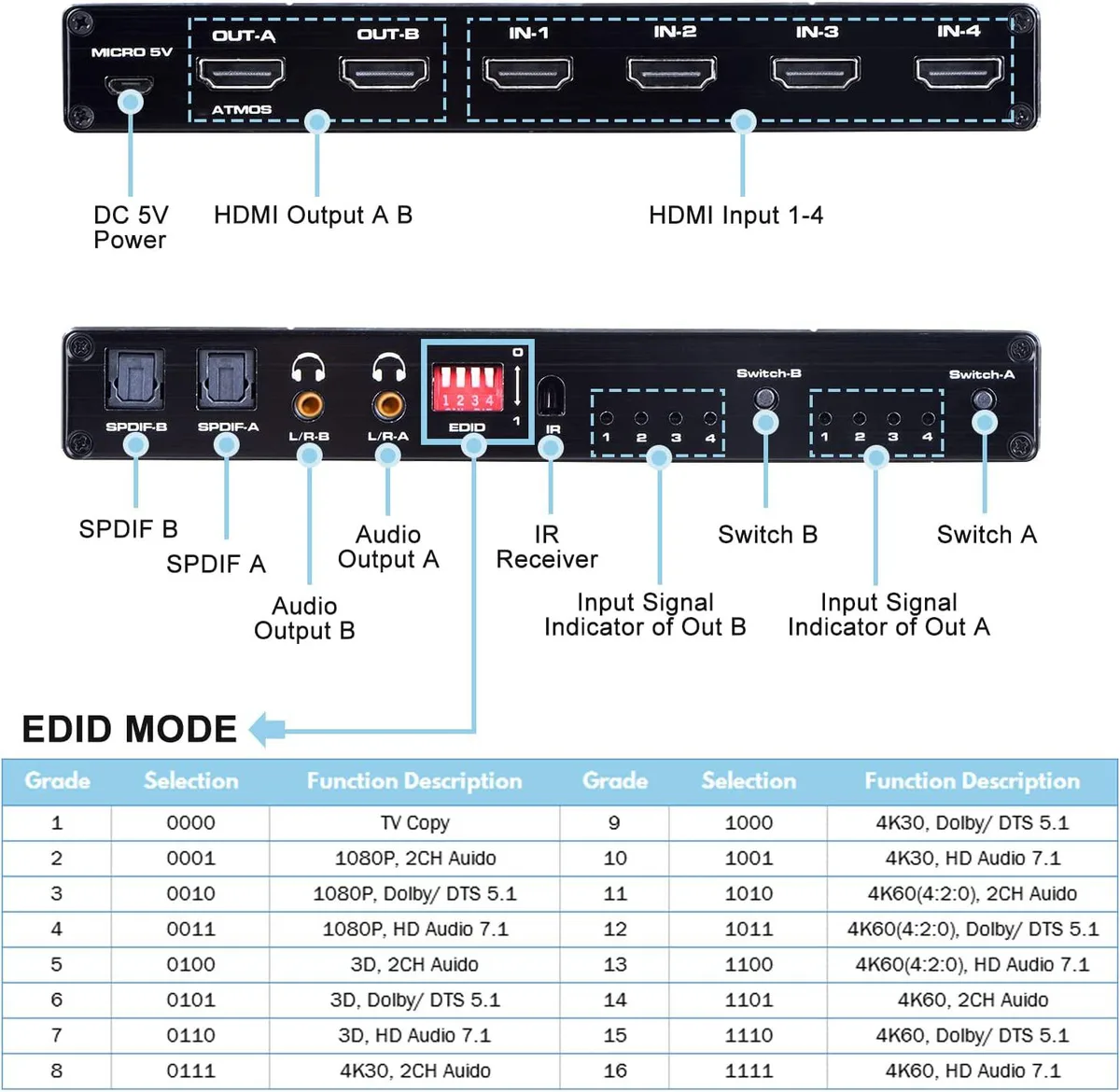

  • Smart EDID management ensures reliable handshakes

4x2 HDMI matrix for multi-source setups

The Jansicotek OZJ1 connects four HDMI sources to two displays, letting each output show a different source or the same one. It handles 4K at 60 Hz with 18.5 Gbps bandwidth and HDCP 2.2 compliance. An aluminium chassis aids heat dissipation and the unit ships new.

Suits installers routing several 4K sources to two

Ideal for home theatres, meeting rooms or digital-signage layouts that need independent audio extraction on each output. Not suited for users who only need a simple 1-in-2-out splitter or who require more than two simultaneous display zones.

Bundled remote and audio breakout change daily

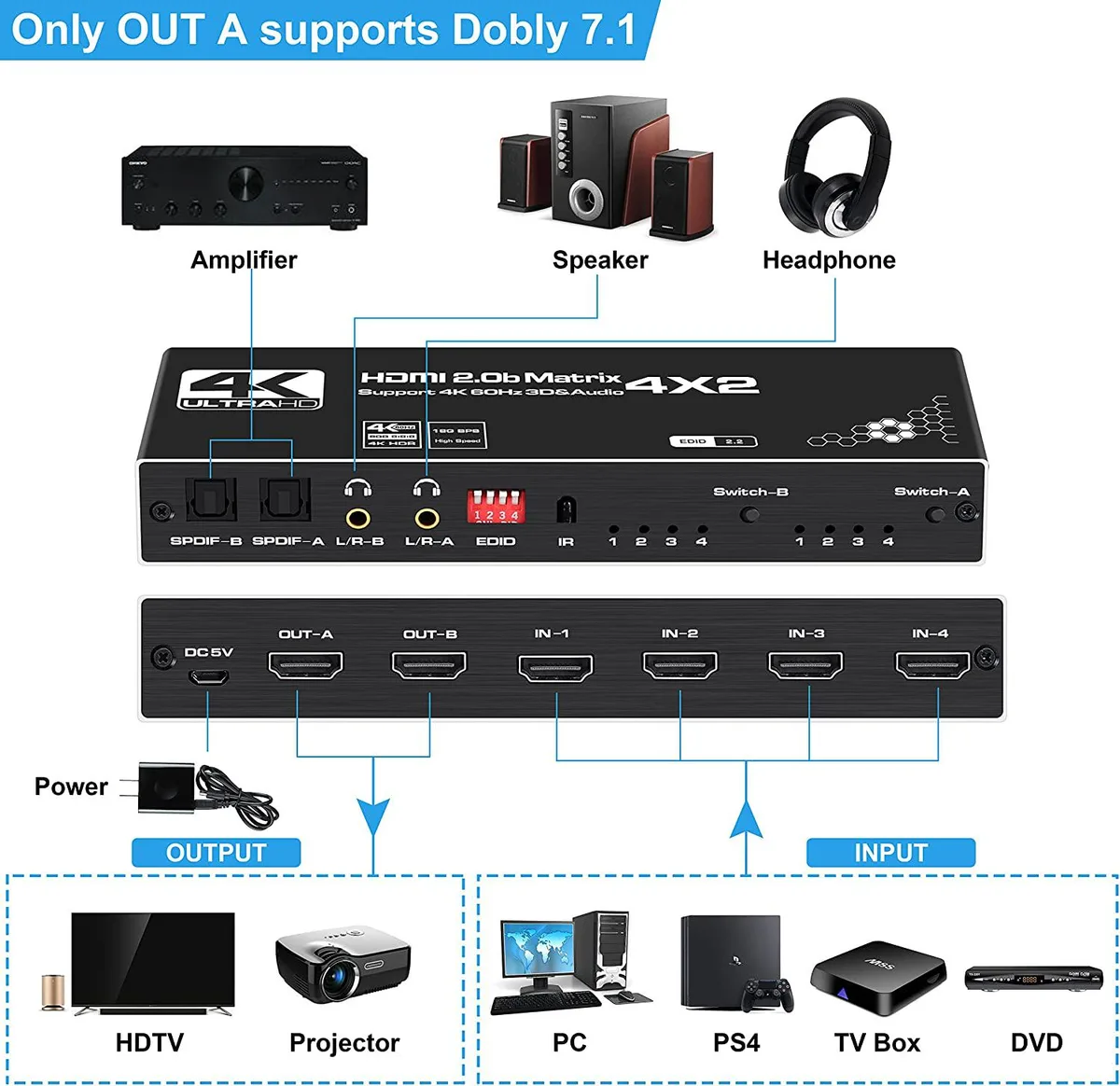

The included IR remote enables instant source switching without front-panel buttons. Each output provides simultaneous HDMI audio, 3.5 mm stereo analogue and SPDIF optical digital paths, so soundbars, headphones or AV receivers can be fed directly. A 10 m maximum cable length is specified for AWG 26 HDMI 2.0b cables.

Highlights

  • Connect four sources to two displays independently
  • 4K 60Hz video with HDR and deep colour support
  • 5 Gbps bandwidth for lossless 4K 60Hz signals
  • Simultaneous HDMI, optical and 3.5 mm audio extraction
  • Smart EDID management ensures reliable handshakes

Specifications

BrandJansicotek
SeriesOZJ1
ModelOZJ1
Part NumberOZJ1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

Which sources and displays must I already have to use the 4 HDMI inputs and 2 HDMI outputs?

You need up to four HDMI source devices such as a PS4, Xbox or Fire Stick and two HDMI displays or projectors; all cables should be HDMI 2.0b rated for 4K 60 Hz.

Will my 1080p projector work on one output while the other runs 4K 60 Hz?

Yes, each output operates independently and supports 1080p, 3D, 2K 144 Hz and 4K 30 Hz alongside 4K 60 Hz.

How do I confirm the matrix is passing 4K 60 Hz HDR and 5.1 audio to both zones?

Check each display’s info menu for 3840×2160 60 Hz and HDCP 2.2, and verify the AV receiver or soundbar reports LPCM, Dolby or DTS 5.1 from the SPDIF or 3.5 mm ports.
