Black metal box with four HDMI inputs and two HDMI outputs plus audio ports

Jansicotek

Jansicotek OZJ1 4x2 HDMI Matrix Switch 4K@60Hz 18.5Gbps

SKU CH-MGPS-ZFRBB

A 4×2 HDMI matrix routes four 4K 60 Hz sources to two displays with simultaneous optical and analogue audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Routes four 4K sources to two displays independently
  • 5 Gbps bandwidth carries 4K at 60 Hz
  • Optical and 3.5 mm audio extracted simultaneously
  • HDCP 2.2 compliant for protected 4K content
  • IR remote switches inputs without leaving your seat

4×2 HDMI Matrix Switch

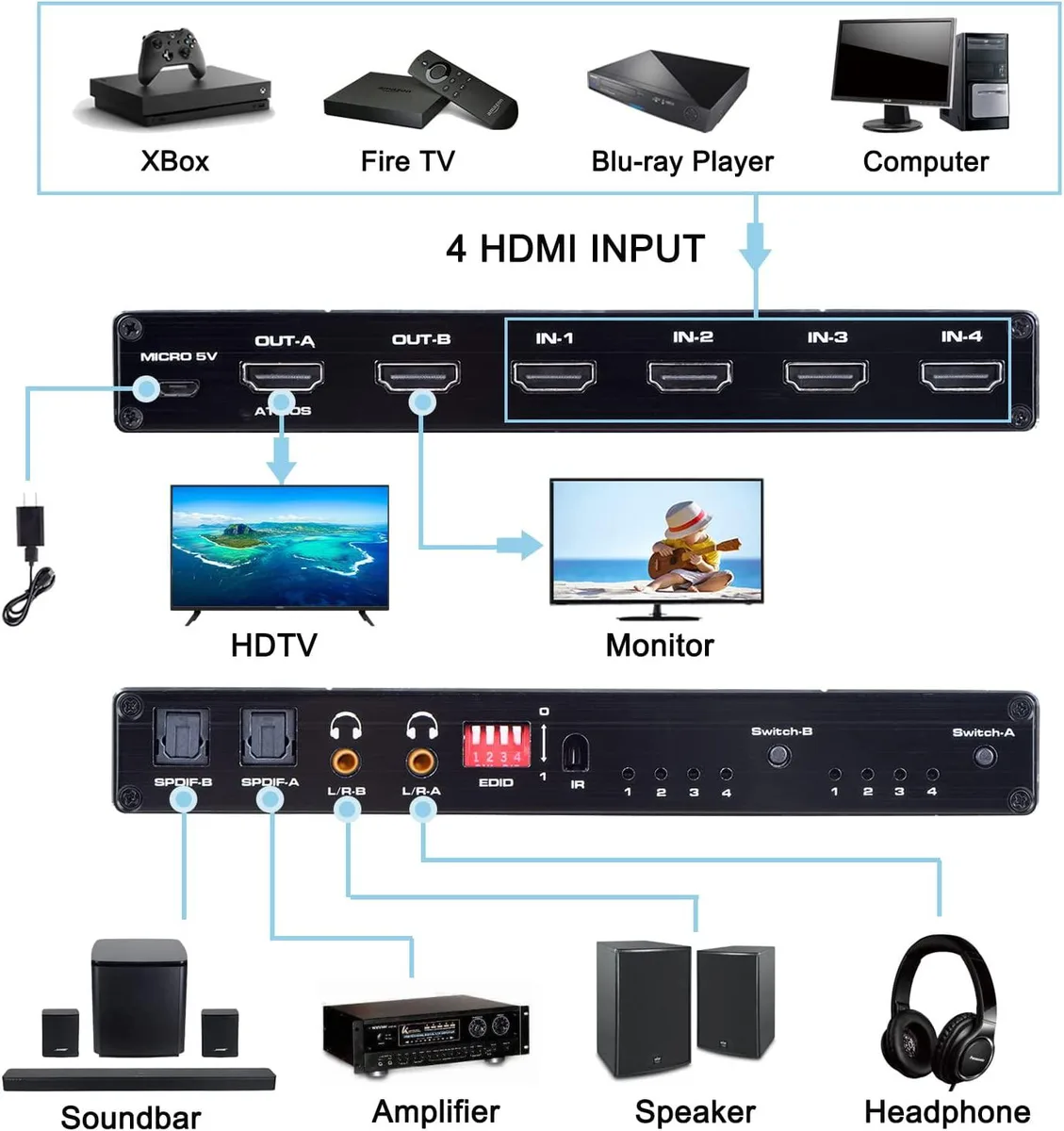

The Jansicotek OZJ1 connects four HDMI sources to two independent displays and lets each output show a different source. It suits home theatres, offices, classrooms and digital-signage installations where multiple 4K sources share two screens.

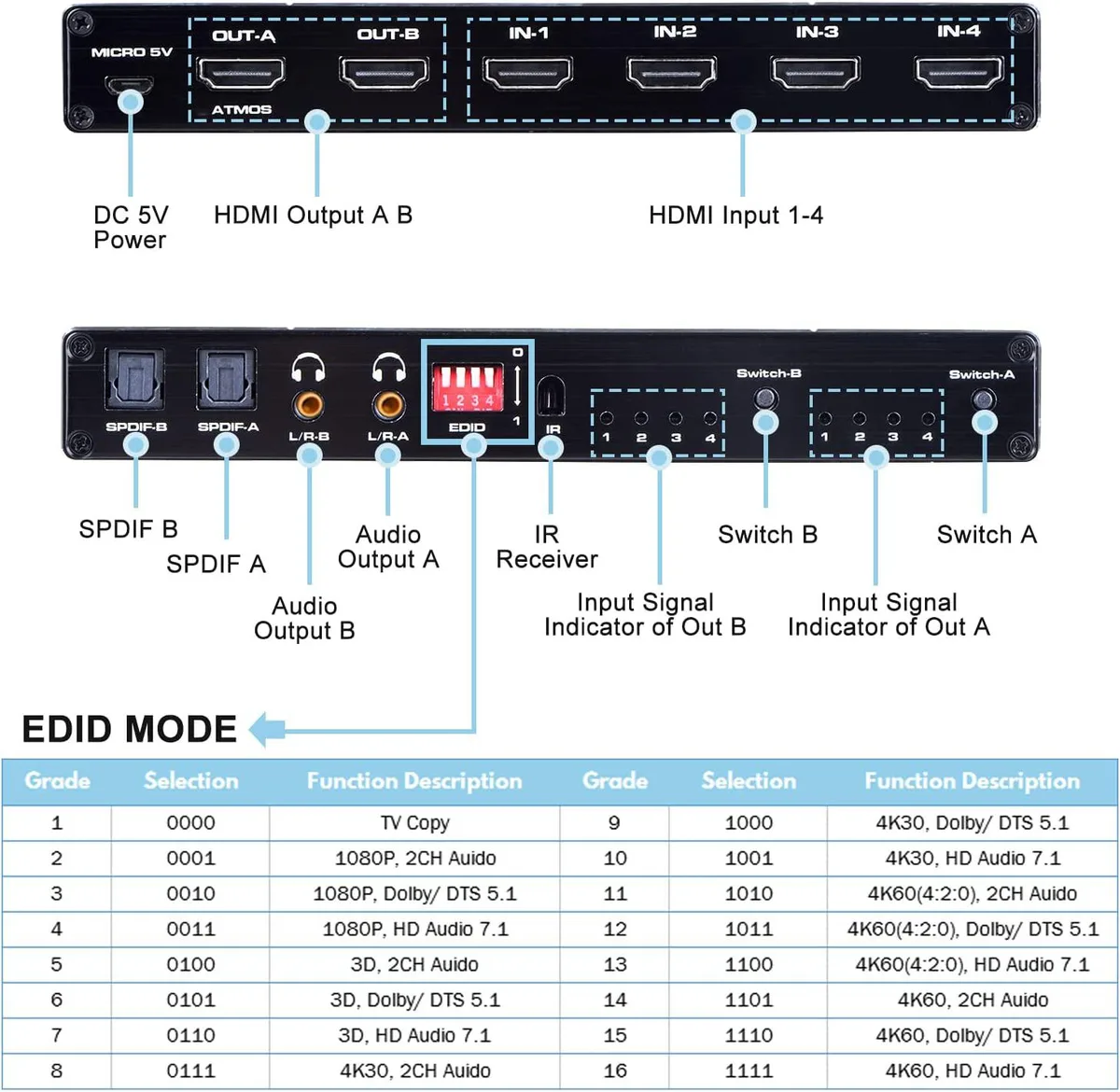

Audio extraction and EDID control

Each output provides simultaneous HDMI audio, 3.5 mm stereo analogue and optical SPDIF digital audio so soundbars, headphones or AV receivers can be driven separately. Smart EDID management ensures sources negotiate the correct resolution and audio format without manual intervention.

HDMI 2.0b bandwidth and cable limits

The 18.5 Gbps bandwidth supports 4K at 60 Hz, 2K at 144 Hz and deep colour up to 48 bit, but only when source cables meet the 10 m AWG26 HDMI 2.0b specification. Longer or thinner cables will reduce the maximum resolution or cause signal drop-out.

Highlights

  • Routes four 4K sources to two displays independently
  • 5 Gbps bandwidth carries 4K at 60 Hz
  • Optical and 3.5 mm audio extracted simultaneously
  • HDCP 2.2 compliant for protected 4K content
  • IR remote switches inputs without leaving your seat

Specifications

BrandJansicotek
SeriesOZJ1
ModelOZJ1
Part NumberOZJ1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

Will the 3.5 mm L/R stereo jack or optical SPDIF outputs need periodic replacement?

The 3.5 mm and optical ports are passive connectors; they only need attention if a cable is damaged.

What limit appears first when running 4K@60 Hz 18.5 Gbps signals continuously?

The 10 m AWG26 cable length limit governs signal integrity before any internal thermal limit.

Does the aluminium chassis stay cool and silent during all-day operation?

The fanless aluminium enclosure dissipates heat passively, so the unit runs silently at 11.9 ounces.
