Jansicotek
Jansicotek OZJ1-1 4x2 HDMI Matrix Switch with Audio
A 4×2 HDMI matrix routes four 4K 60 Hz sources to two displays while extracting audio through optical and 3.5 mm outputs
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports4
- MatrixYes
- AudioYes
- Routes four 4K sources to two displays independently
- Delivers 4K 60 Hz video at 18.5 Gbps bandwidth
- Extracts audio via dual optical and 3.5 mm outputs
- Supports HDCP 2.2 and HDR for protected 4K content
- Includes IR remote for convenient source switching
4x2 HDMI Matrix Switch

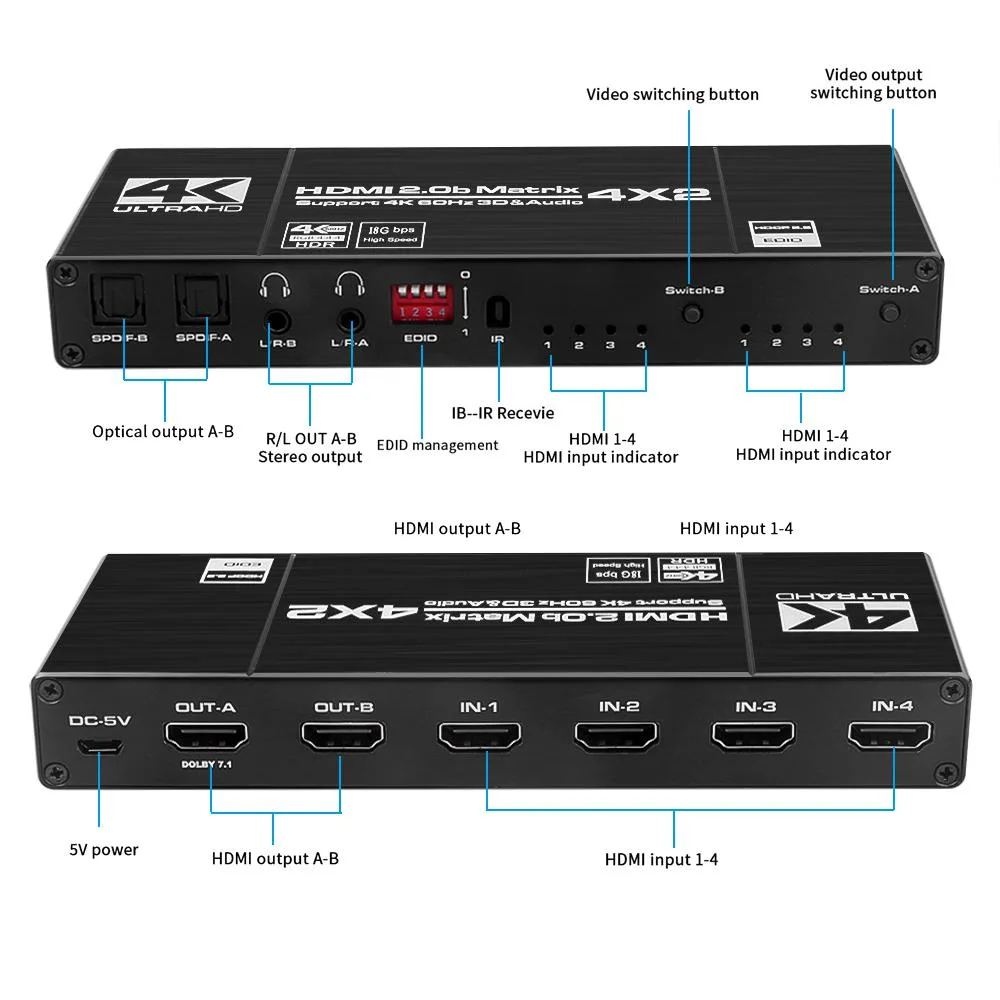

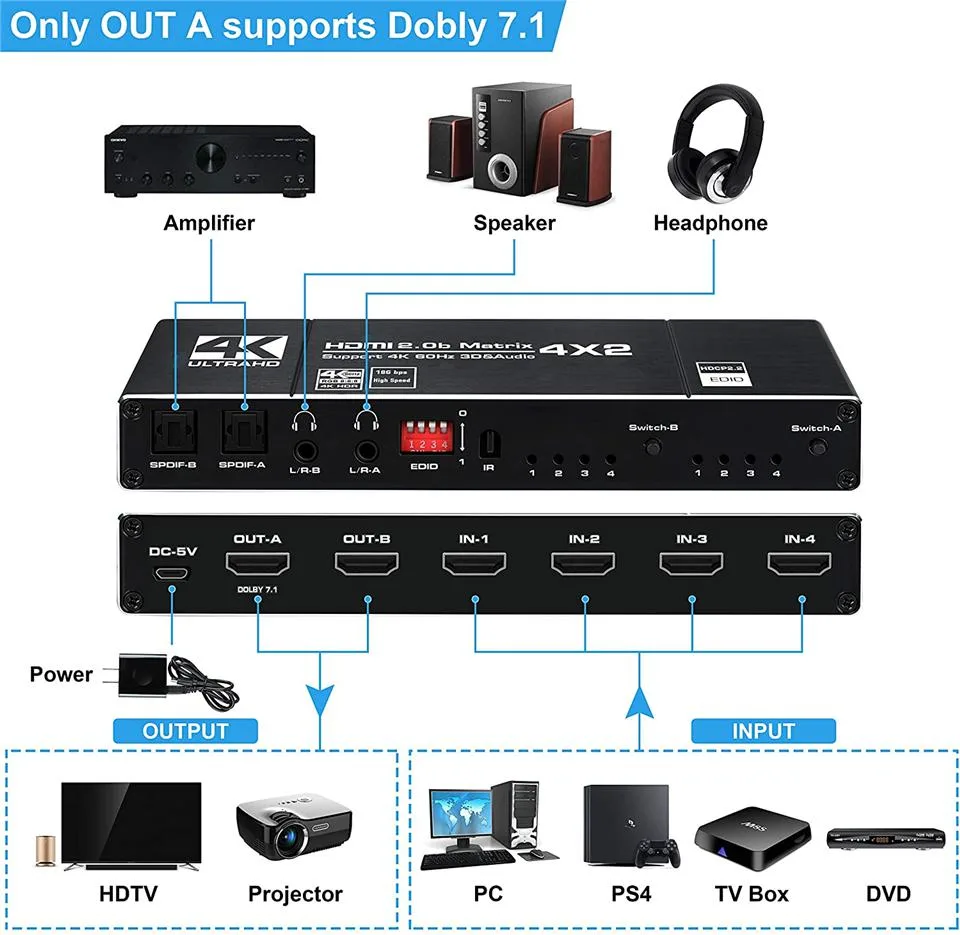

The Jansicotek OZJ1-1 routes four HDMI sources to two independent displays while extracting audio through dual 3.5 mm and dual optical outputs. It suits installers who need simultaneous distribution to separate zones such as a living room TV and a projector.
Bundled Audio Extraction
Two optical cables are included so the HDMI audio stream can be sent to external receivers or soundbars without extra purchases. The switch also provides stereo 3.5 mm outputs for simpler analogue connections, and EDID management ensures each output receives a compatible signal format.
HDMI 2.0b Bandwidth Limits
Video is restricted to 18.5 Gbps and a 600 MHz TMDS clock, capping 4K signals at 60 Hz with 4:4:4 colour sampling. Cable runs beyond 10 metres using AWG26 cable may lose stability, and HDCP 2.2 content will not pass to non-compliant sinks.
Highlights
- Routes four 4K sources to two displays independently
- Delivers 4K 60 Hz video at 18.5 Gbps bandwidth
- Extracts audio via dual optical and 3.5 mm outputs
- Supports HDCP 2.2 and HDR for protected 4K content
- Includes IR remote for convenient source switching
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZJ1-1 |
| Model | OZJ1-1 |
| Part Number | OZJ1-1 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 4 |
| Matrix | Yes |
| Audio | Yes |
| Specifications | HDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4 Product Type:HDMI Splitter 1x4. Interface Type: 4 HDMI in, 2 HDMI out Color: Black Power Supply: DC 5V. Max working current: 600mA Operating Temperature range -15°C to+45°C Dimension (LxWxH): 170*56*24mm Weight: 0.175kg |
| Input Connector | 4 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Cable Length | 10m AWG26 HDMI2.0b standard cable |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4 4 HDMI inputs switch and split to 2 HDMI displays Support LPCM/Dolby/DTS 5 1 audio |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 4X2 1x 5V power adapter 1x IR Remote Control(Battery is not included) 1x User Manual |
Questions about this item
Will the 18.5 Gbps bandwidth limit 4K 60 Hz signals over long cable runs?
The switch supports 18.5 Gbps and TMDS clock up to 600 MHz, matching HDMI 2.0b spec; 4K 60 Hz 4:4:4 is guaranteed up to 10 m with AWG26 cable.
Does the EDID setting apply to both outputs independently?
EDID is configured for Output A only; both displays must share the same EDID mode, so restart the matrix after setting it.
How much heat does the unit produce when running continuously?
The compact 5.91 x 2.36 x 0.79 inch metal chassis passively dissipates heat; no fan is fitted, so surface temperature stays low during all-day operation.
