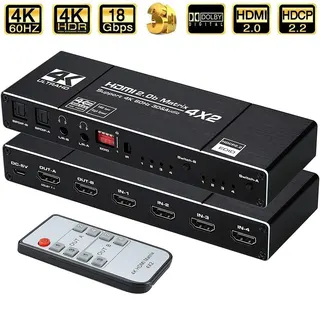

Black rectangular HDMI matrix switch with four inputs and two outputs, plus optical and 3.5mm audio ports

Jansicotek

Jansicotek OZJ1-1 4x2 HDMI Matrix Switch Audio

SKU CH-6M16-9P31C

A 4×2 HDMI matrix routes four 4K sources to two displays and extracts audio via optical and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Route four 4K@60 Hz sources to two displays with independent switching
  • Extract audio via two optical Toslink and two 3.5 mm stereo outputs
  • 5 Gbps bandwidth supports HDR, 3D and deep colour up to 48-bit
  • HDCP 2.2 and HDMI 2.0b compliance for protected 4K content

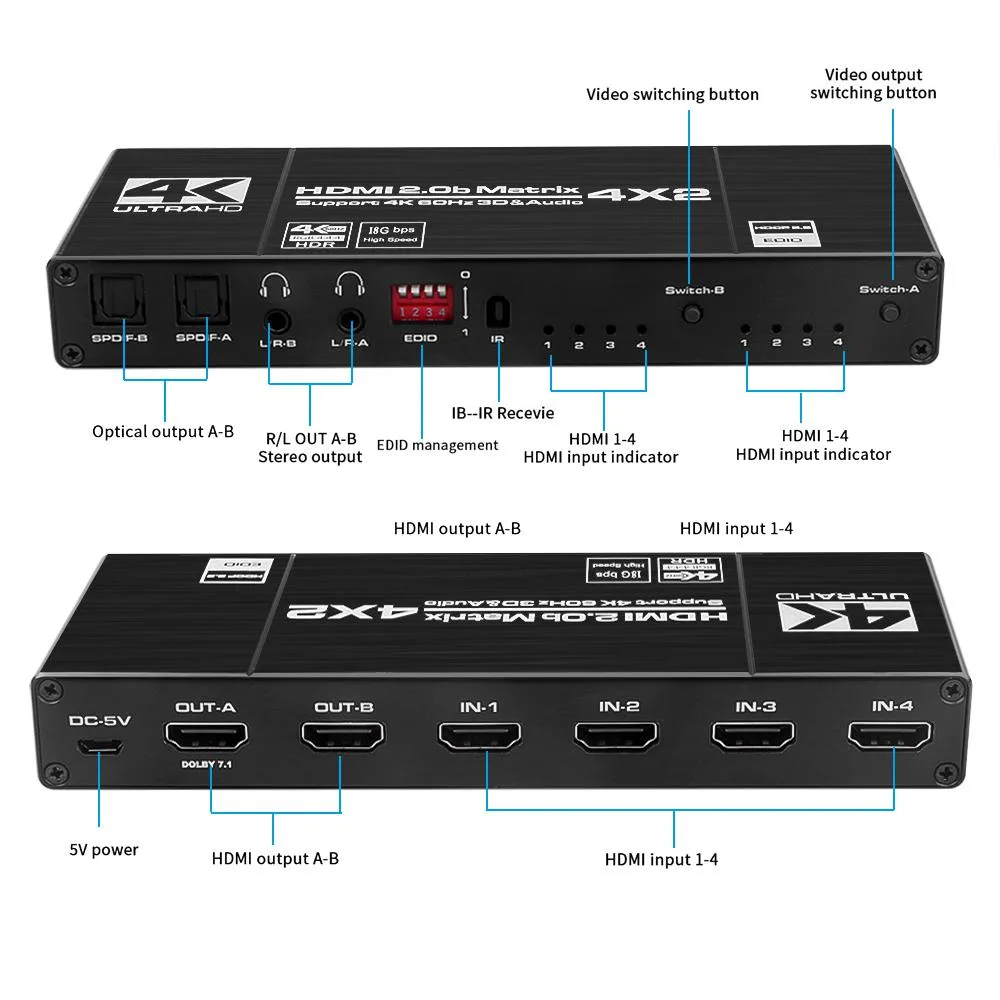

  • IR remote and front-panel buttons give instant source selection

4x2 HDMI Matrix Switch with Audio Extraction

The Jansicotek OZJ1-1 routes four HDMI sources to two independent displays at up to 4K@60Hz resolution. It extracts audio from the selected input through two optical Toslink ports and two 3.5mm stereo outputs, supporting LPCM, Dolby and DTS 5.1 channel formats. The unit includes an infrared remote for convenient source switching in home theatres, conference rooms or digital-signage installations.

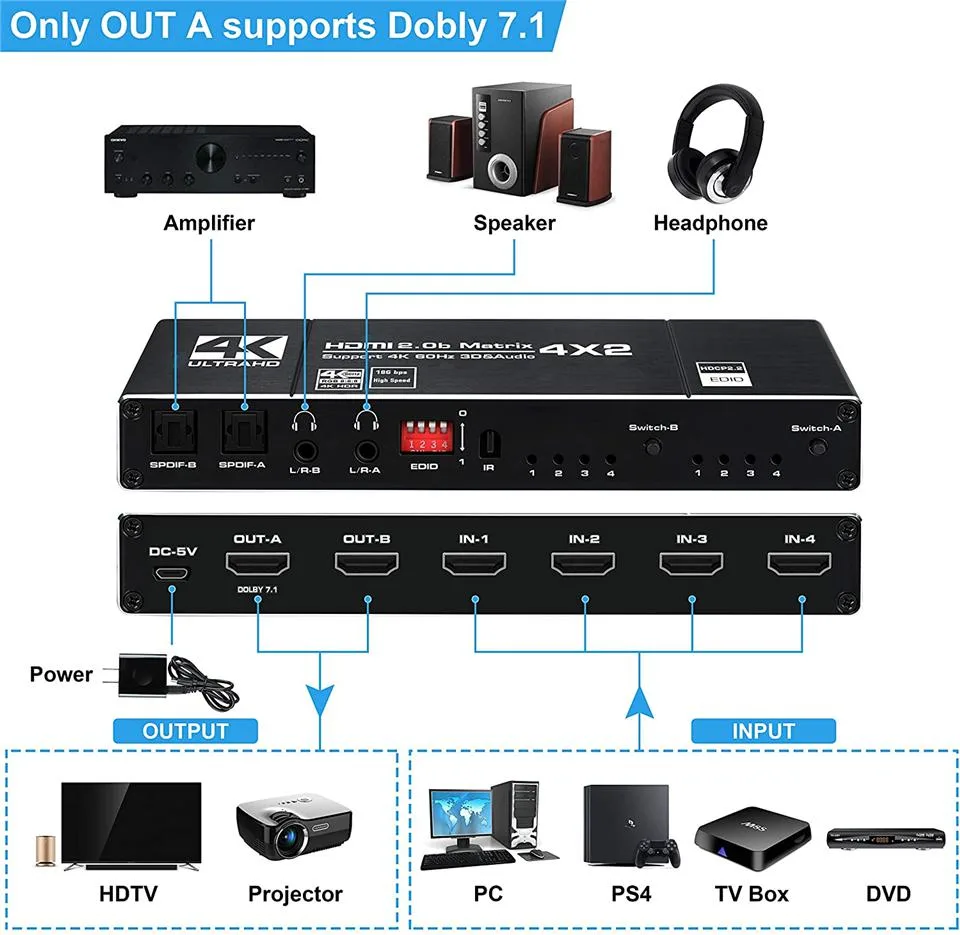

Installation and EDID Management

Connect each source to one of the four HDMI inputs and each display to the two HDMI outputs using cables no longer than 10 metres with AWG26 conductors. EDID is copied from Output A only, so both screens must share compatible timing; if they differ, select the appropriate EDID mode on the front panel and power-cycle the matrix to apply the change. The supplied optical cables simplify audio wiring without extra purchases.

HDMI 2.0b Bandwidth Limits

The switch passes 18.5Gbps with a TMDS clock up to 600MHz, enabling 3840x2160@60Hz RGB 4:4:4 and HDR within the HDMI 2.0b specification. Deep-colour modes up to 48-bit are supported, but bandwidth restricts higher refresh rates or resolutions beyond 4K@60Hz. Cable runs exceeding 10 metres may degrade signal integrity at the maximum data rate.

Highlights

  • Route four 4K@60 Hz sources to two displays with independent switching
  • Extract audio via two optical Toslink and two 3.5 mm stereo outputs
  • 5 Gbps bandwidth supports HDR, 3D and deep colour up to 48-bit
  • HDCP 2.2 and HDMI 2.0b compliance for protected 4K content
  • IR remote and front-panel buttons give instant source selection

Specifications

BrandJansicotek
SeriesOZJ1-1
ModelOZJ1-1
Part NumberOZJ1-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit
Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

How do I confirm the matrix is passing 4K@60Hz HDR to both displays after setup?

Check each connected display reports 3840x2160 at 60 Hz with RGB 4:4:4 and HDR active; the front-panel LEDs show which of the four inputs is routed to Output A and Output B.

Which cables and accessories are included versus what I must supply?

The box contains the matrix unit, an IR remote, and two optical audio cables; you must provide four HDMI input cables and two HDMI output cables up to 10 m AWG26.

Should I choose the 4x2 model or a different configuration for two zones with audio extraction?

This single OZJ1-1 model is a 4-input, 2-output matrix with dual 3.5 mm L/R and dual Toslink outputs — no other capacity or version is offered.
