Black rectangular 4x2 HDMI matrix switch with multiple ports and IR remote

Jansicotek

Jansicotek OZJ1-1 4x2 HDMI Matrix Switch 4K 60Hz

SKU CH-Q853-TH9XA

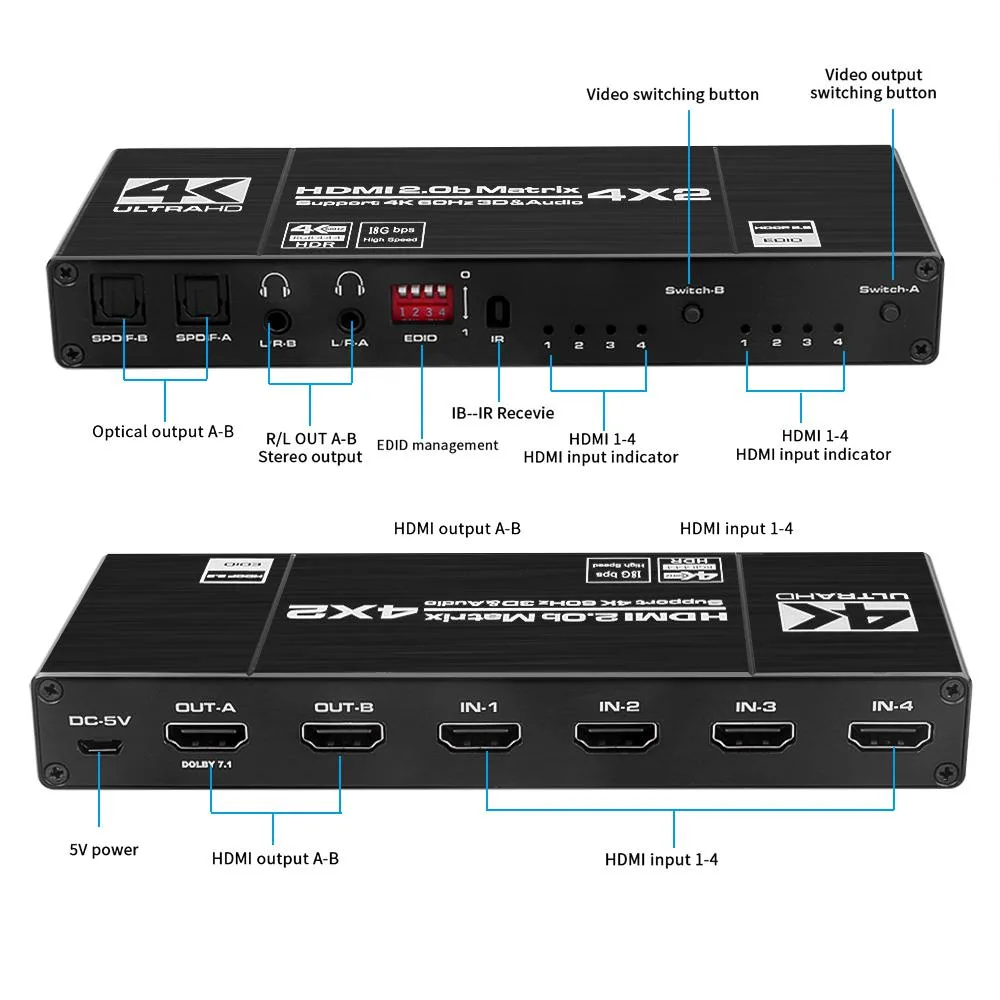

Routes four HDMI sources to two displays at 4K 60 Hz with audio extraction via optical and 3.5 mm outputs, includes IR remote and EDID management

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • Switch four sources to two displays independently
  • 4K 60 Hz video with 18.5 Gbps bandwidth
  • Audio extracted via optical and 3.5 mm outputs
  • HDCP 2.2 and EDID management built in
  • IR remote and two optical cables included

4x2 HDMI Matrix for Multi-Source Setups

The Jansicotek OZJ1-1 routes four HDMI sources to two independent displays at 4K 60 Hz with 18.5 Gbps bandwidth. It supports HDCP 2.2, HDR10 and deep colour up to 48-bit for compatible sources. Audio can be de-embedded through dual 3.5 mm stereo and dual optical Toslink outputs. An IR remote is included for front-of-room switching.

Installers Needing Independent Dual-Display Routing

This unit suits installers who must send different 4K sources to two screens simultaneously, such as a projector and a TV in a meeting room. It is not for users who only need to mirror one source to multiple displays, nor for systems requiring more than two output zones or audio formats beyond LPCM and 5.1-bitstream via optical.

Bundled Optical Cables Simplify Audio Integration

Two optical Toslink cables are supplied, so external DACs or soundbars can be connected immediately without extra purchases. The fixed EDID strategy follows Output A, meaning both displays must share compatible timing or be restarted after EDID changes. The 3.5 mm jacks provide a direct analogue fallback for powered speakers or headphones.

Highlights

  • Switch four sources to two displays independently
  • 4K 60 Hz video with 18.5 Gbps bandwidth
  • Audio extracted via optical and 3.5 mm outputs
  • HDCP 2.2 and EDID management built in
  • IR remote and two optical cables included

Specifications

BrandJansicotek
SeriesOZJ1-1
ModelOZJ1-1
Part NumberOZJ1-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes
SpecificationsHDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4
Product Type:HDMI Splitter 1x4.
Interface Type: 4 HDMI in, 2 HDMI out
Color: Black
Power Supply: DC 5V.
Max working current: 600mA
Operating Temperature range -15°C to+45°C
Dimension (LxWxH): 170*56*24mm
Weight: 0.175kg
Input Connector4 x HDMI
Output Connector2 x HDMI
Maximum Cable Length10m AWG26 HDMI2.0b standard cable
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesSupport HDMI 2.0b HDCP 2.2
Support 3D video format
Support highest resolution up to 3840*2160/60Hz
Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
Support deep color 8/10/12/24/32/48bit

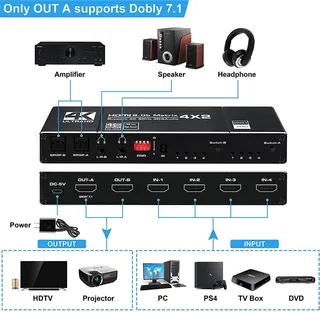

Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4
4 HDMI inputs switch and split to 2 HDMI displays
Support LPCM/Dolby/DTS 5 1 audio
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1x HDMI Matrix 4X2
1x 5V power adapter
1x IR Remote Control(Battery is not included)
1x User Manual

Questions about this item

What source devices and cables do I need to connect to the four HDMI inputs?

Connect up to four HDMI sources such as a PC, PS3, PS4 Pro, Xbox, Xbox One, Nintendo Switch or HD player using standard HDMI cables up to 10 m AWG26 rated for HDMI 2.0b.

Will my older 1080p display work on one output while a 4K@60Hz screen uses the other?

Yes, the matrix is backward compatible with multiple resolutions so each output can run at its display's native resolution, including 1080p on one and 4K@60Hz on the other.

How can I confirm the matrix is passing 4K@60Hz HDR and multichannel audio correctly after setup?

Verify the source shows 3840×2160@60Hz with RGB 4:4:4 and HDR, then check the optical or 3.5 mm outputs for LPCM, Dolby or DTS 5.1 channel audio.
