Jansicotek
Jansicotek OZJ1-1 4x2 HDMI Matrix 4K60 Audio Extract
Routes four HDMI sources to two displays at 4K 60 Hz while extracting audio via optical and 3.5 mm outputs
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports4
- MatrixYes
- AudioYes

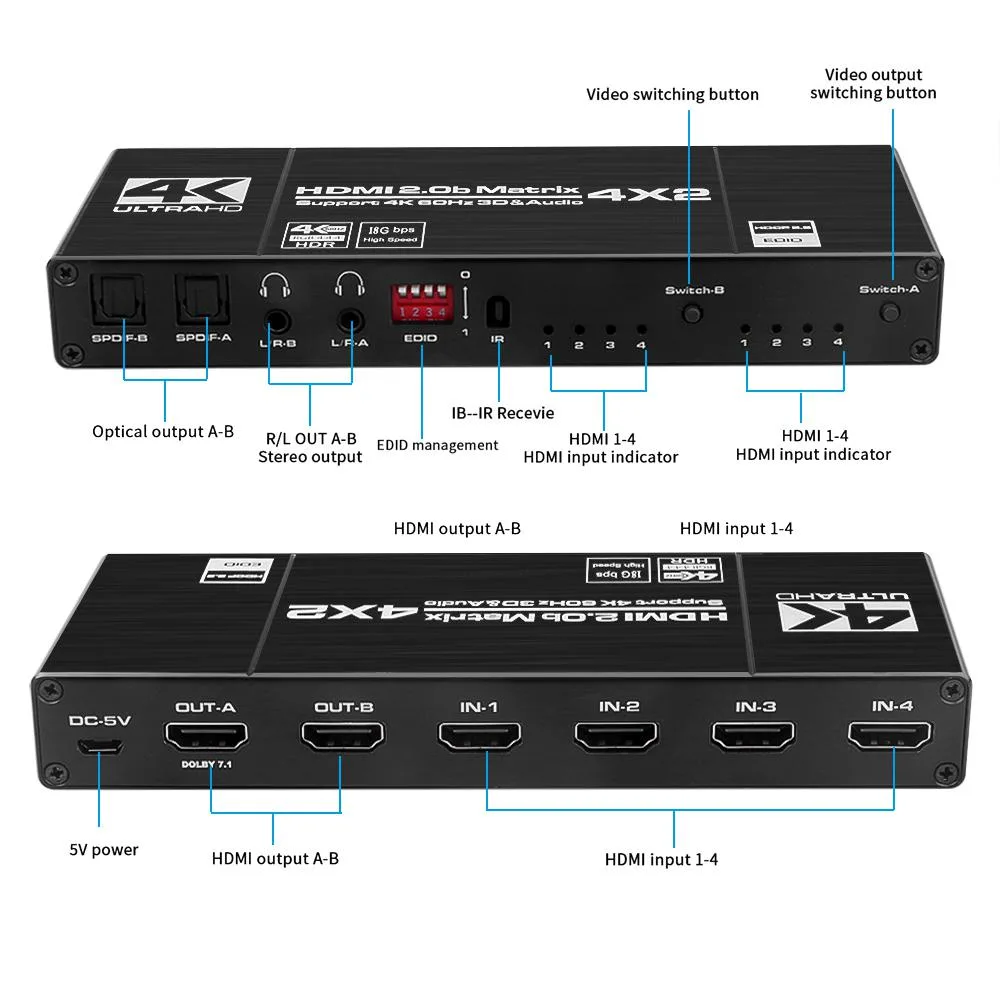

- Routes four 4K sources to two displays independently

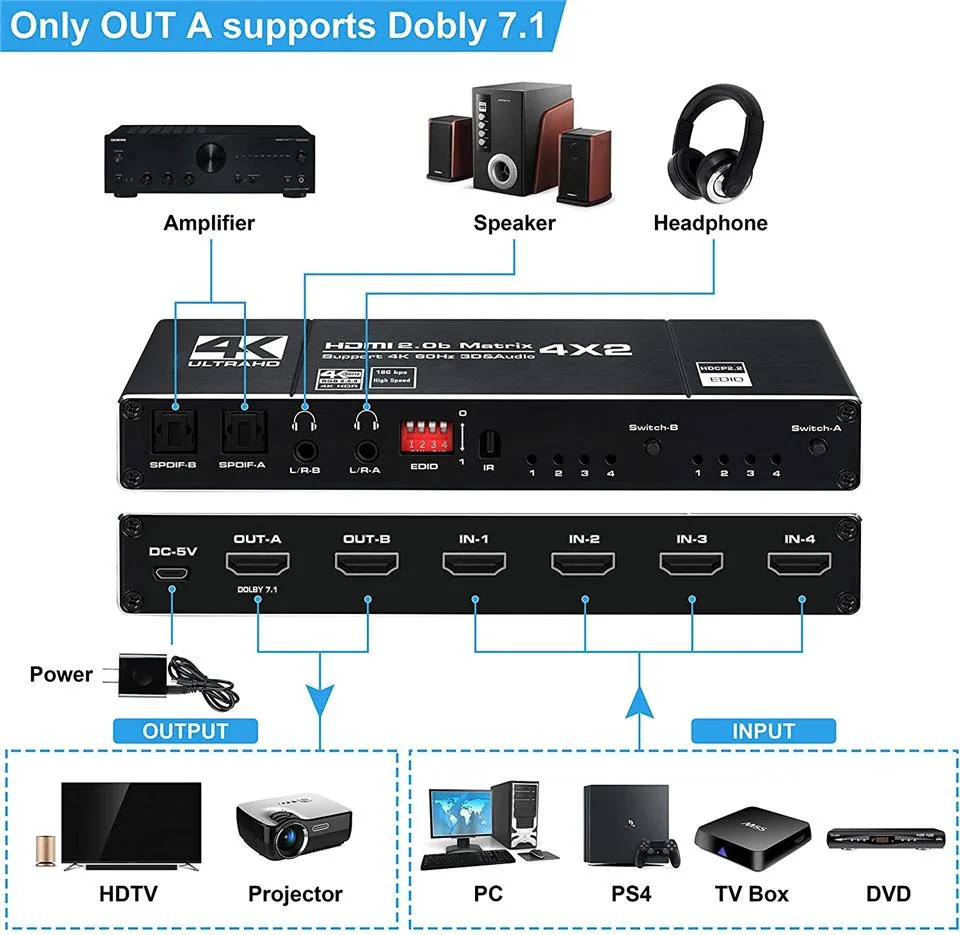

- Extracts audio via dual optical and 3.5 mm outputs
- Supports 4K at 60 Hz with 18.5 Gbps bandwidth

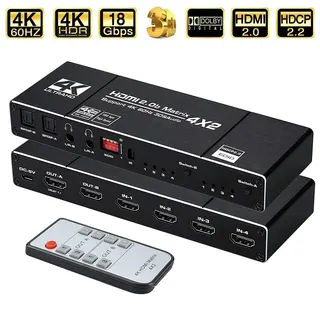

- Includes IR remote and two optical cables supplied
- Handles HDCP 2.2 and deep colour up to 48 bit
Jansicotek OZJ1-1 4x2 HDMI Matrix
The Jansicotek OZJ1-1 is a 4x2 HDMI matrix switch that routes four 4K60 HDR sources to two displays. It extracts audio through dual SPDIF optical and 3.5 mm stereo outputs supporting 5.1 channels. An IR remote and EDID management simplify source selection for home theatre, conference or digital signage installations.
Replaces separate switchers and audio extractors
Combining matrix switching and audio extraction in one unit removes the need for a standalone switch plus a separate extractor box. The jump is worth it when you must send four sources to two zones while also feeding an external audio system. It does not suit users who only need a single output or who require more than two independent display zones.
HDMI 2.0b bandwidth limits distance and colour depth
The 18.5 Gbps bandwidth caps cable runs at 10 metres with AWG26 cable at 4K60 4:4:4. Longer runs force lower resolutions or reduced colour sampling. EDID is configured for Output A only, so both displays must share compatible timing or the image may not appear correctly on the second screen.
Highlights
- Routes four 4K sources to two displays independently
- Extracts audio via dual optical and 3.5 mm outputs
- Supports 4K at 60 Hz with 18.5 Gbps bandwidth
- Includes IR remote and two optical cables supplied
- Handles HDCP 2.2 and deep colour up to 48 bit
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZJ1-1 |
| Model | OZJ1-1 |
| Part Number | OZJ1-1 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 4 |
| Matrix | Yes |
| Audio | Yes |
| Specifications | HDMI 2.0 Matrix 4K 60Hz/30Hz HDMI-compatible Matrix 4x2 Switch Splitter HDCP 2.2 4 in 2 out Swicther With Audio HDR For for TV HDTV PS4 Product Type:HDMI Splitter 1x4. Interface Type: 4 HDMI in, 2 HDMI out Color: Black Power Supply: DC 5V. Max working current: 600mA Operating Temperature range -15°C to+45°C Dimension (LxWxH): 170*56*24mm Weight: 0.175kg |
| Input Connector | 4 x HDMI |
| Output Connector | 2 x HDMI |
| Maximum Cable Length | 10m AWG26 HDMI2.0b standard cable |
| Maximum Resolutions | 4K@60Hz |
| Bandwidth | 18.5Gbps/600MHZ |
| Features | Support HDMI 2.0b HDCP 2.2 Support 3D video format Support highest resolution up to 3840*2160/60Hz Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz Support deep color 8/10/12/24/32/48bit Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4 4 HDMI inputs switch and split to 2 HDMI displays Support LPCM/Dolby/DTS 5 1 audio |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1x HDMI Matrix 4X2 1x 5V power adapter 1x IR Remote Control(Battery is not included) 1x User Manual |
Questions about this item
What are the exact dimensions of the OZJ1-1 matrix so I can confirm it fits my rack shelf?
The unit measures 5.91 inches wide, 2.36 inches deep and .79 inches high, weighing 11.9 ounces.
Which cables and settings are required to get 4K 60 Hz video through both HDMI outputs?
Use HDMI 2.0b certified cables no longer than 10 metres AWG26, set the source to 3840x2160 at 60 Hz with RGB 4:4:4, and power-cycle the matrix after any EDID change on Output A.
When should I replace the supplied optical audio cables or the 3.5 mm analogue leads?
Replace them only if the Toslink connectors become loose, the fibre ends are scratched, or the 3.5 mm plugs develop intermittent contact — no scheduled replacement is needed.
