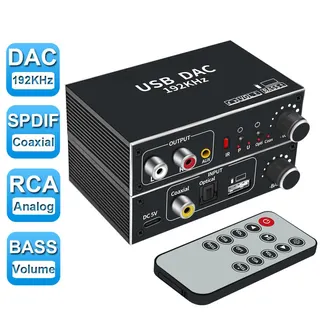

Small black box with coaxial, optical and USB inputs, RCA and 3.5 mm outputs, volume and bass knobs, remote included

Jansicotek

Jansicotek OZHL2 192kHz 24-bit DAC with Amplifier Adjustment

SKU CH-GWF6-SQVS8

Converts optical, coaxial and USB digital audio to stereo analogue via RCA and 3.5 mm jack at up to 192 kHz 24-bit with headphone amplification and bass control

  • ColorBlack
  • Specifications192khz DAC optical digital to analog adapter converter Input
  • FeaturesDAC Digital to Analog Audio Converter ,support USB(For PC),O
  • Package Contents1 X Digital to analog audio converter 1 X USB power cable 1
  • Converts digital audio to analog for versatile connectivity
  • Supports 192kHz 24-bit sampling for high-resolution sound
  • Adjustable headphone amplifier delivers 125mW per channel at 32 ohms
  • Bass and volume knobs tailor output for 32-600 ohm headphones
  • Plug-and-play with USB optical and coaxial inputs for PC and consoles

Jansicotek OZHL2 DAC Converter

The Jansicotek OZHL2 converts digital audio from optical, coaxial or USB sources into stereo analogue signals for amplifiers or headphones. It supports PCM and LPCM formats at sampling rates of 32, 44.1, 48, 96 and 192 kHz with 24-bit resolution. A built-in headphone amplifier delivers 125 mW per channel into 32 ohms and covers an impedance range of 32 to 600 ohms. Volume and bass adjustment knobs provide direct analogue control.

Check Source Outputs and Power

Verify that your source device can output PCM or LPCM over its optical, coaxial or USB audio port; the converter does not decode 5.1 channel formats such as Dolby AC3. Set the source audio format to PCM or LPCM in its sound settings before connecting. The unit is powered by the included USB cable, so a spare USB port or 5 V USB power adapter must be available near the installation point.

Connect to Amplifier or Headphones

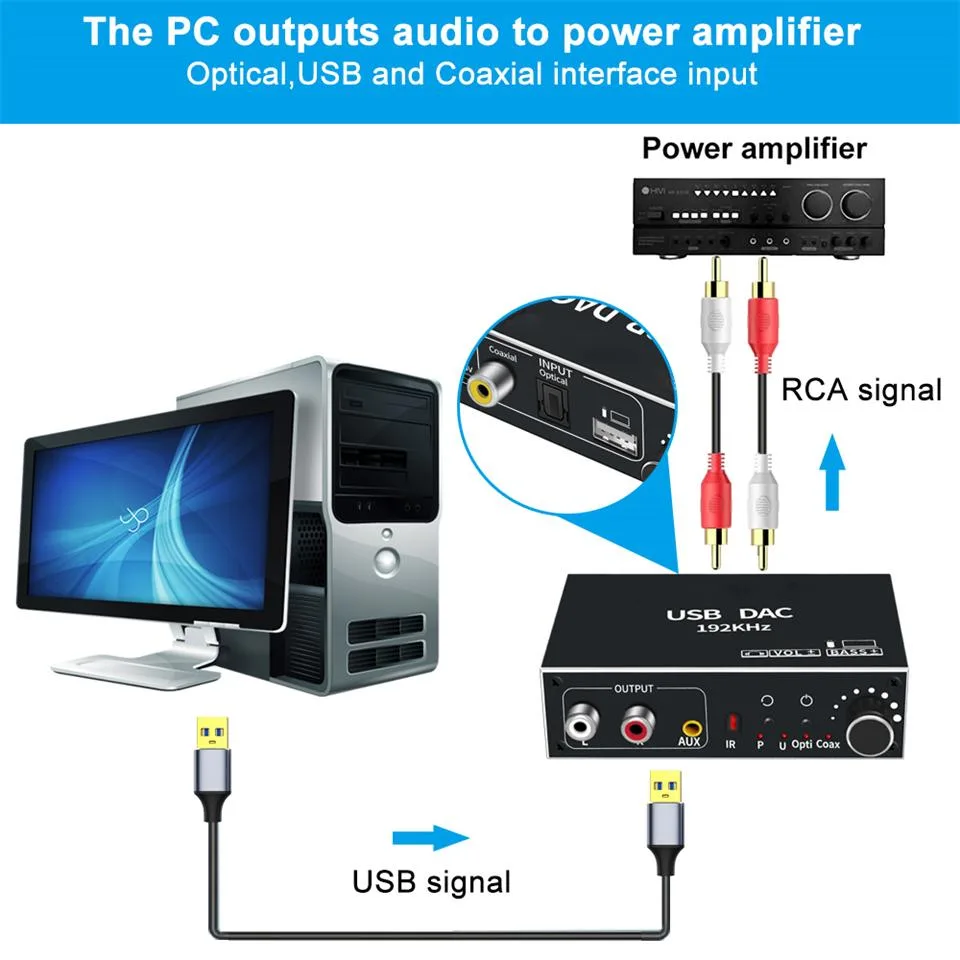

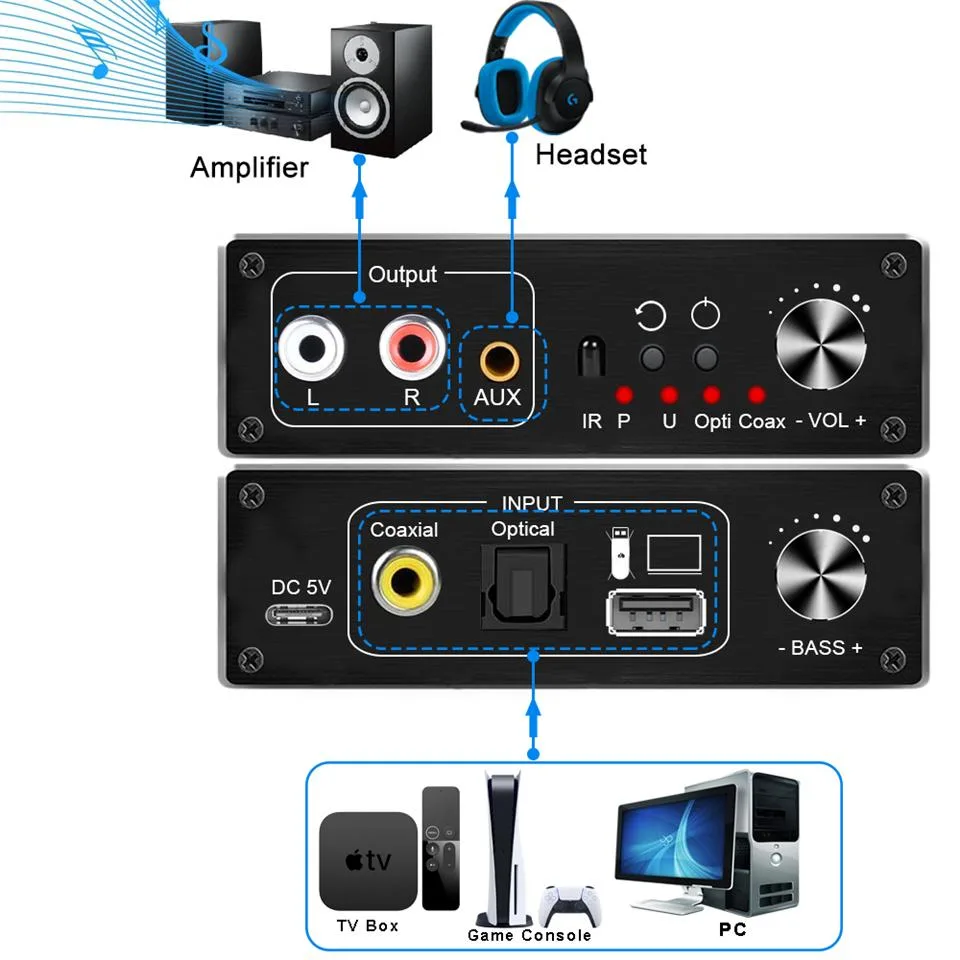

The converter provides stereo RCA left and right outputs plus a 3.5 mm jack for direct headphone connection. Use the RCA outputs to feed an external amplifier, active speakers or a home cinema system. The front-panel volume knob controls both line and headphone levels, while the bass knob adjusts low-frequency response. No software drivers are required for the USB audio input on a PC.

Highlights

  • Converts digital audio to analog for versatile connectivity
  • Supports 192kHz 24-bit sampling for high-resolution sound
  • Adjustable headphone amplifier delivers 125mW per channel at 32 ohms
  • Bass and volume knobs tailor output for 32-600 ohm headphones
  • Plug-and-play with USB optical and coaxial inputs for PC and consoles

Specifications

BrandJansicotek
ModelOZHL2
ColorBlack
Specifications192khz DAC optical digital to analog adapter converter
Inputs: Coaxial, Toslink & USB
Optical/Coaxial input audio format: PCM / LPCM
Optical/Coaxial input sampling rate: 32, 44.1, 48, 96 and 192KHz
Headphone amplifying power: 125mW x2 @ 32O
Suggest headphone esistance range: 32-600O
It can convert optical, USB(For PC), and Coaxial digital audio signals into stereo analog audio signals that are connected to the amplifier. Help users solve the problem of connecting different audio interfaces to analog amplifiers.
FeaturesDAC Digital to Analog Audio Converter ,support USB(For PC),Optical SPDIF and Coaxial as audio input,support RCA(L/R) and 3.5mm jack as audio output,192KHz 24 bit sampling rates.
192khz DAC optical digital to analog adapter converter
Inputs: Coaxial, Toslink & USB
Optical/Coaxial input audio format: PCM / LPCM
Optical/Coaxial input sampling rate: 32, 44.1, 48, 96 and 192KHz
Headphone amplifying power: 125mW x2 @ 32
Suggest headphone esistance range: 32-600
It can convert optical, USB(For PC), and Coaxial digital audio signals into stereo analog audio signals that are connected to the
Package Contents1 X Digital to analog audio converter
1 X USB power cable
1 X IR Remote Control
1 X User Manual

Questions about this item

What comes in the box and do I need any extra cables to connect my TV and headphones?

The package includes the converter, a USB power cable, an IR remote control and a user manual. You will need to supply your own optical, coaxial or 3.5 mm cables to connect the source and the headphones or amplifier.

The spec sheet lists several sampling rates — which one should I set for the best quality from a Blu-ray player?

The optical and coaxial inputs accept PCM or LPCM at 32, 44.1, 48, 96 and 192 kHz. Choose the highest rate your source outputs, up to 192 kHz, and set the player's audio format to PCM or LPCM.

The headline figure is 125 mW × 2 at 32 ohms — how loud will that drive typical 32–600 ohm headphones?

At 32 ohms the amplifier delivers 125 mW per channel, which is ample for most portable headphones. Output power falls as impedance rises, so high-impedance models up to 600 ohms will be quieter but still usable thanks to the volume and bass knobs.
