Small black rectangular box with three Toslink inputs, one output, IR sensor and remote control

Jansicotek

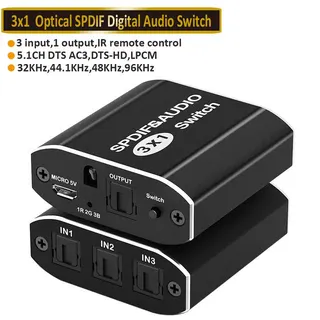

Jansicotek OZG2 3×1 Toslink Switcher with IR Remote

SKU CH-40VC-QPPN4

Three-input optical switch routes Toslink sources to one output with IR remote and last-state memory

  • TypeSPDIF Switchers
  • Changer TypeSPDIF / Toslink Switch
  • ColorBlack
  • Ports3
  • SpecificationsSupport for audio formats: LPCM2.0 / DTS / Dolby Digital. Su
  • Input Connector3 x SPDIF
  • Connect three Toslink sources to one output

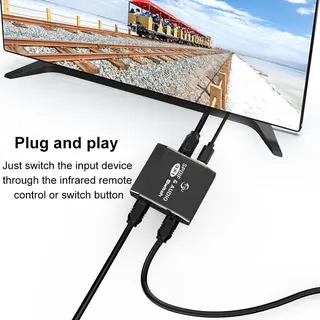

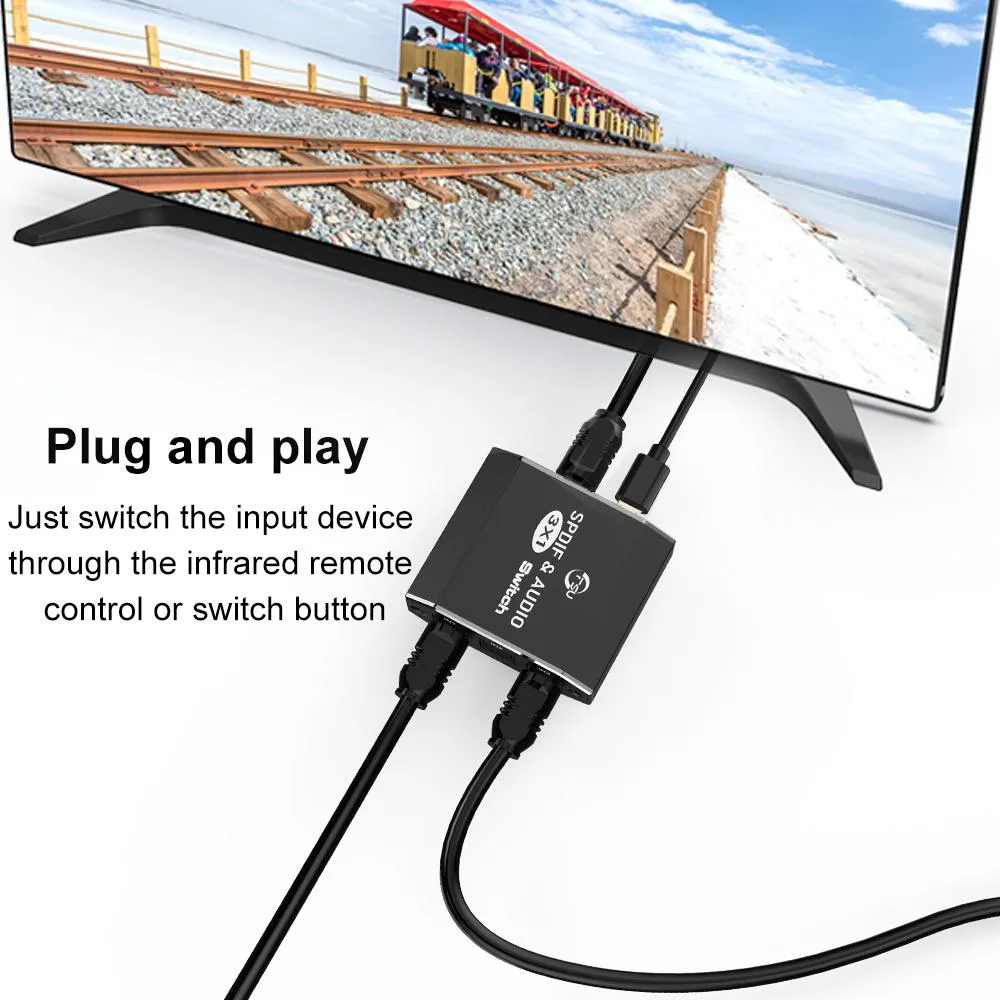

  • Switch inputs manually or with the IR remote
  • Transmit lossless audio up to 40 m
  • Retains last input selection after power loss
  • Supports LPCM 2.0, DTS and Dolby Digital formats

Three-input optical switcher

This Jansicotek OZG2 unit connects three Toslink sources to a single SPDIF input on a soundbar, amplifier or AV receiver. It accepts consoles, disc players or streaming boxes and routes the selected signal without re-encoding. A supplied IR remote and front-panel button both change the active input. The switch remembers the last choice after power loss.

Format limits at 96 kHz

Supported audio formats are LPCM 2.0, DTS and Dolby Digital; multichannel formats such as 7.1CH Dolby Digital Plus and Dolby True HD are not passed through. Sampling frequency tops out at 96 kHz, so higher-rate streams will be down-sampled or rejected. Fibre runs up to 40 m are specified with attenuation below .2 dB/m, and built-in surge protection guards against faulty power adapters.

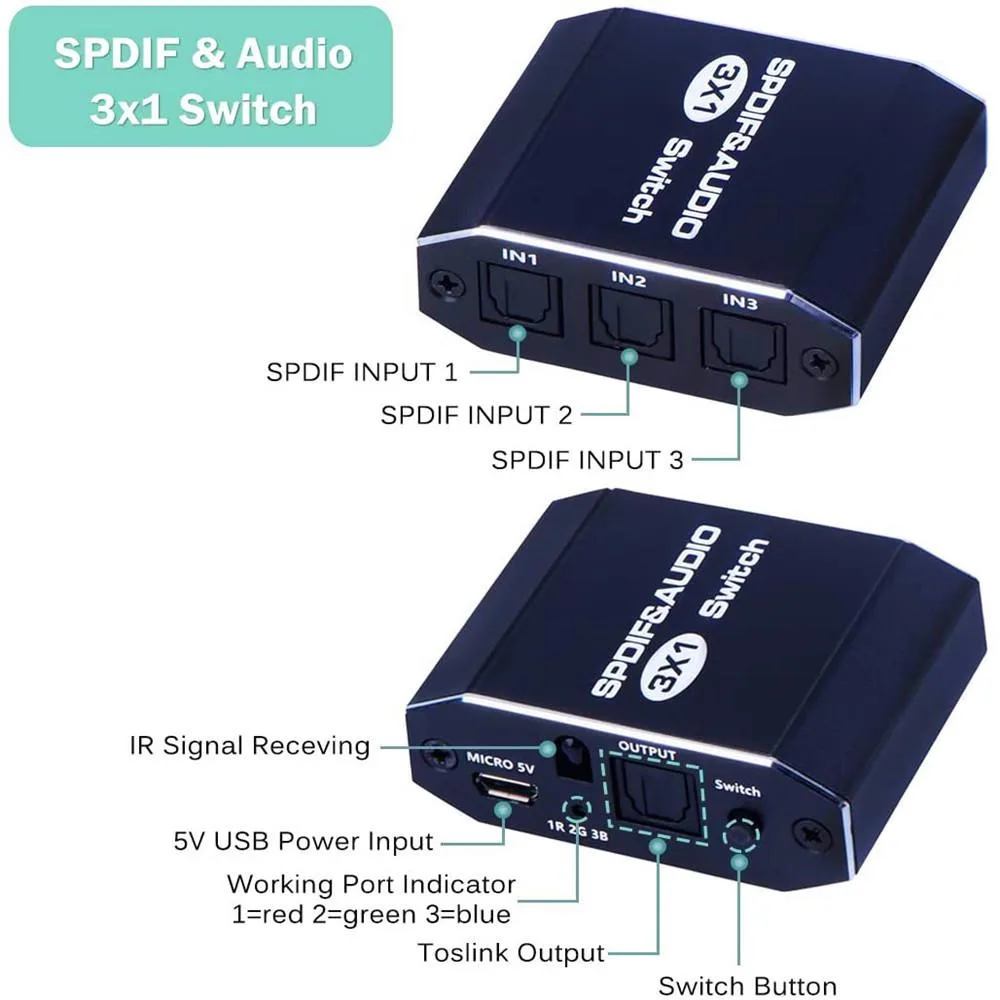

Three Toslink inputs, one output

The decisive spec is the 3×1 port arrangement: three optical inputs feed one optical output. Buyers who need to combine more than three sources or who require a second simultaneous output cannot use this switcher. Power comes from a 5 V USB cable, and an IR extension cable is included for hidden installations.

Highlights

  • Connect three Toslink sources to one output
  • Switch inputs manually or with the IR remote
  • Transmit lossless audio up to 40 m
  • Retains last input selection after power loss
  • Supports LPCM 2.0, DTS and Dolby Digital formats

Specifications

BrandJansicotek
SeriesOZG2
ModelOZG2
Part NumberOZG2
TypeSPDIF Switchers
Changer TypeSPDIF / Toslink Switch
ColorBlack
Ports3
SpecificationsSupport for audio formats: LPCM2.0 / DTS / Dolby Digital.
Supports a transmission distance of up to 40 m via fibre optic cable.
Supports the last memory when power off.
Supports manual switching or IR control.
Support signal retiming
Surge protection
LED power status indicator.
No loss of sound quality.
Easy to set up, installed in minutes.
Dimensions: 6.2 x 5.8 x 2.4 cm
Weight:65g
Input Connector3 x SPDIF
Output Connector1 x SPDIF
FeaturesOptical 3x1 audio switch: with these digital optical SPDIF / Toslink audio switches, 3 optical Toslink sources (PS3, PS4, Xbox One, Blu-ray player, Apple TV, cable boxes, etc.) can be easily connected to a SPDIF / Toslink signal receivers (home theater, speaker, amplifier, soundbar, AV receiver, etc.). Support last working status memory when power off.
Supports 3 audio formats: this SPDIF Toslink switch supports uncompressed audio: LPCM 2.0, compressed audio: DTS, Dolby-AC3, no distortion of audio and video, no delay in signal transmission, enjoy various high quality audio quality an
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 3x1 Toslink switch.
1 x 5V USB power cable.
1 x remote control.
1 x IR extension cable.
1 x user manual

Questions about this item

Does the OZG2 have a single fixed 3-input-1-output layout or are other port counts available?

The OZG2 is only offered as a 3-input 1-output Toslink switcher with no alternative port configurations.

What audio formats will actually pass through when I connect a console or Blu-ray player?

The switcher passes uncompressed LPCM 2.0 and compressed DTS and Dolby Digital bitstreams; it does not pass 7.1-channel Dolby Digital Plus or Dolby TrueHD.

What SPDIF/Toslink standard limits the signal distance and sampling rate on this unit?

The optical SPDIF interface caps lossless transmission at 40 metres with under .2 dB per metre loss and supports sampling frequencies up to 96 kHz.
