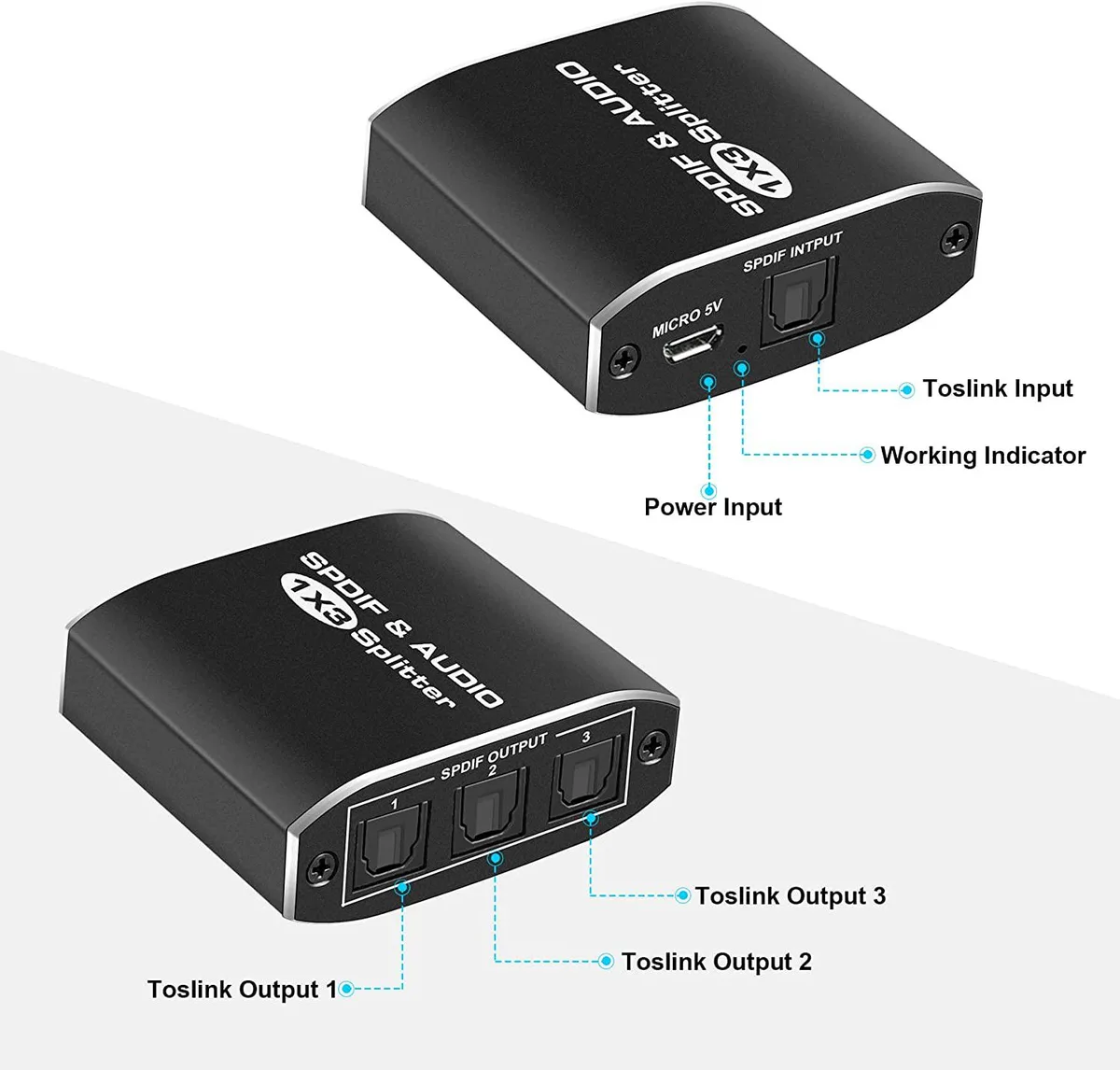

Black rectangular optical audio splitter with three TOSLINK output ports and one input port, USB power cable included

Jansicotek

Jansicotek OZG1 1x3 SPDIF TOSLINK Digital Optical Audio Splitter

SKU CH-WE84-TSHNW

Splits one Toslink input into three outputs supporting LPCM2.0, DTS and Dolby-AC3 up to 40 metres with USB power

  • TypeSPDIF TOSLINK Digital Optical Splitters
  • Changer TypeDigital Optical Splitter 1 in 3 Out
  • Ports3
  • AudioYes
  • ColorBlack
  • Specifications1.One way of optical fiber signal input splitter to three se
  • Splits one optical input into three outputs
  • Supports LPCM 2.0, DTS and Dolby AC3 audio formats
  • Signal retiming maintains quality over distance
  • Transmits up to 40 m with low-loss fibre cable
  • Includes USB power cable, optical cable and manual

Jansicotek OZG1 1x3 SPDIF Splitter

This digital optical audio splitter takes a single SPDIF TOSLINK input and distributes it to three outputs. It is built for home-theatre owners, gamers and AV installers who need to send the same audio stream to multiple receivers, soundbars or recording devices simultaneously. The unit supports LPCM2.0, DTS and Dolby-AC3 formats.

Plug-and-play setup with USB power

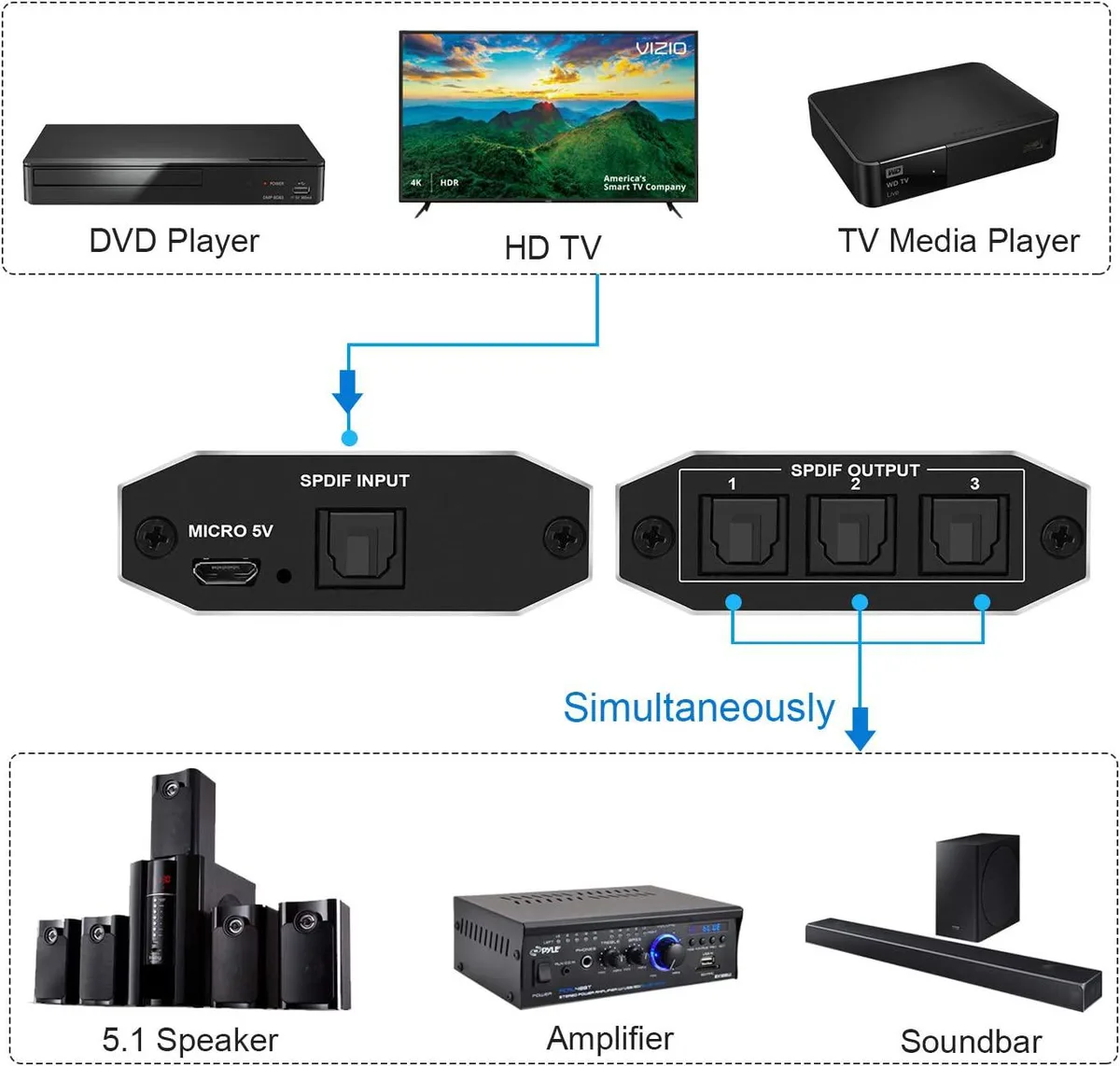

Connect the source to the input port and up to three displays or amplifiers to the outputs, then power the unit from any USB 5 V supply using the included cable. No drivers or configuration are required. The main installation issue is forgetting the USB power connection, which leaves the splitter inactive, or exceeding the 40 m cable run where signal loss rises above .2 dB per metre.

Three-way distribution up to 40 metres

Each output can drive a Toslink cable up to 40 m when using low-loss fibre, handling a maximum baud rate of 16 Mbps at a 650 nm peak wavelength. The splitter draws no more than 100 mA and includes an automatic balance circuit plus ESD protection. It cannot amplify a degraded source signal, and it does not decode or down-mix multi-channel formats beyond the listed standards.

Highlights

  • Splits one optical input into three outputs
  • Supports LPCM 2.0, DTS and Dolby AC3 audio formats
  • Signal retiming maintains quality over distance
  • Transmits up to 40 m with low-loss fibre cable
  • Includes USB power cable, optical cable and manual

Specifications

BrandJansicotek
SeriesOZG1
ModelOZG1
Part NumberOZG1
TypeSPDIF TOSLINK Digital Optical Splitters
Changer TypeDigital Optical Splitter 1 in 3 Out
Ports3
AudioYes
ColorBlack
Specifications1.One way of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support:LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less than 0. 2Db/m, Output distance is up to 40m.
5.Over voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
6.No loss of quality
7.Installs in minutes
8.Need USB 5V power supply
Input Connector3 x SPDIF TOSLINK OUT
Output Connector1 x SPDIF TOSLINK IN
Features1.Support audio format:LPCM2 0/DTS/Dolby-AC
2.Peak wavelength:650nm
3.Max baud rate:16Mbps
4.Output cable distance:<=40m(Use the optical fiber cable loss less the 0.2Db/m)
5.Max working current:100mA
6.Power adapter format:input: AC (50HZ, 60HZ)100V-240V; Output DC5V
7.Operating Temperature range:(0t+40?)
8.Operating Humidity range:5 to 90%RH (No Condensation)
9.Dimension (LX WX H):62x58x24(mm)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x Optical Audio Splitter
1x Optical cable
1x USB Power cable
1x User manual

Questions about this item

How can I confirm the Jansicotek OZG1 is passing audio correctly after I connect it?

Verify sound plays from all three Toslink outputs and check that the source device reports LPCM2.0, DTS or Dolby-AC3 without dropouts.

What cables and accessories come with the splitter and what must I supply?

The box includes the splitter, one optical cable, a USB power cable and a manual; you need to provide a 5 V USB power source and two additional Toslink cables for the other outputs.

Which version of the OZG1 should I choose for a home-theatre system that runs up to 40 metres of optical cable?

The single OZG1 model supports 16 Mbps bandwidth and 40 m output distance with cable loss below 0.2 dB/m, covering that requirement.
