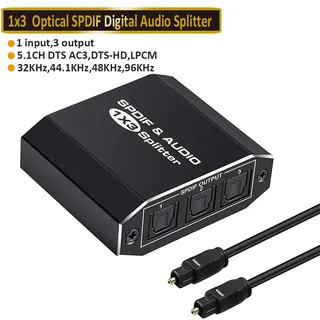

Small black aluminium box with one Toslink input and three Toslink outputs plus USB power port

Jansicotek

Jansicotek OZG1 1-in 3-Out S/PDIF Splitter

SKU CH-HH1M-83YQC

Splits one optical audio signal to three devices with support for LPCM2.0, DTS and Dolby-AC3 formats up to 40 metres

  • TypeSPDIF TOSLINK Digital Optical Splitters
  • Changer TypeDigital Optical Splitter 1 in 3 Out
  • Ports3
  • AudioYes
  • ColorBlack
  • Specifications1.One way of optical fiber signal input splitter to three se
  • Splits one optical input to three outputs
  • Supports LPCM 2.0, DTS and Dolby-AC3 formats
  • Signal retiming preserves audio quality over distance
  • USB 5 V power cable included for reliable operation
  • Transmits up to 40 m with low loss

Digital Optical Splitter 1-in 3-Out

The Jansicotek OZG1 takes a single S/PDIF Toslink input and distributes it to three optical outputs, letting one source feed a soundbar, headphones and an AV receiver simultaneously. It supports LPCM2.0, DTS and Dolby-AC3 formats with signal retiming to keep timing accurate. A USB power cable is included for the required 5 V supply.

Suited for multi-room audio

Installers who need to send one optical signal to three zones without quality loss will find the 40 m reach at 0.2 dB/m loss useful. The aluminium housing and plug-and-play operation suit permanent rack or behind-TV mounting. Buyers who need more than three outputs or require analogue conversion should choose a different device.

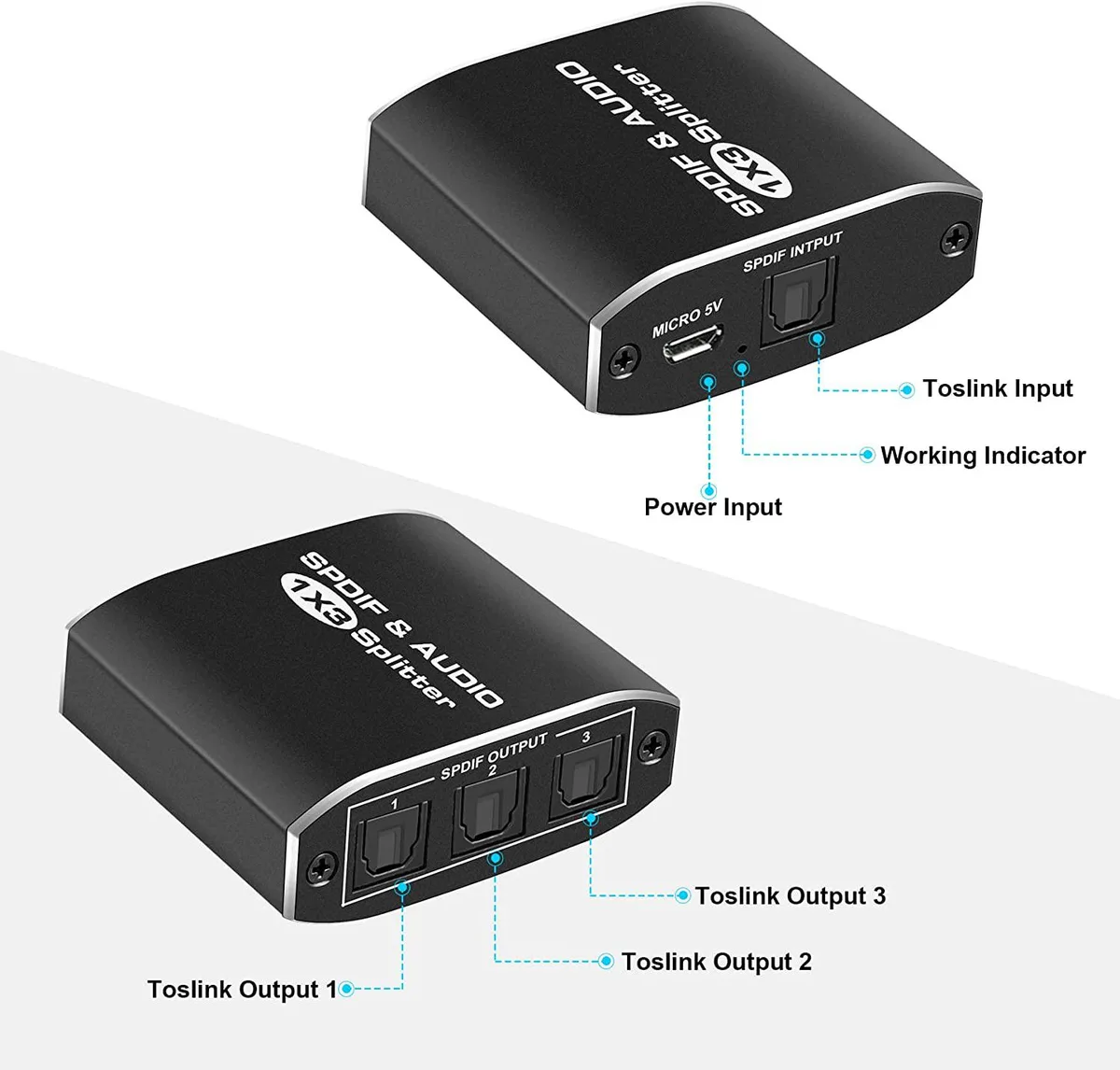

One Toslink input split to three Toslink outputs

This 1-to-3 topology is the decisive specification: it defines exactly how many receiving devices can be driven from a single source. The splitter handles a maximum baud rate of 16 Mbps and a peak wavelength of 650 nm, so any source and cable combination must stay within those limits.

Highlights

  • Splits one optical input to three outputs
  • Supports LPCM 2.0, DTS and Dolby-AC3 formats
  • Signal retiming preserves audio quality over distance
  • USB 5 V power cable included for reliable operation
  • Transmits up to 40 m with low loss

Specifications

BrandJansicotek
SeriesOZG1
ModelOZG1
Part NumberOZG1
TypeSPDIF TOSLINK Digital Optical Splitters
Changer TypeDigital Optical Splitter 1 in 3 Out
Ports3
AudioYes
ColorBlack
Specifications1.One way of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support:LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less than 0. 2Db/m, Output distance is up to 40m.
5.Over voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
6.No loss of quality
7.Installs in minutes
8.Need USB 5V power supply
Input Connector3 x SPDIF TOSLINK OUT
Output Connector1 x SPDIF TOSLINK IN
Features1.Support audio format:LPCM2 0/DTS/Dolby-AC
2.Peak wavelength:650nm
3.Max baud rate:16Mbps
4.Output cable distance:<=40m(Use the optical fiber cable loss less the 0.2Db/m)
5.Max working current:100mA
6.Power adapter format:input: AC (50HZ, 60HZ)100V-240V; Output DC5V
7.Operating Temperature range:(0t+40?)
8.Operating Humidity range:5 to 90%RH (No Condensation)
9.Dimension (LX WX H):62x58x24(mm)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x Optical Audio Splitter
1x Optical cable
1x USB Power cable
1x User manual

Questions about this item

What optical cables and power source must I already have to use the OZG1 splitter?

You need one Toslink cable for the input, up to three Toslink cables for the outputs, and a USB 5 V power supply; the box includes one optical cable and a USB power cable.

Will the OZG1 work with my Xbox 360 and PS3 alongside newer consoles?

Yes, the splitter accepts LPCM 2.0, DTS and Dolby-AC3 from any device with a Toslink output, so legacy consoles and current hardware can share the same input.

How can I verify the OZG1 is passing audio correctly after I connect everything?

Play a source that outputs LPCM 2.0, DTS or Dolby-AC3 and confirm all three connected receivers show a stable signal; the unit supports signal retiming and runs at up to 16 Mbps with a 650 nm peak wavelength.
