Black rectangular Toslink splitter with one input and three output ports, aluminium alloy finish

Jansicotek

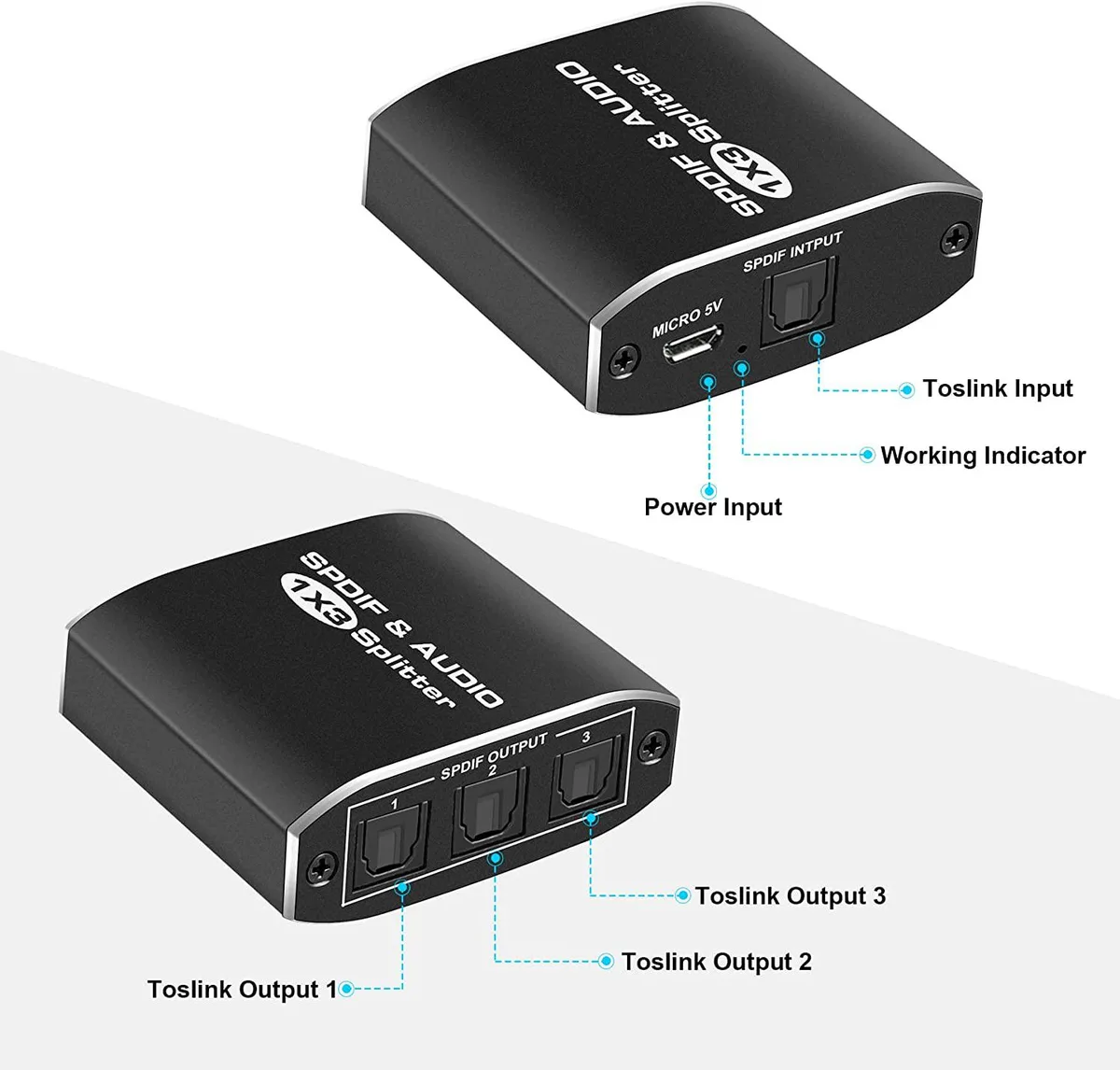

Jansicotek OZG1 1×3 Toslink SPDIF Optical Audio Splitter

SKU CH-ZJBW-WFQJJ

Splits one optical audio input into three outputs supporting LPCM 2.0, DTS and Dolby AC3 up to 40 metres with USB power

  • TypeSPDIF TOSLINK Digital Optical Splitters
  • Changer TypeDigital Optical Splitter 1 in 3 Out
  • Ports3
  • AudioYes
  • ColorBlack
  • Specifications1.One way of optical fiber signal input splitter to three se
  • Splits one optical source to three devices
  • Supports LPCM 2.0, DTS and Dolby AC3 formats
  • Signal retiming maintains quality up to 40 metres
  • ESD and over-voltage protection safeguard connected equipment
  • Includes optical cable, USB power cable and manual

What it does and who needs it

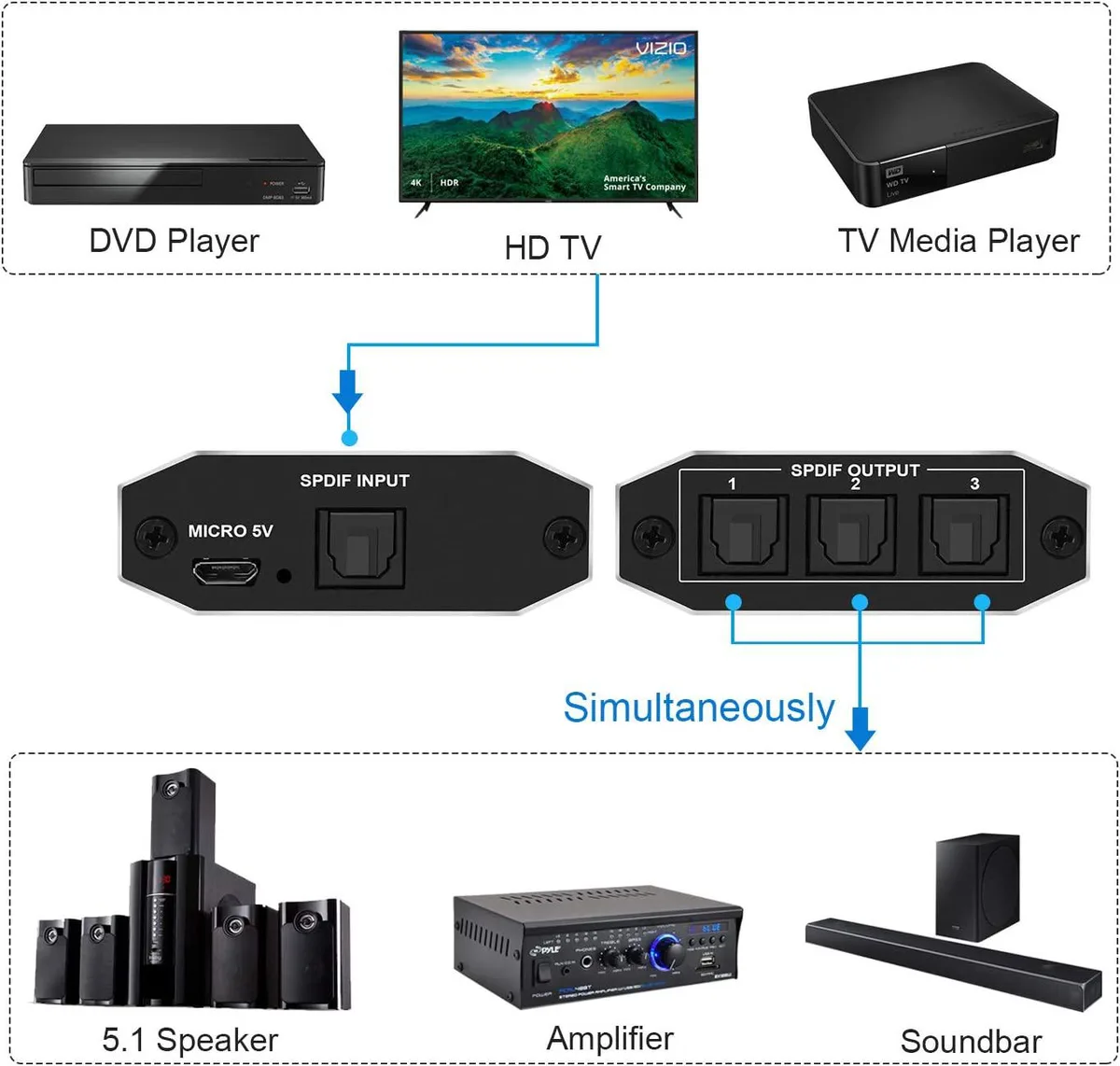

The Jansicotek OZG1 takes a single Toslink SPDIF optical input and splits it to three identical outputs. It lets one source — such as a game console, Blu-ray player or streaming box — feed three separate audio devices at the same time without switching cables.

Practical limits of the optical interface

The splitter handles LPCM 2.0, DTS and Dolby-AC3 formats at up to 16 Mbps with a 650 nm peak wavelength. Signal retiming keeps timing intact, but the optical path is limited to 40 m when cable loss stays below .2 dB per metre.

Capacity and headroom

Three outputs give enough ports for a soundbar, AV receiver and headphone amplifier simultaneously. The unit draws a maximum of 100 mA from its USB 5 V supply, so it runs from a standard port. It does not support multichannel formats beyond the listed codecs, and it cannot combine three sources into one.

Highlights

  • Splits one optical source to three devices
  • Supports LPCM 2.0, DTS and Dolby AC3 formats
  • Signal retiming maintains quality up to 40 metres
  • ESD and over-voltage protection safeguard connected equipment
  • Includes optical cable, USB power cable and manual

Specifications

BrandJansicotek
SeriesOZG1
ModelOZG1
Part NumberOZG1
TypeSPDIF TOSLINK Digital Optical Splitters
Changer TypeDigital Optical Splitter 1 in 3 Out
Ports3
AudioYes
ColorBlack
Specifications1.One way of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support:LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less than 0. 2Db/m, Output distance is up to 40m.
5.Over voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
6.No loss of quality
7.Installs in minutes
8.Need USB 5V power supply
Input Connector3 x SPDIF TOSLINK OUT
Output Connector1 x SPDIF TOSLINK IN
Features1.Support audio format:LPCM2 0/DTS/Dolby-AC
2.Peak wavelength:650nm
3.Max baud rate:16Mbps
4.Output cable distance:<=40m(Use the optical fiber cable loss less the 0.2Db/m)
5.Max working current:100mA
6.Power adapter format:input: AC (50HZ, 60HZ)100V-240V; Output DC5V
7.Operating Temperature range:(0t+40?)
8.Operating Humidity range:5 to 90%RH (No Condensation)
9.Dimension (LX WX H):62x58x24(mm)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x Optical Audio Splitter
1x Optical cable
1x USB Power cable
1x User manual

Questions about this item

Which Jansicotek OZG1 configuration should I choose for my setup?

The OZG1 is a single 1×3 model that takes one TOSLINK input and splits it to three TOSLINK outputs, so there are no alternative versions or capacities to select.

What does the 16 Mbps maximum baud rate mean for my audio?

It sets the upper data-rate limit for the optical link, ensuring lossless transport of LPCM 2.0, Dolby-AC3 and DTS bitstreams without compression or down-mixing.

What interface does the splitter use and what distance does it support?

It uses SPDIF TOSLINK optical connectors and supports up to 40 m cable runs when the fibre loss is 0.2 dB/m or lower.
