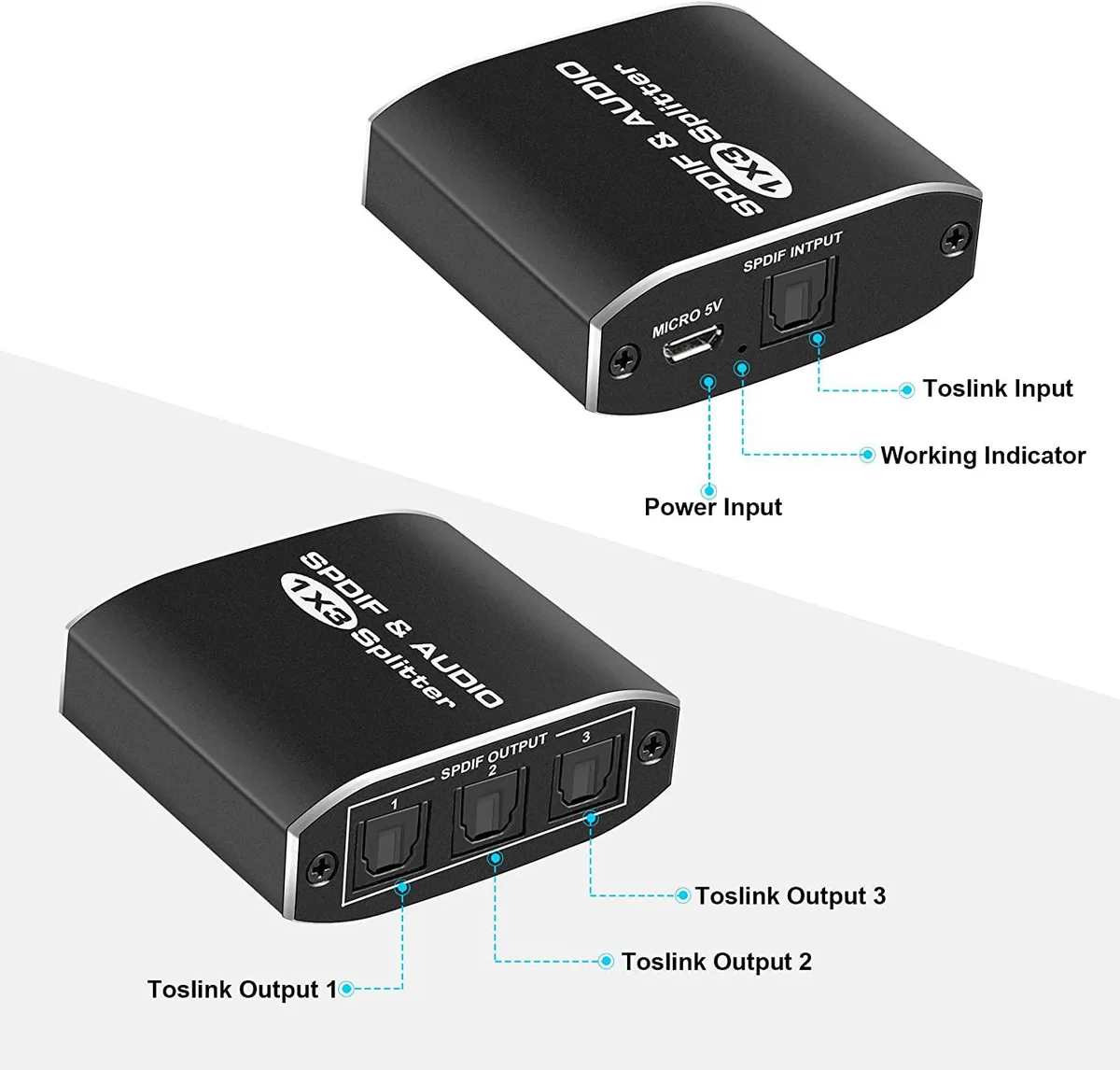

Black rectangular splitter with three Toslink output ports and one input port, USB power cable included

Jansicotek

Jansicotek OZG1 1×3 Toslink Optical Audio Splitter Black

SKU CH-VMYE-TCKX7

Splits one Toslink input into three outputs supporting LPCM2.0, DTS and Dolby-AC3 with signal retiming up to 40m

  • TypeSPDIF TOSLINK Digital Optical Splitters
  • Changer TypeDigital Optical Splitter 1 in 3 Out
  • Ports3
  • AudioYes
  • ColorBlack
  • Specifications1.One way of optical fiber signal input splitter to three se
  • One input splits to three optical outputs
  • Supports LPCM 2.0, DTS and Dolby AC-3 audio
  • Signal retiming keeps output stable over distance
  • Works up to 40 metres with low-loss fibre cable
  • USB 5 V power with over-voltage protection included

One-to-Three Optical Audio Splitter

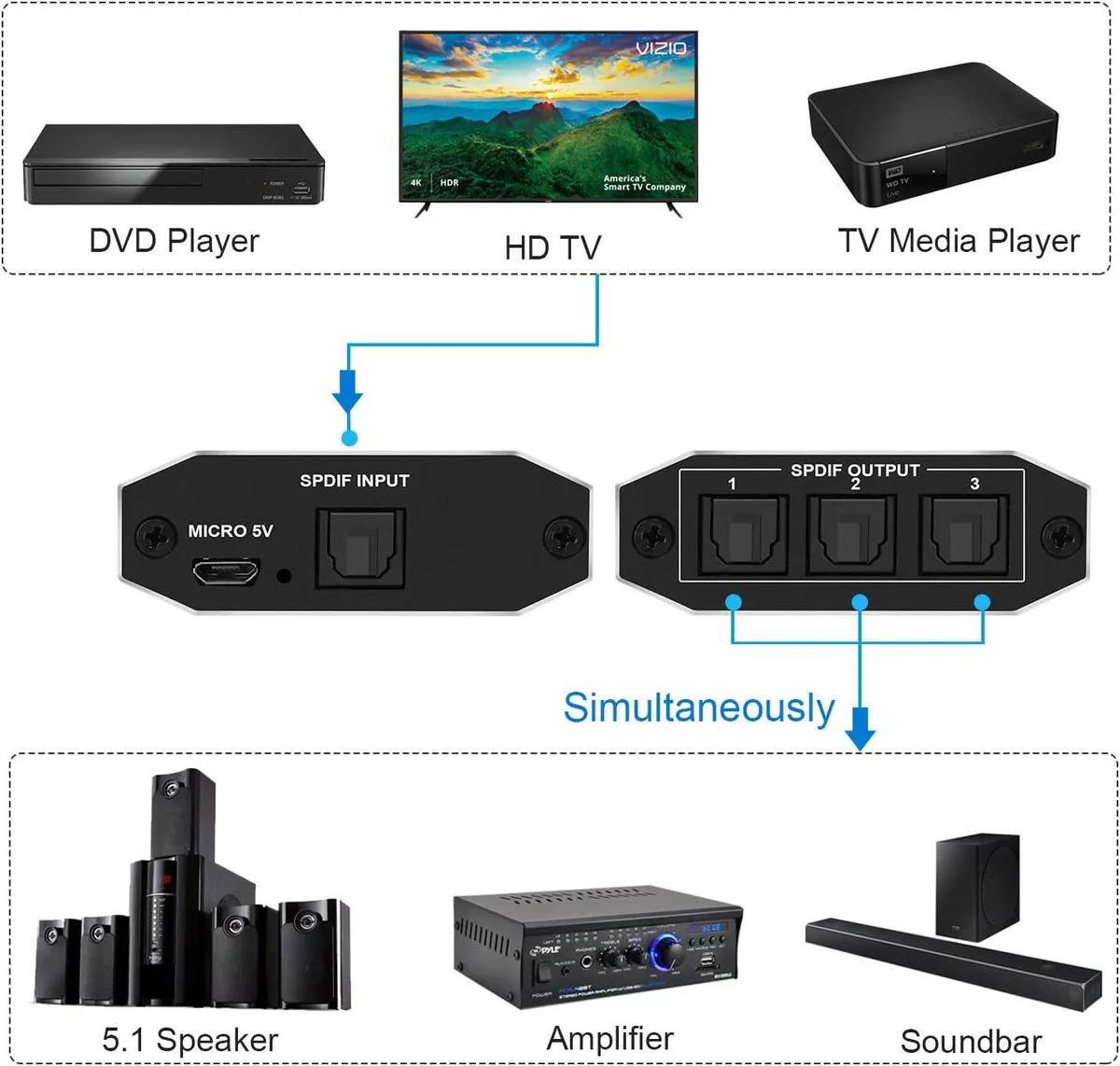

The Jansicotek OZG1 takes a single SPDIF Toslink input and distributes it to three optical outputs. It is built for installations that need the same digital audio stream sent to multiple receivers such as soundbars, AV amplifiers or recording devices. A USB power cable is included so the active splitter can retime and boost the signal without an external wall adapter.

Bundled Cable and Power Lead

The package supplies one optical fibre cable and a USB power lead alongside the splitter and a user manual. The cable lets you connect the input source immediately while the USB lead draws 5 V from any convenient port, removing the need for a separate power brick. Both accessories are matched to the splitter’s 100 mA maximum working current.

Format Support and Distance Headroom

The unit handles LPCM 2.0, DTS and Dolby AC3 streams at up to 16 Mbps with a 650 nm peak wavelength. Signal retiming keeps the output stable over fibre runs of 40 metres when cable loss stays below 0.2 dB per metre. It does not decode multichannel formats beyond the listed standards, so systems requiring Dolby TrueHD or DTS-HD Master Audio pass-through will need a different solution.

Highlights

  • One input splits to three optical outputs
  • Supports LPCM 2.0, DTS and Dolby AC-3 audio
  • Signal retiming keeps output stable over distance
  • Works up to 40 metres with low-loss fibre cable
  • USB 5 V power with over-voltage protection included

Specifications

BrandJansicotek
SeriesOZG1
ModelOZG1
Part NumberOZG1
TypeSPDIF TOSLINK Digital Optical Splitters
Changer TypeDigital Optical Splitter 1 in 3 Out
Ports3
AudioYes
ColorBlack
Specifications1.One way of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device.
2.Audio format support:LPCM2.0/DTS/Dolby-AC3.
3.Support signal retiming.
4.Used optical fiber cable loss less than 0. 2Db/m, Output distance is up to 40m.
5.Over voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.
6.No loss of quality
7.Installs in minutes
8.Need USB 5V power supply
Input Connector3 x SPDIF TOSLINK OUT
Output Connector1 x SPDIF TOSLINK IN
Features1.Support audio format:LPCM2 0/DTS/Dolby-AC
2.Peak wavelength:650nm
3.Max baud rate:16Mbps
4.Output cable distance:<=40m(Use the optical fiber cable loss less the 0.2Db/m)
5.Max working current:100mA
6.Power adapter format:input: AC (50HZ, 60HZ)100V-240V; Output DC5V
7.Operating Temperature range:(0t+40?)
8.Operating Humidity range:5 to 90%RH (No Condensation)
9.Dimension (LX WX H):62x58x24(mm)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x Optical Audio Splitter
1x Optical cable
1x USB Power cable
1x User manual

Questions about this item

Does the USB power cable need periodic replacement?

The splitter draws up to 100 mA from a 5 V USB source, so the supplied cable lasts as long as any standard USB lead.

What limits the output cable length during continuous use?

Signal loss must stay below 0.2 dB per metre, giving a practical maximum of 40 metres per output.

How much heat does the aluminium housing produce when powered all day?

At a maximum working current of 100 mA the unit stays cool to the touch with no fan required.
