Black square DisplayPort splitter with one input and two output ports, USB-C power cable included

Jansicotek

Jansicotek OZFD DisplayPort Splitter 1 in 2 Out 4K 144Hz

SKU CH-V653-946NG

Splits one DisplayPort source to two monitors at up to 3840x2160@144Hz with MST extend support and 32.4Gbps bandwidth

  • TypeDisplayPort Splitters
  • Changer TypeDisplay Extenders
  • Ports2
  • AudioYes
  • ColorBlack
  • Specifications* Power Supply: 5V/2A *Video format: 3840x2160@144Hz *Using
  • Extend dual 4K monitors at 144 Hz from one DP 1.4 source
  • Mirror or extend displays with 32.4 Gbps bandwidth for smooth video
  • Drive cables up to 10 m without signal loss
  • Powered by included 5 V 2 A adapter for stable operation
  • Compact 74 × 74 × 14 mm unit weighs just 35 g

What it is

The Jansicotek OZFD DisplayPort Splitter takes one DisplayPort source and sends the signal to two DisplayPort displays simultaneously. It supports both mirror and extend modes so a desktop or laptop can drive dual monitors from a single output. The box includes the splitter, a 5V/2A power adapter, a USB-to-Type-C power cable and a user manual.

Deciding specification

The unit follows the DisplayPort 1.4 standard and delivers up to 32.4 Gbps bandwidth. To reach the advertised 3840 x 2160 at 144 Hz the host must also provide a DisplayPort 1.4 output; most integrated graphics will only operate in mirror mode.

Capacity and headroom

A single connected monitor can run at 3840 x 2160 at 144 Hz, while dual monitors in MST extend mode reach 3840 x 2160 at 120 Hz. The splitter drives cables up to 10 metres without signal loss. It does not support docking stations, hubs or KVM switches.

Highlights

  • Extend dual 4K monitors at 144 Hz from one DP 1.4 source
  • Mirror or extend displays with 32.4 Gbps bandwidth for smooth video
  • Drive cables up to 10 m without signal loss
  • Powered by included 5 V 2 A adapter for stable operation
  • Compact 74 × 74 × 14 mm unit weighs just 35 g

Specifications

BrandJansicotek
SeriesOZFD
ModelOZFD
Part NumberOZFD
TypeDisplayPort Splitters
Changer TypeDisplay Extenders
Ports2
AudioYes
ColorBlack
Specifications* Power Supply: 5V/2A
*Video format: 3840x2160@144Hz
*Using cable instance: 10 meter DisplayPort cable
* Length x Width x Height: 74 *74 *14 (mm)
* Weight: 35g

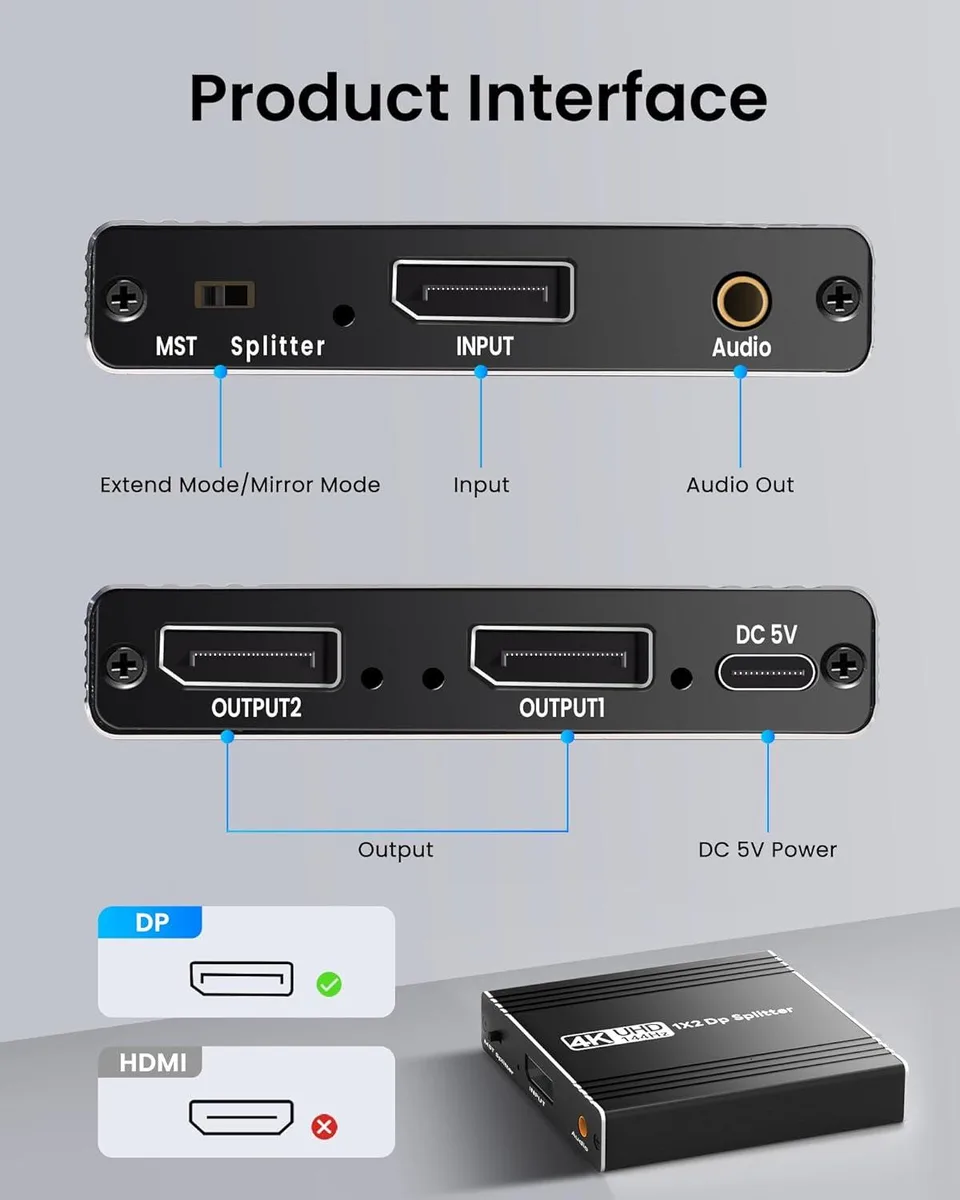

Input Connector1x DisplayPort female
Output Connector2x DisplayPort female
Maximum Resolutions3840 x 2160
Bandwidth32.4Gbps
Features1. 1 DP input and 2 DP output simultaneously;
2. DisplayPort 1.4 specification standard.
3. The highest video resolution is 3840x2160@144Hz.
4. Supports up to 3840x2160@120Hz for MST mode.
5. Transfer rates up to 32.4Gbps.
6. Can drive 10 meter DisplayPort cable.
Dimensions5.31 x 3.11 x 0.87 inches
Weight2.12 Ounces
Package Quantity1
Package Contents1* DisplayPort Splitter, 1x Power Adapter, 1* USB to Type-C Power cable (5V/2A), 1*User Manual.

Questions about this item

What does the 3840×2160@144Hz figure mean when the splitter is connected to a PC?

It is the maximum single-display resolution and refresh rate the splitter can pass through from a DisplayPort 1.4 source. In MST extend mode the highest supported timing drops to 3840×2160@120Hz per monitor.

Which DisplayPort standard limits the 32.4Gbps bandwidth and what does that cap in practice?

The adapter follows the DisplayPort 1.4 specification, so the 32.4Gbps link rate caps single-stream output at 4K 144Hz and MST dual-stream output at 4K 120Hz per screen.

What physical space and power connections are needed to mount the unit?

The aluminium housing measures 74×74×14 mm and weighs 35 g. It requires the included 5V/2A power adapter connected via the supplied USB-to-Type-C cable for stable operation.
