Black rectangular HDMI splitter with multiple ports and audio outputs

Jansicotek

Jansicotek OZF6A HDMI Splitter Audio Extractor 1x2 4K@60Hz 18.5Gbps

SKU CH-92BJ-TMKK4

Splits one HDMI source to two displays at 4K@60Hz while extracting audio via optical, coaxial and 3.5 mm outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • Splits one HDMI source to two displays simultaneously
  • Extracts audio to optical, coaxial and 3.5 mm outputs
  • Delivers 4K at 60 Hz with 18.5 Gbps bandwidth
  • Offers TV, stereo and 5.1-channel audio modes
  • Powers via included USB adapter for stable operation

What this splitter does

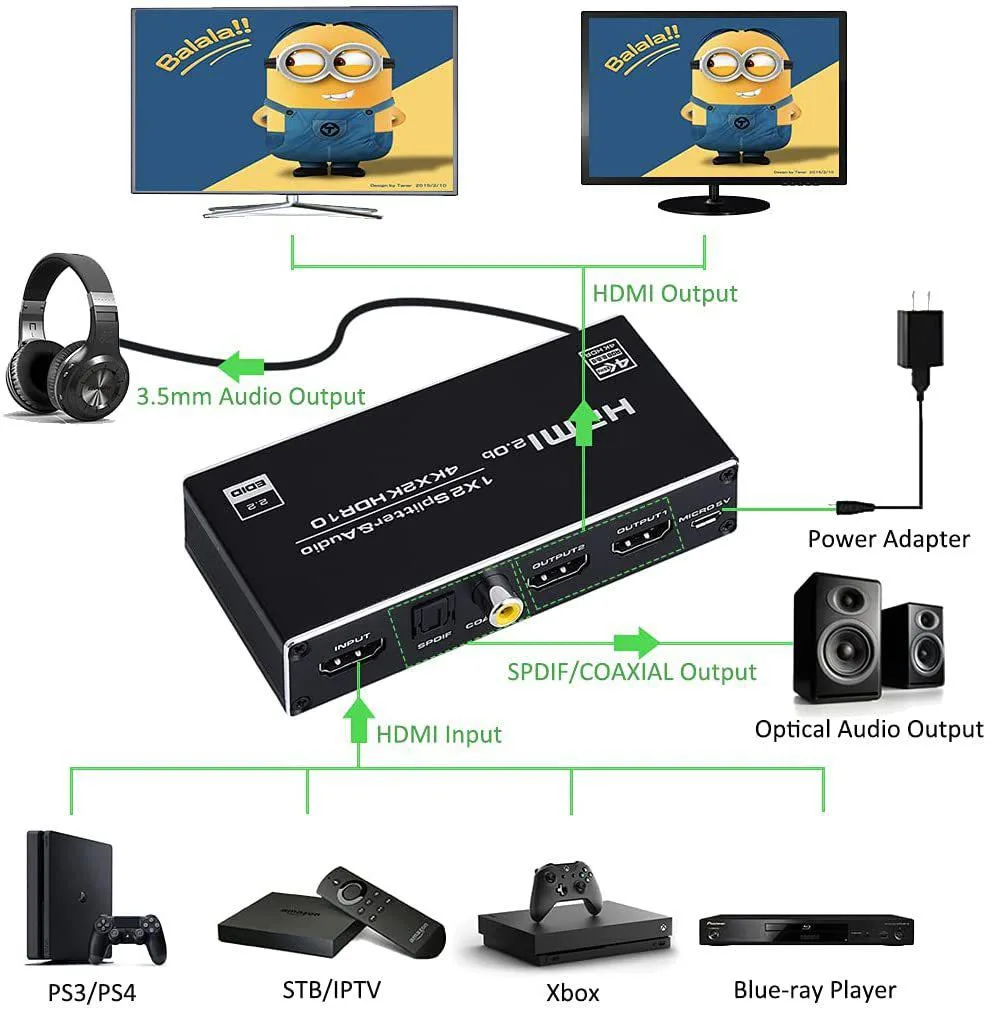

The Jansicotek OZF6A takes one HDMI source and duplicates it to two displays while simultaneously extracting audio to optical SPDIF, coaxial and 3.5 mm outputs. It is built for installers and home users who need mirrored 4K video on two screens plus a separate audio feed for a soundbar or AV receiver.

The spec that decides fit

Bandwidth reaches 18.5 Gbps with HDMI 2.0b and HDCP 2.3 support, so the splitter handles 4K at 60 Hz RGB 8:8:8 without compression. If your source or displays require higher bandwidth such as 4K at 120 Hz or 8K, this unit will not pass that signal.

Capacity and headroom

The extractor decodes DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC-3 and DSD, then lets you choose TV, 2.0 CH or 5.1 CH output modes. It cannot process Dolby Digital Plus or object-based formats such as Dolby Atmos, so those streams will fall back to a compatible core or be muted.

Highlights

  • Splits one HDMI source to two displays simultaneously
  • Extracts audio to optical, coaxial and 3.5 mm outputs
  • Delivers 4K at 60 Hz with 18.5 Gbps bandwidth
  • Offers TV, stereo and 5.1-channel audio modes
  • Powers via included USB adapter for stable operation

Specifications

BrandJansicotek
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g
Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

What does the 18.5 Gbps bandwidth mean when I connect this to my 4K display?

It carries a 4K 60 Hz RGB 4:4:4 signal with 24, 30 or 36 bit colour depth and HDR10, so the image reaches both screens without compression.

How does the HDMI 2.0b and HDCP 2.3 spec limit what I can play?

The HDMI 2.0b link caps video at 4K 60 Hz 18.5 Gbps, while HDCP 2.3 allows protected 4K streams from services like Netflix or Blu-ray to pass to both outputs.

What space and power does the unit need to sit behind my TV?

The box measures 5.59 by 3.15 by 1.26 inches, weighs 3.2 ounces, and draws power from the included USB adapter.
