Jansicotek

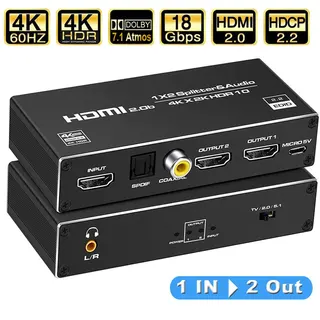

Jansicotek OZF6A HDMI Splitter 1×2 4K60 Audio Extractor
Splits one HDMI signal to two displays at 4K 60 Hz while extracting audio through optical, coaxial and 3.5 mm outputs
- TypeHDMI Splitters
- Changer TypeHDMI
- Ports2
- AudioYes
- ColorBlack
- SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
- Duplicate one HDMI source to two displays at 4K60
- Extract audio to optical, coaxial and 3.5 mm simultaneously
- Choose TV, 2.0 CH or 5.1 CH audio modes
- Supports 24, 30 and 36 bit deep colour with HDR10
- 5 Gbps bandwidth handles 1080p at 120 Hz
What this splitter does

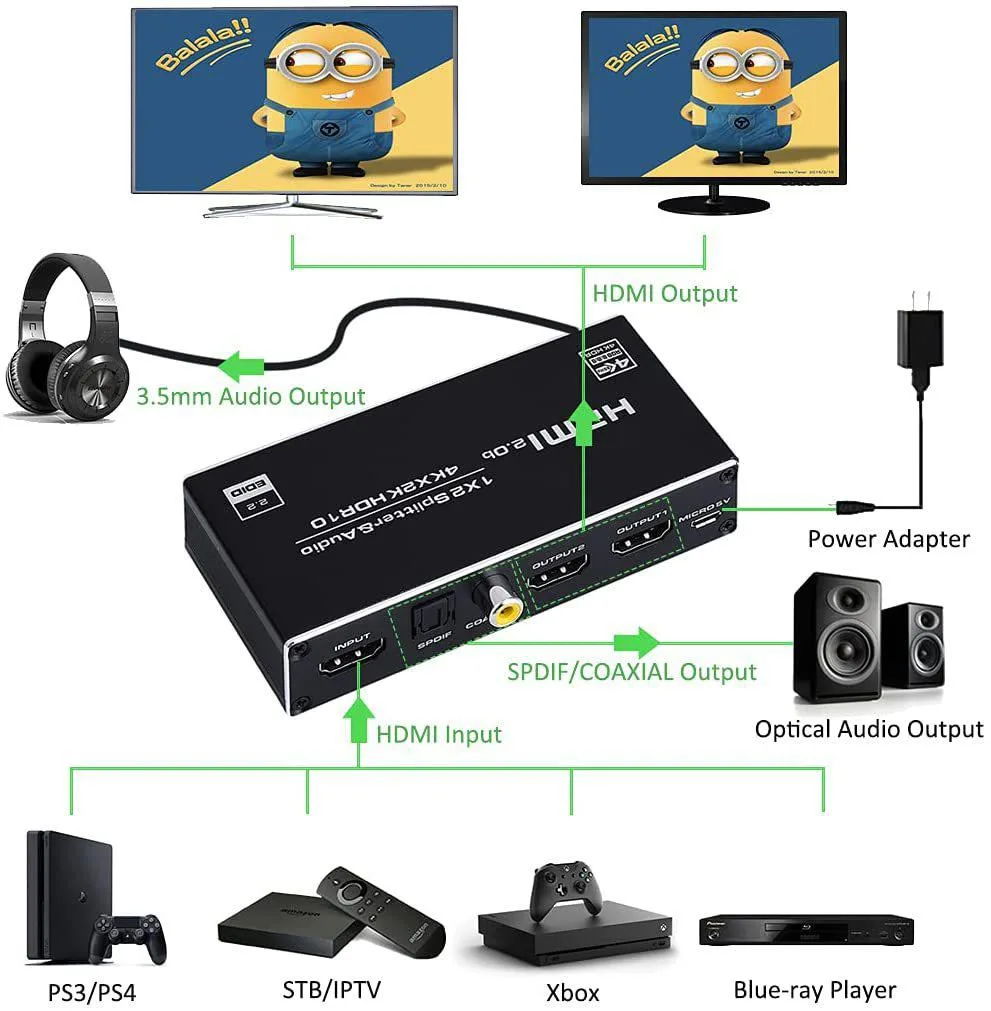

The Jansicotek OZF6A takes one HDMI source and mirrors it to two HDMI displays at up to 4K 60 Hz while simultaneously extracting audio to optical Toslink SPDIF coaxial and 3.5 mm outputs. It supports 18.5 Gbps bandwidth HDR10 and deep colour up to 36 bit for compatible sources such as consoles streaming devices or Blu-ray players.
Check before ordering
Your source must output a single HDMI signal that you want duplicated on two screens because this unit does not extend desktops or support different resolutions on each output. Both displays need to handle the same resolution and refresh rate and the source must be HDCP 2.2 or 2.3 compliant for protected 4K content. Use AWG26 HDMI cables and keep total runs under 8 metres for reliable 4K 60 Hz transmission.
Build and daily use
The black metal enclosure measures 5.59 by 3.15 by 1.26 inches and weighs 3.2 ounces so it sits unobtrusively behind a TV or on a rack shelf. A USB power adapter is included for stable operation. Three audio mode buttons let you switch between TV 2.0 CH and 5.1 CH output without unplugging cables. All ports are on one face making cable routing simple in tight AV cabinets.
Highlights
- Duplicate one HDMI source to two displays at 4K60
- Extract audio to optical, coaxial and 3.5 mm simultaneously
- Choose TV, 2.0 CH or 5.1 CH audio modes
- Supports 24, 30 and 36 bit deep colour with HDR10
- 5 Gbps bandwidth handles 1080p at 120 Hz
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZF6A |
| Model | OZF6A |
| Part Number | OZF6A |
| Type | HDMI Splitters |
| Changer Type | HDMI |
| Ports | 2 |
| Audio | Yes |
| Color | Black |
| Specifications | HDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Support video color format: 24bit/deep color 30bit, 36bit Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD Input/Output TMDS signal: 5-1.5 olts p-p(TTL) Input cable distane: 10m AWG26 HDMI standard cable Output cable distance: 10m AWG26 HDMI standard cable Dimension(LxWxH): 110x62x28MM Weight: 110g |
| Input Connector | 1 HDMI input |
| Output Connector | 2 HDMI + Audio (SPDIF+3.5mm) Output |
| Maximum Resolutions | 3840 x 2160 |
| Bandwidth | 18Gbps |
| Features | One HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation. There are TV /2.0CH/5.1CH three kinds of audio mode options Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D Support blue-ray 24/50/60fs/hd-dvd/XVYCC Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus) Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps Support signal retiming No loss of quality Installs in minutes Need DC5V power supply |
| Dimensions | 5.59 x 3.15 x 1.26 inches |
| Weight | 3.2 ounces |
| Package Quantity | 1 |
| Package Contents | 1 x 1x2 HDMI Splitter Audio Extractor 1 x User manual 1 x USB power adapter |
Questions about this item
Does the box include the power adapter and cables I need to run the OZF6A?
The package contains the 1×2 HDMI splitter audio extractor, a user manual and a USB power adapter. HDMI cables are not included and must be purchased separately.
Should I choose the 4K 60 Hz or 1080p 120 Hz mode for my setup?
The unit supports up to 4K at 60 Hz and 1080p at 120 Hz simultaneously on both outputs. Select the resolution that matches your displays; both are available without switching modes.
What does the 18.5 Gbps bandwidth mean when I connect two 4K screens?
The 18.5 Gbps bandwidth carries full 4K 60 Hz RGB 8:8:8 video to both HDMI outputs while also extracting audio to SPDIF, coaxial or 3.5 mm.
