Black compact HDMI splitter box with multiple ports

Jansicotek

Jansicotek OZF6A 4K 60Hz HDMI Audio Splitter 1x2

SKU CH-Z6HW-K13CZ

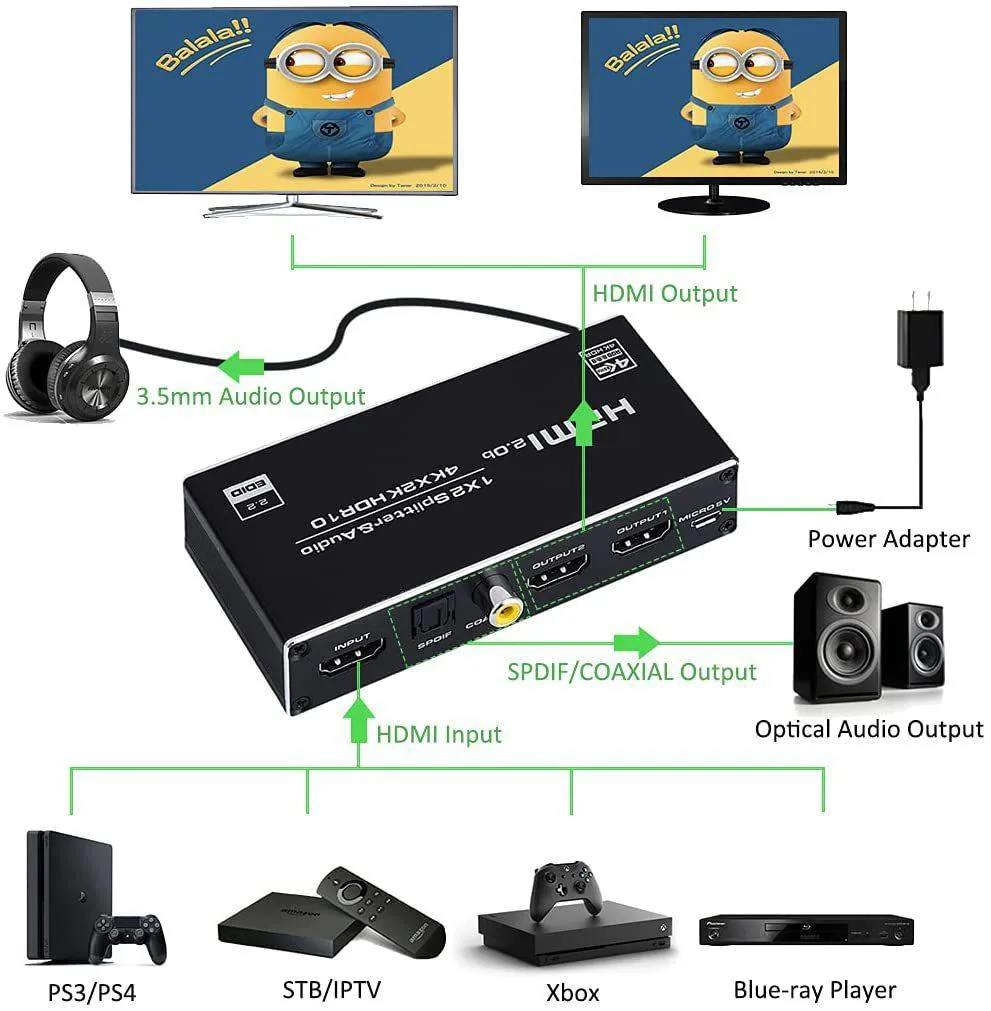

Splits one HDMI source to two displays at 4K 60Hz while extracting audio through optical, coaxial and 3.5 mm outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • One HDMI source mirrored to two displays
  • Audio extracted to optical, coaxial and 3.5 mm outputs
  • 4K 60 Hz video with HDR10 and deep colour
  • Three audio modes for TV, stereo or surround
  • Compact unit powered by included USB adapter

Jansicotek OZF6A 4K Splitter

The Jansicotek OZF6A is a powered HDMI splitter that duplicates one 4K source to two displays while extracting audio to optical, coaxial and 3.5mm outputs. It suits home-theatre owners, gamers and installers who need simultaneous video mirroring and separate audio routing.

Ideal for mirroring setups, not switching

This unit only mirrors the same signal to both screens, so it fits users who want identical content on two monitors or a TV and a projector. It does not switch between sources, so anyone needing to select from multiple inputs should look at a matrix or switch instead.

18.5 Gbps bandwidth handles 4K 60 Hz

The 18.5 Gbps link supports 3840 x 2160 at 60 Hz with 24, 30 or 36-bit deep colour and HDR10. Audio extraction covers LPCM 7.1, DTS-HD and Dolby TrueHD, but Dolby Digital Plus is not supported, limiting use with some streaming apps.

Highlights

  • One HDMI source mirrored to two displays
  • Audio extracted to optical, coaxial and 3.5 mm outputs
  • 4K 60 Hz video with HDR10 and deep colour
  • Three audio modes for TV, stereo or surround
  • Compact unit powered by included USB adapter

Specifications

BrandJansicotek
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g

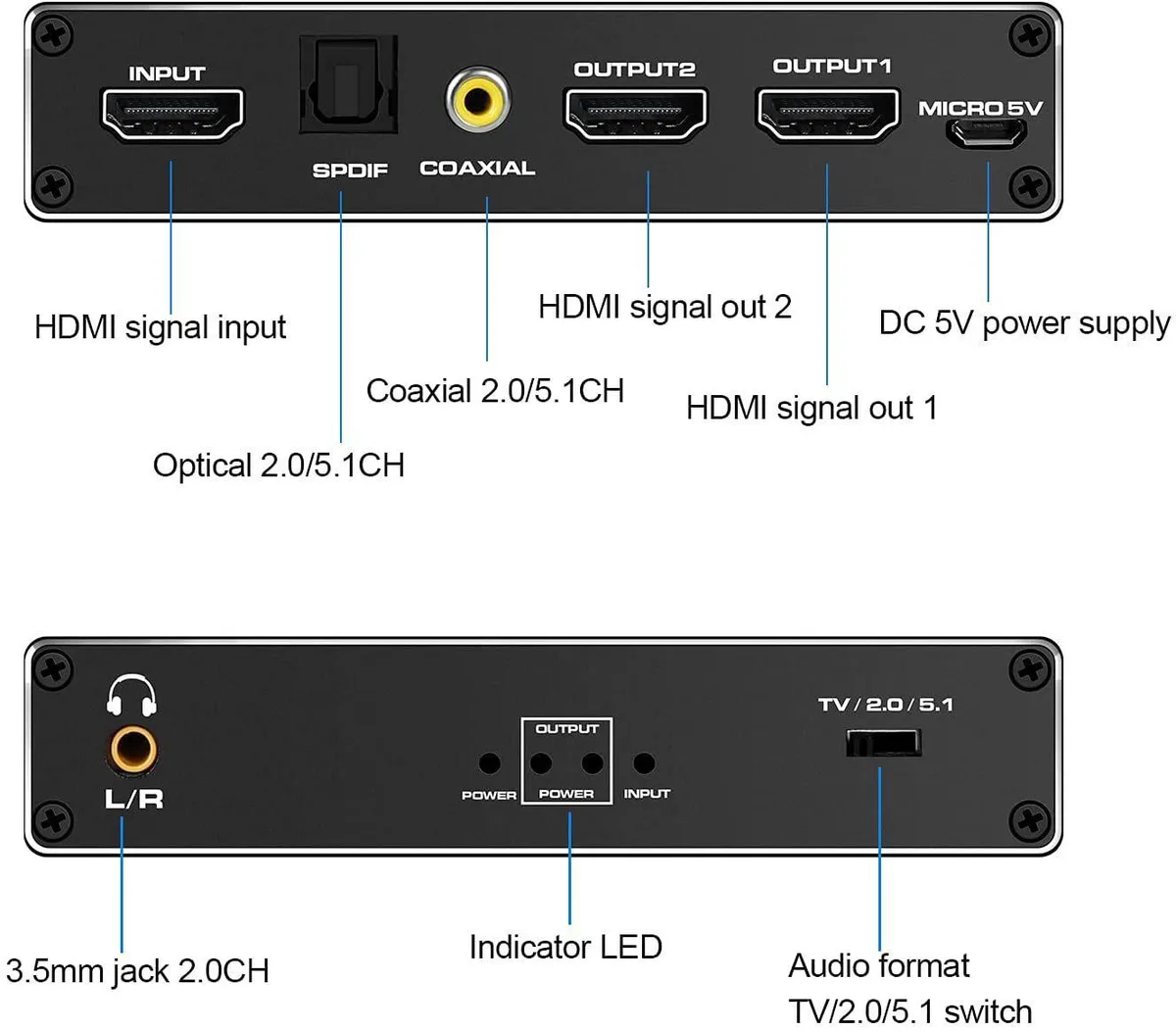

Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

Does the Jansicotek OZF6A require a separate power source to split one HDMI input to two outputs?

Yes, the unit ships with a USB power adapter; it must be powered to duplicate the 4K@60Hz signal across both HDMI outputs.

Will the splitter pass 1080p@120Hz from a PS5 to an older 1080p monitor on one output while keeping 4K@60Hz on the other?

The splitter mirrors the same resolution to both outputs, so the older monitor must support the source resolution or the source must be set to a common mode such as 1080p@60Hz.

How can I verify that the SPDIF output is delivering 5.1CH audio after connecting a soundbar?

Set the audio mode switch to 5.1CH, play multi-channel content, and confirm the soundbar indicates Dolby-AC3 or DTS decoding.
