Compact black HDMI splitter box with two HDMI outputs and audio ports

Jansicotek

Jansicotek OZF6A 1x2 HDMI Splitter Audio Extractor 4K@60Hz

SKU CH-MQ9N-E20GS

Splits one HDMI source to two displays at 4K 60Hz while extracting audio to optical, coaxial and 3.5mm outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p Supp
  • Splits one HDMI source to two displays with simultaneous audio extraction
  • Extracts audio to optical, coaxial and 3.5 mm outputs for flexible sound systems
  • Delivers 4K at 60 Hz with HDR10 and 18.5 Gbps bandwidth
  • Offers TV, 2.0 CH and 5.1 CH audio modes for tailored listening
  • Auto-scaling and HDCP 2.3 ensure reliable handshake with modern sources

1x2 HDMI Splitter with Audio Extraction

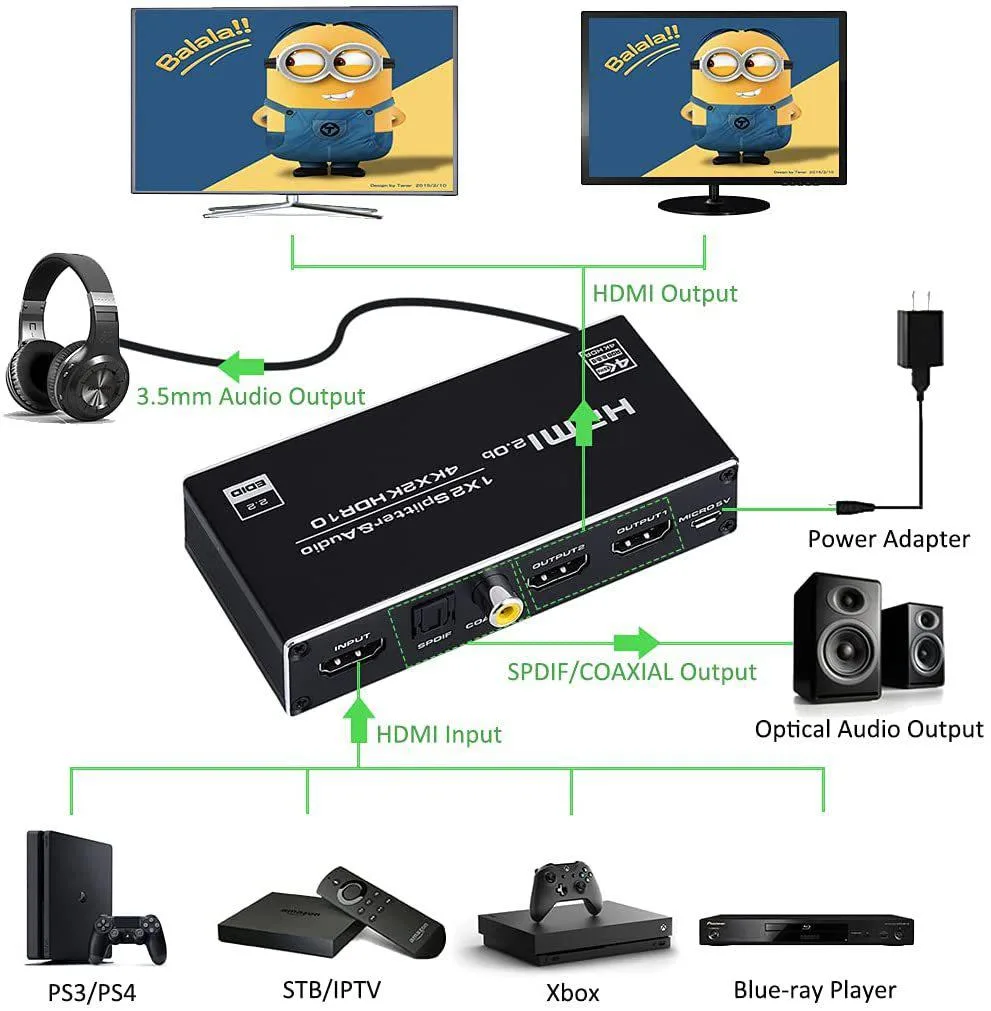

The Jansicotek OZF6A takes a single HDMI source and duplicates it across two displays while simultaneously extracting audio through optical Toslink, coaxial and 3.5 mm outputs. It is suited for installations that need mirrored 4K video on two screens and a separate feed to a sound system or headphones.

HDMI 2.0b 18.5 Gbps Bandwidth and Passive Cooling

The unit handles 18.5 Gbps throughput with HDCP 2.3 and HDR10 support while drawing power from the included USB adapter. No internal fan is present, so operation is silent and thermal output remains negligible in typical desktop or rack environments.

Compact Metal Enclosure with Three Audio Mode Switch

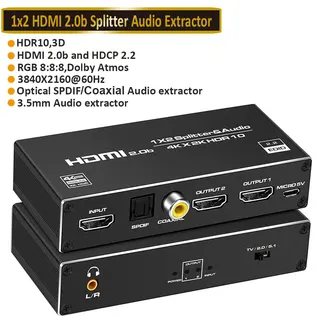

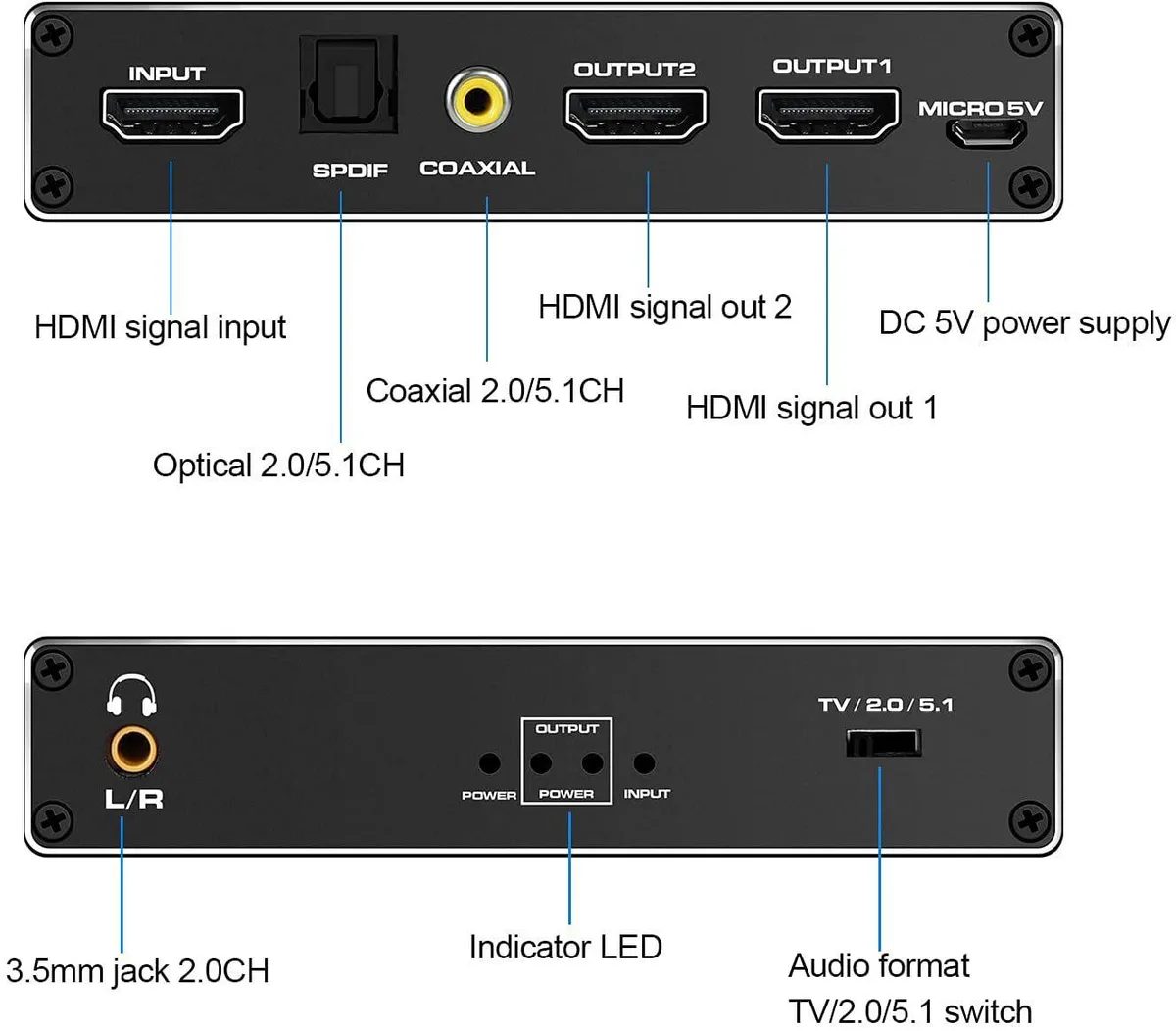

A 5.59 x 3.15 x 1.26 inch black metal chassis houses the circuitry and provides a sliding selector for TV, 2.0 CH or 5.1 CH audio modes. One HDMI input, two HDMI outputs and three audio connectors are arranged on the same face for straightforward cable routing in tight AV racks or behind displays.

Highlights

  • Splits one HDMI source to two displays with simultaneous audio extraction
  • Extracts audio to optical, coaxial and 3.5 mm outputs for flexible sound systems
  • Delivers 4K at 60 Hz with HDR10 and 18.5 Gbps bandwidth
  • Offers TV, 2.0 CH and 5.1 CH audio modes for tailored listening
  • Auto-scaling and HDCP 2.3 ensure reliable handshake with modern sources

Specifications

BrandJansicotek
SeriesOZF6A
ModelOZF6A
Part NumberOZF6A
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI resolutin: 4Kx2K/3D/1080@120Hz/1080@60Hz/720p/480p
Support video color format: 24bit/deep color 30bit, 36bit
Support audio format: dts-hd/dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input/Output TMDS signal: 5-1.5 olts p-p(TTL)
Input cable distane: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Dimension(LxWxH): 110x62x28MM
Weight: 110g
Input Connector1 HDMI input
Output Connector2 HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to two HDMI+ Audio(SPDIF+R/L+Coaxial )Output to achieve the synchronization of audio signal separation.
There are TV /2.0CH/5.1CH three kinds of audio mode options
Support 4K x 2K@60Hz, RGB 8:8:8/RGB 4:4:4,Support 3D
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dolby-truehd/LPCM7.1/DTS/dolby-ac-3 (Not Support Always Dolby Digital plus)
Support HDMI2.0b,HDCP2.2,Support HDR10,18.5Gbps
Support signal retiming
No loss of quality
Installs in minutes
Need DC5V power supply
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 1x2 HDMI Splitter Audio Extractor
1 x User manual
1 x USB power adapter

Questions about this item

How do I connect the Jansicotek OZF6A and which step is often missed?

Connect the USB power adapter first, then link one HDMI source to the input and two displays to the HDMI outputs; the step people miss is powering the unit before plugging in video cables.

What maintenance or replacement will the OZF6A need over time?

No user-serviceable parts exist; if the USB power adapter fails, replace it with a 5 V 1 A or higher USB supply — the splitter itself has no fan, battery or filter to service.

What limit appears first during sustained 4K@60 Hz use on this splitter?

The 18.5 Gbps bandwidth ceiling is the first hard limit; deep-colour 36-bit 4K@60 Hz signals at 18 Gbps leave no headroom, so any cable loss or added device will drop the link.
