Small black rectangular HDMI splitter box with eight output ports

Jansicotek

Jansicotek OZF5-1 1x8 HDMI Splitter 4K 60Hz

SKU CH-3QHK-39KM1

Distributes one HDMI source to eight displays at 4K 60Hz with downscaling for mixed 4K and 1080p outputs

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports8
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • Splits one HDMI source to eight displays simultaneously
  • Delivers 4K at 60 Hz with 18 Gbps bandwidth
  • Supports mixed 4K and 1080p outputs via downscaling
  • Handles deep colour up to 48 bit and 7.1 audio formats
  • Regenerates signal at the end of long cable runs

One-to-eight 4K signal distribution

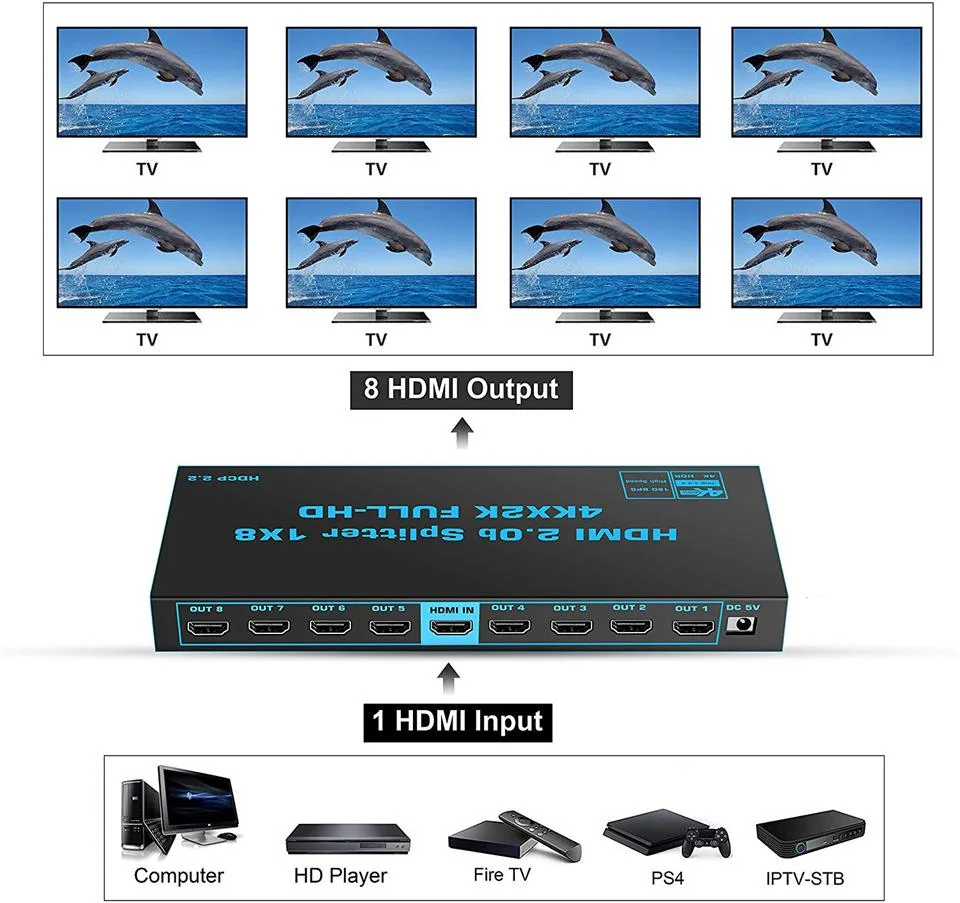

This Jansicotek OZF5-1 splitter takes a single HDMI source and duplicates it across eight displays at up to 3840 x 2160 at 60 Hz. It suits installers, educators and AV integrators who need identical output on multiple screens or projectors. The unit does not extend a desktop; it only mirrors the incoming signal.

Bundled power supply and manual

An AC adapter is included so the splitter can actively regenerate the signal for longer cable runs. The manual covers basic connection steps. No additional software, mounting brackets or cables are supplied in the package.

Simple plug-and-play installation

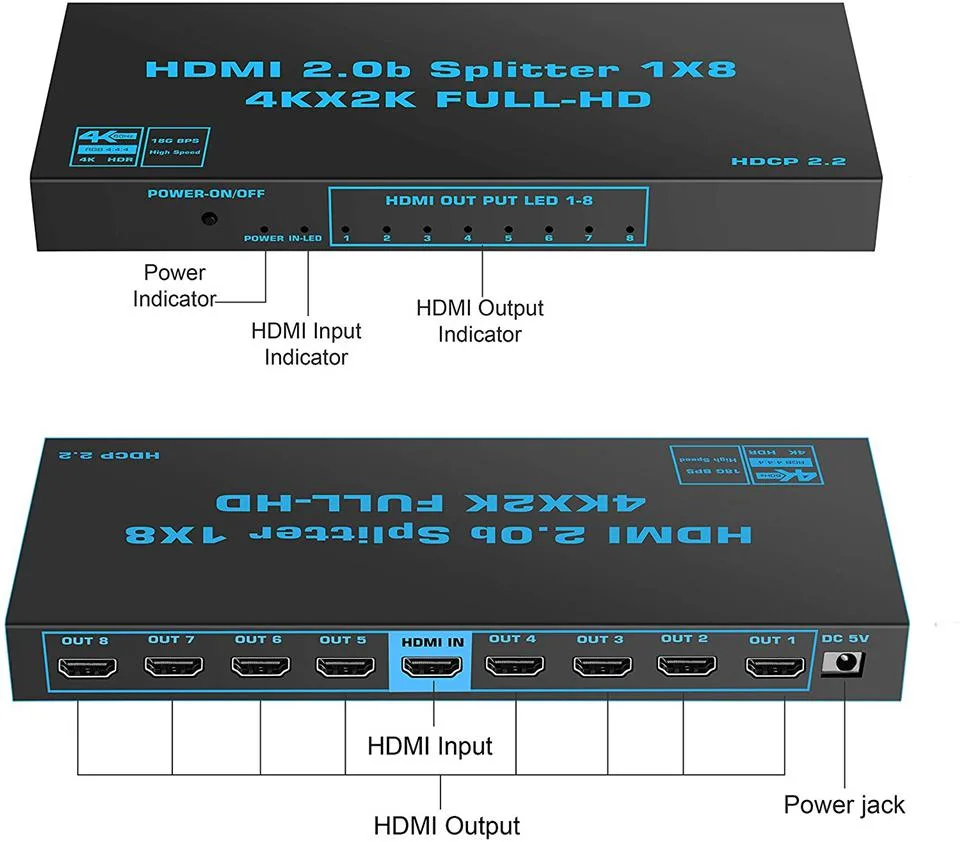

Connect the source to the single input and up to eight displays to the outputs, then attach the power adapter. The device negotiates HDCP 2.2 automatically. Mixed 4K and 1080p sinks are supported through downscaling. Using uncertified or overly long cables is the most common cause of signal drop-out or resolution handshake failures.

Highlights

  • Splits one HDMI source to eight displays simultaneously
  • Delivers 4K at 60 Hz with 18 Gbps bandwidth
  • Supports mixed 4K and 1080p outputs via downscaling
  • Handles deep colour up to 48 bit and 7.1 audio formats
  • Regenerates signal at the end of long cable runs

Specifications

BrandJansicotek
SeriesOZF5-1
ModelOZF5-1
Part NumberOZF5-1
TypeHDMI Splitters
Changer TypeHDMI
Ports8
AudioYes
ColorBlack
SpecificationsHDMI Version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Supports Video Color Format: 24bit/deep color 30bit, 36bit, 48bit
Audio Format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max Bandwidth: 600MHz
Max Baud Rate: 18.5Gbps
Input/Output TMDS Signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Distance: 17ft AWG28 HDMI standard cable
Output Cable Distance: 17ft AWG28 HDMI standard cable
Max Working Current: 1200mA
Power Adapter Format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Op
Input Connector1 HDMI input
Output Connector8 HDMI Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesULTRA HD 1 in 8 HDMI Splitter : Perfect for Duplicating 1 HDMI Input Signal to 8 Monitors or TV 4K Display Screens, HDMI Splitter 1 in 8 out, This Device Will Not Extend Monitor for PC or Laptops
NOTE: This HDMI splitter will NOT Extend Monitors to create dual screen mode; Works best with up to 30 Feet high quality HDMI Cables. We recommend using this splitter with HDMI cables that are 30 feet or shorter and of excellent quality.
The OZF5-1 HDMI splitter 1 in 8 out will work with all HDMI versions 1.3 and 1.4, 2.0: Supports 3D and LPCM, Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master aud
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x 1in 8out HDMI splitter, 1x AC adapter, 1 Manual

Questions about this item

Does the Jansicotek OZF5-1 have a cooling fan that could wear out?

The splitter has no fan or moving parts; it relies on passive heat dissipation through its metal enclosure.

What resolution or bandwidth limit is reached first when driving eight 4K displays continuously?

The 18 Gbps bandwidth and HDMI 2.0b specification cap every output at 3840×2160 at 60 Hz with 4:4:4 colour.

How much heat does the unit produce when powered all day?

The device draws low power from its external AC adapter and stays warm to the touch but does not become hot during continuous operation.
