Jansicotek
Splits one HDMI source to four displays at 4K 60 Hz with 18.2 Gbps bandwidth and audio support

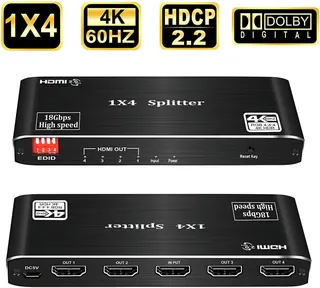

The Jansicotek OZF3 takes one HDMI source and duplicates it across four displays at up to 4K×2K 60 Hz with 18.2 Gbps bandwidth. It supports HDR10, 3D, 12-bit Deep Colour and RGB 4:4:4 sampling. HDCP 1.4 and 2.2 compliance keeps protected content flowing to every connected screen. The unit also regenerates the signal for longer cable runs.
Moving from a two-port splitter to four ports lets a single source feed a living-room TV, a bedroom display, a projector and a monitor simultaneously. The jump to 4K 60 Hz and 18.2 Gbps is worthwhile when the source and all four sinks support HDMI 2.0b and HDCP 2.2; older 1080p or HDCP 1.x chains will not benefit from the extra headroom. Extended-desktop modes are not supported, so the device only mirrors identical content.

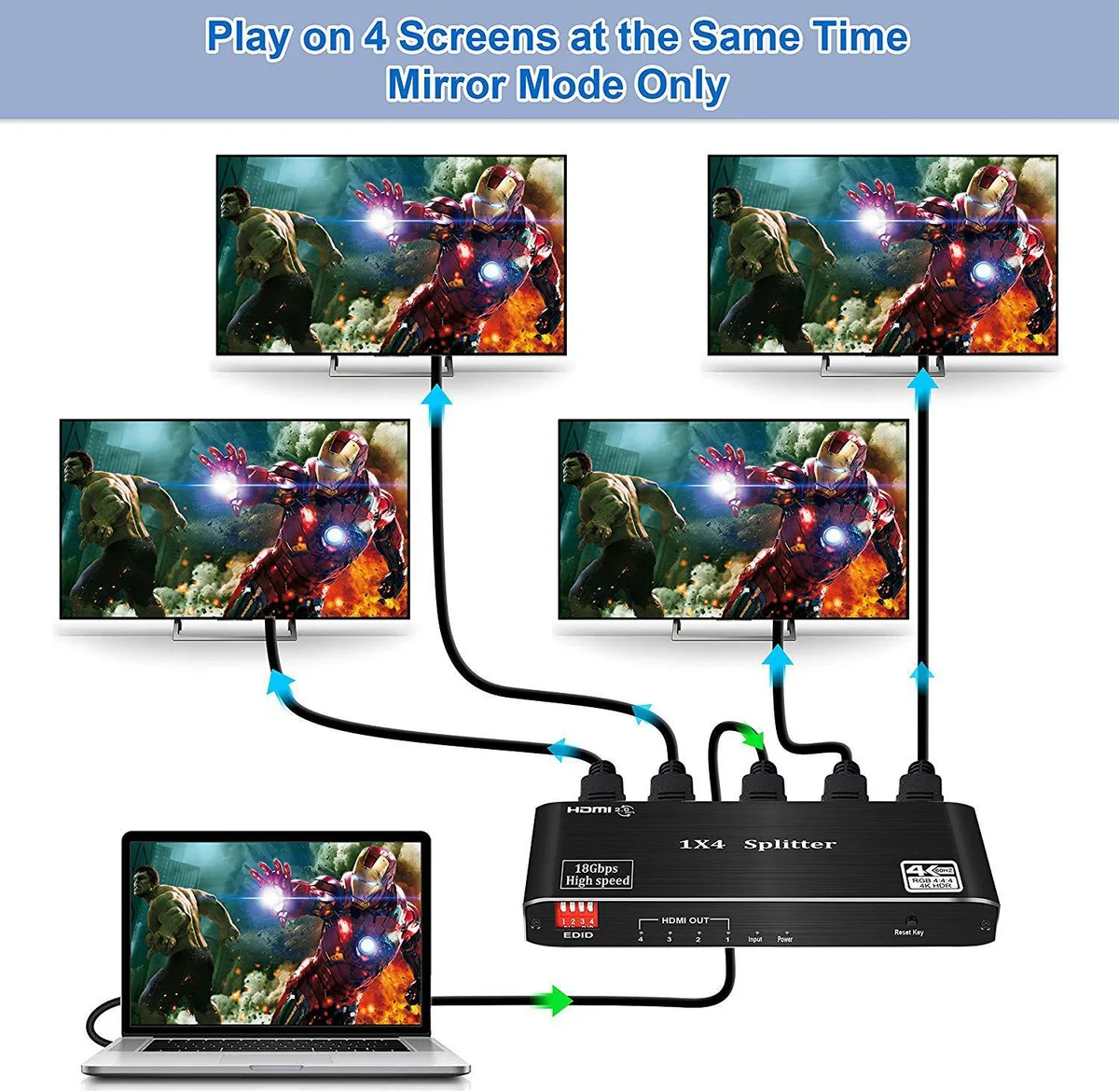

Connect a console, PC, Blu-ray player or streaming box to the single HDMI input, then run four HDMI cables to TVs, projectors or monitors. The splitter draws power from the included adapter and handles EDID via on-chip 512-byte RAM. With AWG26 cable, 1080p signals travel up to 50 ft in and 82 ft out, while 4K signals manage 26 ft in and 50 ft out. No extra switch or matrix is required for simple duplication.
| Brand | Jansicotek |
|---|---|
| Series | OZF3 |
| Model | OZF3 |
| Part Number | OZF3 |
| Type | HDMI Splitters |
| Changer Type | HDMI |
| Ports | 4 |
| Audio | Yes |
| Color | Black |

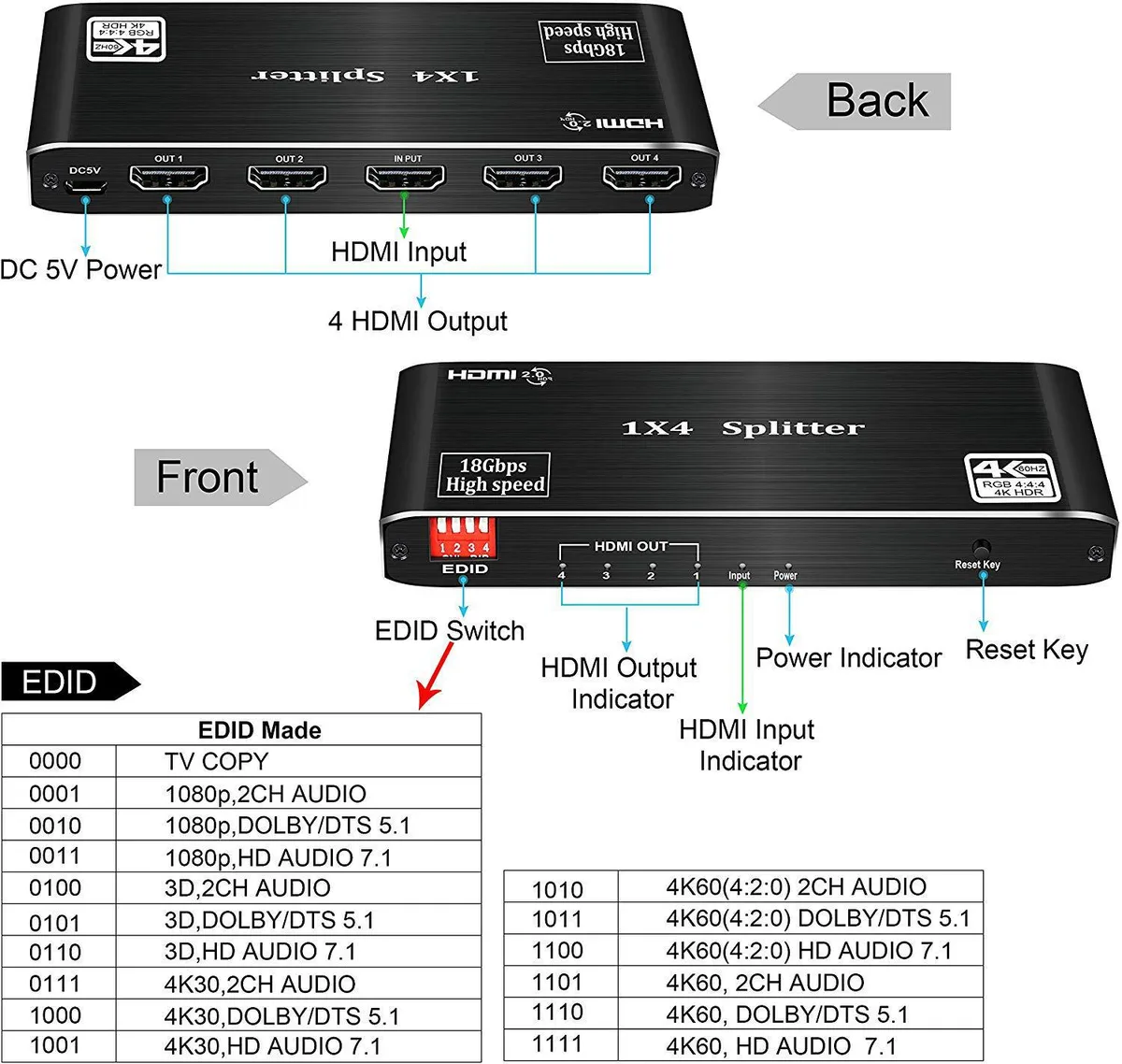

| Specifications | HDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with RGB 4:4:,3D, HDR10 and EDID mode. Wide Frequency Range: 25MHz-600MHz. Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p. Supports jitter Clean capability for more cascadable stages. Supports 12-bit Deep Full HD, Full 3D and 4Kx2K@ 60Hz video. Supports standard Audio,DSD Audio and HD(HBR)Audio. Supports HDCP 1.4 to HDCP2.2 conversion. Supports HDCP 2.2 to HDCP1.4 conversion. Supports on-chip 512 byte E-DDC EDID RAM for input port. Supports hot plug-play. Support 18.5 Gbps rate |
| Input Connector | 1 HDMI |
| Output Connector | 4 HDMI |
| Maximum Resolutions | 3840 x 2160 |
| Bandwidth | 18.2Gbps |
| Features | HDMI Splitter 1 in 4 out : 1x4 HDMI Splitter distributes audio and video signal from one single Hdmi source to 4 different HDMI displays simultaneously without lag or signal loss.(NOTE:Extended desktop NOT supported,each screen show the same images) 4K Crystal Clear Picture :4 way Hdmi Splitter supports full HD 1080P and 3D resolutions, it can reach up to 4K@60Hz, worked perfectly with computer, laptop, PS3 game, Blu-ray DVD, tablet pc, projectors, full HD TVs, etc. Please make sure the resolution of all output devices is the same to ensure normal operation.Continuously upgrading tec |
| Dimensions | 5.59 x 3.15 x 1.26 inches |
| Weight | 3.2 ounces |
| Package Quantity | 1 |
| Package Contents | HDMI Splitter x1 User Instruction x1 Power Adapter x1 |
At 4K the input cable can reach 26 ft and each output 50 ft; at 1080p the input extends to 50 ft and outputs to 82 ft with AWG26 cable.
Yes, the included power adapter must be connected before linking any HDMI cables; skipping this step causes no signal on the outputs.
The on-chip 512 byte E-DDC EDID RAM is non-volatile and requires no user maintenance or firmware updates.
