Black rectangular HDMI splitter box with four output ports

Jansicotek

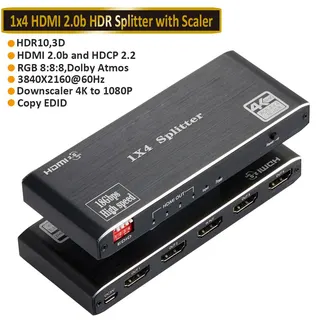

Jansicotek OZF3 1x4 HDMI 2.0 Splitter 4K@60Hz

SKU CH-44XN-YTGD6

Distributes one HDMI source to four displays at 4K 60Hz with HDR10, Dolby Vision Atmos, HDCP 2.2 and EDID support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with
  • One source feeds four displays simultaneously
  • HDMI 2.0b bandwidth 18.2 Gbps carries 4K 60 Hz
  • HDCP 1.4 and 2.2 protect premium content
  • HDR10 and Dolby Vision with 12-bit deep colour
  • Signal regeneration extends cable runs to 25 m

Jansicotek OZF3 1x4 HDMI 2.0 Splitter

The Jansicotek OZF3 is a 1x4 HDMI 2.0b splitter that duplicates one HDMI source across four displays simultaneously. It supports video resolutions up to 3840 x 2160 at 60 Hz with 18.2 Gbps bandwidth. The unit also regenerates signals at the end of long cable runs. It is built for installers and home users who need identical output on multiple screens.

Included power adapter and EDID management

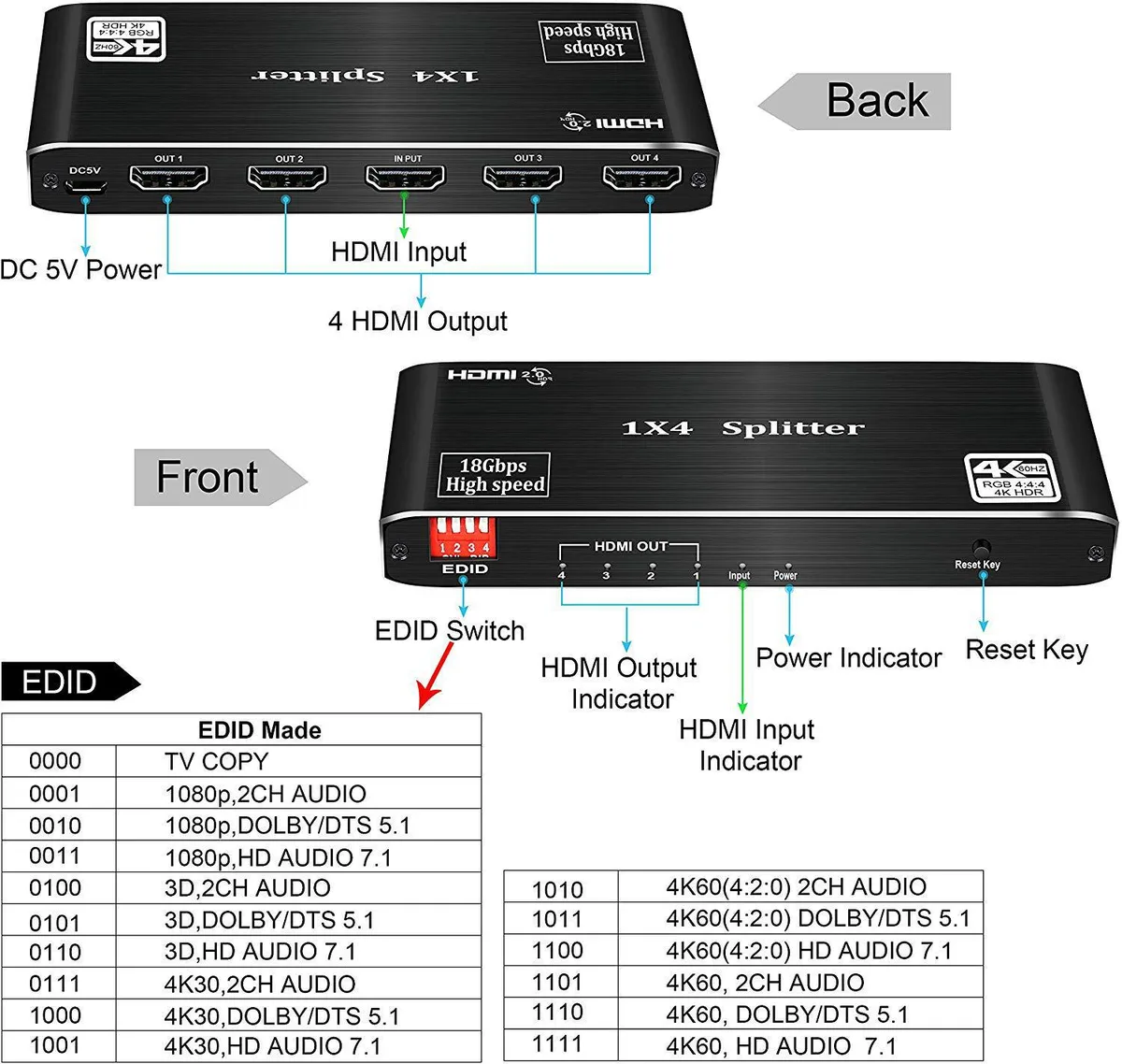

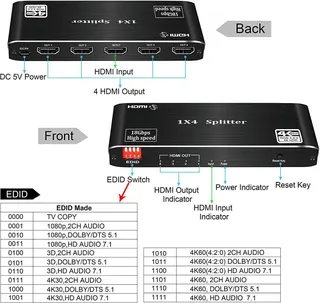

The package supplies a power adapter and a user instruction sheet. On-board 512 byte E-DDC EDID RAM stores display capability data so the source receives consistent handshake information. Supported audio formats include DTS-HD, Dolby TrueHD, Dolby AC3, DSD and DST. HDCP 1.1 through 2.2 compliance ensures protected content plays on all connected sinks.

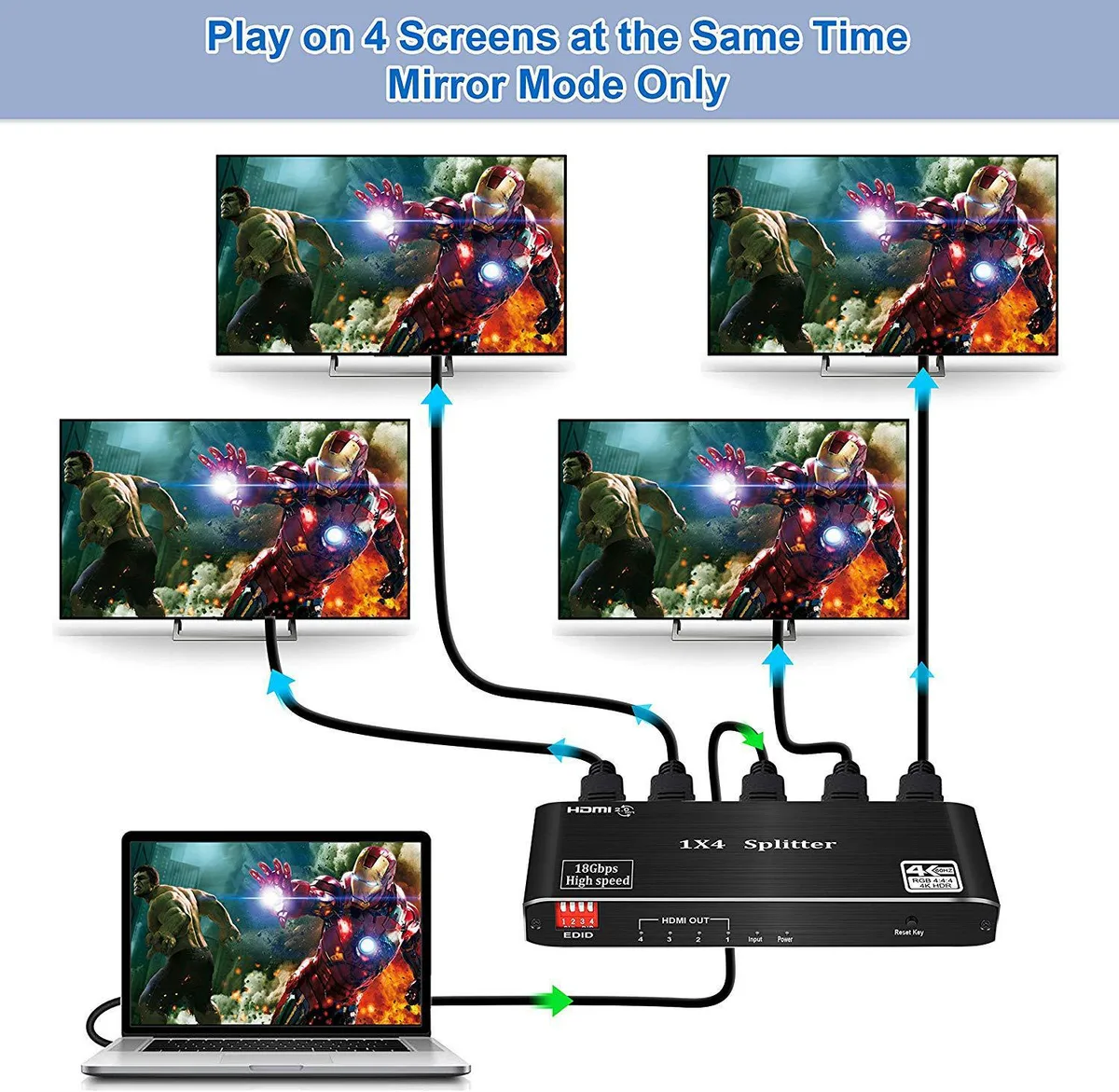

Duplicate-only 4K@60 Hz distribution

This splitter mirrors the input to every output; extended desktop modes are not supported. Maximum 4K transmission distances are 26 ft input and 50 ft output with AWG26 cable. At 1080p the input reaches 50 ft and output reaches 82 ft. Buyers who need independent images on each display should choose a matrix switch or graphics card with multiple outputs.

Highlights

  • One source feeds four displays simultaneously
  • HDMI 2.0b bandwidth 18.2 Gbps carries 4K 60 Hz
  • HDCP 1.4 and 2.2 protect premium content
  • HDR10 and Dolby Vision with 12-bit deep colour
  • Signal regeneration extends cable runs to 25 m

Specifications

BrandJansicotek
SeriesOZF3
ModelOZF3
Part NumberOZF3
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
SpecificationsHDMI 2.0band HDCP 2.2,4K@60Hz 4 port HDMI splitter 1x4 with RGB 4:4:,3D, HDR10 and EDID mode.
Wide Frequency Range: 25MHz-600MHz.
Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
Supports jitter Clean capability for more cascadable stages.
Supports 12-bit Deep Full HD, Full 3D and 4Kx2K@ 60Hz video.
Supports standard Audio,DSD Audio and HD(HBR)Audio.
Supports HDCP 1.4 to HDCP2.2 conversion.
Supports HDCP 2.2 to HDCP1.4 conversion.
Supports on-chip 512 byte E-DDC EDID RAM for input port.
Supports hot plug-play.
Support 18.5 Gbps rate
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI Splitter 1 in 4 out : 1x4 HDMI Splitter distributes audio and video signal from one single Hdmi source to 4 different HDMI displays simultaneously without lag or signal loss.(NOTE:Extended desktop NOT supported,each screen show the same images)
4K Crystal Clear Picture :4 way Hdmi Splitter supports full HD 1080P and 3D resolutions, it can reach up to 4K@60Hz, worked perfectly with computer, laptop, PS3 game, Blu-ray DVD, tablet pc, projectors, full HD TVs, etc. Please make sure the resolution of all output devices is the same to ensure normal operation.Continuously upgrading tec
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package ContentsHDMI Splitter x1
User Instruction x1
Power Adapter x1

Questions about this item

Does the Jansicotek OZF3 splitter need any firmware updates or replacement capacitors over time?

The unit has no user-serviceable parts and no firmware interface; it is a passive signal distributor that runs without software maintenance.

What bandwidth ceiling limits the OZF3 when all four outputs run 4K@60Hz continuously?

The splitter is rated for 18.2 Gbps total bandwidth, which is the maximum the HDMI 2.0b link can carry across all ports.

How much heat does the OZF3 produce and does it need active cooling during all-day operation?

It draws power from the included adapter, runs without a fan, and the metal enclosure dissipates heat passively during continuous use.
