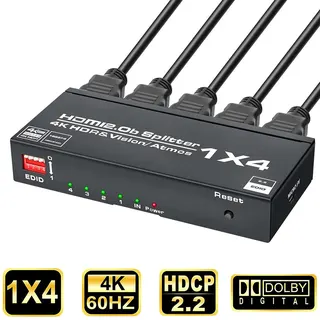

Black rectangular HDMI splitter box with four output ports

Jansicotek

Jansicotek OZF3-1 1x4 HDMI Splitter 4K 60Hz 18.2Gbps

SKU CH-FT9B-SPZXV

Distributes one HDMI source to four displays at 4K 60 Hz with HDR10, 3D, 18.2 Gbps bandwidth and HDCP 2.2 compliance

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • Specifications1x4 HDMI splitter with EDID Supports 4K 60Hz HDCP 2.2 and HD
  • Distributes one source to four displays
  • 4K resolution at 60 Hz with 18.2 Gbps bandwidth
  • Supports 8, 10 and 12 bit deep colour
  • HDCP 2.2 and HDMI 2.0b compliant
  • 16 EDID modes for stable output matching

1x4 HDMI Splitter 4K 60Hz

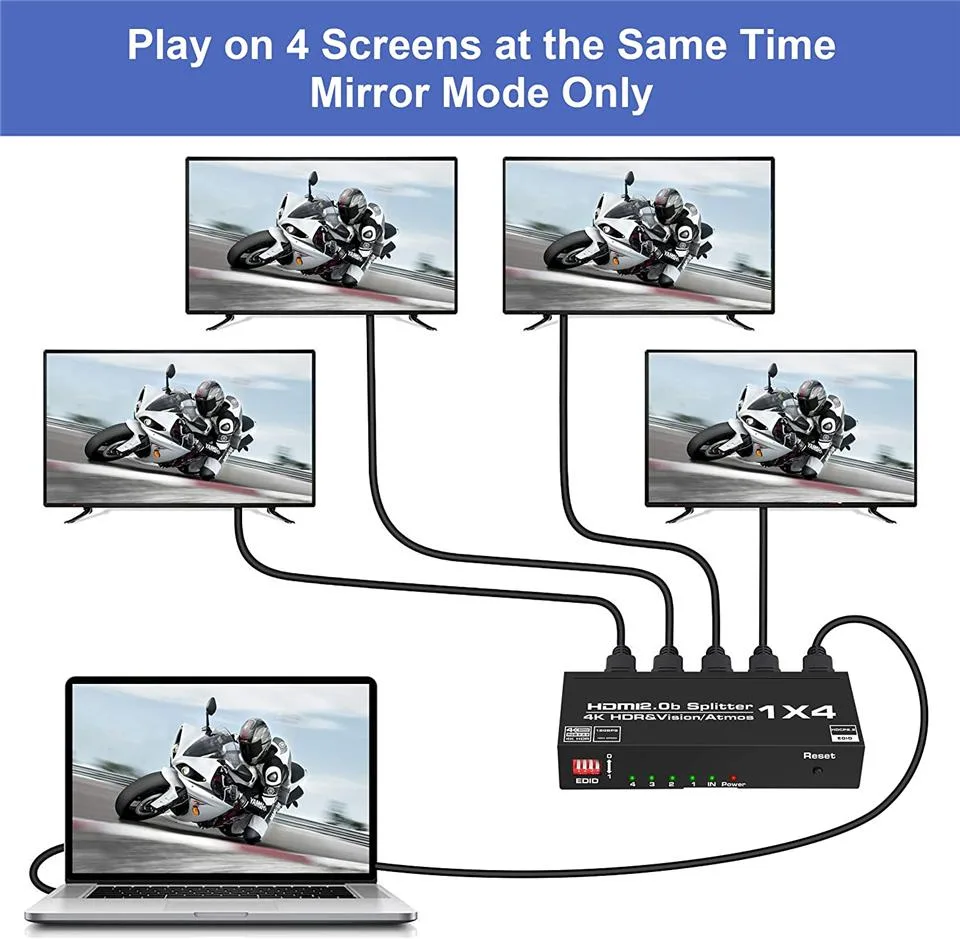

The Jansicotek OZF3-1 duplicates a single HDMI source across four displays at up to 4K 60Hz with HDR10 and 3D support. It handles 18.2Gbps bandwidth and deep colour up to 12-bit for home cinema, gaming or signage setups. A USB power adapter is included for stable operation. EDID management offers 16 switching modes to match varied display capabilities.

Who this suits and who it does not

Ideal for users who need identical mirrored output on four screens such as retail displays, multi-room viewing or simulator rigs. It does not extend a desktop across monitors so buyers who want independent content on each screen should look at a different solution. Audio formats including LPCM, Dolby TrueHD and DTS-HD Master Audio pass through without extra configuration.

Deciding specification — 18.2Gbps bandwidth

The 18.2Gbps bandwidth determines whether 4K 60Hz 4:4:4 or 1080p 120Hz signals can pass without compression. At 4K resolution the supplier states input cables up to 8m and output cables up to 15m with AWG26 cable. HDCP 2.2 and HDMI 2.0b compliance protects premium content playback.

Highlights

  • Distributes one source to four displays
  • 4K resolution at 60 Hz with 18.2 Gbps bandwidth
  • Supports 8, 10 and 12 bit deep colour
  • HDCP 2.2 and HDMI 2.0b compliant
  • 16 EDID modes for stable output matching

Specifications

BrandJansicotek
SeriesOZF3-1
ModelOZF3-1
Part NumberOZF3-1
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
Specifications1x4 HDMI splitter with EDID
Supports 4K 60Hz
HDCP 2.2 and HDMI 2.0b
HDMI resolution: up to 3840 * 2160 @ 60HZ
Supported video format: 8/10/12 bit deep color
Supports 3D video format
4K 60Hz gives you a high definition visual experience
(Note: With a resolution of 4K, the input is up to 8 m and the output up to 15 m)

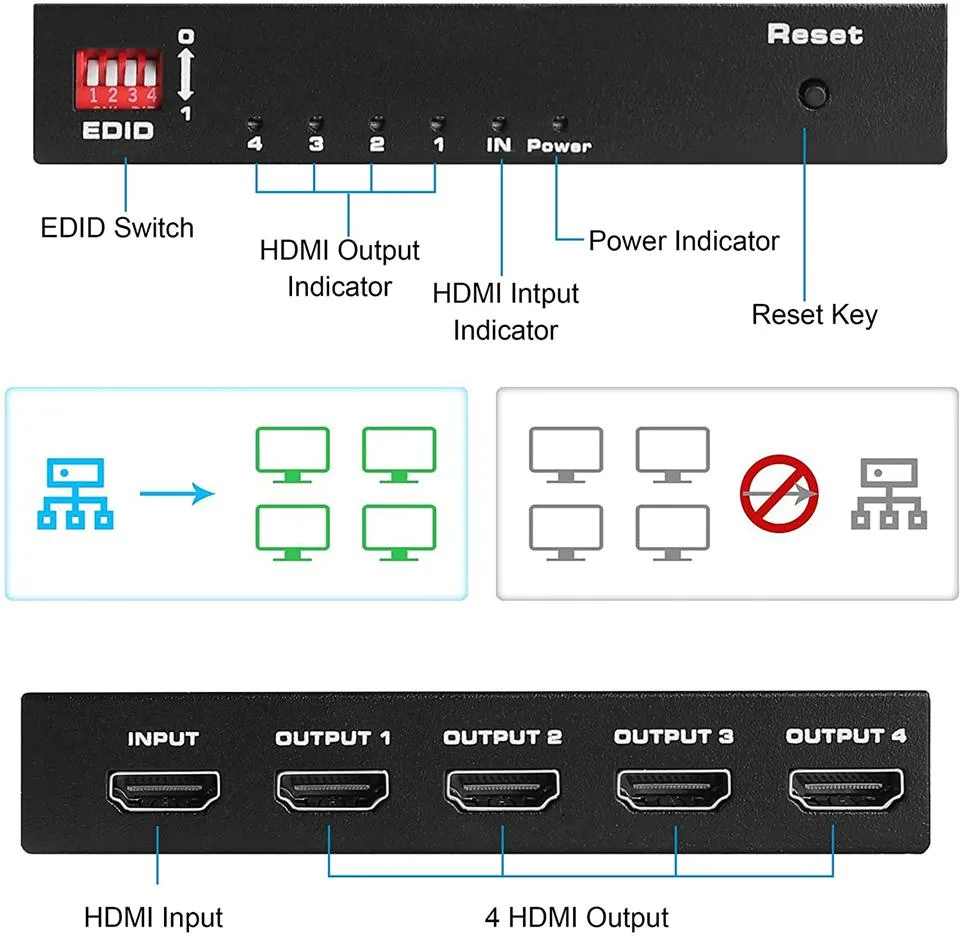

Support EDID
The 4 HDMI output ports all support 4K downscaling to 1080P. To do this, you need to use the EDID switch or the scaler switch on the front.
For more information on EDID and scaler settings, please refer to the images and instructions for our products
Please n
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI cable splitter 4K@60hz allows you to display ONE HDMI Source on FOUR screens, Support RGB 4:4:4/RGB8:8:8, 4K@60HZ/1080P@120Hz super clear screen, make the picture clearer and more realistic. With the AWG26(19+1) HDMI standard cable, When the resolution is 1080P or below, input and output up to 50ft(15m), When the resolution is 4K, input up and output to 26ft(8m). Note: this 4K@60Hz HDMI splitter is not a HDMI switcher, it will not let you switch multiple HDMI source on 1 TV.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x4 HDMI 2.0 Splitter
USB Power adapter x1
User Manual x1

Questions about this item

How do I install the Jansicotek OZF3-1 splitter and which step is often missed?

Connect the source to the single HDMI input, attach up to four displays to the HDMI outputs, then plug in the included USB power adapter; the step most people miss is powering the unit before expecting a signal.

What maintenance or replacement will the Jansicotek OZF3-1 need over time?

The splitter itself has no user-serviceable parts; only the supplied USB power adapter or HDMI cables may need replacement if they fail.

What is the first limit I hit when running 4K 60 Hz continuously on the Jansicotek OZF3-1?

The 18.2 Gbps bandwidth ceiling and the 8-metre input / 15-metre output cable-length limit for 4K appear before any thermal or processing bottleneck.
