Small black rectangular box with one HDMI input and sixteen HDMI outputs

Jansicotek

Jansicotek OZF13 1x16 HDMI Splitter 4K@30Hz

SKU CH-58DS-KD5FK

Distributes one HDMI source to sixteen displays at 4K 30 Hz with HDCP compliance and multi-channel audio support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports16
  • AudioYes
  • ColorBlack
  • SpecificationsMax Bandwidth:320MHz Max Transmission Bandwidth:3.2Gbps HDMI
  • Distribute one source to 16 displays simultaneously
  • Supports 4K resolution at 30 Hz refresh rate
  • HDMI 1.4b with 3.2 Gbps bandwidth
  • Handles 12-bit deep colour and 3D video
  • Plug-and-play operation with included power adapter

Signal distribution

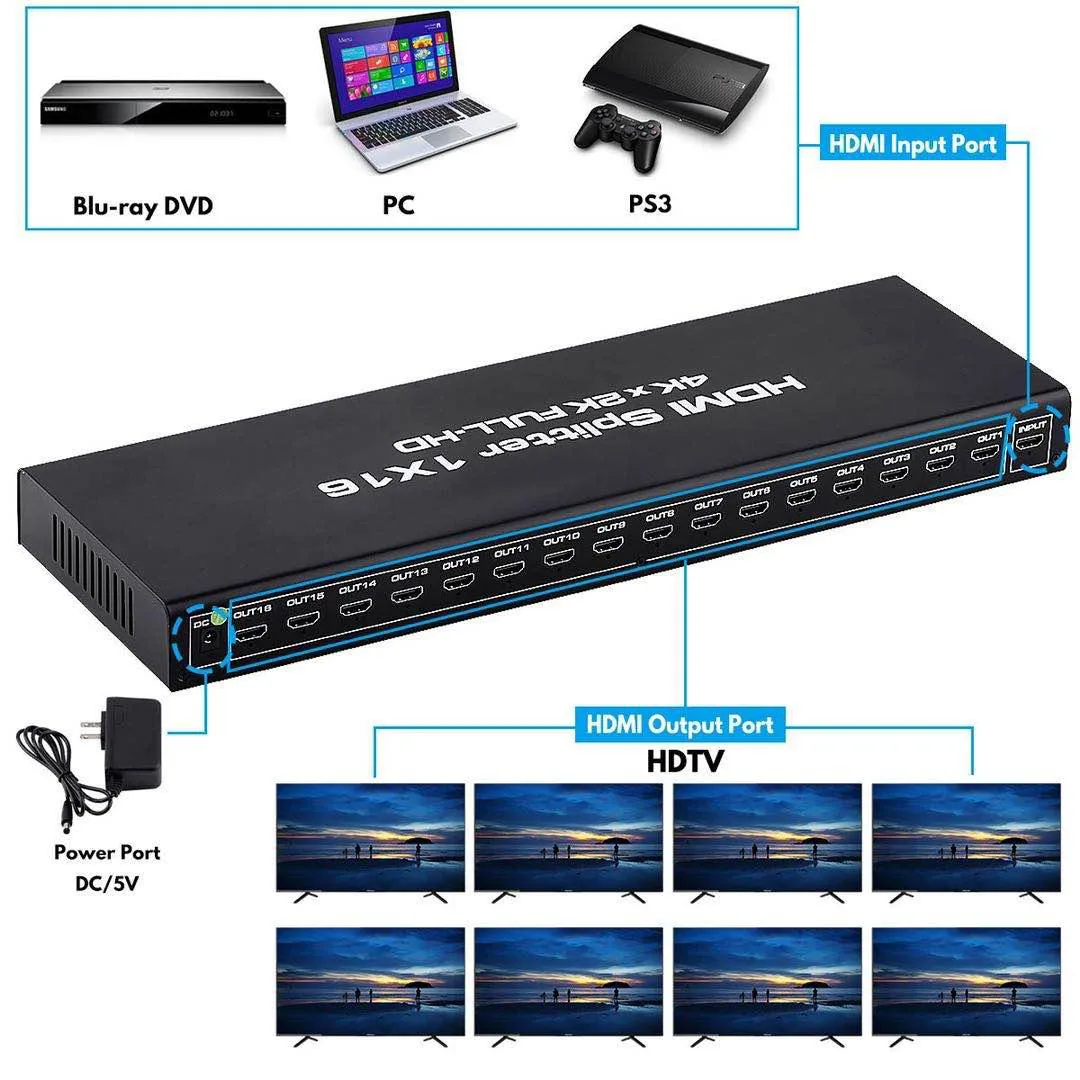

The Jansicotek OZF13 splits a single HDMI source across sixteen displays simultaneously. It mirrors the input at up to 3840 x 2160 resolution and 30 Hz without extending the desktop. The unit targets installers running digital signage, conference rooms, trade-show booths or home-theatre matrices that need identical content on every screen.

Passive operation

The splitter draws 50 mA from the supplied DC 12V/5A adapter and runs without fans, so it adds no audible noise to quiet environments. Maximum transmission bandwidth is listed at 3.2 Gbps with a 320 MHz pixel clock, and HDMI 1.4b compliance keeps power draw low during continuous 4K@30Hz or 1080p@60Hz playback.

Mirror-only limitation

This device replaces a basic 1x2 or 1x4 splitter when the installation grows beyond four displays, but it cannot extend a desktop across multiple monitors. Buyers who need independent content on each screen or support for refresh rates above 30 Hz at 4K should look elsewhere.

Highlights

  • Distribute one source to 16 displays simultaneously
  • Supports 4K resolution at 30 Hz refresh rate
  • HDMI 1.4b with 3.2 Gbps bandwidth
  • Handles 12-bit deep colour and 3D video
  • Plug-and-play operation with included power adapter

Specifications

BrandJansicotek
SeriesOZF13
ModelOZF13
Part NumberOZF13
TypeHDMI Splitters
Changer TypeHDMI
Ports16
AudioYes
ColorBlack
SpecificationsMax Bandwidth:320MHz
Max Transmission Bandwidth:3.2Gbps
HDMI Version: HDMI 1.4b
Power Adapter Format: DC 12V/5A
Support audio format: DTS-HD/Dolby-trueHD/ DTS/Dolby-AC3/DSD

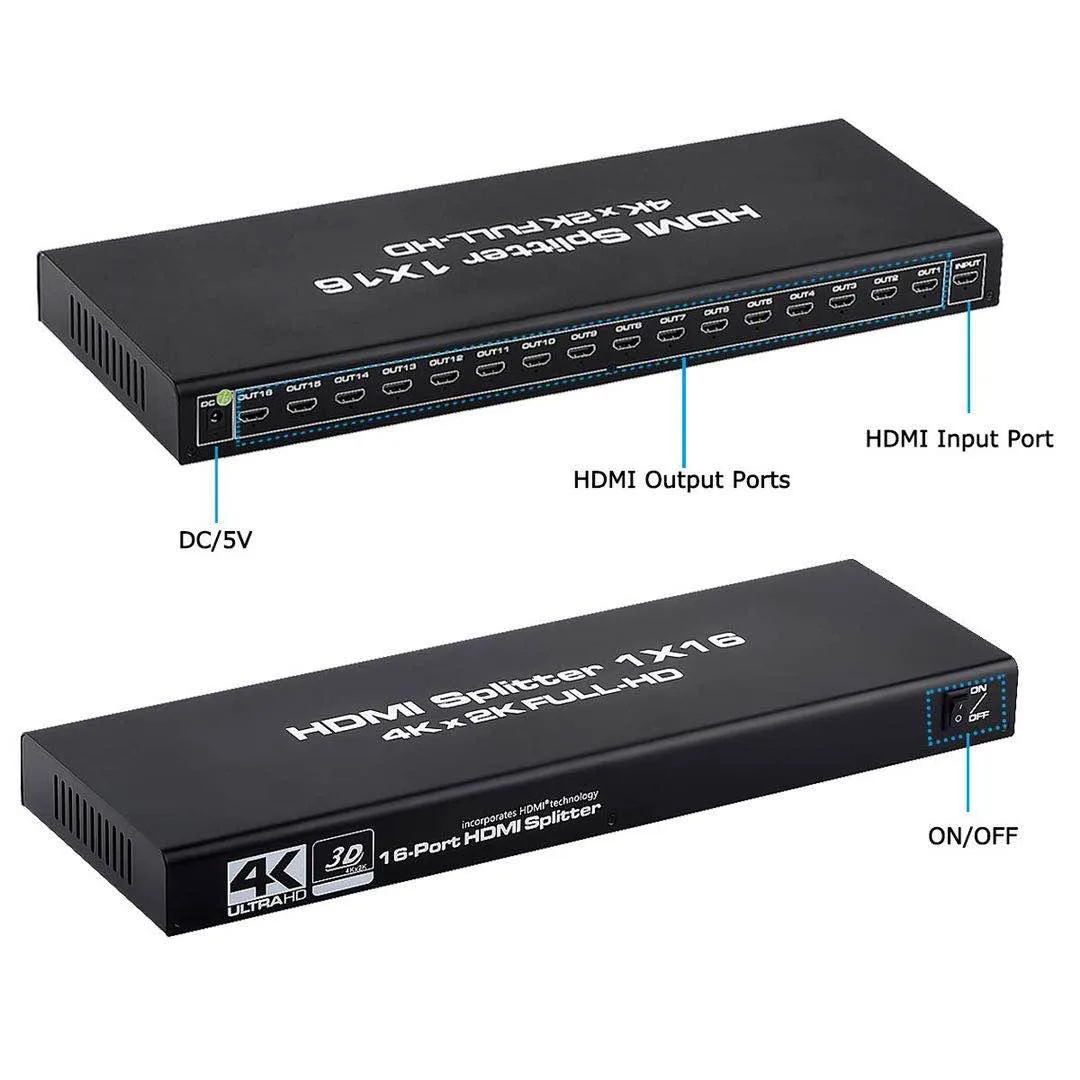

Input Connector1 HDMI input
Output Connector16 HDMI Output
Maximum Resolutions3840 x 2160
FeaturesSupports high resolutions up to ultra HD 4Kx2K, including 480i/p, 576i/p, 720i/p, 1080i, 1080p;
Supports 12-bit Deep Full HD, Full 3D and 4Kx2K video;
Supports audio format such as LPCM7.1, Dolby True HD, Dolby DTS Plus and DTS-HD Audio;
Input support: Computer, PS3, PS4, Xbox, Blu-ray DVD player, STB etc;
Output support: projectors, Full HDTVs, TV, monitor, etc.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 4K 16 Port HDMI Splitter
1 x 12V DC Power Supply
1 x User Manual

Questions about this item

How do I install the OZF13 splitter and which step do people often miss?

Connect one HDMI source to the single input, then run up to 16 HDMI cables to the outputs, plug in the included 12 V 5 A DC adapter, and power on; the step many forget is using the supplied power supply — the unit will not distribute a stable 4K 30 Hz signal without it.

What maintenance or replacement will the OZF13 need over time?

The splitter itself has no moving parts or user-serviceable components; only the external 12 V 5 A power adapter may eventually require replacement if the voltage drifts or the connector wears out.

What limit appears first when the OZF13 runs continuously at 4K 30 Hz?

The 3.2 Gbps bandwidth ceiling (HDMI 1.4b) is reached first, so 4K resolution stays at 30 Hz and cannot move to 60 Hz; cable runs beyond 49 feet may also introduce signal loss before the chip overheats.
