Jansicotek
Jansicotek OZF12 1x2 HDMI 2.0 Splitter 4K@60Hz 18Gbps
Splits one HDMI 2.0 source to two displays at 4K@60Hz with HDCP 2.2 and 18Gbps bandwidth
- TypeHDMI Splitters
- Changer TypeHDMI
- Ports2
- AudioYes
- ColorBlack
- SpecificationsHDMI version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
- Splits one HDMI source to two displays
- Delivers 4K video at 60 Hz via 18 Gbps bandwidth
- Handles 12-bit deep color and 3D formats
- Regenerates signal for longer cable runs
- Includes 5 V 2 A power adapter for stable operation

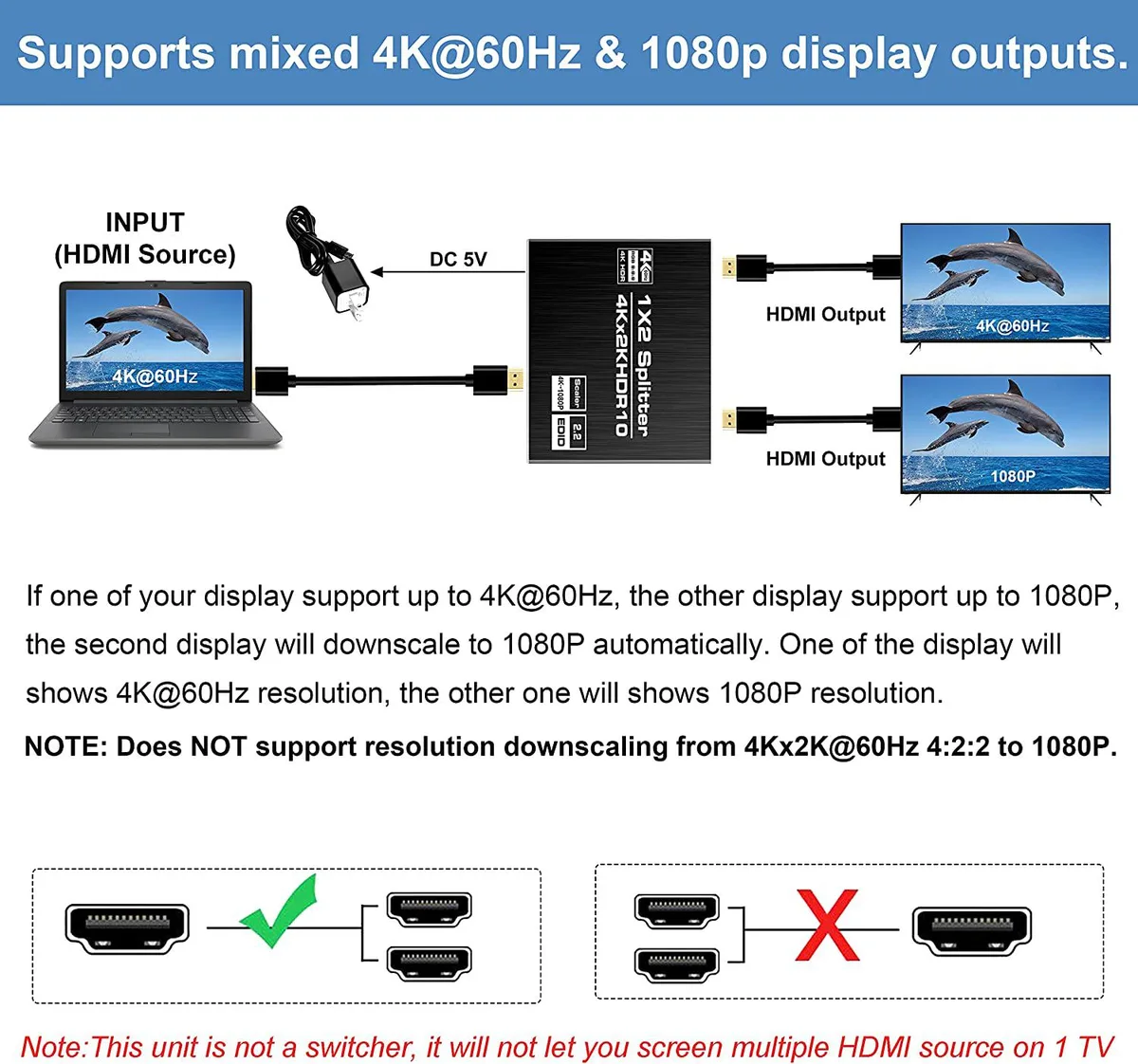

1x2 HDMI 2.0 Splitter 4K@60Hz

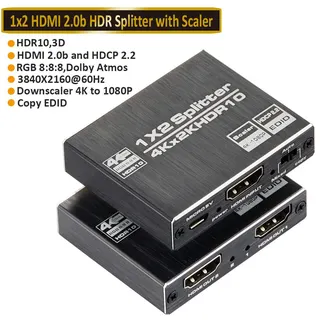

The Jansicotek OZF12 takes one HDMI 2.0b source and duplicates it to two displays at up to 3840x2160 at 60 Hz. It supports 18 Gbps bandwidth, HDCP 2.2 and deep-colour video up to 48-bit. A 5 V power adapter is included for stable signal regeneration.

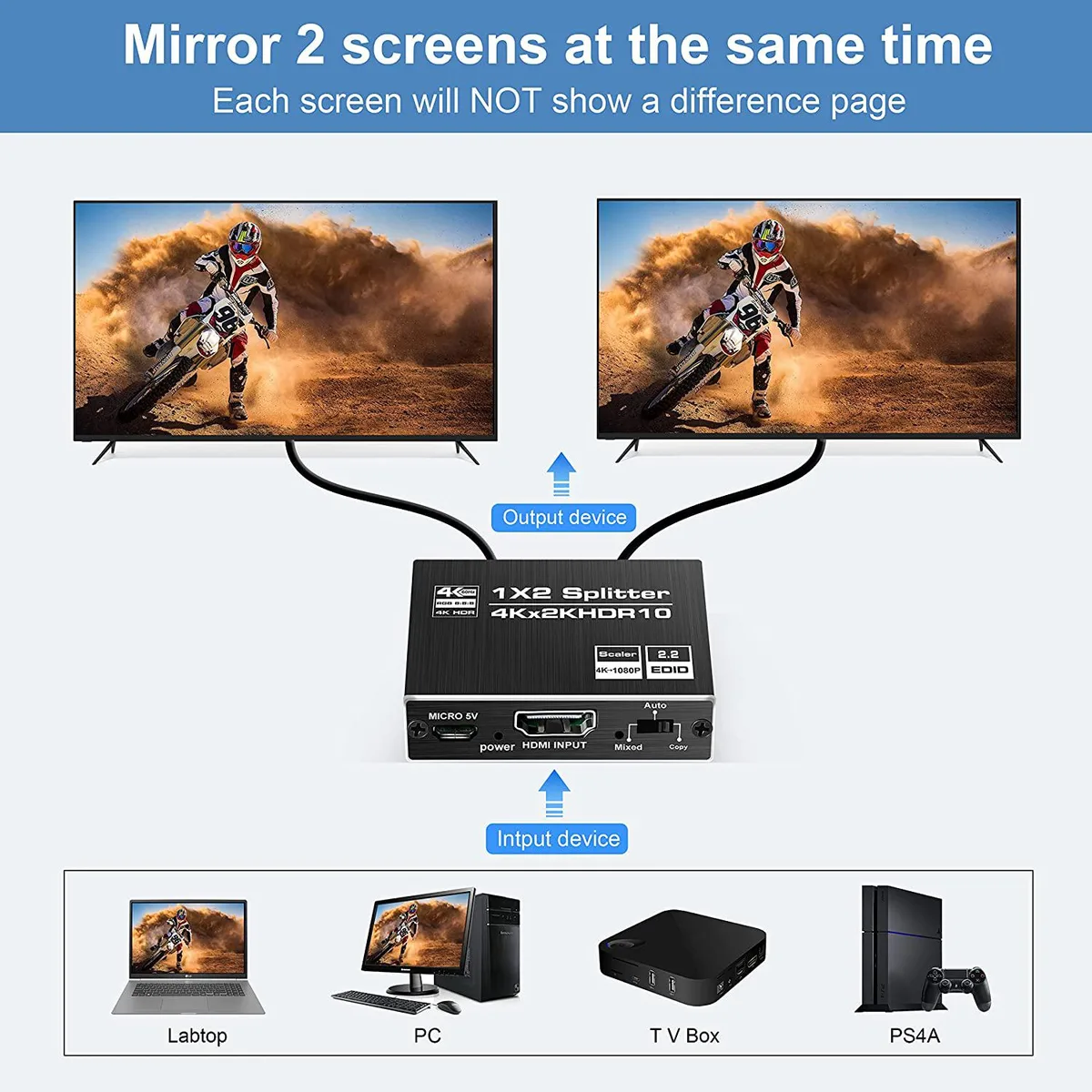

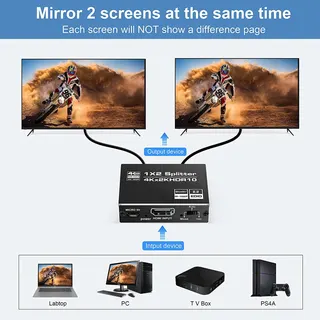

For duplication only — not for extending
This unit suits anyone who needs the same image on two screens, such as a living-room TV and a projector, or dual signage displays. It does not create independent desktops, so users who want extended desktop modes or more than two outputs should look at a different solution.
HDMI 2.0b with HDCP 2.2
The decisive specification is the HDMI 2.0b interface combined with on-chip HDCP 2.2 ciphers, which together allow protected 4K content at 60 Hz to pass to both outputs without handshake failures.
Highlights
- Splits one HDMI source to two displays
- Delivers 4K video at 60 Hz via 18 Gbps bandwidth
- Handles 12-bit deep color and 3D formats
- Regenerates signal for longer cable runs
- Includes 5 V 2 A power adapter for stable operation
Specifications
| Brand | Jansicotek |
|---|---|
| Series | OZF12 |
| Model | OZF12 |
| Part Number | OZF12 |
| Type | HDMI Splitters |
| Changer Type | HDMI |
| Ports | 2 |
| Audio | Yes |
| Color | Black |
| Specifications | HDMI version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz Video color format: 24bit/deep color 30bit, 36bit, 48bit Audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR) Max bandwidth: 600MHz Max baud rate: 18.5Gbps Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL) Input/Output DDC signal: 5Volts p-p (TTL) Input cable distance: <17ft AWG28 HDMI standard cable Output cable distance: <17ft AWG28 HDMI standard cable Max working current: 1200mA Power adapter format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A Operating |
| Input Connector | 1 HDMI input |
| Output Connector | 2 HDMI |
| Maximum Resolutions | 3840 x 2160 |
| Bandwidth | 18Gbps |
| Features | Fully HDMI2.0 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces. specification ON-chip HDCP RX/TX ciphers which are compliant with HDCP 2.2 specification. Wide Frequency Range: 25MHz-600MHz. Supports high resolutions up to 3840×2160 @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p. Supports jitter Clean capability for more cascadable stages. Supports 12-bit Deep Full HD, Full 3D and 4K@ 60Hz video. |
| Dimensions | 5.59 x 3.15 x 1.26 inches |
| Weight | 3.2 ounces |
| Package Quantity | 1 |
| Package Contents | 1x2 HDMI Splitter 4K@60Hz*1, 5V/2A Power adapter*1 |
Questions about this item
What are the physical dimensions of the Jansicotek OZF12 splitter?
The unit measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, so it fits on a shelf or behind a display without needing a rack mount.
How do I connect the power adapter and HDMI cables in the right order?
Plug the 5V/2A adapter into the splitter first, then connect the source to the single HDMI input and the two displays to the HDMI outputs; powering up before the source is connected avoids handshake issues.
Will the EDID handling need adjustment if I swap one display for a different model later?
The on-chip HDCP 2.2 and EDID management negotiate automatically with each connected sink, so replacing a display does not require manual configuration or firmware updates.
