Small black rectangular HDMI splitter with three ports

Jansicotek

Jansicotek OZF10 1x2 HDMI Splitter 4K 60Hz

SKU CH-EEXH-53E78

Splits one HDMI source to two displays at up to 4K 60Hz with 10.5Gbps bandwidth and HDCP 1.4 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • Specifications4K@60Hz HDMI Splitter 1 in 2 out One HDMI input to Two HDMI
  • One HDMI source duplicated to two displays simultaneously
  • 4K at 60 Hz for sharp Ultra HD picture
  • 5 Gbps bandwidth carries high-resolution video
  • 1-channel digital audio formats passed through
  • Works with 1080p, 720p and 480p legacy sources

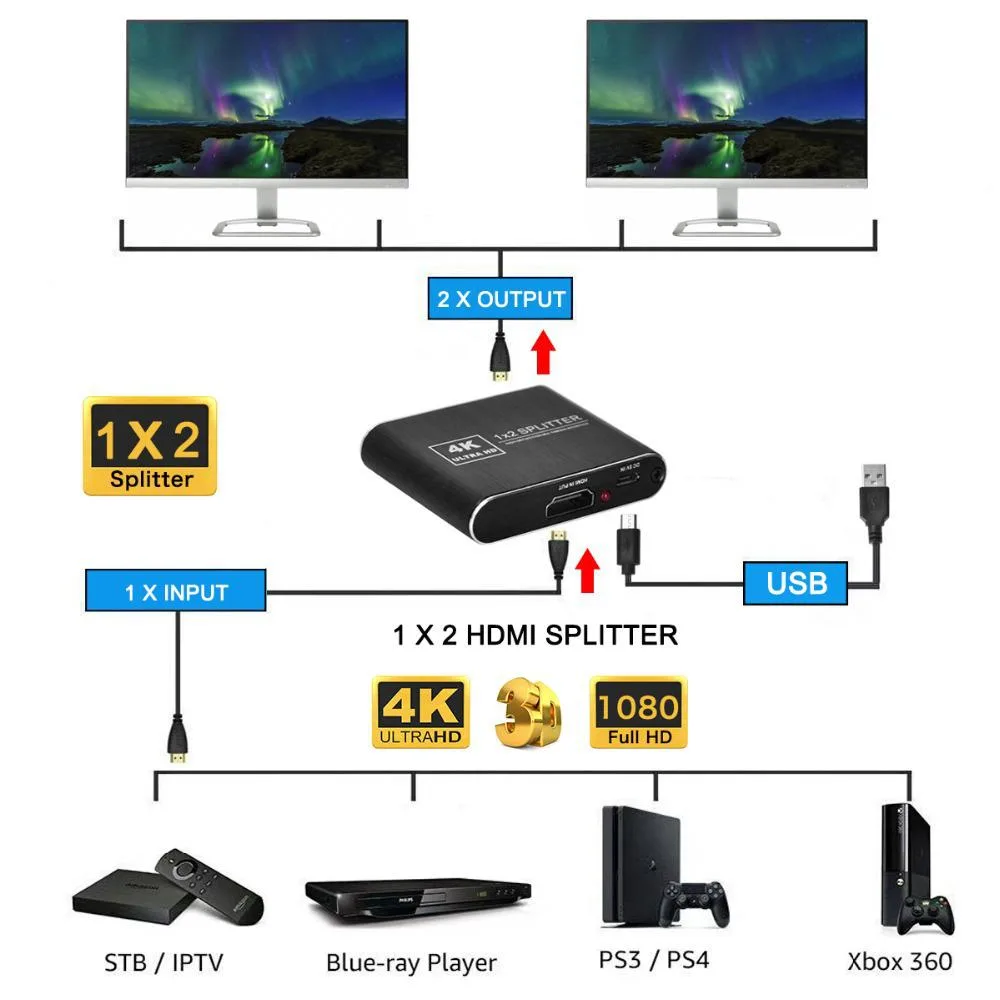

Signal duplication for two displays

The Jansicotek OZF10 is a one‑input, two‑output HDMI splitter built for users who need the same 4K source shown on two screens at once. It suits living‑room setups, digital signage or dual‑monitor mirroring where extended desktop mode is not required. The unit ships with a USB power cable and draws power from any standard 5 V port.

Thermals noise and power

The aluminium enclosure passively dissipates the few watts the splitter consumes, so it runs silently without a fan. Power is supplied through the included USB cable, eliminating the need for a separate wall adapter and keeping cable clutter low. Typical draw stays well within the limits of a TV or monitor USB service port.

Mirror only no extended mode

This splitter duplicates video and audio identically to both outputs and does not support extended or independent display modes. Buyers who need separate content on each screen should choose a graphics card or a matrix switch instead.

Highlights

  • One HDMI source duplicated to two displays simultaneously
  • 4K at 60 Hz for sharp Ultra HD picture
  • 5 Gbps bandwidth carries high-resolution video
  • 1-channel digital audio formats passed through
  • Works with 1080p, 720p and 480p legacy sources

Specifications

BrandJansicotek
SeriesOZF10
ModelOZF10
Part NumberOZF10
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
Specifications4K@60Hz HDMI Splitter 1 in 2 out
One HDMI input to Two HDMI Outputs
Support HDCP1.4, HDMI2.0, YUV 4:2:0.
Supports Ultra HD 4Kx2K (4K@60HZ/ 30HZ) 1080P/ 1080i, 720p/ 720i, 480p/ 480i; Deep color 8bit,10bit, 12bit.
Support digital audio formats including DTS-HD, Dobly-true HD, LPCM 7.1, DTS, Dobly-AC3, DSD, HD(HBR)
With the AWG26 (19+1) HDMI standard cable: When the resolution is 1080P or below, input and output up to 26ft (8m); When the resolution is 4K, input and output up to 16ft (5m).
PAY ATTENTION: NO support Extended Mode.
Input Connector1 HDMI
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth10.5Gbps
FeaturesSupport HDCP1.4, HDMI2.0, YUV 4:2:0.
Supports Ultra HD 4Kx2K (4K@60HZ/ 30HZ) 1080P/ 1080i, 720p/ 720i, 480p/ 480i; Deep color 8bit,10bit, 12bit.
Support digital audio formats including DTS-HD, Dobly-true HD, LPCM 7.1, DTS, Dobly-AC3, DSD, HD(HBR)
With the AWG26 (19+1) HDMI standard cable: When the resolution is 1080P or below, input and output up to 26ft (8m); When the resolution is 4K, input and output up to 16ft (5m).
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 4K@60Hz HDMI splitter 1 in 2 out
1 x USB cable
1 x User Manual

Questions about this item

How do I install the OZF10 splitter and what step is often missed?

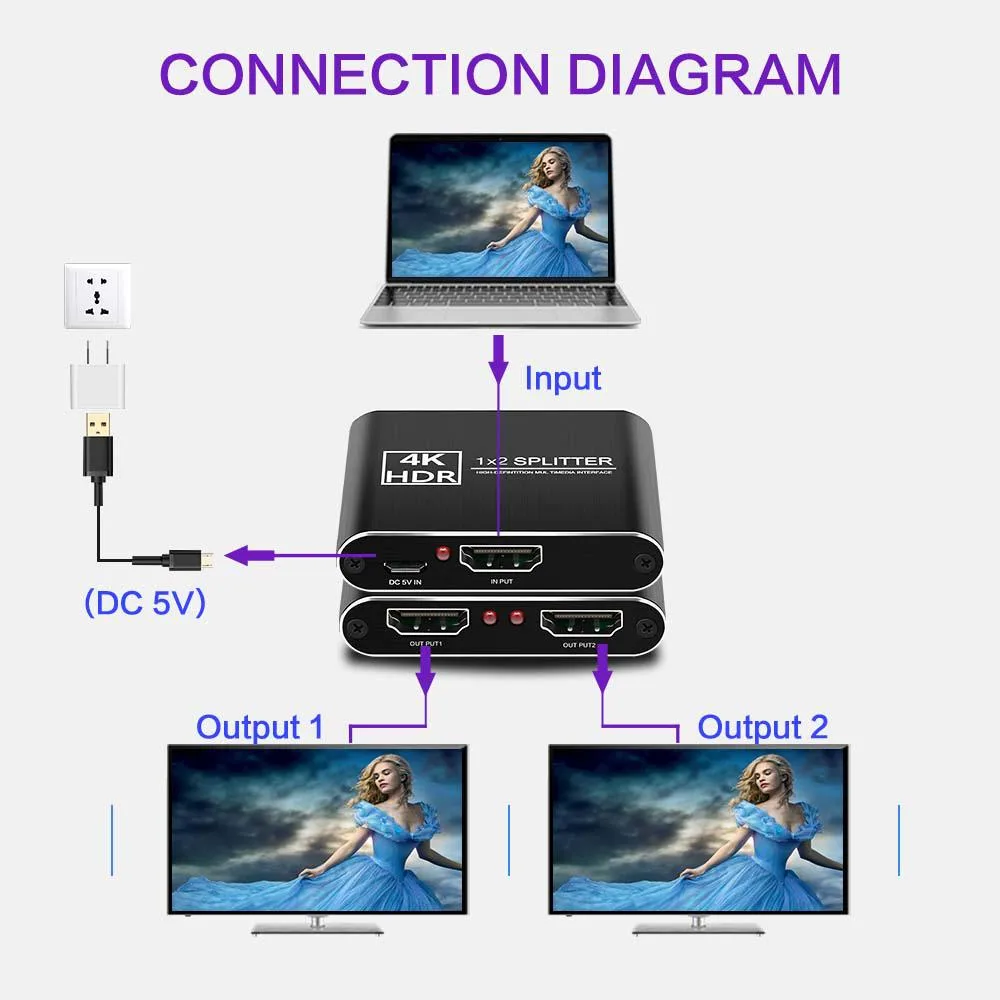

Connect the HDMI source to the single input, then link both displays to the two outputs. The step people miss is plugging the supplied USB cable into a 5 V USB port or charger to power the unit; without it the 10.5 Gbps 4K 60 Hz signal will not pass.

What maintenance or replacement will the OZF10 need later?

The splitter itself has no moving parts or user-serviceable items. Over time you may need to replace the HDMI cables if they are bent or exceed the 5 m limit for 4K or the 8 m limit for 1080p, or swap the USB power cable if it becomes damaged.

What limit appears first when the OZF10 runs continuously at 4K 60 Hz?

The 10.5 Gbps bandwidth ceiling is the first hard limit; it caps the splitter at 4K 60 Hz 4:2:0 8-bit. Pushing higher colour depth or frame rate would exceed the HDMI 2.0 spec the device implements.
