Small black box with HDMI, optical, coaxial and 3.5 mm audio ports

Jansicotek

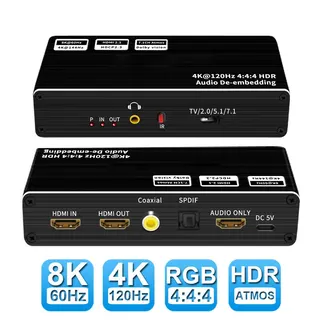

Jansicotek OZ8V1 HDMI Audio Extractor Splitter PS5 Soundbar Blu-Ray Player 8K@60Hz 7.1Ch

SKU CH-Y80Q-RH64D

Extracts 7.1-channel audio via HDMI, optical, coaxial and 3.5 mm while passing 8K 60 Hz and 4K 120 Hz video at 48 Gbps

  • TypeHDMI Splitters
  • Changer TypeHDMI Audio Extractor
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsInput ports: 1XHDMI Output port: 1 XHDMI(Female type ) 1 XHD
  • Extract 7.1-channel audio via HDMI output for immersive surround sound
  • Send 5.1-channel audio to soundbars through optical Toslink connection
  • Connect legacy amplifiers using coaxial digital audio output
  • Route stereo sound to headphones via 3.5 mm jack output
  • Pass 8K 60 Hz video with 48 Gbps bandwidth to displays

Jansicotek OZ8V1 HDMI Audio Extractor

This Jansicotek OZ8V1 extracts audio from a single HDMI 2.1 source and routes it to a soundbar or amplifier without requiring a TV connection. It serves PS5 and Xbox Series X owners who need separate audio paths for external speakers or headphones.

HDMI 2.1 limits at 48 Gbps bandwidth

The unit passes video up to 8K at 60 Hz, 4K at 120 Hz RGB 4:4:4 and 5120 x 1440 at 120 Hz within the 48 Gbps ceiling. It does not support ARC or eARC so the TV return channel cannot be used for audio extraction.

Check your source and display capabilities

Verify the source device can output the desired audio format such as LPCM 7.1 CH or Dolby TrueHD and that the connected display accepts the target resolution. When 7.1 CH mode is selected the TV or monitor must support 7.1 CH audio or no signal will be heard.

Highlights

  • Extract 7.1-channel audio via HDMI output for immersive surround sound
  • Send 5.1-channel audio to soundbars through optical Toslink connection
  • Connect legacy amplifiers using coaxial digital audio output
  • Route stereo sound to headphones via 3.5 mm jack output
  • Pass 8K 60 Hz video with 48 Gbps bandwidth to displays

Specifications

BrandJansicotek
SeriesOZ8V1
ModelOZ8V1
Part NumberOZ8V1
TypeHDMI Splitters
Changer TypeHDMI Audio Extractor
Ports4
AudioYes
ColorBlack

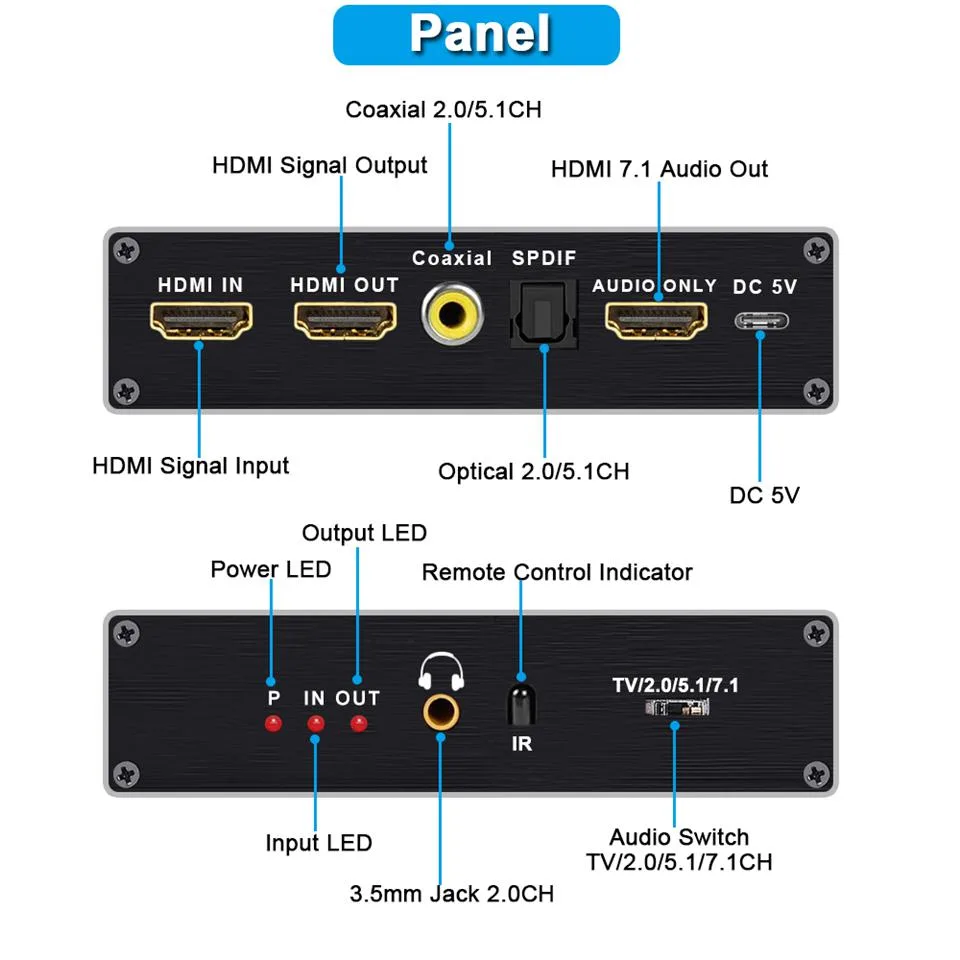

SpecificationsInput ports: 1XHDMI
Output port: 1 XHDMI(Female type )
1 XHDMI Audio output: support 7.1CH audio extract function
1 XToslink Audio output: support 5.1CH audio extract function
1 XCoaxial Audio output: support 5.1CH audio extract function
1 x3.5mmJack output: support 2.0CH audio extract function
Audio support: LPCM 7 .1CH,Dolby TrueHD ,DTS-X and DTS -HD Master Audio
Video Resolution: up to 8k@60Hz/4K@120Hz RGB 4 :4:4
Operating Temperature: 0 C to 40 C/ 32Fto 104F
Storage Temperature: - 20 C to 6 C/ -4F to 104F
Dimensions: 130X61X30MM
Input Connector1 HDMI input
Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions5120x1440
Bandwidth48Gbps
Features4K 120Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz RGB 4 :4 :4 .
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents48Gbps HDMI 2.1 Audio Extractor: 1 pcs
IR Remote control: 1 pcs(without battery)
5V/1A DC Power Adapter: 1 pcs
User Manual: 1 pcs

Questions about this item

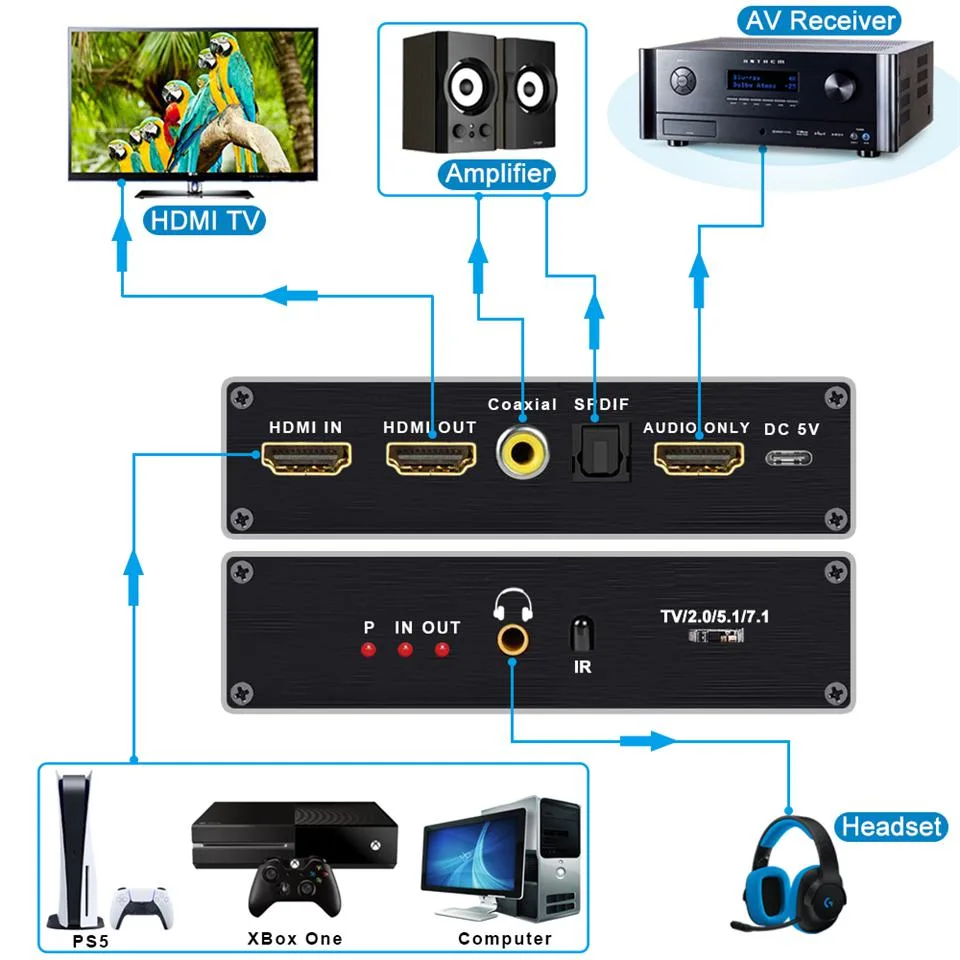

Should I use the HDMI audio output, the optical Toslink, the coaxial or the 3.5 mm jack for my sound system?

Use the HDMI audio output for full 7.1-channel LPCM, Dolby TrueHD or DTS-HD Master Audio; choose Toslink or coaxial when your amplifier only accepts 5.1-channel audio; reserve the 3.5 mm jack for simple stereo devices.

What does the 48 Gbps bandwidth mean when I connect a PS5 or Blu-ray player?

It carries 8K at 60 Hz, 4K at 120 Hz with 4:4:4 colour, and high-frame-rate 1080p up to 240 Hz without compression, so the console’s maximum video modes pass through untouched.

Does the HDMI 2.1 connection support ARC or eARC for return audio from a TV?

No — the extractor does not implement ARC or eARC; it only de-embeds audio from the incoming HDMI stream toward your soundbar or amplifier.
