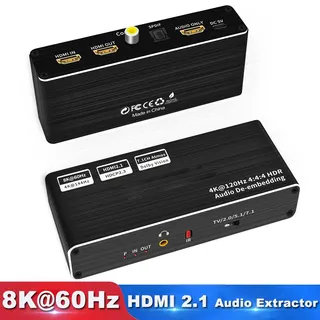

Compact black HDMI audio extractor with multiple output ports

Jansicotek

Jansicotek OZ8V1 HDMI 2.1 Audio Extractor 8K 60Hz 7.1Ch

SKU CH-YAN0-10S2F

Extracts 7.1-channel audio from 8K 60 Hz HDMI 2.1 sources to optical, coaxial, 3.5 mm and HDMI audio outputs with 48 Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI Audio Extractor
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsInput ports: 1XHDMI Output port: 1 XHDMI(Female type ) 1 XHD
  • Extract 7.1-channel audio via HDMI output
  • Send 5.1-channel sound through optical Toslink
  • Connect legacy amplifiers using coaxial output
  • Hook up headphones or soundbars via 3.5 mm jack
  • Pass 8K 60 Hz video with 48 Gbps bandwidth

Jansicotek OZ8V1 HDMI 2.1 Audio Extractor

The Jansicotek OZ8V1 is an HDMI 2.1 audio extractor that takes one HDMI input and provides one HDMI output plus four separate audio outputs. It supports video up to 8K at 60 Hz and 4K at 120 Hz with 48 Gbps bandwidth.

Installers needing multi-format audio breakout

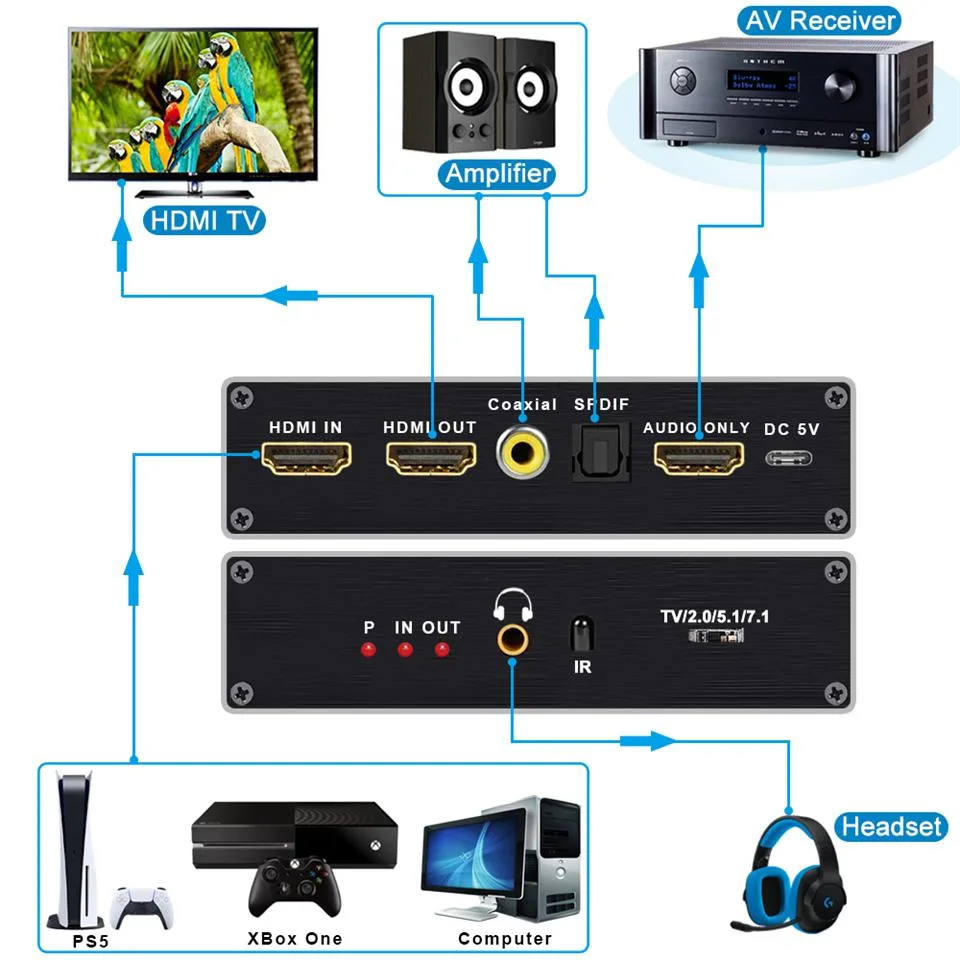

This unit suits installers who need to send HDMI video to a display while extracting audio to a soundbar, AV receiver or active speakers via HDMI audio, optical Toslink, coaxial or 3.5 mm jack. It does not support ARC or eARC, so systems that rely on TV-return audio will not work.

7.1-channel HDMI audio extraction

The HDMI audio output carries up to 7.1-channel LPCM, Dolby TrueHD, DTS-X and DTS-HD Master Audio, while Toslink and coaxial outputs are limited to 5.1 channels and the 3.5 mm jack to stereo.

Highlights

  • Extract 7.1-channel audio via HDMI output
  • Send 5.1-channel sound through optical Toslink
  • Connect legacy amplifiers using coaxial output
  • Hook up headphones or soundbars via 3.5 mm jack
  • Pass 8K 60 Hz video with 48 Gbps bandwidth

Specifications

BrandJansicotek
SeriesOZ8V1
ModelOZ8V1
Part NumberOZ8V1
TypeHDMI Splitters
Changer TypeHDMI Audio Extractor
Ports4
AudioYes
ColorBlack

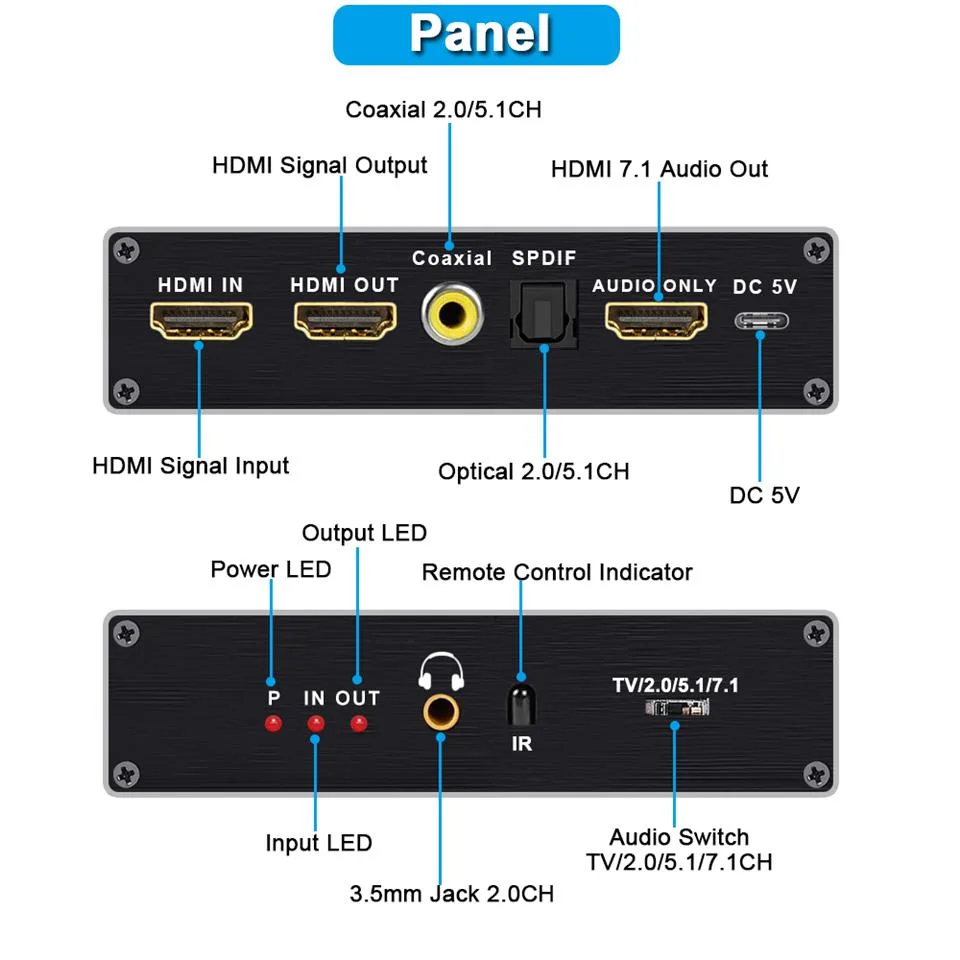

SpecificationsInput ports: 1XHDMI
Output port: 1 XHDMI(Female type )
1 XHDMI Audio output: support 7.1CH audio extract function
1 XToslink Audio output: support 5.1CH audio extract function
1 XCoaxial Audio output: support 5.1CH audio extract function
1 x3.5mmJack output: support 2.0CH audio extract function
Audio support: LPCM 7 .1CH,Dolby TrueHD ,DTS-X and DTS -HD Master Audio
Video Resolution: up to 8k@60Hz/4K@120Hz RGB 4 :4:4
Operating Temperature: 0 C to 40 C/ 32Fto 104F
Storage Temperature: - 20 C to 6 C/ -4F to 104F
Dimensions: 130X61X30MM
Input Connector1 HDMI input
Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions5120x1440
Bandwidth48Gbps
Features4K 120Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz RGB 4 :4 :4 .
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents48Gbps HDMI 2.1 Audio Extractor: 1 pcs
IR Remote control: 1 pcs(without battery)
5V/1A DC Power Adapter: 1 pcs
User Manual: 1 pcs

Questions about this item

What bandwidth does the HDMI 2.1 interface provide and what resolution does that cap in practice?

The 48Gbps HDMI 2.1 link caps at 8K 60Hz, 4K 120Hz RGB 4:4:4, 5120x1440 120Hz, 4K 165Hz, 4K 144Hz, 2K 144Hz, and 1080p 240Hz.

What physical space and power does the extractor need to fit and mount?

The unit measures 5.59 x 3.15 x 1.26 inches, weighs 3.2 ounces, and requires the included 5V/1A DC power adapter.

How is the extractor installed and which step do people get wrong?

Connect the source to the HDMI input, the display to the HDMI output, choose one audio output (HDMI audio, Toslink, coaxial or 3.5mm), then set the source device to output 7.1-channel LPCM or the extractor will pass no audio.
