Small black box with HDMI and audio ports on both sides

Jansicotek

Jansicotek OZ8V1 HDMI 2.1 audio extractor 48Gbps 8K 60Hz 7.1Ch

SKU CH-V00Q-NNZMN

Extracts 7.1-channel audio from 48 Gbps HDMI 2.1 sources to optical, coaxial, 3.5 mm and HDMI outputs while passing 8K 60 Hz video

  • TypeHDMI Splitters
  • Changer TypeHDMI Audio Extractor
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsInput ports: 1XHDMI Output port: 1 XHDMI(Female type ) 1 XHD
  • Extract 7.1-channel audio via HDMI output
  • Send 5.1-channel sound through optical Toslink
  • Output stereo to legacy 3.5 mm jack
  • Pass 48 Gbps 8K 60 Hz video untouched
  • Control switching with included IR remote

HDMI 2.1 extractor with 7.1-channel output

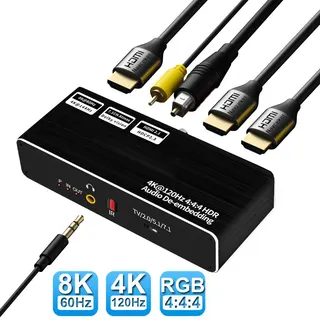

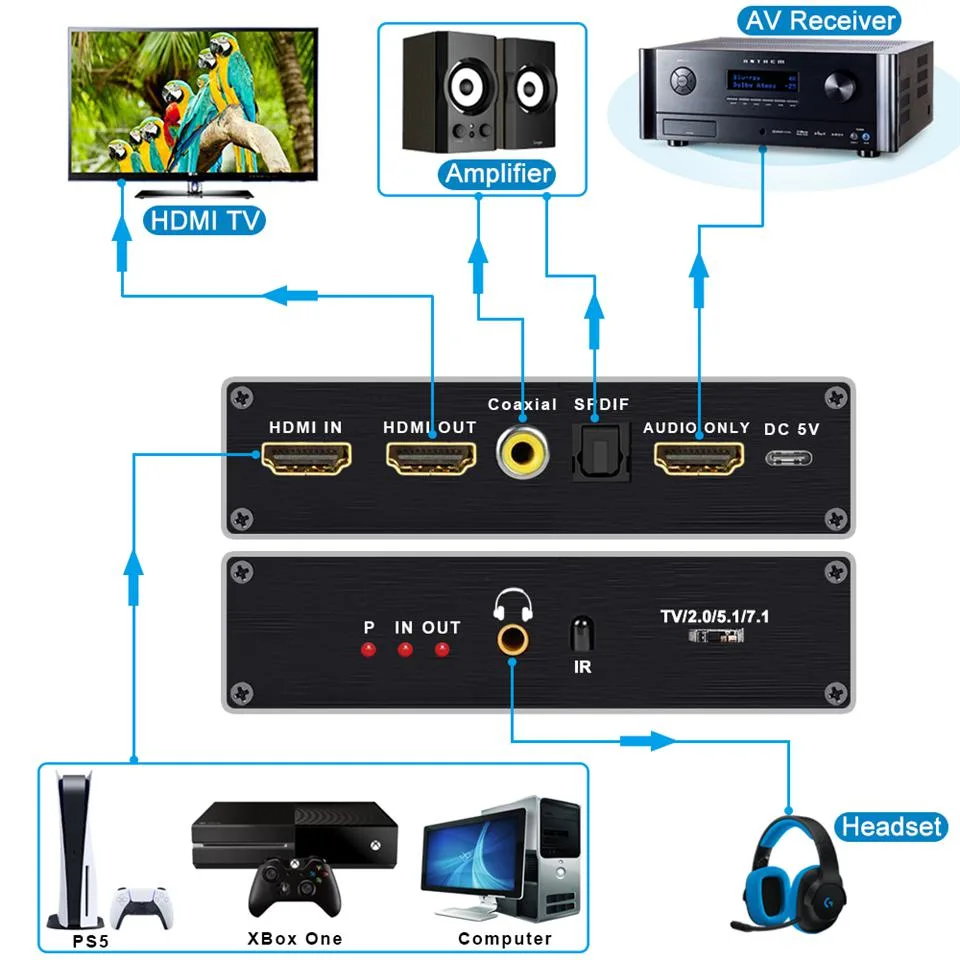

The Jansicotek OZ8V1 is a compact HDMI 2.1 audio extractor that accepts one HDMI input and provides one HDMI loop-through plus four separate audio outputs. It serves gamers and home-theatre owners who need to send multichannel sound from a console or media player to an amplifier or soundbar while keeping the video path intact.

Sustains 48 Gbps bandwidth for 8K 60 Hz

The device maintains the full 48 Gbps link rate specified for HDMI 2.1, allowing continuous 8K at 60 Hz or 4K at 120 Hz with RGB 4:4:4 chroma. HDCP 2.3 and 2.2 pass-through, CEC control, VRR and dynamic HDR formats including Dolby Vision and HDR10+ remain active during extended sessions without signal degradation.

Check that your display supports 7.1-channel LPCM

The HDMI audio output delivers up to 7.1-channel LPCM, Dolby TrueHD and DTS-HD Master Audio, but the extractor does not support ARC or eARC. If the connected TV or monitor cannot accept 7.1-channel audio over its HDMI input, no sound will be produced in that mode. The Toslink and coaxial outputs are limited to 5.1-channel, while the 3.5 mm jack provides stereo only.

Highlights

  • Extract 7.1-channel audio via HDMI output
  • Send 5.1-channel sound through optical Toslink
  • Output stereo to legacy 3.5 mm jack
  • Pass 48 Gbps 8K 60 Hz video untouched
  • Control switching with included IR remote

Specifications

BrandJansicotek
SeriesOZ8V1
ModelOZ8V1
Part NumberOZ8V1
TypeHDMI Splitters
Changer TypeHDMI Audio Extractor
Ports4
AudioYes
ColorBlack

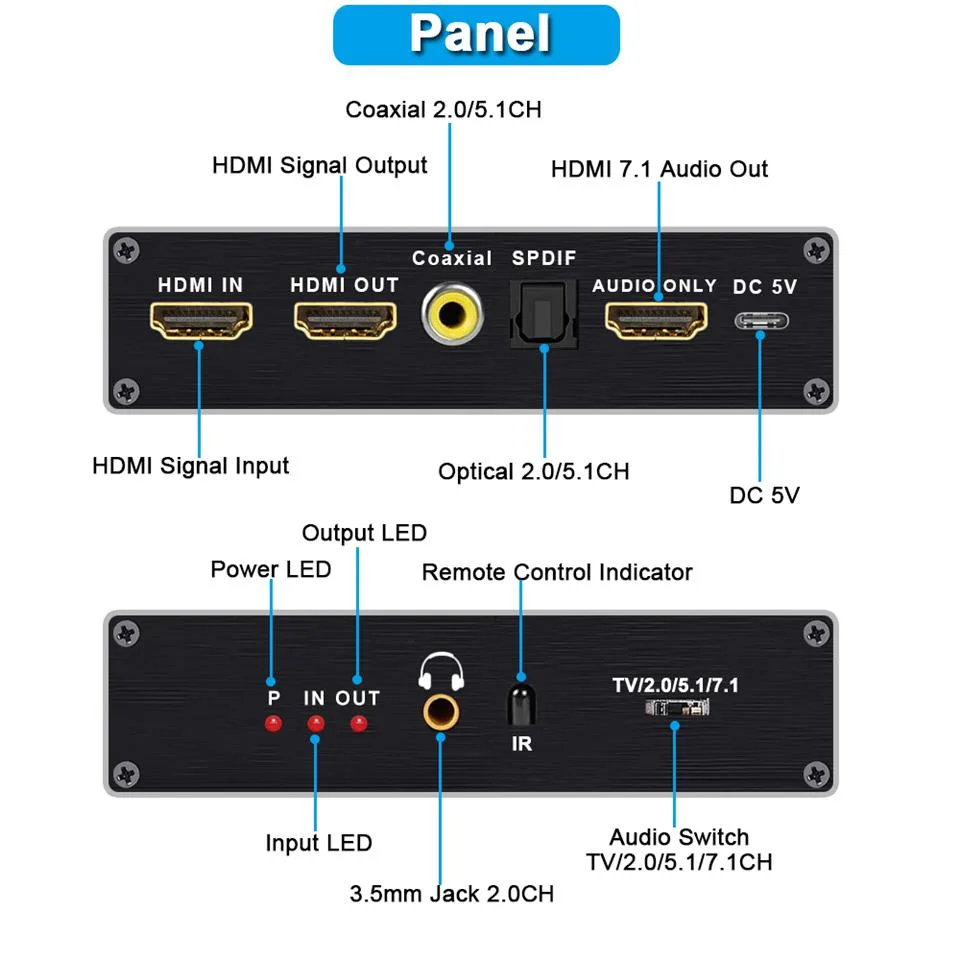

SpecificationsInput ports: 1XHDMI
Output port: 1 XHDMI(Female type )
1 XHDMI Audio output: support 7.1CH audio extract function
1 XToslink Audio output: support 5.1CH audio extract function
1 XCoaxial Audio output: support 5.1CH audio extract function
1 x3.5mmJack output: support 2.0CH audio extract function
Audio support: LPCM 7 .1CH,Dolby TrueHD ,DTS-X and DTS -HD Master Audio
Video Resolution: up to 8k@60Hz/4K@120Hz RGB 4 :4:4
Operating Temperature: 0 C to 40 C/ 32Fto 104F
Storage Temperature: - 20 C to 6 C/ -4F to 104F
Dimensions: 130X61X30MM
Input Connector1 HDMI input
Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions5120x1440
Bandwidth48Gbps
Features4K 120Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz RGB 4 :4 :4 .
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents48Gbps HDMI 2.1 Audio Extractor: 1 pcs
IR Remote control: 1 pcs(without battery)
5V/1A DC Power Adapter: 1 pcs
User Manual: 1 pcs

Questions about this item

Does the 48Gbps OZ8V1 run hot or need a fan when extracting 7.1Ch audio all day?

The unit is passively cooled with no fan. At 5.59 x 3.15 x 1.26 inches and 3.2 ounces it dissipates the 5V/1A load silently, so continuous 24-bit 7.1Ch extraction stays cool without active cooling.

Which cables and power source must I already have to use the HDMI 2.1 extractor?

You need one HDMI source cable, one HDMI display cable, and either a Toslink, coaxial or 3.5mm cable for your amplifier. The box includes a 5V/1A DC adapter, so no separate power brick is required.

Will the 8K 60Hz extractor pass VRR and 4K 120Hz from my PS5 to an older 1080P 240Hz monitor?

Yes. The OZ8V1 supports 8K@30/60Hz, 4K@120Hz RGB 4:4:4 and 1080P@240Hz with VRR and CEC bypass, so the PS5 signal reaches the monitor while audio is de-embedded to 7.1Ch HDMI, 5.1Ch Toslink or coaxial.
