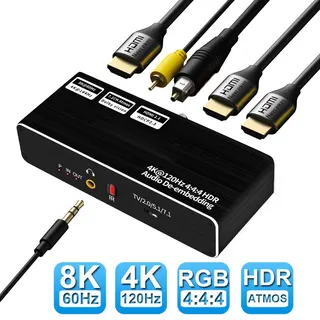

Compact black box with HDMI, optical, coaxial and 3.5mm ports

Jansicotek

Jansicotek OZ8V1 8K@60Hz HDMI Audio Extractor 7.1CH Atmos

SKU CH-ZRA7-PMEFQ

Extracts 7.1-channel Dolby Atmos audio via HDMI 2.1 at 48 Gbps, passing 8K 60 Hz video while outputting optical, coaxial, 3.5 mm and HDMI audio

  • TypeHDMI Splitters
  • Changer TypeHDMI Audio Extractor
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsInput ports: 1XHDMI Output port: 1 XHDMI(Female type ) 1 XHD
  • Extract 7.1CH audio via HDMI output for full surround sound
  • Send 5.1CH audio to soundbars through optical Toslink
  • Connect legacy amplifiers using coaxial digital output
  • Feed stereo headphones or speakers via 3.5mm jack
  • Pass 8K60 48Gbps video untouched to your display

8K@60Hz HDMI Audio Extractor

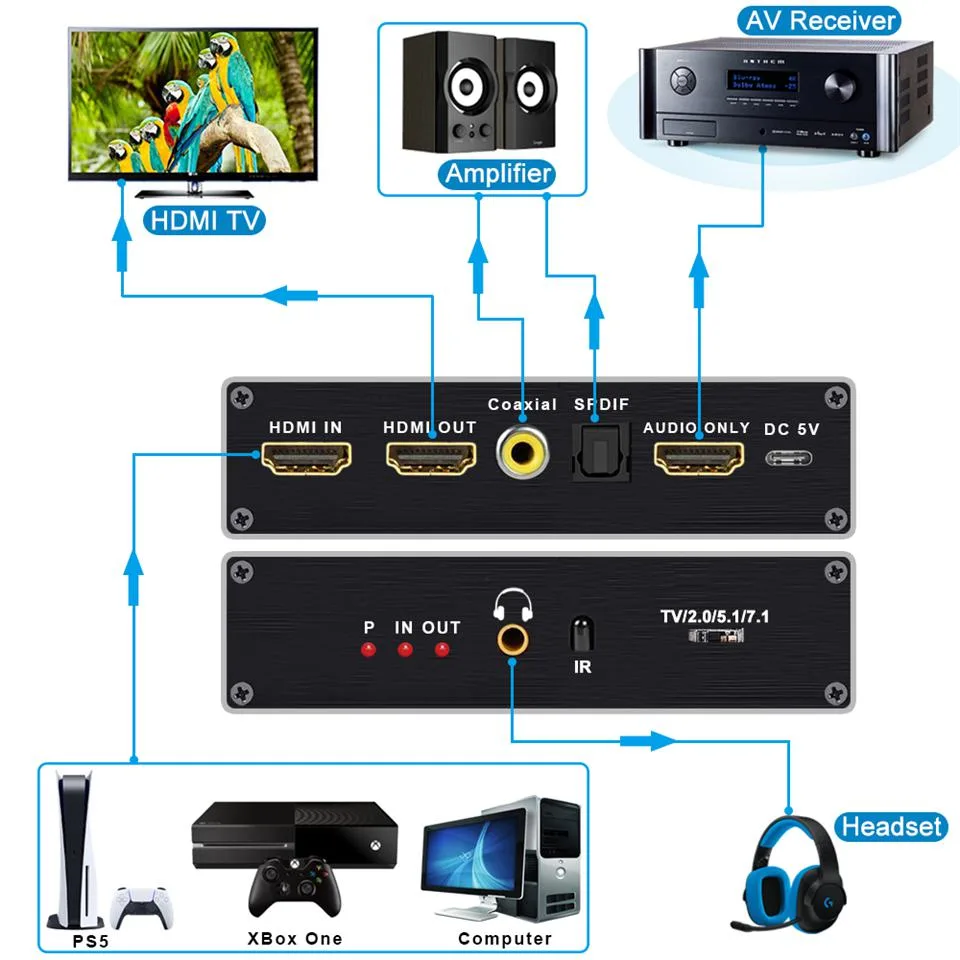

The Jansicotek OZ8V1 extracts audio from an HDMI 2.1 source and passes video up to 8K at 60 Hz. It provides one HDMI input, one HDMI output and four audio outputs including 7.1-channel HDMI, Toslink, coaxial and 3.5 mm. The unit handles 48 Gbps bandwidth and supports Dolby Atmos, DTS-X and LPCM 7.1. It is aimed at users who need multichannel audio sent to a soundbar or AV receiver while keeping the video path intact.

48 Gbps bandwidth and 8K@60Hz headroom

The extractor transmits 8K at 60 Hz, 4K at 120 Hz RGB 4:4:4 and 5120×1440 at 120 Hz without compression. It also handles 4K at 165 Hz and 1080p at 240 Hz for high-refresh gaming. Dolby Vision, HDR10+, Dynamic HDR and VRR pass through alongside CEC control. The Toslink and coaxial outputs are limited to 5.1 channels, while the 3.5 mm jack delivers stereo only. The device does not support ARC or eARC, so TV-originated audio cannot be returned through the HDMI input.

IR remote EDID switching and 5 V power

A supplied IR remote selects EDID modes to match source capabilities, and a 5 V/1 A DC adapter powers the unit. The compact 5.59×3.15×1.26 inch enclosure fits behind a display or inside a media cabinet. All connectors are female, so standard cables plug in directly. Buyers who need ARC or eARC extraction, or who require more than one HDMI input, will need a different solution.

Highlights

  • Extract 7.1CH audio via HDMI output for full surround sound
  • Send 5.1CH audio to soundbars through optical Toslink
  • Connect legacy amplifiers using coaxial digital output
  • Feed stereo headphones or speakers via 3.5mm jack
  • Pass 8K60 48Gbps video untouched to your display

Specifications

BrandJansicotek
SeriesOZ8V1
ModelOZ8V1
Part NumberOZ8V1
TypeHDMI Splitters
Changer TypeHDMI Audio Extractor
Ports4
AudioYes
ColorBlack

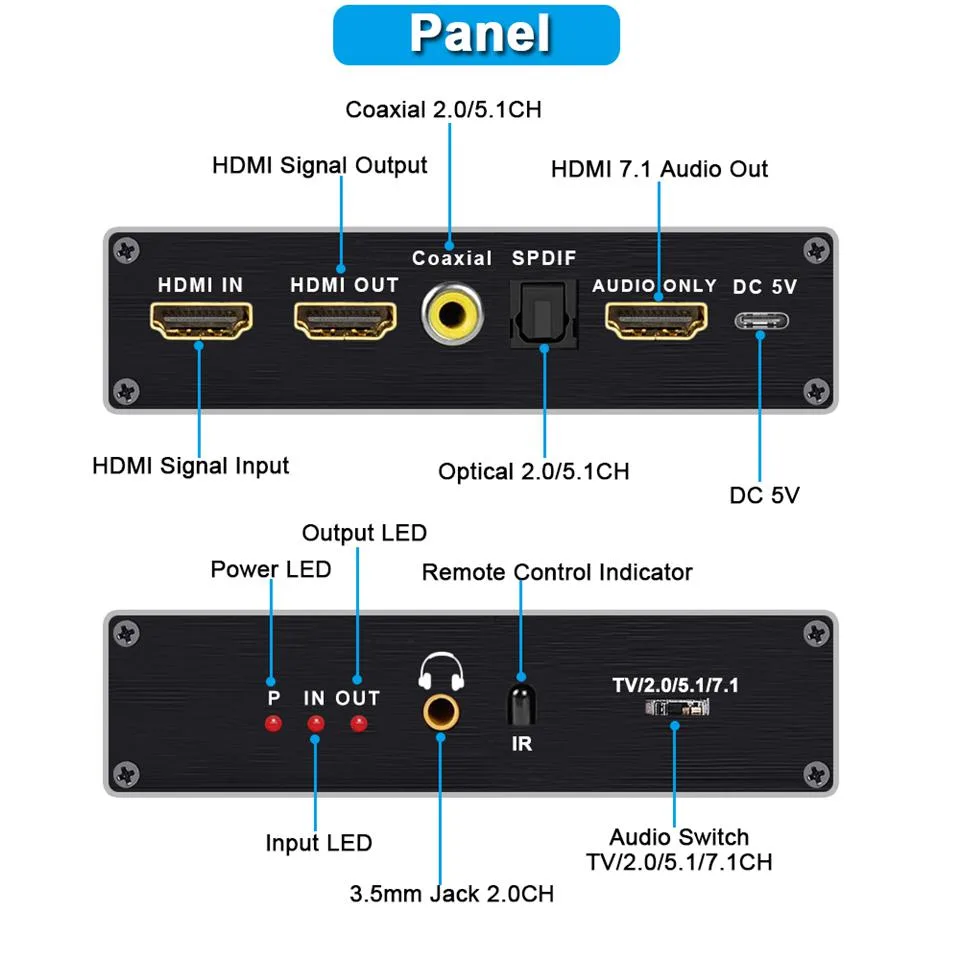

SpecificationsInput ports: 1XHDMI
Output port: 1 XHDMI(Female type )
1 XHDMI Audio output: support 7.1CH audio extract function
1 XToslink Audio output: support 5.1CH audio extract function
1 XCoaxial Audio output: support 5.1CH audio extract function
1 x3.5mmJack output: support 2.0CH audio extract function
Audio support: LPCM 7 .1CH,Dolby TrueHD ,DTS-X and DTS -HD Master Audio
Video Resolution: up to 8k@60Hz/4K@120Hz RGB 4 :4:4
Operating Temperature: 0 C to 40 C/ 32Fto 104F
Storage Temperature: - 20 C to 6 C/ -4F to 104F
Dimensions: 130X61X30MM
Input Connector1 HDMI input
Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions5120x1440
Bandwidth48Gbps
Features4K 120Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz RGB 4 :4 :4 .
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents48Gbps HDMI 2.1 Audio Extractor: 1 pcs
IR Remote control: 1 pcs(without battery)
5V/1A DC Power Adapter: 1 pcs
User Manual: 1 pcs

Questions about this item

Will the OZ8V1 pass 4K at 120 Hz from my PS5 to an older 1080p AV receiver while still extracting 5.1-channel audio over Toslink?

The extractor supports 4K@120Hz RGB 4:4:4 and 48 Gbps bandwidth on the HDMI path, so the video signal passes through unchanged; the Toslink output delivers up to 5.1CH extracted audio regardless of the receiver's video capability.

How can I verify the OZ8V1 is correctly decoding Dolby Atmos from my Xbox Series X after installation?

Play Atmos test content and confirm your soundbar or AV receiver displays Dolby Atmos or Dolby TrueHD on its front panel; the HDMI audio output supports 7.1CH LPCM and bitstream pass-through for Atmos decoding downstream.

Does the OZ8V1 box include the 5 V power adapter and an HDMI cable, or must I buy them separately?

The package contains the extractor, an IR remote (battery not included), a 5 V/1 A DC power adapter and a user manual; an HDMI cable is not supplied and must be purchased separately.
