Small black box with HDMI, optical, coaxial and 3.5mm ports

Jansicotek

Jansicotek OZ8V1 8K@60Hz HDMI Audio Extractor 7.1Ch

SKU CH-PTJD-6PKRR

Extracts 7.1‑channel HDMI audio to Toslink, coaxial, 3.5 mm jack and HDMI audio out while passing 8K 60 Hz video at 48 Gbps

  • TypeHDMI Splitters
  • Changer TypeHDMI Audio Extractor
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsInput ports: 1XHDMI Output port: 1 XHDMI(Female type ) 1 XHD
  • Extract 7.1-channel LPCM audio via HDMI output for full surround sound
  • Send 5.1-channel audio to legacy amps through optical Toslink or coaxial ports
  • Connect headphones or stereo speakers using the 3.5 mm jack for two-channel output
  • Pass 8K video at 60 Hz with 48 Gbps bandwidth and HDCP 2.3 compliance
  • Switch EDID modes with the included IR remote to match any display

8K HDMI Audio Extractor with 7.1-Channel Support

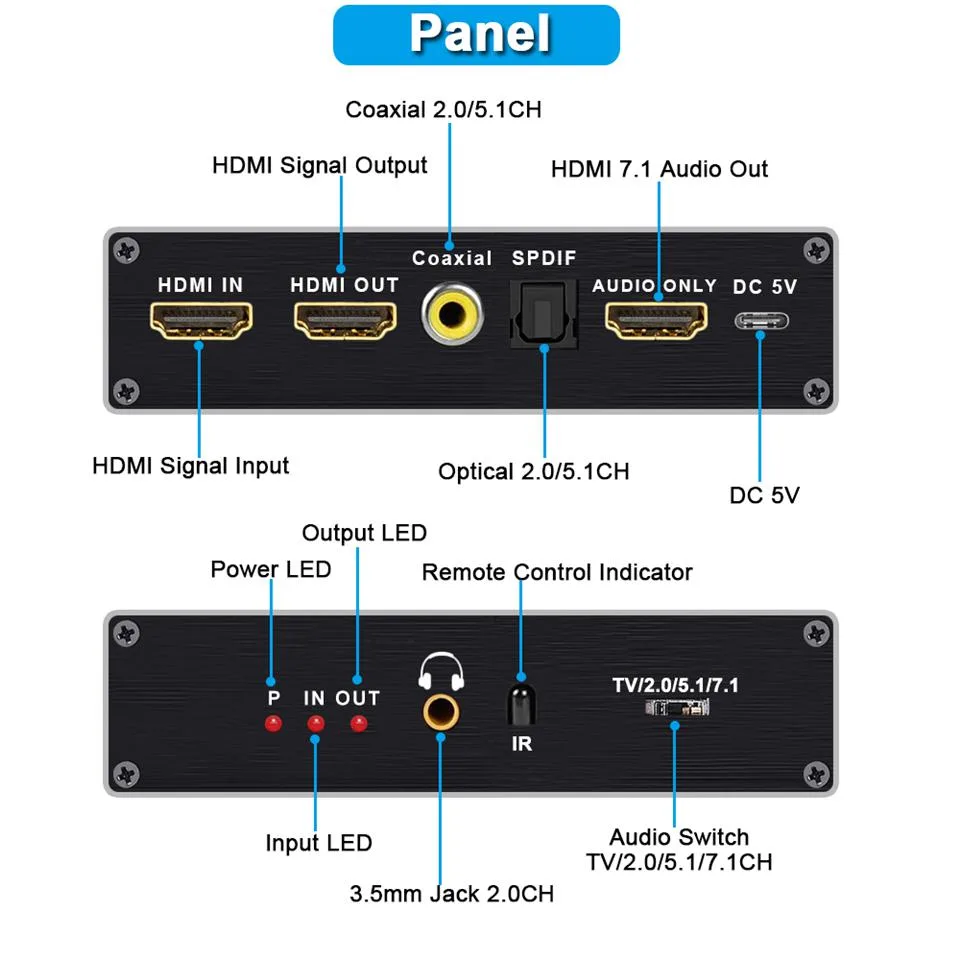

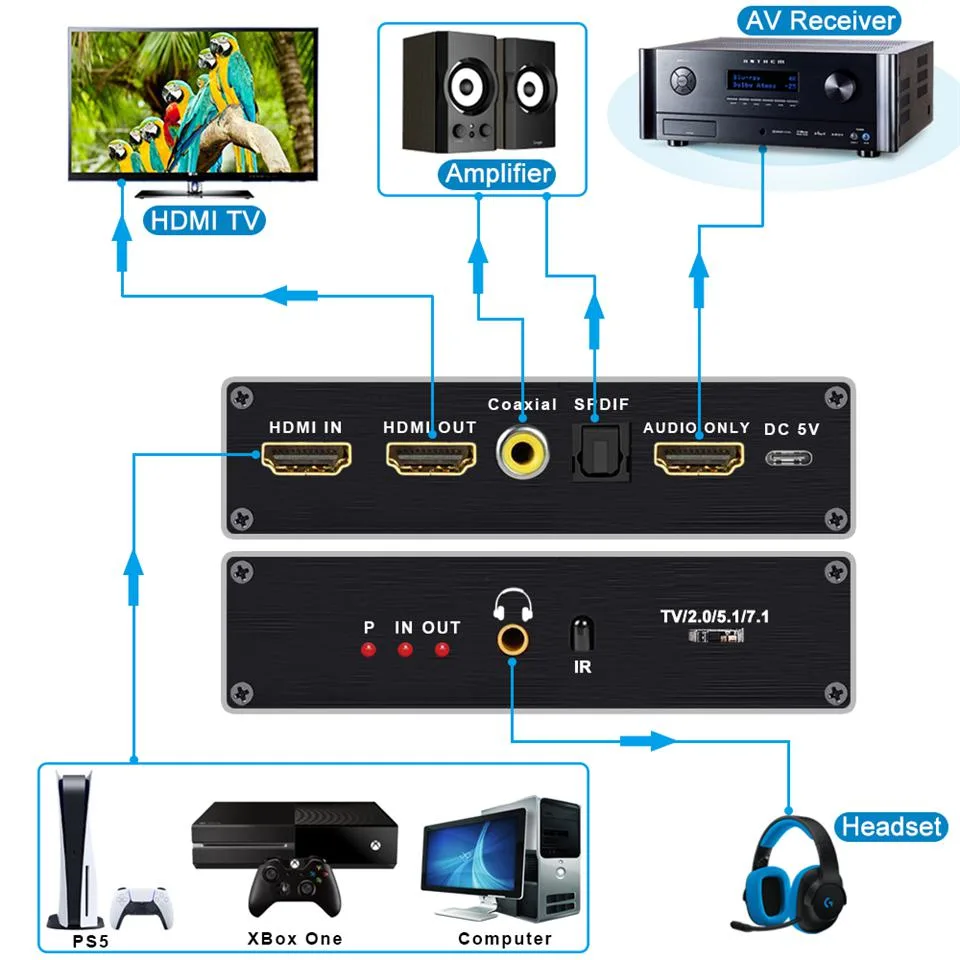

The Jansicotek OZ8V1 extracts multi-channel audio from an HDMI 2.1 source and passes video through to a display. One HDMI input feeds one HDMI output plus Toslink, coaxial, 3.5 mm jack and a dedicated HDMI audio port. It handles resolutions up to 8K at 60 Hz and 4K at 120 Hz with 48 Gbps bandwidth.

Sustained 48 Gbps throughput for high-refresh gaming

The extractor maintains full 48 Gbps bandwidth during extended sessions, so 4K 120 Hz RGB 4:4:4 and 5120×1440 at 120 Hz remain stable without signal drops. Dynamic HDR, HDR10+ and Dolby Vision metadata pass through unchanged. Audio formats including LPCM 7.1, Dolby TrueHD, DTS-X and DTS-HD Master Audio are decoded continuously across all output ports.

Verify 7.1-channel sink and power requirements

The HDMI audio output delivers 7.1 channels only when the connected display or amplifier reports 7.1 support in its EDID; otherwise that port stays silent. ARC and eARC are not supported, so TV return-audio paths will not work. The unit requires the included 5 V / 1 A DC adapter for operation.

Highlights

  • Extract 7.1-channel LPCM audio via HDMI output for full surround sound
  • Send 5.1-channel audio to legacy amps through optical Toslink or coaxial ports
  • Connect headphones or stereo speakers using the 3.5 mm jack for two-channel output
  • Pass 8K video at 60 Hz with 48 Gbps bandwidth and HDCP 2.3 compliance
  • Switch EDID modes with the included IR remote to match any display

Specifications

BrandJansicotek
SeriesOZ8V1
ModelOZ8V1
Part NumberOZ8V1
TypeHDMI Splitters
Changer TypeHDMI Audio Extractor
Ports4
AudioYes
ColorBlack
SpecificationsInput ports: 1XHDMI
Output port: 1 XHDMI(Female type )
1 XHDMI Audio output: support 7.1CH audio extract function
1 XToslink Audio output: support 5.1CH audio extract function
1 XCoaxial Audio output: support 5.1CH audio extract function
1 x3.5mmJack output: support 2.0CH audio extract function
Audio support: LPCM 7 .1CH,Dolby TrueHD ,DTS-X and DTS -HD Master Audio
Video Resolution: up to 8k@60Hz/4K@120Hz RGB 4 :4:4
Operating Temperature: 0 C to 40 C/ 32Fto 104F
Storage Temperature: - 20 C to 6 C/ -4F to 104F
Dimensions: 130X61X30MM
Input Connector1 HDMI input
Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions5120x1440
Bandwidth48Gbps
Features4K 120Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz RGB 4 :4 :4 .
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents48Gbps HDMI 2.1 Audio Extractor: 1 pcs
IR Remote control: 1 pcs(without battery)
5V/1A DC Power Adapter: 1 pcs
User Manual: 1 pcs

Questions about this item

Does the OZ8V1 run hot or draw much power during continuous 8K@60Hz use?

The unit is passively cooled with no fan and ships with a 5V/1A DC adapter, so it draws up to 5 watts and stays cool during all-day operation.

What cables and power source must I already have to use the HDMI audio extractor?

You need one HDMI cable for the source, one HDMI cable for the display, your chosen audio cable — Toslink, coaxial or 3.5 mm — and a mains socket for the included 5V/1A power adapter.

Will the extractor pass 4K@120Hz VRR from my PS5 to an older 1080p AV receiver?

Yes, the HDMI 2.1 loop-through supports 4K@120Hz RGB 4:4:4 and VRR while the audio outputs deliver up to 5.1-channel via Toslink or coaxial to the receiver.
