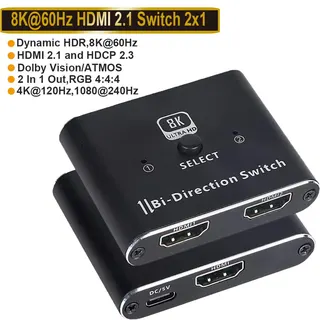

Black aluminium box with three HDMI ports and a push button

Jansicotek

Jansicotek OZ8AB 48Gbps 2-Port 8K HDMI 2.1 Bi-Directional Switch

SKU CH-ESJ2-GC7AT

Connects two HDMI sources to one display or one source to two displays with manual switching, supporting 8K at 60Hz and 4K at 120Hz, 144Hz or 165Hz over 48Gbps bandwidth

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2-Port UHD
  • Specifications· Product Type: 8K Bi-Directional HDMI Switcher Splitter · I
  • Input Connector2 x HDMI

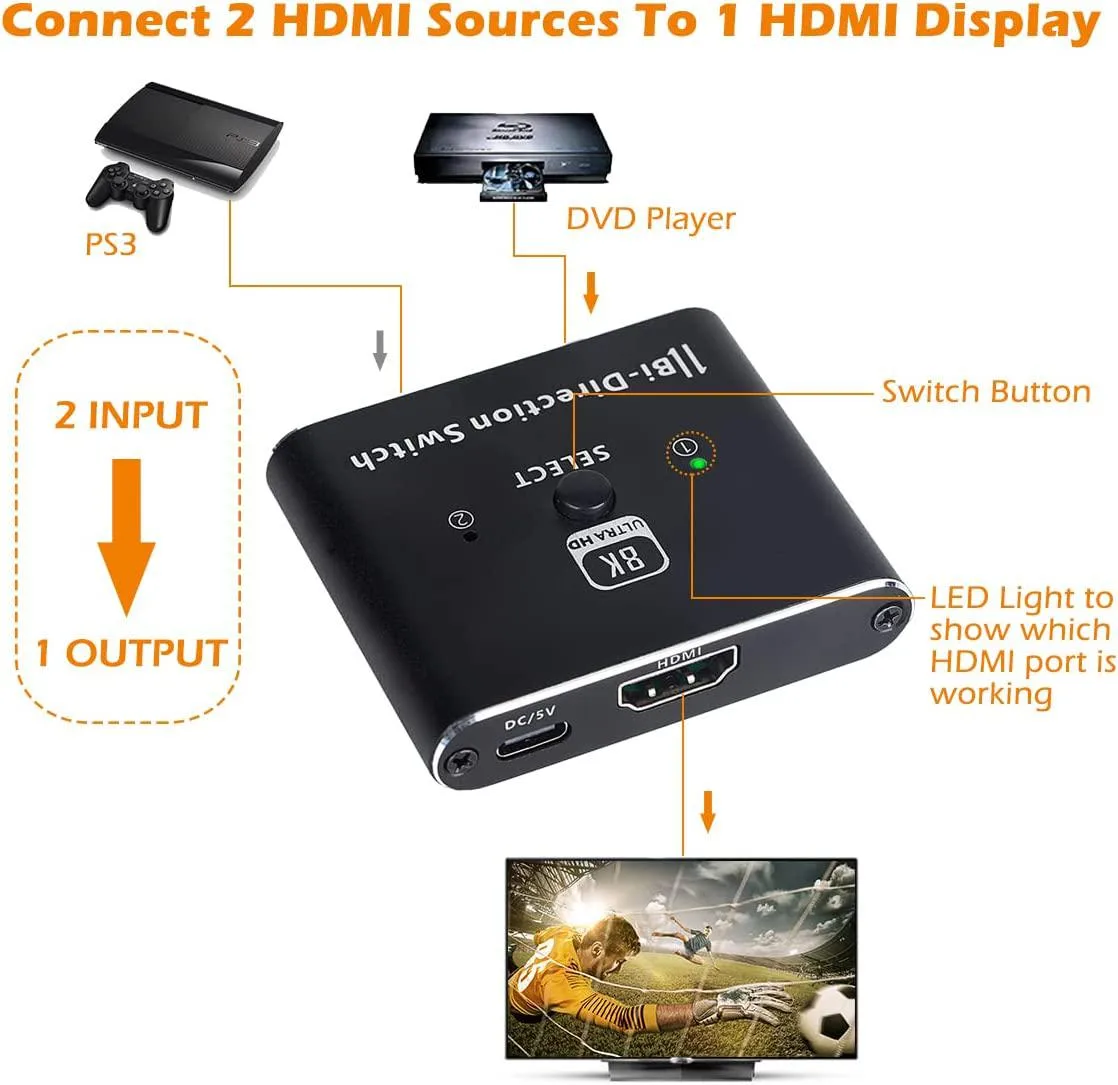

  • Switch between two sources on one display with a manual button

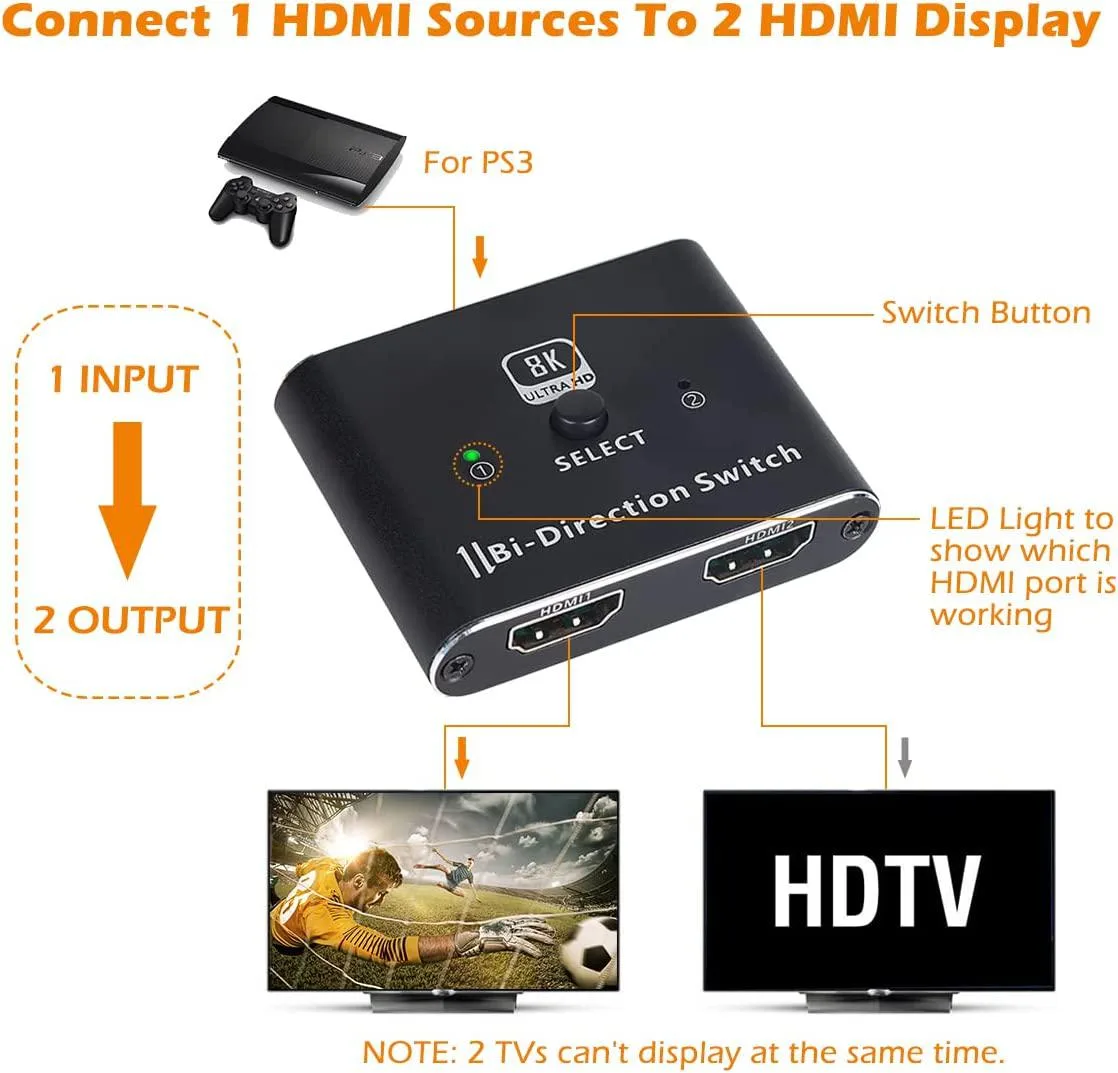

  • Send one source to two displays without simultaneous output
  • 48Gbps bandwidth carries 8K at 60Hz and 4K at 120Hz
  • Aluminium alloy case fits in tight spaces at 5.91 x 2.36 x .79 inches
  • Powered by included DC 5V cable for stable signal switching

What the switch does

The Jansicotek OZ8AB is a bi-directional HDMI 2.1 switch that lets you connect two sources to one display or one source to two displays. It supports 8K at 60 Hz and 4K at 120 Hz with 48 Gbps bandwidth. Manual switching is required via the button on the unit. The package includes a DC 5 V power cable.

Interface limits you should know

The switch handles 8K at 60 Hz, 4K at 120 Hz, and lower resolutions such as 1080p at 240 Hz. It passes VRR, Dynamic HDR and Dolby Vision through its 48 Gbps link. Both outputs cannot show an image at the same time. High-power sources may need three to six seconds to re-sync after a manual switch. Use certified HDMI 2.1 cables no longer than three metres for the top resolutions.

The spec that decides fit

You need a single device that can alternate between two HDMI 2.1 sources on one screen or send one source to either of two screens, but never both simultaneously. If your installation requires automatic switching or simultaneous dual-display output, this unit will not meet that need.

Highlights

  • Switch between two sources on one display with a manual button
  • Send one source to two displays without simultaneous output
  • 48Gbps bandwidth carries 8K at 60Hz and 4K at 120Hz
  • Aluminium alloy case fits in tight spaces at 5.91 x 2.36 x .79 inches
  • Powered by included DC 5V cable for stable signal switching

Specifications

BrandJansicotek
SeriesOZ8AB
ModelOZ8AB
Part NumberOZ8AB
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2-Port UHD
Specifications· Product Type: 8K Bi-Directional HDMI Switcher Splitter
· Interface Type: 2 HDMI In/Out, 1 HDMI Out/In
· Please use the supplied DC 5V charger to power the device.
· Portable and compact design takes very little space setting it up, easy to carry and use.
Input Connector2 x HDMI
Output Connector1 x HDMI
Maximum Resolutions7680x4320
Bandwidth48Gbps
Features· This is a 2 in 1 out switcher, and 1 in 2 Out a HDMI Splitter (2 Output CANNOT display simultaneously).
· Does not support automatic switching, only supports manual switching. For some high-power devices, it may take 3-6 seconds to manually switch the signal source.
· It can well work with xbox or PS5 to achieve 4K@120hz in your tvs or relatively monitors.
· If you need to output 8K@60Hz and 4K@120Hz, we recommend using high-quality HDMIl 2.1 standard cables that not over 3Meters (We do not include HDMI cables).
· For 8K resolution, the length of the HDMl cables connecting the two
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 8K HDMI AB Switch, 1 x DC 5V Power cable, 1 x User manual.

Questions about this item

Should I pick the 2-in-1-out switcher mode or the 1-in-2-out splitter mode for my Jansicotek OZ8AB?

Choose 2-in-1-out to connect two sources like a PS5 and Xbox Series X to one 8K display, or 1-in-2-out to send one source to two screens — only one screen shows the image at a time.

What does the 48Gbps bandwidth actually deliver when the switch is in my system?

It carries uncompressed 8K at 60 Hz or 4K at 120 Hz with VRR and Dynamic HDR, so high-frame-rate gaming and Dolby Vision pass through without compression or added latency.

How does the HDMI 2.1 interface limit what I can run through the OZ8AB?

The HDMI 2.1 ports cap the link at 48Gbps, enabling 7680x4320 at 60 Hz, 4K at 120 Hz, and 1080p at 240 Hz, but two outputs cannot be active simultaneously in splitter mode.
