Small black box with HDMI port and two BNC connectors

Jansicotek

Jansicotek HDMI to AHD Converter Adapter with AHD Loopout 500M Repeater

SKU CH-6JBK-VEF0V

Converts HDMI input to dual AHD outputs at 720p or 1080p with a 500 metre repeater range

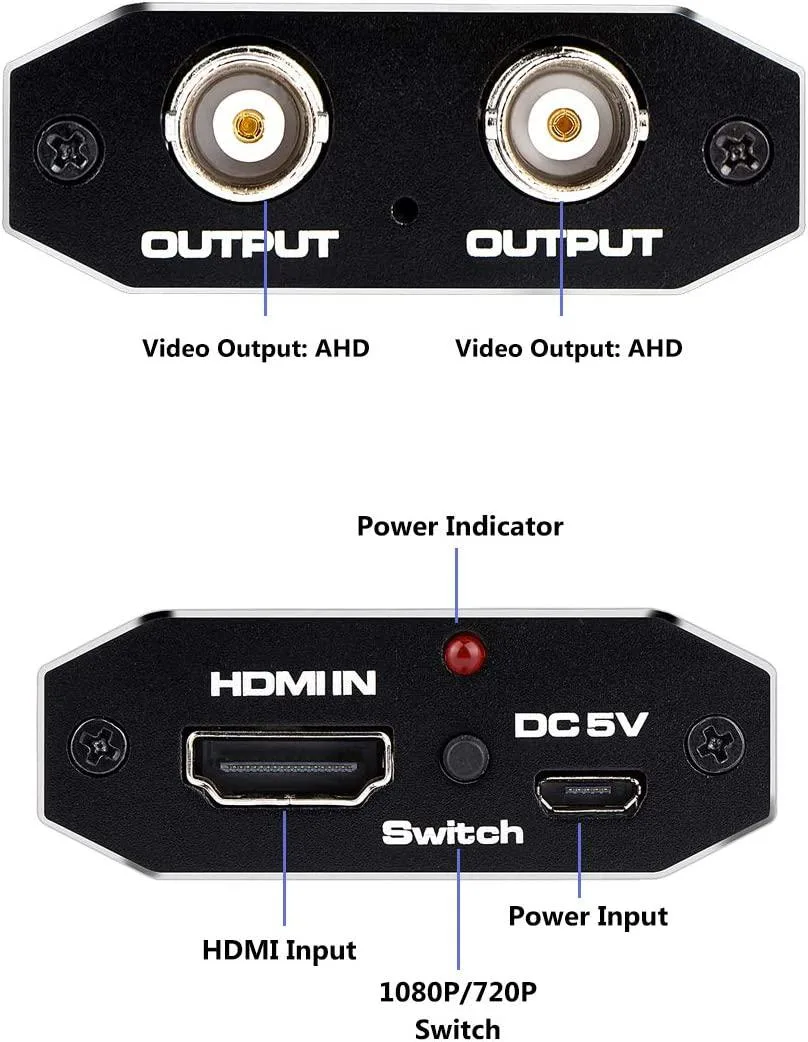

  • TypeHDMI to AHD Converter
  • Connector A1 x HDMI input
  • Connector B2 x AHD output
  • Package Contents1x HDMI to AHD Converter 1x 5V/1A Power Adapter and Cable 1x
  • Converts HDMI to AHD for CCTV integration
  • Dual AHD outputs extend signal up to 500 metres
  • Accepts 1080p at 25, 30, 50 or 60 Hz input
  • HDMI 1.4 and HDCP 1.2 ensure protected content pass-through
  • Built-in ESD protection simplifies installation and reliability

HDMI to AHD Conversion

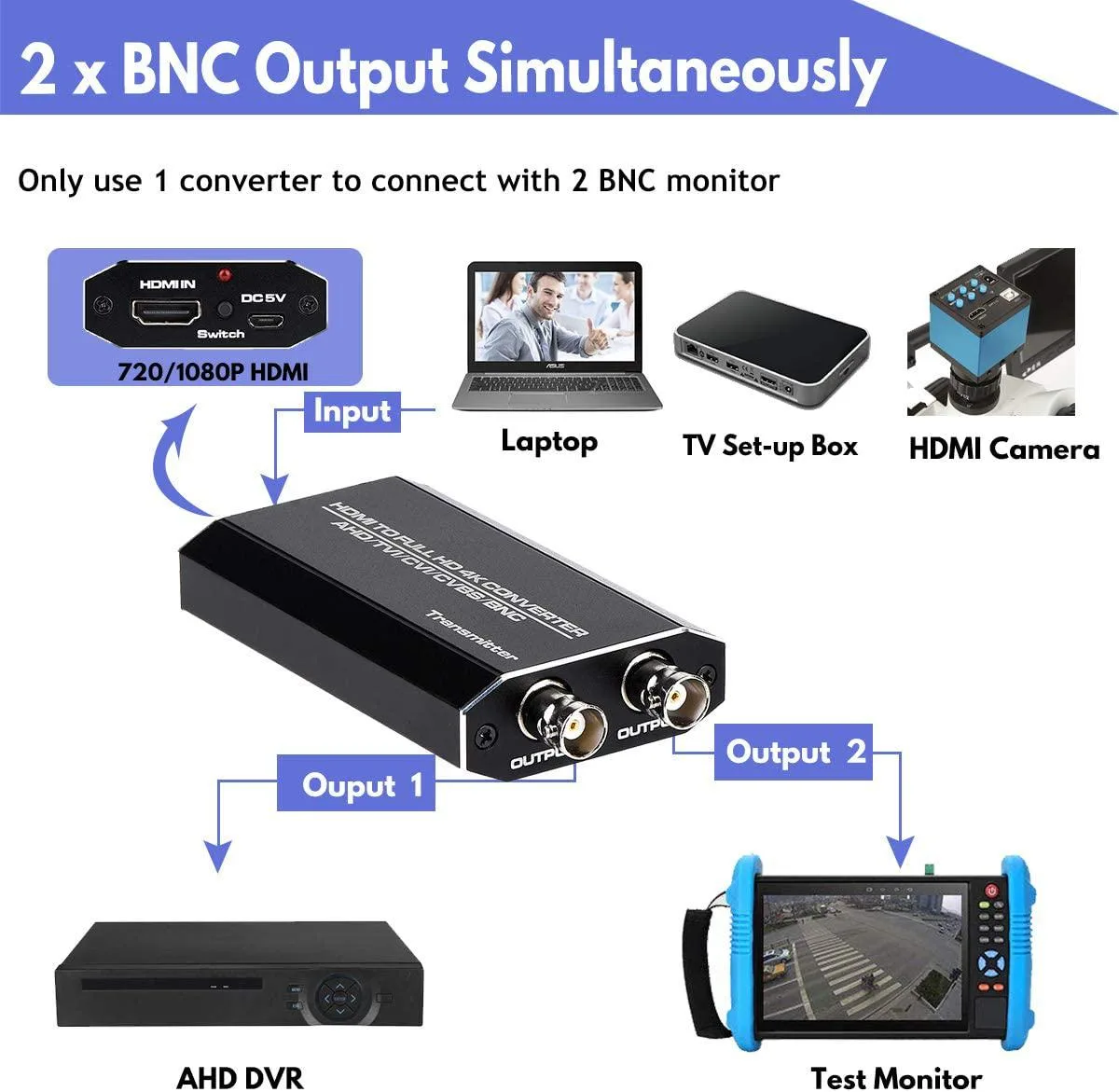

The Jansicotek converter translates an HDMI source into an AHD signal for direct connection to CCTV recorders. It accepts standard-definition and high-definition HDMI inputs up to 1080p at 60 Hz. Two AHD outputs provide a local monitor feed and a long-range loopout for the recorder. The unit ships with a 5 V power adapter and a user manual.

720p and 1080p Output Headroom

AHD output is fixed at 720p or 1080p at 30 Hz, matching typical DVR and NVR recording formats. The HDMI input supports 480i, 576i, 720p at 50 or 60 Hz, 1080i at 50 or 60 Hz, and 1080p at 25, 30, 50 or 60 Hz. Signals above 1080p or frame rates beyond 60 Hz are not processed and will not display.

HDMI 1.4 and 500 Metre Repeater Limit

The adapter follows the HDMI 1.4 standard with HDCP 1.2 and CEC support. Its built-in repeater extends the AHD loopout up to 500 metres, though the supplier notes a range of 500 to 700 metres depending on the chosen resolution. Runs beyond this distance or cables without adequate shielding will lose signal integrity. The converter does not support newer HDMI versions or higher bandwidth formats.

Highlights

  • Converts HDMI to AHD for CCTV integration
  • Dual AHD outputs extend signal up to 500 metres
  • Accepts 1080p at 25, 30, 50 or 60 Hz input
  • HDMI 1.4 and HDCP 1.2 ensure protected content pass-through
  • Built-in ESD protection simplifies installation and reliability

Specifications

TypeHDMI to AHD Converter
Connector A1 x HDMI input
Connector B2 x AHD output
Package Contents1x HDMI to AHD Converter
1x 5V/1A Power Adapter and Cable
1x 1x User Manual

Questions about this item

Will the Jansicotek converter pass 1080p60 from my older HDMI source to the AHD outputs?

The HDMI input accepts 1080p60 but the AHD outputs are limited to 1080P@30Hz so the frame rate will be halved.

How can I verify the loop-out repeater is actually reaching the 500 metre claim on my existing coaxial run?

Connect the loop-out to the DVR and confirm a stable 720p or 1080P@30Hz picture with no sparkles or drop-outs at the far end.

Does the box include the coaxial cables needed to reach the DVR or must I buy them separately?

Only the converter, a 5V/1A power adapter with cable and a user manual are supplied; all coaxial cables are purchased separately.
