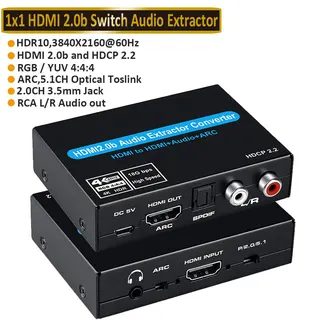

Compact black box with HDMI input and HDMI ARC, optical, RCA and 3.5mm audio outputs

Jansicotek

Jansicotek HDMI 2.0 Audio Extractor 4K 60Hz ARC SPDIF 3.5mm

SKU CH-NCC5-V2ATB

Extracts audio from an HDMI 2.0 source to SPDIF, 3.5 mm jack and analogue stereo while passing 4K 60 Hz video with HDR and ARC support

  • TypeAudio Splitters
  • Ports3
  • AudioYes
  • Industry Standards600MHz
  • Input Connector1x HDMI male
  • Output ConnectorHDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)
  • Extracts audio to SPDIF, 3.5 mm jack and RCA while passing 4K 60 Hz video
  • HDMI ARC return channel sends TV audio back to a sound system without extra cables
  • Supports HDR10, Dolby Vision and Dolby Atmos for high-dynamic-range picture and immersive sound
  • Handles 18.5 Gbps bandwidth and HDCP 2.2 for protected 4K content up to 10 m
  • Compact 84.5 × 61.8 × 21 mm unit powered by included 5 V 1 A adapter

HDMI 2.0 Audio Extractor with ARC

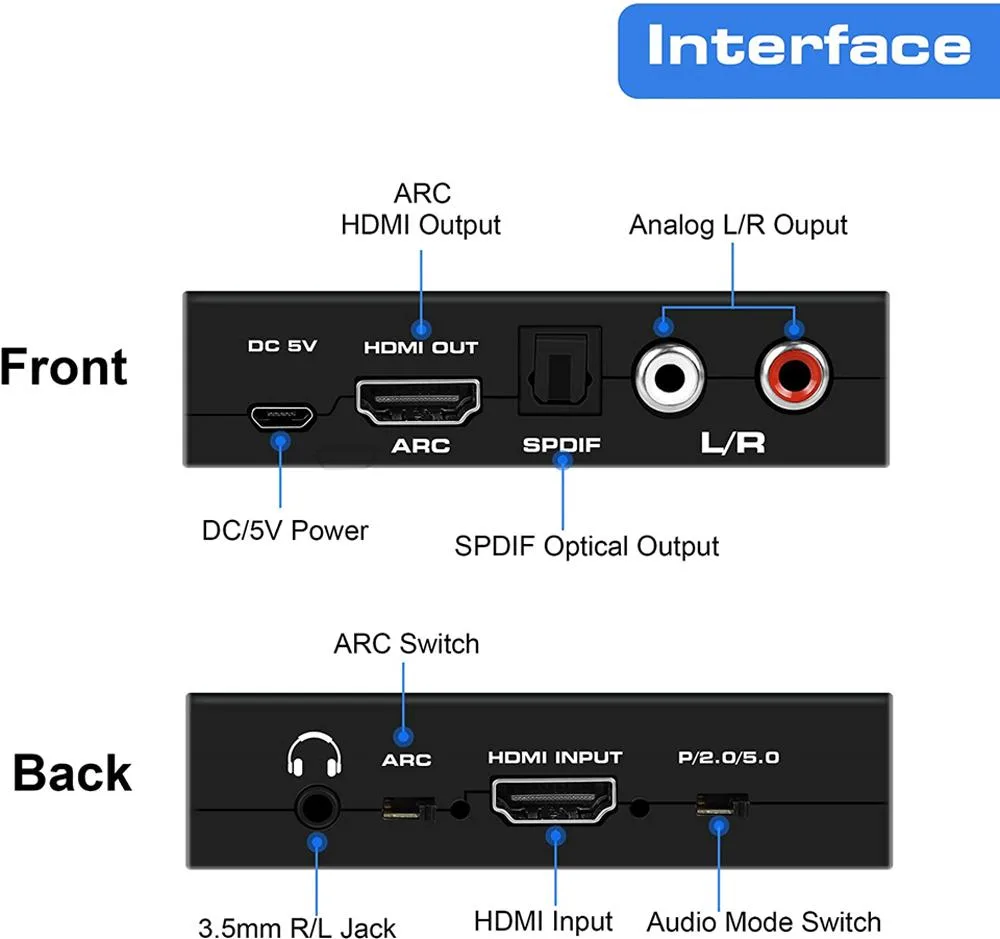

This Jansicotek extractor takes one HDMI input and provides an HDMI ARC output plus SPDIF, stereo RCA and 3.5 mm jack audio ports. It handles video up to 4K at 60 Hz with HDR10 and Dolby Vision pass-through. The unit requires the included 5 V power adapter to operate.

For splitting audio from a single HDMI source

It suits users who need to send sound to a soundbar, AV receiver or headphones while keeping the video signal intact. Buyers who require multiple HDMI inputs or automatic switching between sources should look at a different device.

600 MHz bandwidth limit

The extractor is rated at 600 MHz and 18.5 Gbps, which covers 4K 60 Hz 4:4:4 but not higher refresh rates or resolutions. If your source demands more bandwidth, this model will not pass the signal correctly.

Highlights

  • Extracts audio to SPDIF, 3.5 mm jack and RCA while passing 4K 60 Hz video
  • HDMI ARC return channel sends TV audio back to a sound system without extra cables
  • Supports HDR10, Dolby Vision and Dolby Atmos for high-dynamic-range picture and immersive sound
  • Handles 18.5 Gbps bandwidth and HDCP 2.2 for protected 4K content up to 10 m
  • Compact 84.5 × 61.8 × 21 mm unit powered by included 5 V 1 A adapter

Specifications

TypeAudio Splitters
Ports3
AudioYes
Industry Standards600MHz
Input Connector1x HDMI male
Output ConnectorHDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)
Maximum Cable Length10m AWG26 HDMI2.0a standard cable
Maximum Resolutions4Kx2K@60Hz
Package Contents1 X HDMI Audio Extractor
1 X 5V/1A Power Adapter
1 X User Manual

Questions about this item

Does the Jansicotek HDMI 2.0 Audio Extractor run hot or draw much power during all-day use?

The unit requires the included 5V/1A DC power adapter and stays cool thanks to its compact 84.5x61.8x21 mm passive design with no fan.

What cables or devices must I already own to connect this extractor?

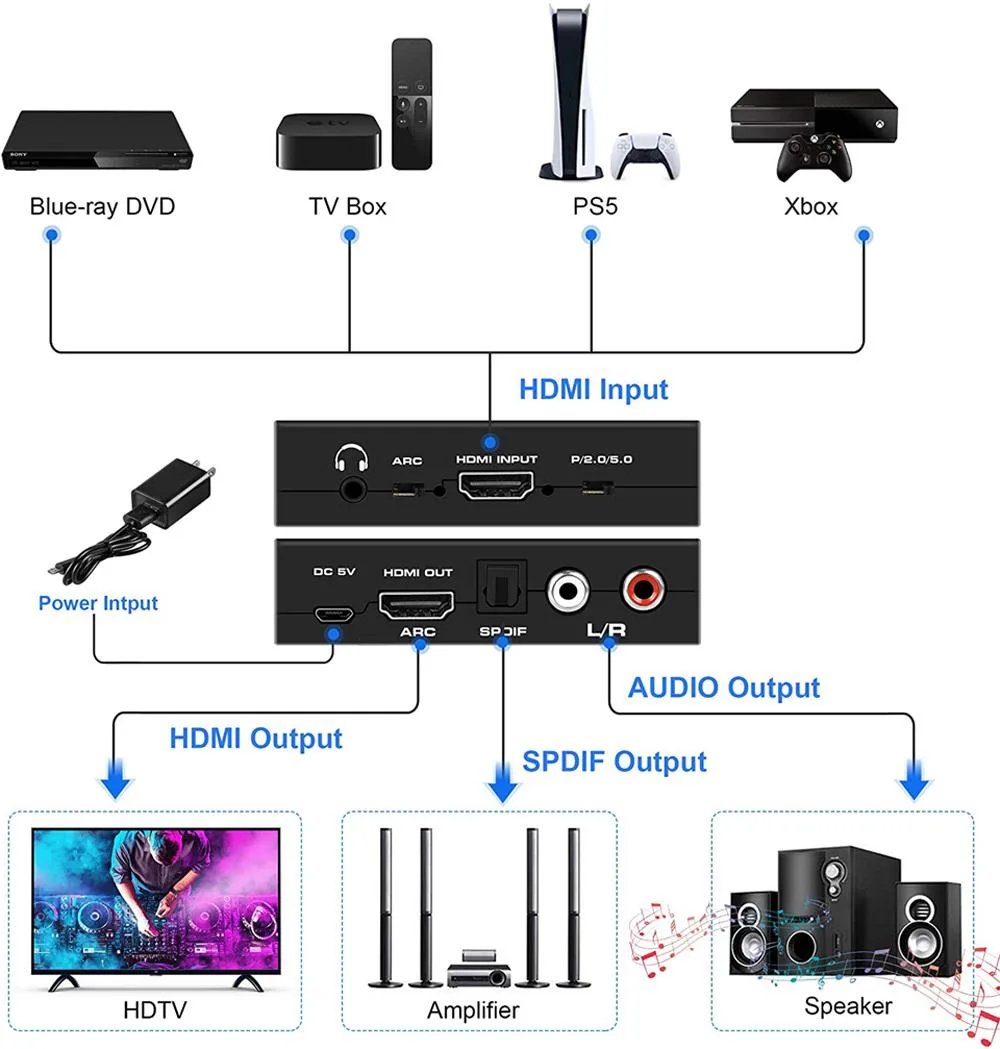

You need an HDMI source, an HDMI display or ARC soundbar, and either a Toslink optical cable, stereo RCA leads or a 3.5 mm jack lead for the audio outputs.

Will this extractor pass 4K 60 Hz HDR to my older 1080p monitor while sending 5.1 sound to my legacy AV receiver?

Yes, it supports 4K@60Hz YUV4:4:4, HDR10 and Dolby Vision on the HDMI loop-out while simultaneously extracting DTS-HD, Dolby TrueHD or LPCM 7.1 to SPDIF and analogue outputs.
