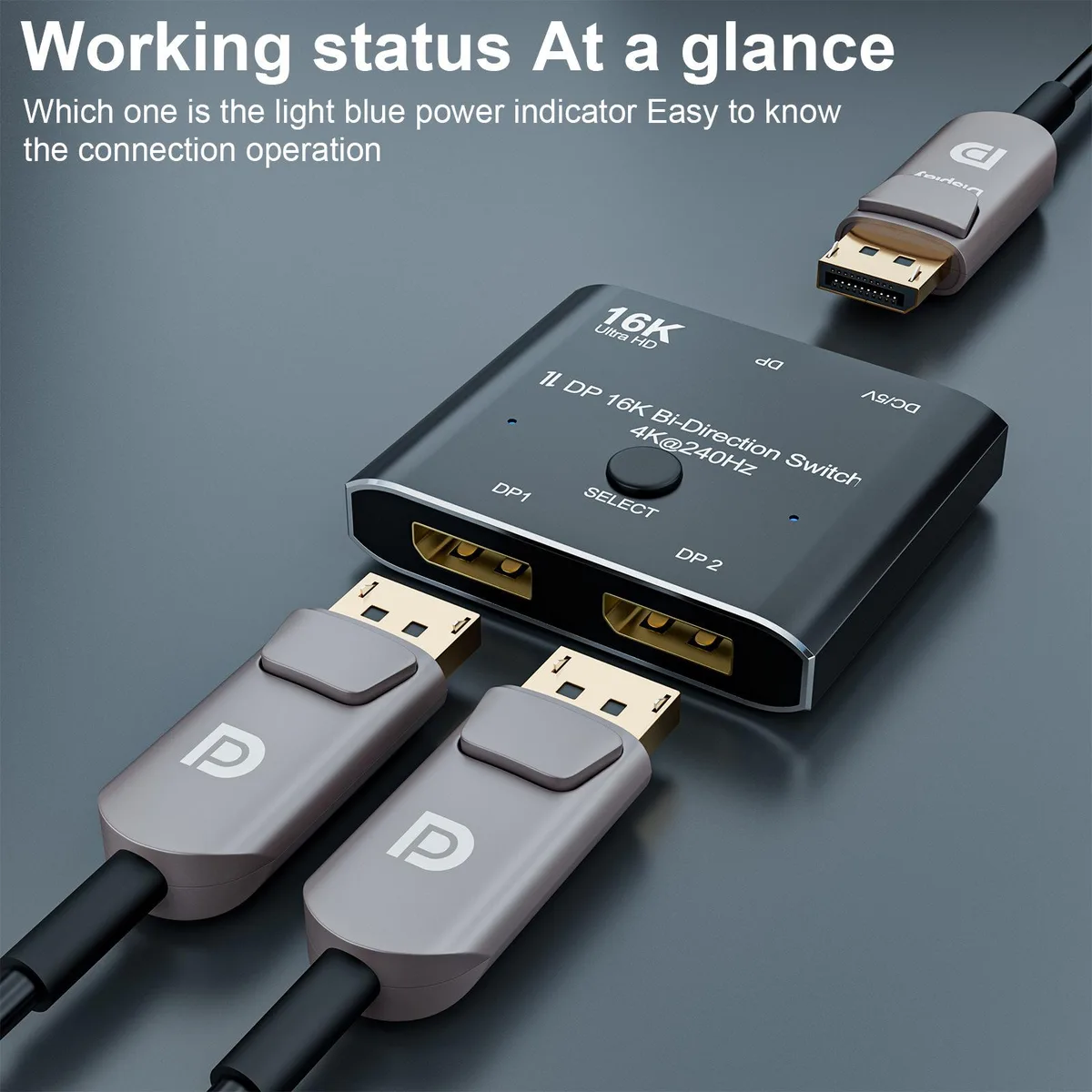

Black rectangular DisplayPort switch box with three female ports and a select button

Jansicotek

Jansicotek A0201 DP 2.0 Converter Switcher Adapter Bi-Directional Splitter 1in 2 Out 2in 1 Out 16K@60Hz 40Gbps

SKU CH-ZER3-QZBAS

Bi-directional DisplayPort 2.0 switch supports 16K at 60 Hz and 4K at 240 Hz with 40 Gbps bandwidth

  • TypeDisplayPort Splitters
  • Changer TypeDisplay Extenders
  • Ports2
  • AudioYes
  • ColorBlack
  • Specifications1. 16K DP 2.0 Switch: Support 16K@60Hz,8K@60Hz,4K@240Hz reso
  • Bi-directional switching lets you share one display between two sources or toggle one source between two displays
  • 16K at 60 Hz resolution support delivers ultra-high-definition visuals for demanding workflows
  • 40 Gbps bandwidth ensures fast, stable signal transmission across the link
  • External power with a simple select button provides reliable operation and clear status indication
  • Compact 5.31 x 3.11 x 0.87 inch form factor fits neatly into any desktop setup

Bi-directional DisplayPort 2.0 switcher

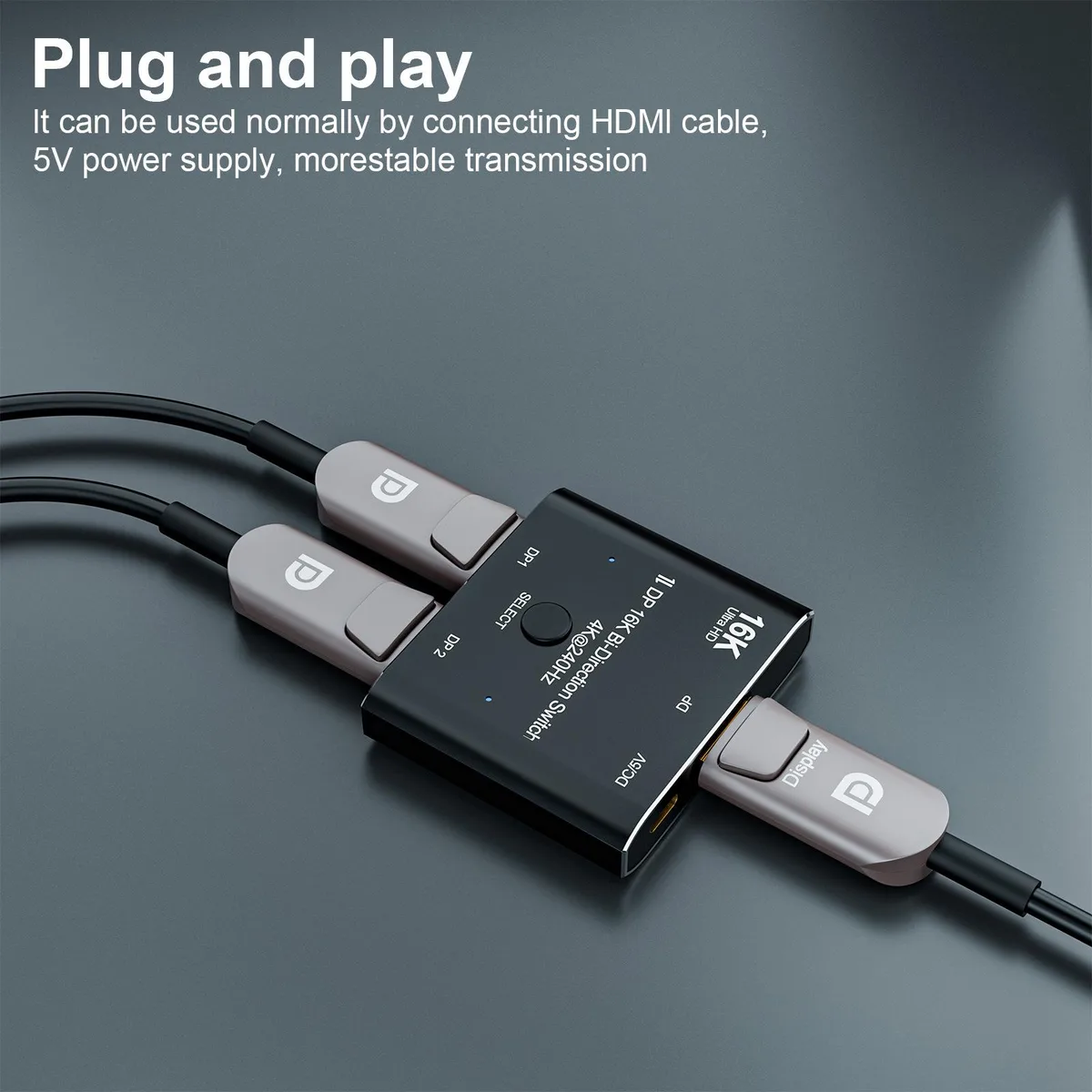

The Jansicotek A0201 functions as a 1-in-2-out splitter or a 2-in-1-out switcher for DisplayPort signals. It lets a single source toggle between two displays or two sources share one display. Only one output is active at any time. The adapter suits users who need manual switching between a PC and a laptop or between a monitor and a projector.

Passive operation with external power

The unit draws power from an included USB charging cable and has no internal fan, so it adds no audible noise to the setup. It handles up to 40 Gbps bandwidth for 16K at 60 Hz, 8K at 60 Hz, or 4K at 240 Hz without active cooling. Power consumption remains low enough for a standard USB port.

USB power cable and manual included

A USB charging cable supplies the required external power, and a user manual explains the select-button operation and indicator-light meanings. No driver installation or configuration software is needed. The package contains only the switcher, the power cable and the manual.

Highlights

  • Bi-directional switching lets you share one display between two sources or toggle one source between two displays
  • 16K at 60 Hz resolution support delivers ultra-high-definition visuals for demanding workflows
  • 40 Gbps bandwidth ensures fast, stable signal transmission across the link
  • External power with a simple select button provides reliable operation and clear status indication
  • Compact 5.31 x 3.11 x 0.87 inch form factor fits neatly into any desktop setup

Specifications

BrandJansicotek
SeriesA0201
ModelA0201
Part NumberA0201
TypeDisplayPort Splitters
Changer TypeDisplay Extenders
Ports2
AudioYes
ColorBlack
Specifications1. 16K DP 2.0 Switch: Support 16K@60Hz,8K@60Hz,4K@240Hz resolution, provide you with transfer rates up to 40Gbps and backward compatible with all previous DP standards.
?
2: The DisplayPort switcher allow you to connect two DP source to one DP display or connect one DisplayPort source to toggle between two displays.
?
3. External power required, the DP selector box is easy to setup and operate. Note: While using, press "select"Button to switch signal between two sources or displays, the indicator lights show the working status, two displays CANNOT display simultaneously.
?
4. This di
Input Connector1x DisplayPort female
Output Connector2x DisplayPort female
Connector StyleFemale
Maximum ResolutionsSupport 16K@60Hz,8K@60Hz,4K@240Hz,4K@144Hz,1080P@240Hz resolution,
Bandwidth40Gbps
FeaturesBi-Direction ***DP Switch:The DisplayPort Switcher allow you to connect two DP source to one DP display or connect one DisplayPort source to toggle between two displays. (Two displays CANNOT display simultaneously,Press"Select"button to switch between two displays.)(While connecting to Source or Display,you must use the usb cable to power the splitter,or your display can not show anything).Do not use too long cable(total 2m) for connection between the switcher and your devices.
16K DP 1.4 Splitter: Support 8K@120Hz,4K@240Hz,1080P@240Hz resolution, provide you with transfer rates up t
Dimensions5.31 x 3.11 x 0.87 inches
Weight2.12 Ounces
Package Quantity1
Package Contents1x Bi-Direction DP Switch, Power Charging Cable x1, User Manual x1.

Questions about this item

How do I install the Jansicotek A0201 DP 2.0 switcher, and what step do people often miss?

Connect the included power charging cable first, then attach your DisplayPort sources and display using standard DP 2.0 cables within 2 meters. Press the select button to switch the active signal; the blue indicator shows the current port.

What maintenance or replacement will the A0201 need over time?

No user-serviceable parts are inside. If the power cable or a DisplayPort cable wears out, replace it with another standard DP 2.0 cable rated for 40 Gbps and the same 2-metre maximum length.

What limit appears first during sustained high-resolution use?

The 2-metre cable length restriction for 16K@60 Hz or 4K@240 Hz operation is the first practical limit; longer cables will drop bandwidth below the 40 Gbps required for those modes.
