Black rectangular DisplayPort switch box with two output ports and one input port, matte finish, indicator lights on top

Jansicotek

Jansicotek A0201 16K DP 2.0 Bidirectional Video Splitter 2 Port

SKU CH-F3SW-NHGQW

Bidirectional DisplayPort 2.0 switch or splitter handles 16K at 60 Hz, 8K at 120 Hz and 4K at 240 Hz over 40 Gbps

  • TypeDisplayPort Splitters
  • Changer TypeDisplay Extenders
  • Ports2
  • AudioYes
  • ColorBlack
  • Specifications1. 16K DP 2.0 Switch: Support 16K@60Hz,8K@60Hz,4K@240Hz reso
  • Bidirectional DP 2.0 switch or splitter for flexible source and display setups
  • Supports 16K@60Hz 8K@60Hz 4K@240Hz 1080P@240Hz for ultra-high-resolution clarity
  • 40Gbps bandwidth ensures fast stable video transmission

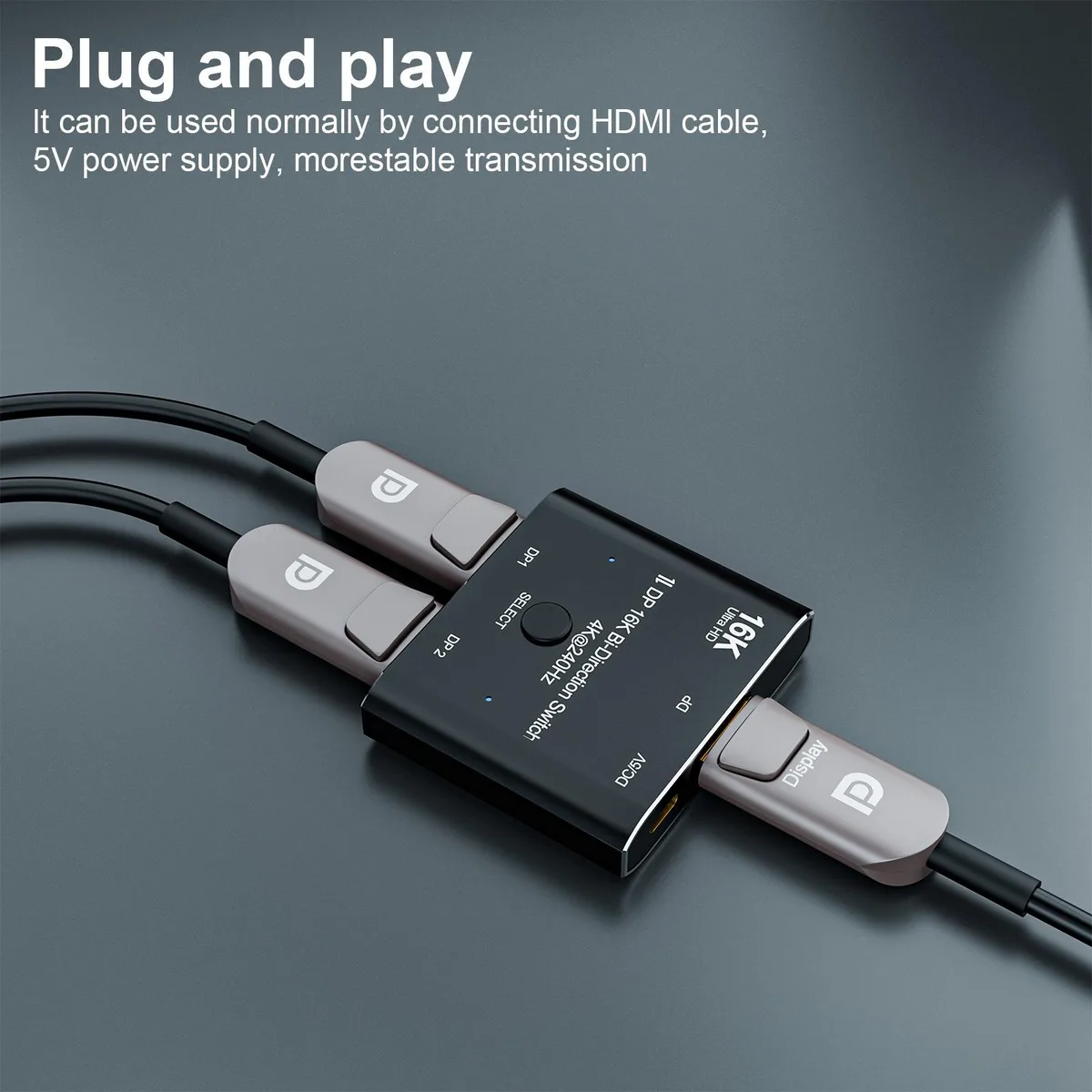

  • Includes USB power cable to prevent flicker or black screens

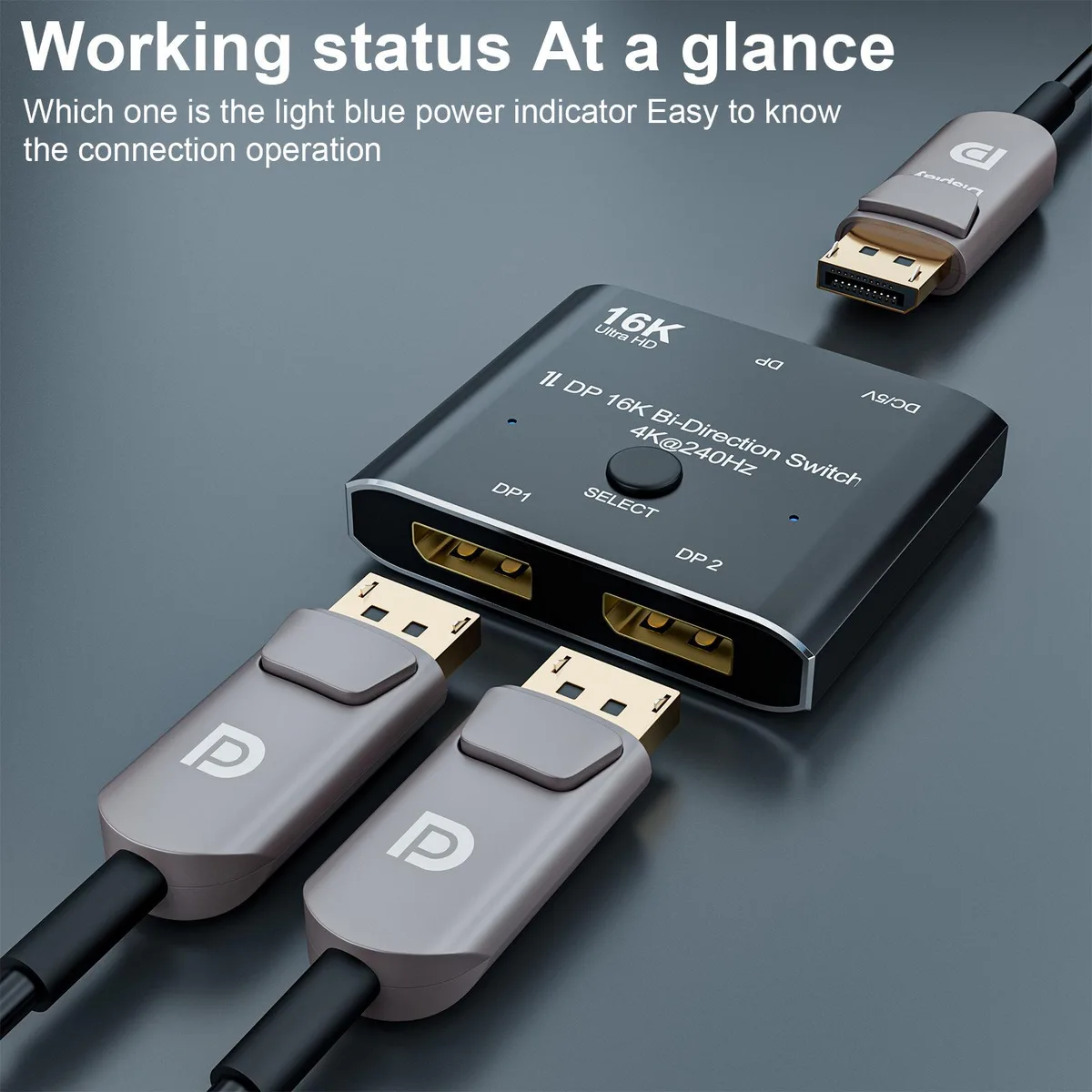

  • Manual button with blue LED indicators shows active port at a glance

What this product is

The Jansicotek A0201 is a bidirectional DisplayPort 2.0 switch and splitter with two ports. It handles 16K at 60 Hz, 8K at 120 Hz and 4K at 240 Hz over a 40 Gbps link. The box lets one source toggle between two displays or two sources share one display, though both outputs cannot be active at the same time.

Check before ordering

You need a DisplayPort 2.0 cable no longer than 6.6 feet for each connection. The unit requires the included USB power cable to operate reliably; without it the signal may flicker or drop out. Verify that your source and display both have female DisplayPort sockets compatible with the DP 2.0 standard. Two screens cannot show content simultaneously in splitter mode.

Thermals noise and power

The aluminium enclosure measures 5.31 by 3.11 by 0.87 inches and weighs 2.12 ounces. It draws auxiliary power through the supplied USB cable and has no internal fan, so operation is silent. Normal use produces only modest warmth from the DP 2.0 transceiver; no active cooling or additional power supply is required.

Highlights

  • Bidirectional DP 2.0 switch or splitter for flexible source and display setups
  • Supports 16K@60Hz 8K@60Hz 4K@240Hz 1080P@240Hz for ultra-high-resolution clarity
  • 40Gbps bandwidth ensures fast stable video transmission
  • Includes USB power cable to prevent flicker or black screens
  • Manual button with blue LED indicators shows active port at a glance

Specifications

BrandJansicotek
SeriesA0201
ModelA0201
Part NumberA0201
TypeDisplayPort Splitters
Changer TypeDisplay Extenders
Ports2
AudioYes
ColorBlack
Specifications1. 16K DP 2.0 Switch: Support 16K@60Hz,8K@60Hz,4K@240Hz resolution, provide you with transfer rates up to 40Gbps and backward compatible with all previous DP standards.
?
2: The DisplayPort switcher allow you to connect two DP source to one DP display or connect one DisplayPort source to toggle between two displays.
?
3. External power required, the DP selector box is easy to setup and operate. Note: While using, press "select"Button to switch signal between two sources or displays, the indicator lights show the working status, two displays CANNOT display simultaneously.
?
4. This di
Input Connector1x DisplayPort female
Output Connector2x DisplayPort female
Connector StyleFemale
Maximum ResolutionsSupport 16K@60Hz,8K@60Hz,4K@240Hz,4K@144Hz,1080P@240Hz resolution,
Bandwidth40Gbps
FeaturesBi-Direction ***DP Switch:The DisplayPort Switcher allow you to connect two DP source to one DP display or connect one DisplayPort source to toggle between two displays. (Two displays CANNOT display simultaneously,Press"Select"button to switch between two displays.)(While connecting to Source or Display,you must use the usb cable to power the splitter,or your display can not show anything).Do not use too long cable(total 2m) for connection between the switcher and your devices.
16K DP 1.4 Splitter: Support 8K@120Hz,4K@240Hz,1080P@240Hz resolution, provide you with transfer rates up t
Dimensions5.31 x 3.11 x 0.87 inches
Weight2.12 Ounces
Package Quantity1
Package Contents1x Bi-Direction DP Switch, Power Charging Cable x1, User Manual x1.

Questions about this item

Does the A0201 include the cables needed to connect two sources and one display, or must I buy DisplayPort 2.0 leads separately?

The package contains the bidirectional switch, a power charging cable and a user manual. DisplayPort cables are not included, so you will need to supply standard DP 2.0 cables (within 6.6 feet) for each connection.

Should I choose the 16K@60 Hz mode or the 4K@240 Hz mode for competitive gaming on this splitter?

The unit supports both 16K@60 Hz and 4K@240 Hz (also 8K@120 Hz, 4K@144 Hz and 1080P@240 Hz). Pick the resolution and refresh rate that matches your monitor and graphics card; the switch handles any of them up to 40 Gbps.

When the A0201 runs at its 40 Gbps headline bandwidth, will two monitors show different images at the same time?

No. In 1-in-2-out splitter mode the two displays cannot operate simultaneously; you toggle between them. In 2-in-1-out switcher mode only one source is active at a time. The 40 Gbps bandwidth applies to the single active link.
