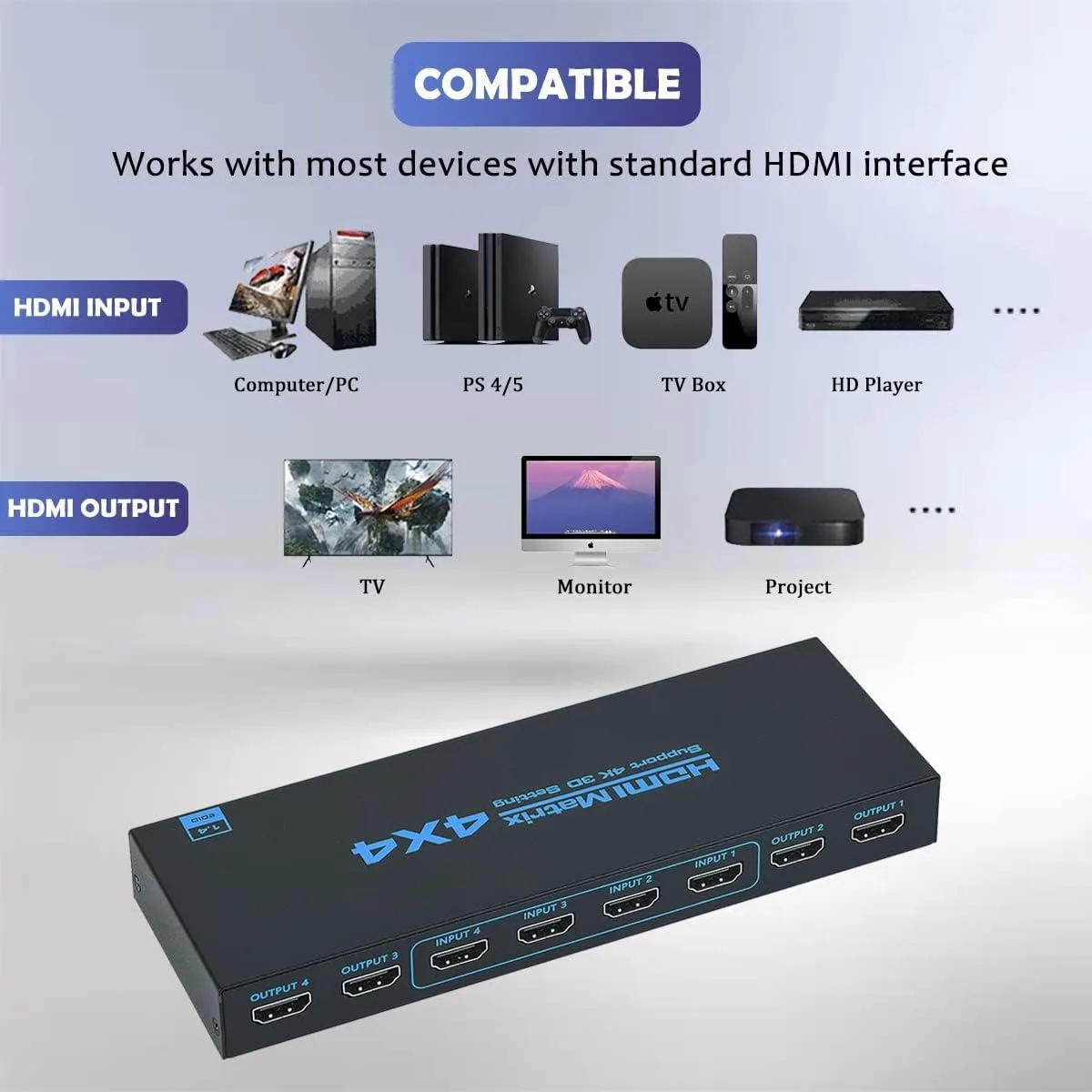

Black rectangular 4x4 HDMI matrix switch with front panel buttons and IR remote control

Jansicotek

Jansicotek 4x4 HDMI Matrix Switch 4K@30Hz IR Remote

SKU CH-HQ5A-EPEV3

A 4×4 HDMI matrix routes four sources to four displays at up to 4K 30 Hz with IR remote and front-panel button control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4x4 Matrix
  • MatrixYes
  • AudioYes
  • Routes any of four sources to four displays independently
  • 4K@30Hz and 1080p@60Hz with 3D support
  • IR remote and front-panel buttons for instant switching
  • Power-off memory restores the last routing automatically
  • 2 Gbps bandwidth handles deep-colour YUV 4:2:0 signals

4x4 HDMI Matrix Switch

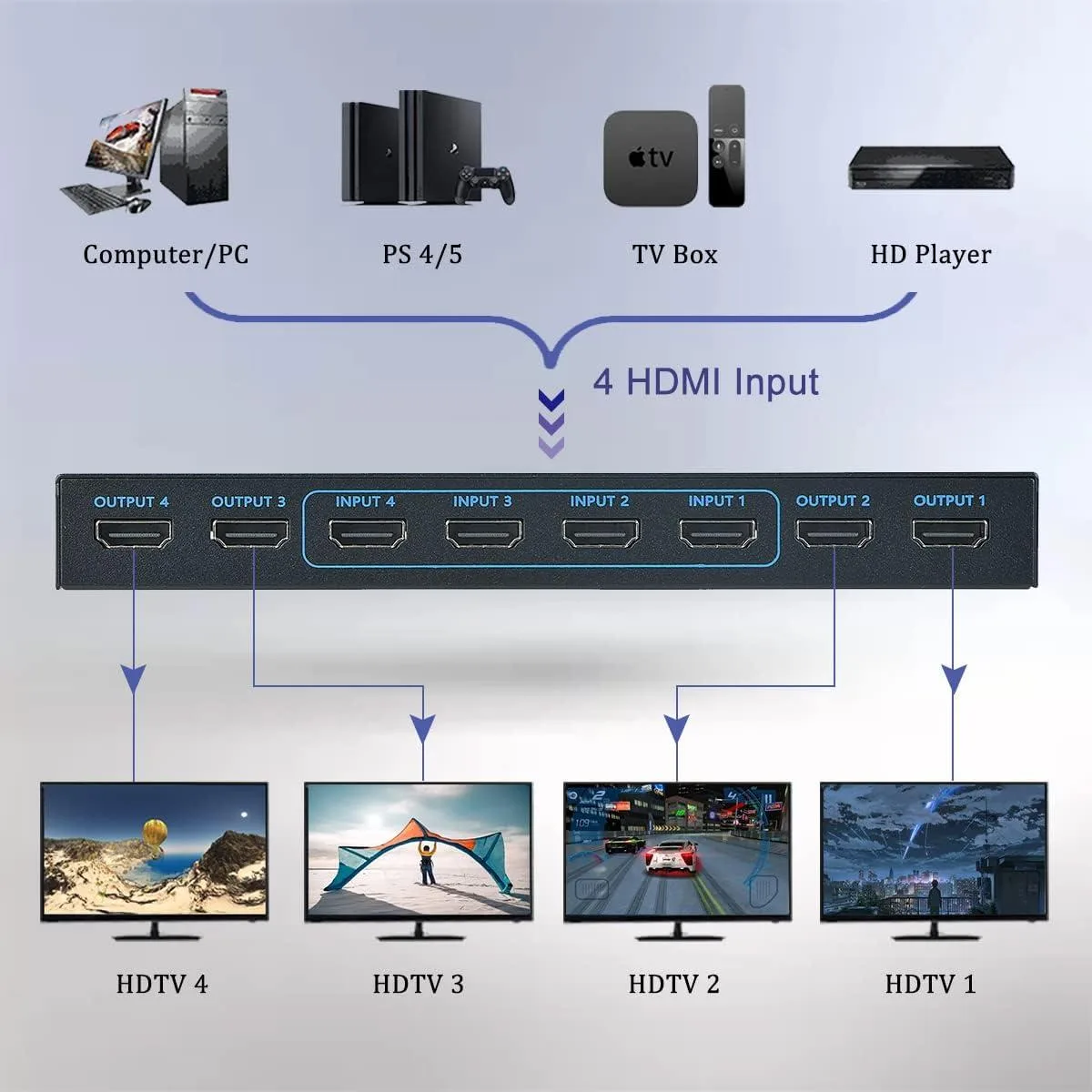

The Jansicotek 4x4 HDMI Matrix Switch routes four HDMI sources to four displays independently. Each output can show the same or a different source at the same time. It is suited for home-theatre, conference-room or digital-signage installations that need flexible multi-screen distribution. The unit handles HDMI 1.4 signals with 3D support.

4K@30Hz resolution headroom

Maximum resolution reaches 4096 x 2160 at 30 Hz with YUV 4:2:0 colour sampling and 10.2 Gbps total bandwidth. 1080p at 60 Hz and 8/10-bit deep colour are also supported. The switch runs out of headroom above 30 Hz at 4K, so high-refresh-rate gaming or 4K@60Hz workflows are not possible. Input and output cable runs should stay under 8 m using AWG26 HDMI 1.4 cables.

IR remote and button control

Front-panel buttons and the included IR remote select any input for any output without EDID management. Power-off memory restores the last routing state on restart. The matrix needs four source devices and up to four displays connected via standard HDMI cables. It frees users from manually swapping cables when reconfiguring multi-screen layouts.

Highlights

  • Routes any of four sources to four displays independently
  • 4K@30Hz and 1080p@60Hz with 3D support
  • IR remote and front-panel buttons for instant switching
  • Power-off memory restores the last routing automatically
  • 2 Gbps bandwidth handles deep-colour YUV 4:2:0 signals

Specifications

TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4x4 Matrix
MatrixYes
AudioYes
Maximum Resolutions4096 x 2160

Questions about this item

Will the Jansicotek 4x4 matrix pass 4K@30Hz from a new source to my older 1080P@60Hz displays without manual scaling?

Yes, the switch supports 4K@30Hz input and 1080P@60Hz output simultaneously, so each connected display receives its native resolution automatically.

How can I confirm the matrix is routing each of the four inputs to the correct outputs after installation?

The front-panel LED indicators show the active input for every output in real time, and the IR remote lets you query or change any input-to-output assignment instantly.

Does the package include HDMI cables for the four inputs and four outputs, or must I supply them?

Only the matrix unit, IR remote and power adapter are included; you need to provide up to eight HDMI cables rated for the required distances.
