Compact black box with HDMI input and twin AHD outputs

Jansicotek

Jansicotek 4K HDMI to AHD Converter Adapter, 2x AHD output

SKU CH-YYTG-WKM1P

Converts an HDMI source to two AHD outputs at 720p or 1080p for CCTV distribution over 500 to 700 metres

  • TypeHDMI to AHD Converter
  • Connector A1 x HDMI input
  • Connector B2 x AHD output
  • Package Contents1x HDMI to AHD Converter 1x 5V/1A Power Adapter and Cable 1x
  • Converts 4K HDMI to dual AHD for CCTV integration
  • Supports 1080p input up to 60 Hz and outputs 1080p at 30 Hz
  • Extends AHD signal up to 700 metres over coaxial cable
  • Includes 5 V power adapter and manual for immediate setup
  • Built-in ESD protection safeguards connected surveillance equipment

HDMI-to-AHD converter for CCTV integration

This Jansicotek adapter converts an HDMI source into two AHD outputs at 720p or 1080p up to 30 Hz. It accepts SD, HD and 3G HDMI formats including 480i, 576i, 720p at 50 or 60 Hz and 1080p at 25, 30, 50 or 60 Hz. The box includes a 5 V power supply and a user manual.

Suits installers linking HDMI recorders to AHD

The unit is built for analogue-high-definition CCTV systems that require dual AHD feeds over coaxial cable. It will not serve users who need HDMI pass-through, DisplayPort input or IP-network streaming.

Dual AHD outputs at 1080p 30 Hz

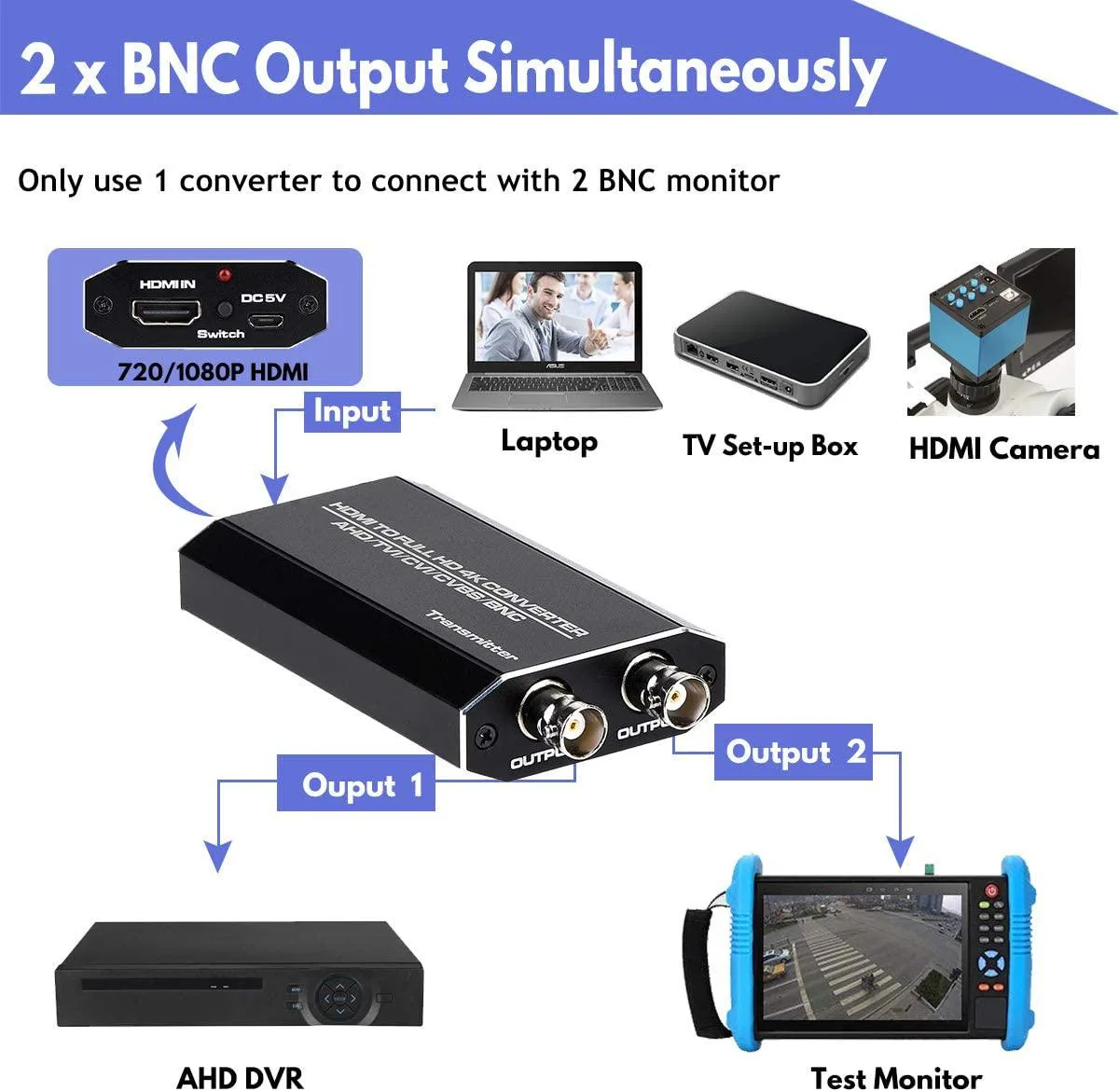

The converter provides two BNC AHD ports each capable of 1080p at 30 Hz with a stated transmission reach of 500 to 700 metres depending on resolution. This output specification determines whether the adapter matches the recorder and cabling in an existing AHD installation.

Highlights

  • Converts 4K HDMI to dual AHD for CCTV integration
  • Supports 1080p input up to 60 Hz and outputs 1080p at 30 Hz
  • Extends AHD signal up to 700 metres over coaxial cable
  • Includes 5 V power adapter and manual for immediate setup
  • Built-in ESD protection safeguards connected surveillance equipment

Specifications

TypeHDMI to AHD Converter
Connector A1 x HDMI input
Connector B2 x AHD output
Package Contents1x HDMI to AHD Converter
1x 5V/1A Power Adapter and Cable
1x 1x User Manual

Questions about this item

What does the 1080p@30Hz AHD output mean for my CCTV monitor?

The converter delivers full HD video at 30 frames per second over each AHD output, matching the frame rate most DVRs record at.

Which HDMI version and HDCP level does the input support?

The HDMI input follows the 1.4 standard with HDCP 1.2, so it accepts 1080p signals up to 60 Hz from compatible sources.

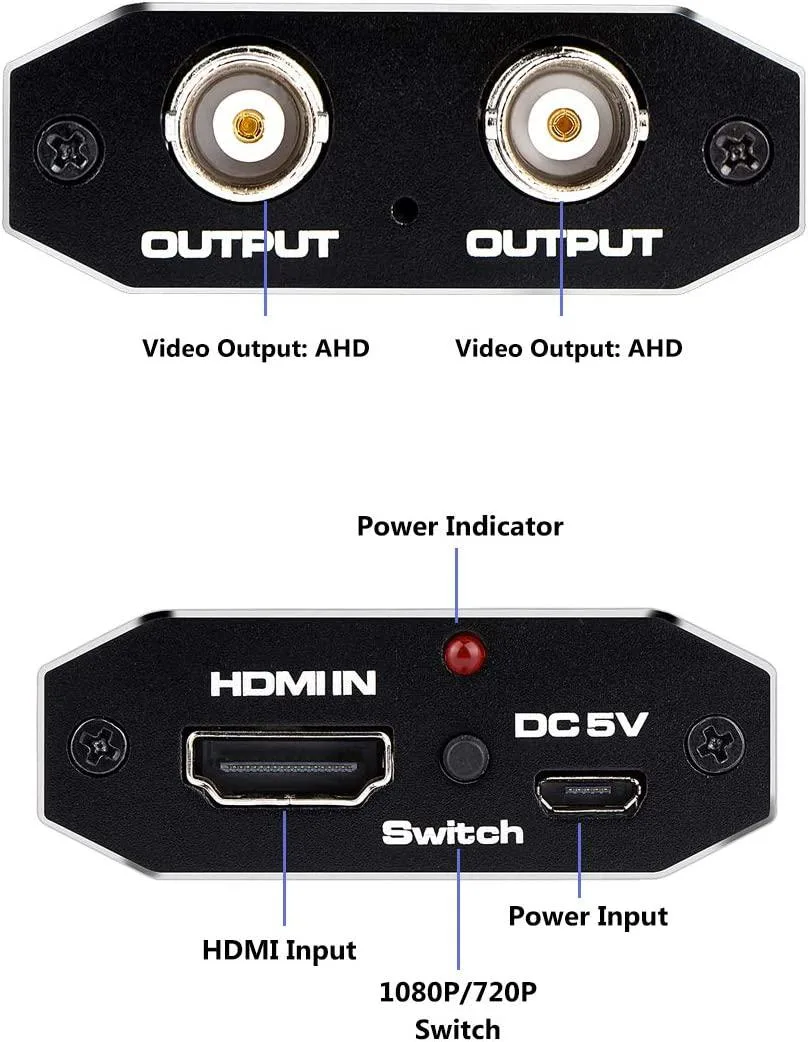

What physical connections and power does the unit need?

It requires one HDMI plug in, two BNC cables out for AHD, and the included 5V/1A power adapter.
