Small black box with HDMI ports and optical plus RCA audio outputs

Jansicotek

Jansicotek 4K HDMI Audio Extractor Standard (Black) - 4K 30Hz

SKU CH-HNR9-F9N7J

Extracts audio from an HDMI source to optical SPDIF and RCA stereo outputs while passing 4K 30 Hz video through to a display

  • Changer TypeHDMI
  • Style4K2K@30Hz
  • ColorBlack
  • OutputHDMI
  • Extracts HDMI audio to optical or RCA outputs
  • Pass-through video up to 4K at 30 Hz with 36-bit deep colour
  • Three audio modes: Pass, 2CH PCM and 5.1CH Dolby or DTS
  • LED indicators show power and active HDMI link
  • Works with consoles, streamers, Blu-ray players and PCs

Purpose and audience

This Jansicotek HDMI audio extractor splits the digital audio from an HDMI source into optical TOSLINK SPDIF and analog RCA stereo outputs while passing the original video through an HDMI output. It is built for owners of soundbars, AV receivers or amplifiers that lack HDMI inputs but need audio from Blu-ray players, consoles, streaming sticks or PCs.

Upgrade path and value

The unit replaces a direct HDMI-to-HDMI connection when the display or projector cannot send audio to an external sound system. The jump is worth it when the source device outputs 5.1-channel Dolby Digital or DTS over HDMI and the audio gear only accepts optical or RCA; it also adds 4K 30 Hz and 36-bit deep-colour pass-through that older splitters cannot handle.

Installation and common issues

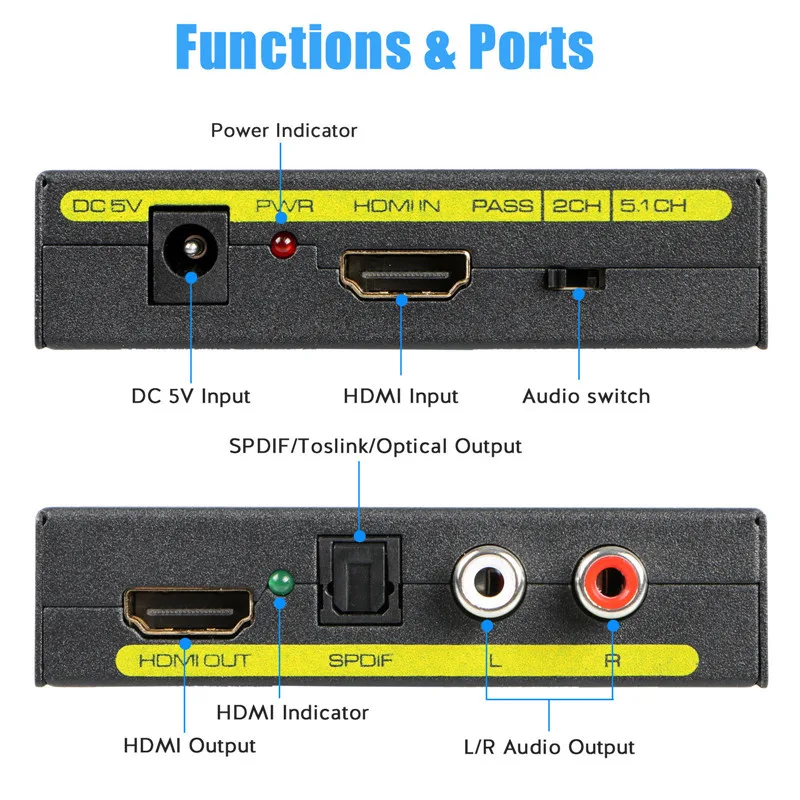

Power the extractor, connect the source to the HDMI input and the display to the HDMI output, then link optical or RCA cables to the audio system. Select PASS, 2CH or 5.1CH with the mode switch to match the receiver. The red LED confirms power and the green LED confirms a valid HDMI handshake; no green light usually means an HDCP mismatch or a cable longer than 49 ft with AWG26 wiring.

Highlights

  • Extracts HDMI audio to optical or RCA outputs
  • Pass-through video up to 4K at 30 Hz with 36-bit deep colour
  • Three audio modes: Pass, 2CH PCM and 5.1CH Dolby or DTS
  • LED indicators show power and active HDMI link
  • Works with consoles, streamers, Blu-ray players and PCs

Specifications

Changer TypeHDMI
Style4K2K@30Hz
ColorBlack
ModelStandard (Black) - 4K 30Hz
OutputHDMI

Questions about this item

What HDMI cable length does the extractor support at 4K 30Hz?

The extractor works with AWG26 standard HDMI cables up to 49 ft for 4K 30Hz signals.

How do I select the correct audio mode for my sound system?

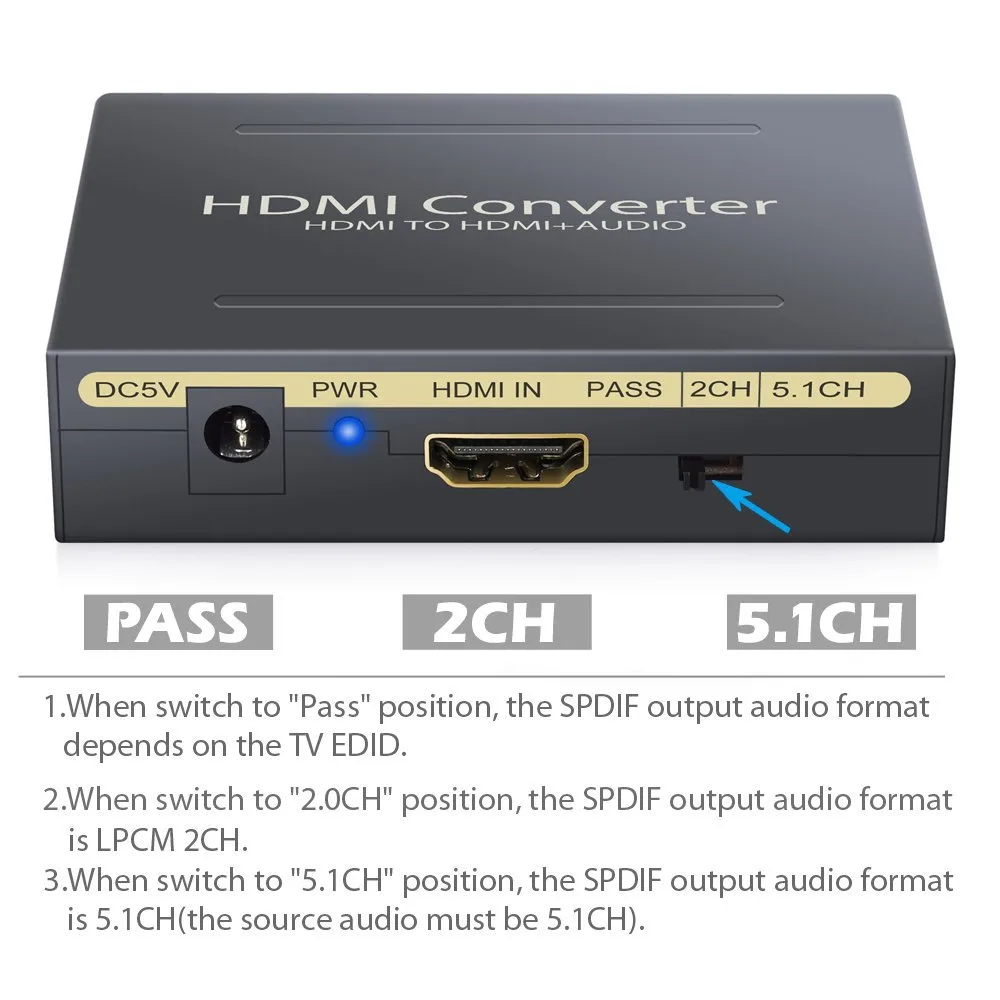

Use the PASS, 2CH or 5.1CH switch; RCA L/R outputs 2CH PCM, optical SPDIF outputs 2CH PCM, 5.1CH Dolby Digital or DTS.

Does the optical SPDIF port support Dolby Digital Plus or DTS-HD?

Optical SPDIF supports 5.1CH Dolby Digital and DTS only; Dolby Digital Plus, DTS-HD and TrueHD are not supported on that output.
