Black rectangular 4x2 HDMI matrix switch with front panel buttons and rear ports

Jansicotek

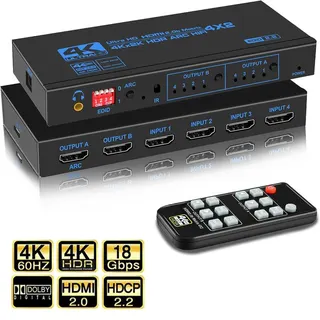

Jansicotek 4K@60Hz 4x2 HDMI Matrix Switch OZJ2-1 audio

SKU CH-X72X-KWG33

A 4x2 HDMI matrix routes four sources to two displays at 4K@60Hz with 18Gbps bandwidth, plus optical and 3.5mm audio extraction

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • MatrixYes
  • AudioYes
  • 4K 60 Hz video with 18 Gbps bandwidth
  • Automatic 4K to 1080P downscaling via scaler EDID
  • Optical and 3.5 mm audio extraction with ARC
  • HDCP 2.2 and 8/10/12-bit deep colour support
  • 16 smart EDID settings for wide device compatibility

4K@60Hz 4x2 HDMI Matrix Switch

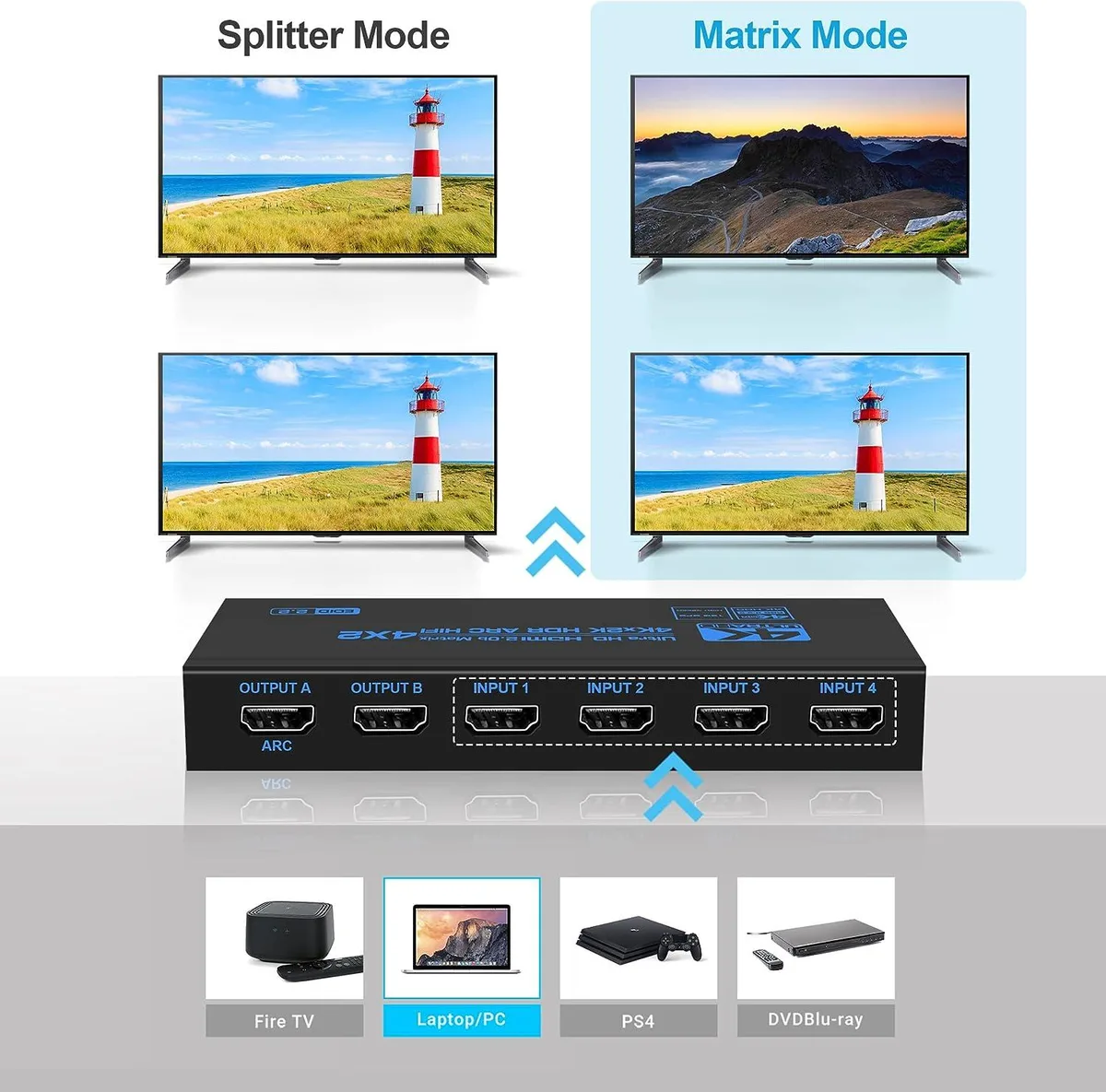

The Jansicotek OZJ2-1 is a 4x2 HDMI matrix switch that routes four HDMI sources to two displays at up to 4K@60Hz. It suits home-theatre owners, installers and small-business AV setups that need independent source selection on each screen.

HDMI 2.0b with 18Gbps bandwidth and audio extraction

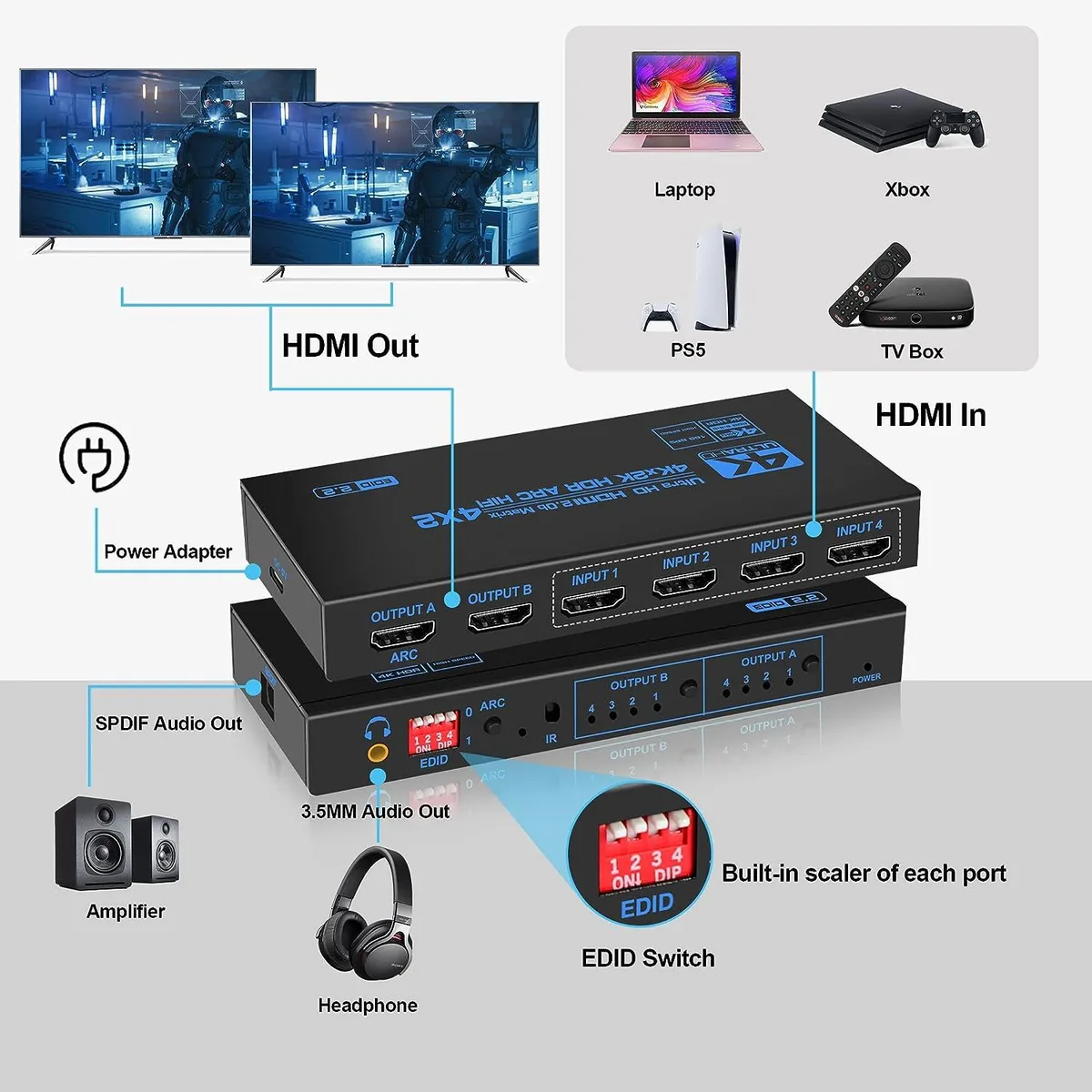

The black chassis uses HDMI 2.0b chips for 18Gbps throughput and 600MHz bandwidth, supporting 8/10/12-bit deep colour, HDCP 2.2 and HDR. Optical SPDIF and 3.5mm analogue outputs extract LPCM 2.0/5.1, DTS and Dolby Digital simultaneously, while ARC returns TV audio to an amplifier or soundbar.

Check your sources, displays

Verify that each source outputs 4K@60Hz, 1080P or 3D over HDMI and that both displays accept those resolutions. The scaler only downgrades 4K to 1080P automatically; other resolutions require manual EDID selection. Ensure your audio gear accepts optical or 3.5mm stereo input for extracted sound.

Highlights

  • 4K 60 Hz video with 18 Gbps bandwidth
  • Automatic 4K to 1080P downscaling via scaler EDID
  • Optical and 3.5 mm audio extraction with ARC
  • HDCP 2.2 and 8/10/12-bit deep colour support
  • 16 smart EDID settings for wide device compatibility

Specifications

TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
MatrixYes
AudioYes

Questions about this item

What bandwidth does the HDMI 2.0b matrix switch support?

The matrix switch handles 18Gbps transmission rate with 600MHz maximum bandwidth for 4K@60Hz signals.

How many HDMI inputs and outputs does the 4x2 matrix provide?

Four HDMI inputs connect sources and two HDMI outputs feed displays or projectors.

How do I enable simultaneous 4K and 1080P output on both displays?

Set the EDID to 0000 so the scaler automatically downscales 4K to 1080P on the second display.
